In stock
AHRI Number:210838002
GET UP TO 70% BACK
of the Total Install Cost!
iAIRE’s Solar-Powered Heat Pump Systems are an eco-friendly way to stay comfortable in your home. These heat pump systems help customers save energy, utilize green power, and help reduce their carbon footprint. iAIRE’s products do not just save you money on your electric bill, but they also qualify you for government and utility company rebates thanks to their solar-powered technology. All iAIRE products are designed and manufactured in the United States to provide cleaner air and sustainable energy.
The SEER rating on iAIRE's solar-powered condensers is much higher than the average air conditioner or heat pump. While in operation however, these efficiency ratings they boast can reach extraordinary heights. Through numerous tests, iAIRE has found that the EER ratings on their units are well over 300% higher than the standard residential unit thanks to their energy-saving variable speed compressors as well as the use of solar power. This gives us an approximated SEER rating of about 25, something incredibly unheard of for the typical split unit condenser. To showcase this, iAIRE has set up their 2 ton residential SHRPZ-24 unit in southern Florida with a server that monitors all performance data while in use. Check out the live data here at the iAIRE Solar HVAC Monitoring Site and witness the unbelievable efficiency yourself.

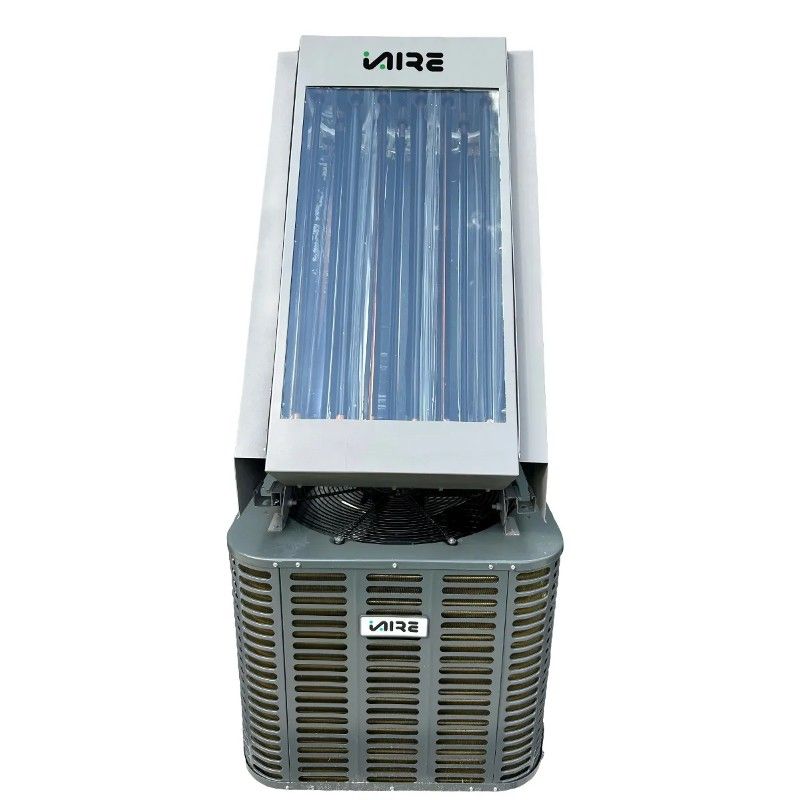

The iAIRE 2 Ton Solar Heat Pump condenser is twice as efficient as a standard residential split unit. A solar box equipped with chambers lined with specialty reflective film is mounted to the top of the condensing unit. Ambient light is converted to thermal energy which reduces the energy demand on the compressor.
iAIRE Solar Heat Pump Condensers are eligible for a 40% Federal Solar Tax Credit on normal jobs and 60% Tax Credit on low-income housing. Not only are you getting federal solar tax credits and heat pump rebates, but you are also saving the planet with Green Solar Technology. For more information on Solar Tax Credits, please see the Homeowner's Guide to the Federal Tax Credit for Solar Photovoltaics.
This Solar Heat Pump Condenser has an output of 2 tons to heat up a house with solar panels. iAIRE’s Solar HVAC technology utilizes the sun’s energy to put heat into the refrigerant. This process replaces a portion of the energy the compressor would normally put into the system from the electrical network in the building.
iAIRE offers a 10-year parts warranty and 10 year compressor warranty that will be limited to replacement parts only. Effective warranty period is 120 months from the date of shipment.
On iAIRE's Solar Heat Pump Condensers, a Variable Frequency Drive (VFD) is installed on the compressor that prevents it from cycling on and off as often as a typical standard unit. This VFD massively decreases in the inrush current when turning the condenser on and also slows the speed of the compressor to keep the system running at its normal operating pressure, causing overall compressor life expectancy to be longer.
The cabinet of iAIRE units are extremely durable and last longer than the average condenser. The solar box design uses rolled aluminum chambers with the solar film applied to the aluminum. These chambers are rolled to a dimension to concentrate the solar energy to a specific spot in the chambers.
The iAIRE 2-3 Ton Solar Air Handling Unit is twice as efficient as a standard residential air handler. The iAIRE Air Handler pairs with iAIRE's Solar Condensing Unit/Heat Pump which has a solar box mounted to the top that is equipped with chambers lined with specialty reflective film.
iAIRE Solar Air Handling units are eligible for a 40% Federal tax credit on normal jobs and 60% credit on low-income housing. Not only are you getting federal solar tax credits and heat pump rebates, but you are also saving the planet with Green Solar Technology.
This Solar Air Handling Unit has an output of 2-3 tons when paired with a solar condensing unit. iAIRE’s Solar HVAC technology utilizes the sun’s energy to put heat into the refrigerant. This process replaces a portion of the energy the compressor would normally put into the system from the electrical network in the building.
iAIRE offers a 1-year parts warranty that will be limited to replacement parts only. iAIRE products must be installed by a certified contractor. Effective warranty period is 120 months from the date of shipment.
The cabinet of iAIRE units are extremely durable and last longer than the average air handler. The iAIRE Air Handler pairs with iAIRE's Solar Condensing Unit/Heat Pump which has a solar box mounted to the top that is equipped with chambers lined with specialty reflective film.

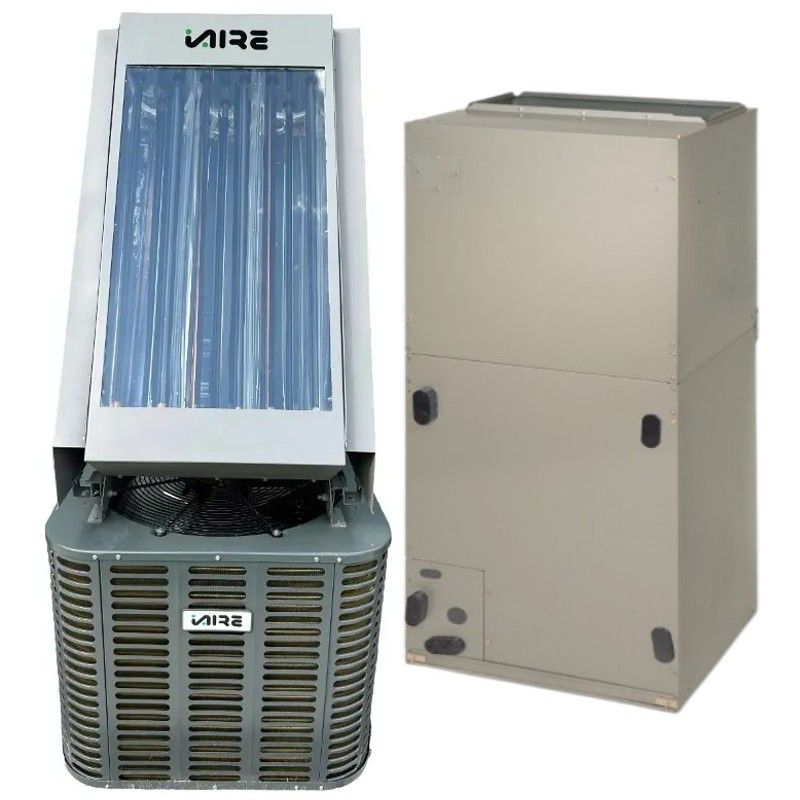

Solar Air Conditioner Heat Pump 2 Ton 208/230 V Single Phase by iAIRE | |
---|---|
SKU | SHRPZ-240G00A000-0 |
Weight (in lbs) | 262.000000 |
AHRI Certificate Number | 210838002 |
Brand/Manufacturer | iAIRE |
HSPF | 9.5 |
Cooling BTU | 24,000 |
Heating BTU | 24,000 |
Decibel Level (dBA) | 78 |
Refrigerant | R410A |
SEER1 (Efficiency) | 18 |
EER | 12.5 |
Condenser Stages | Single Stage |
Compressor Type | Rotary |
Liquid Valve Size | 3/8" |
Suction Valve Size | 3/4" |
Electrical | 208 / 230 Volts Single Phase 60 Hz |
Phase | Single Phase |
Wattage | 1920 |
Max Breaker Size | 30 amps |
Min. Breaker Size | 17.7 amps |
Tonnage | 2 Ton |
Certification | OG-100 Certified to the Solar certification on ICC901/SRCC100 |
Height | 66.21" |
Width | 29.13" |
Depth | 29.13" |
Warranty | 10 Year Compressor Warranty and 10 Year Part Warranty |
Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
Safety Information | PROPOSITION 65 WARNING |
Solar Air Handling Unit 2-3 Ton 208/230V Single Phase by iAIRE | |
SKU | AHUPZ-2436G00A000-F |
Weight (in lbs) | 150.000000 |
Brand/Manufacturer | iAIRE |
Cooling BTU | 36,000 |
Blower Motor | Variable Speed ECM Motor |
Maximum CFM | 1000 |
Horsepower | 0.5 |
Refrigerant | R410A |
Liquid Line | 3/8" |
Suction Line | 3/4" |
Electrical | 208/230 V, 1 Phase, 60 Hz |
Max Breaker Size | 15 Amps |
Fuel Type | Electric |
Height | 53 7/16" |
Width | 19 1/4" |
Depth | 21 1/8" |
Warranty | 1 - Year Parts Warranty |
Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
Safety Information | PROPOSITION 65 WARNING |
