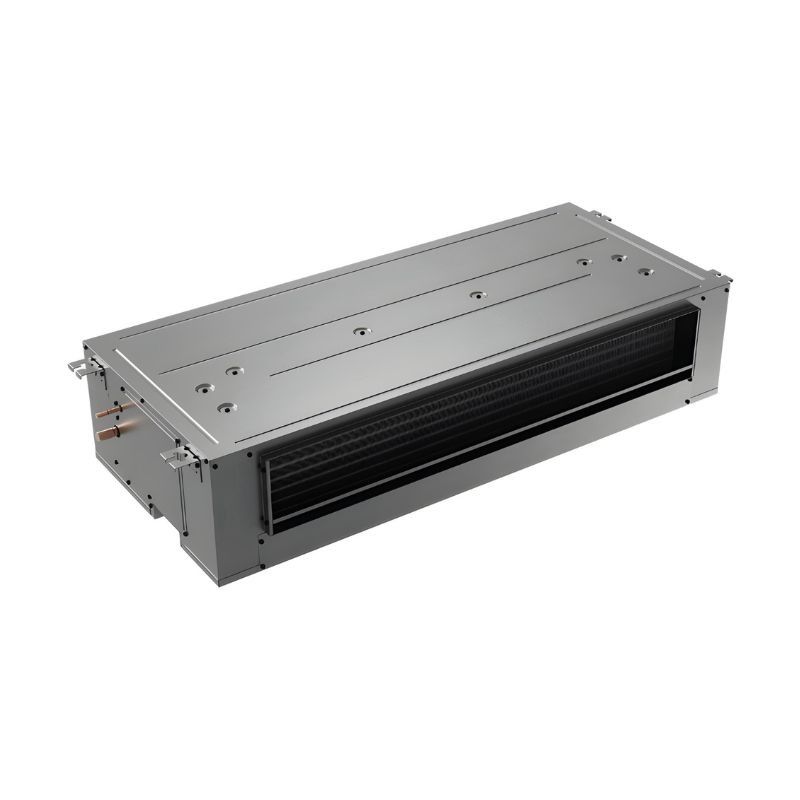

2 Ton Goodman Ceiling Mount Air Handler with 5kW Heat - R32

By

Goodman

In stock
Model

ACST24LU1305

ID

191074

Ships in 3-5 Business Days
$1,091.00

Product Features
  • Can be installed in ceiling-mounted orientation
  • Well-suited for small homes in various climates
  • Certified for use with R410A refrigerant
  • Optional electric heat kits up to 5kW available

Goodman is one of the biggest names in home heating, cooling and energy-efficient home comfort. The Goodman ACST series Ceiling Mounted Air Handler is designed for use with R-32 refrigerant and intended for homes where a traditional air handler will not fit.

Features

  • All-Aluminum tube/aluminum fin coil
  • Direct-drive, resilient-mount, multi-speed motor
  • Sequence-controlled and rust-resistant nickel chromium heating elements of 5, 6, 8 and 10 kW
  • High-efficiency evaporator coil
  • Quiet operation
  • AHRI Certified; ETL Listed
  • Primary/secondary drain connection in a high-temperature plastic drain pan
  • Suitable for free-return installation (non-ducted return air)
  • Galvanized-steel construction
  • Factory-installed pull-type disconnect
  • Easy service access
  • 10 Year Parts Warranty with online registration
More Information
2 Ton Goodman Ceiling Mount Air Handler with 5kW Heat - R32
SKUACST24LU1305
Weight (in lbs)97.000000
Brand/ManufacturerGoodman
Product FeaturesSpace-Saving
Cooling BTU24,000
Blower MotorMulti-Speed ECM
Maximum CFM934
Electric Heat5 Kilowatts
ConfigurationCeiling Mounted
RefrigerantR32
Liquid Line3/8"
Suction Line3/4"
Electrical208/230v 1 Phase 60 Hz
Max Breaker Size30 Amps/30 Amps
Min. Breaker Size28.5 Amps/25.1 Amps
Tonnage2 Ton
Height11"
Width54.2"
Depth22.27"
Warranty10 Years Parts with Online Registration
