2 Ton Wall Mounted Goodman Air Handler w/ 5kW Heat - R32

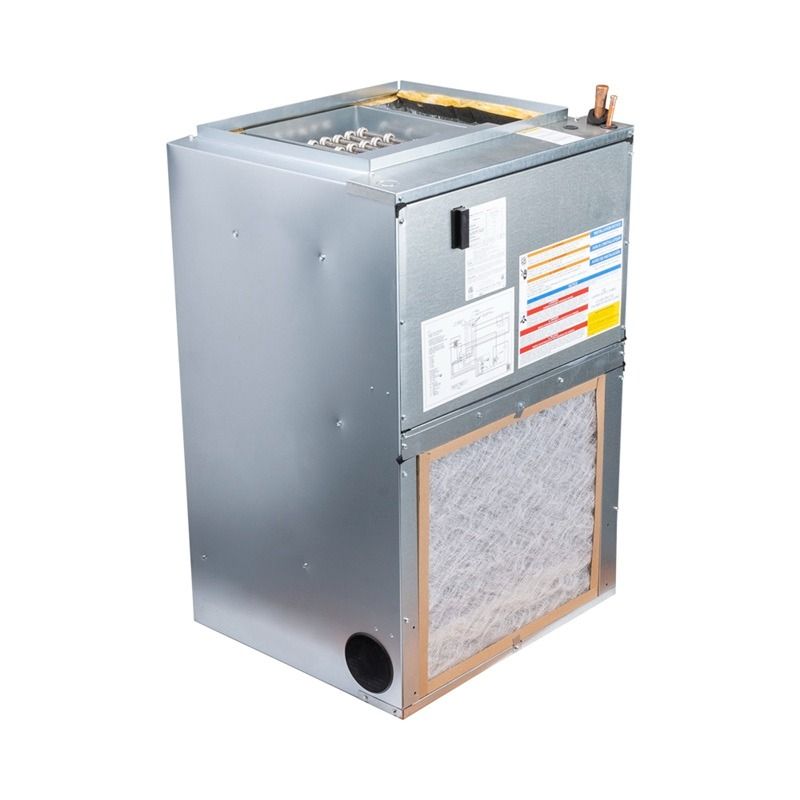

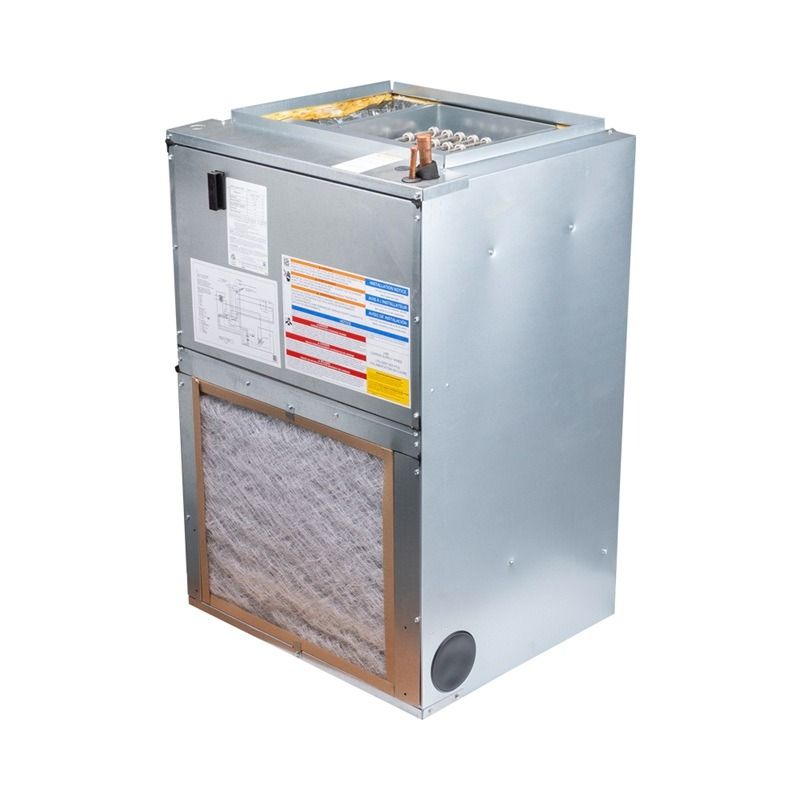

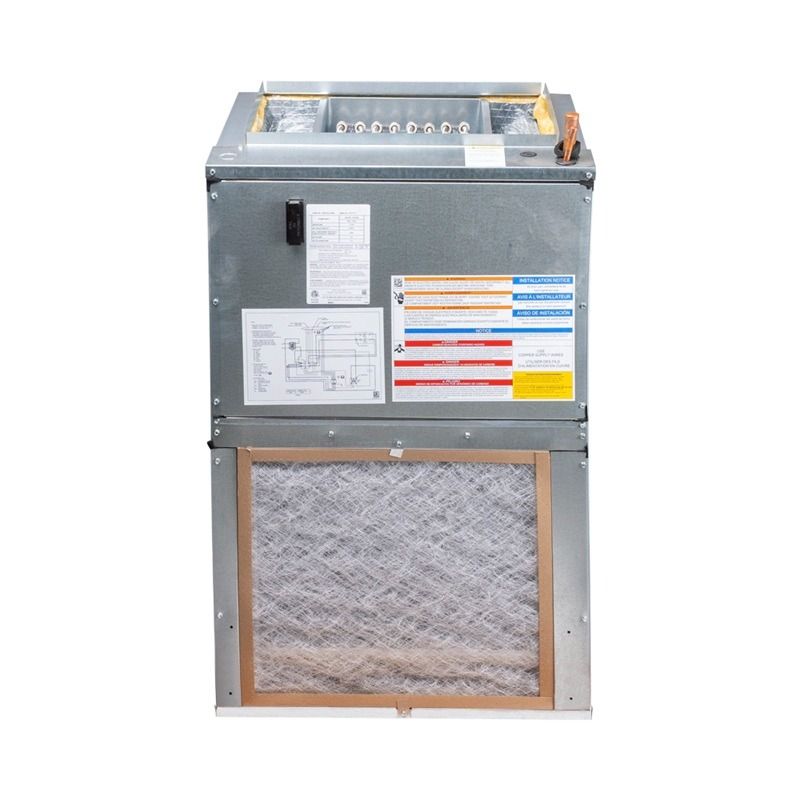

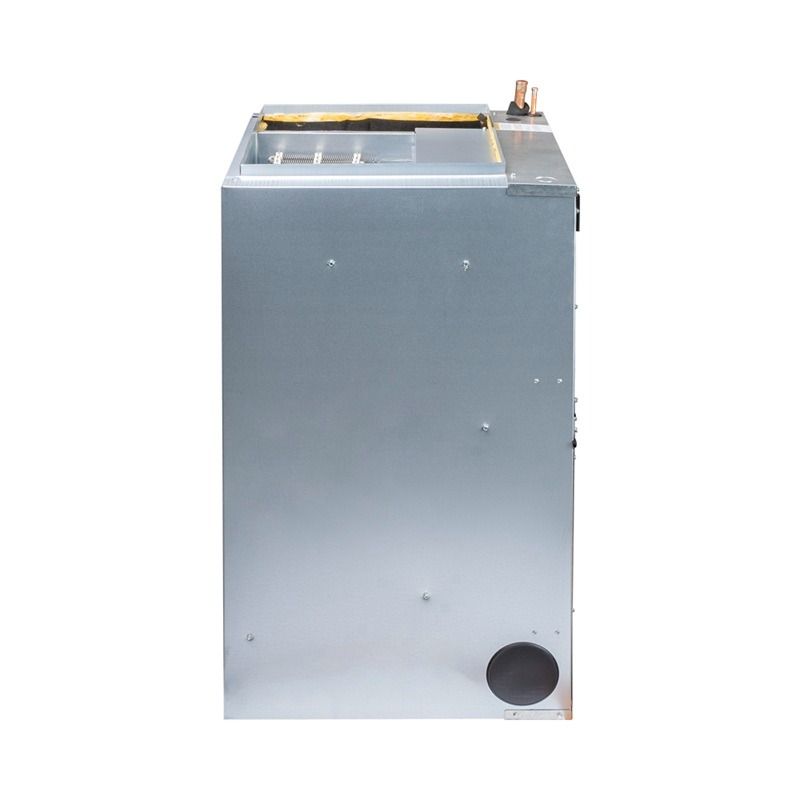

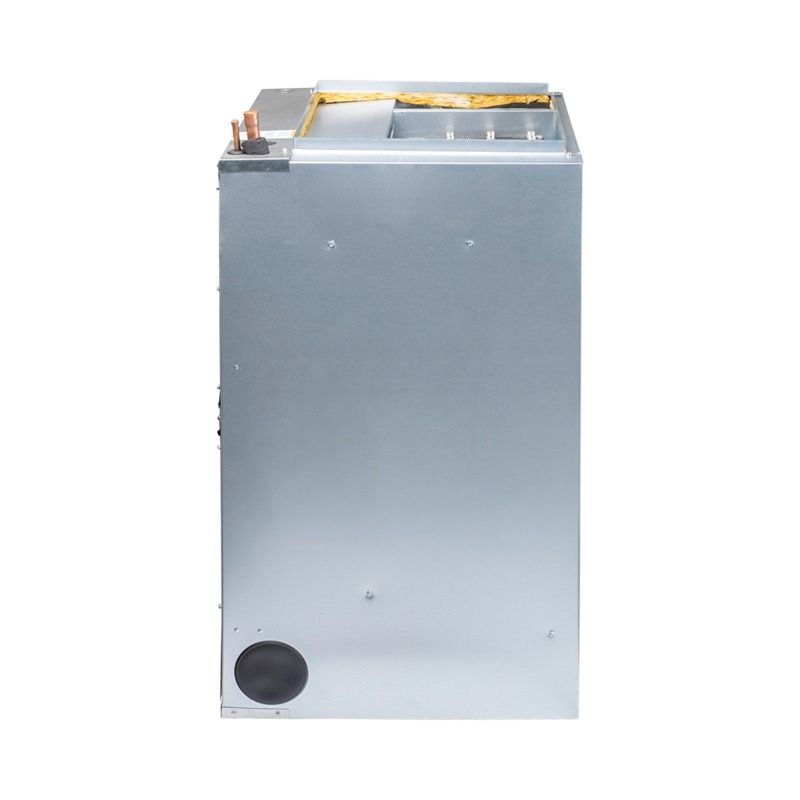

Goodman Wall-Mount Air Handler with Electric Heat
Goodman Wall-Mount Air Handler with Electric Heat Goodman Wall-Mount Air Handler Electric Heat Kit Location
SAVE $109.00
By

Goodman

In stock
Model

AWST24SU1305

ID

186685

Be the first to review this product
1 Question Answered
Ships in 3-5 Business Days
Was $1,090.00 Your Low Price Special Price $981.00

Free Shipping

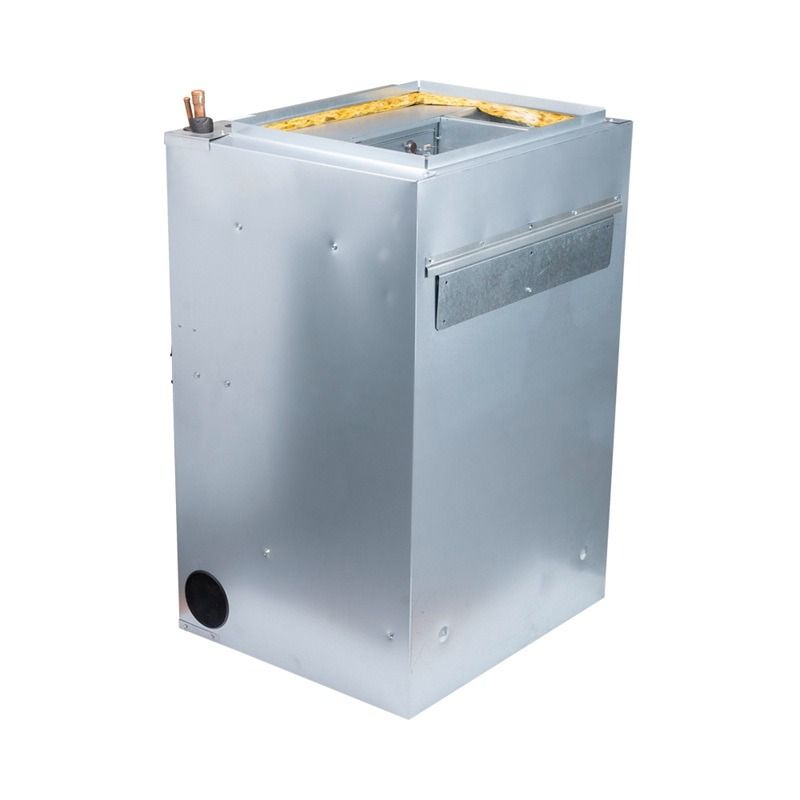

The Goodman AWST wall-mounted air handler is a space-saving alternative to traditional air handlers. Designed to be stud-mounted to a wall or installed in tight recessed spaces, this air handler comes built with a fully insulated, galvanized-steel cabinet for added durability. These air handlers are excellent options for any multi-tenant buildings, such as apartments, condos, and townhomes. With the AWST air handler, Goodman upholds its goals to bring efficiency and enhanced comfort to a cost-effective solution.

Features

  • Suitable for use with R32 refrigerant
  • Equipped with a fully adjustable TXV for cooling-only and heat pump operation
  • Direct-drive, multi-speed motor allows air volume variation for heating and cooling

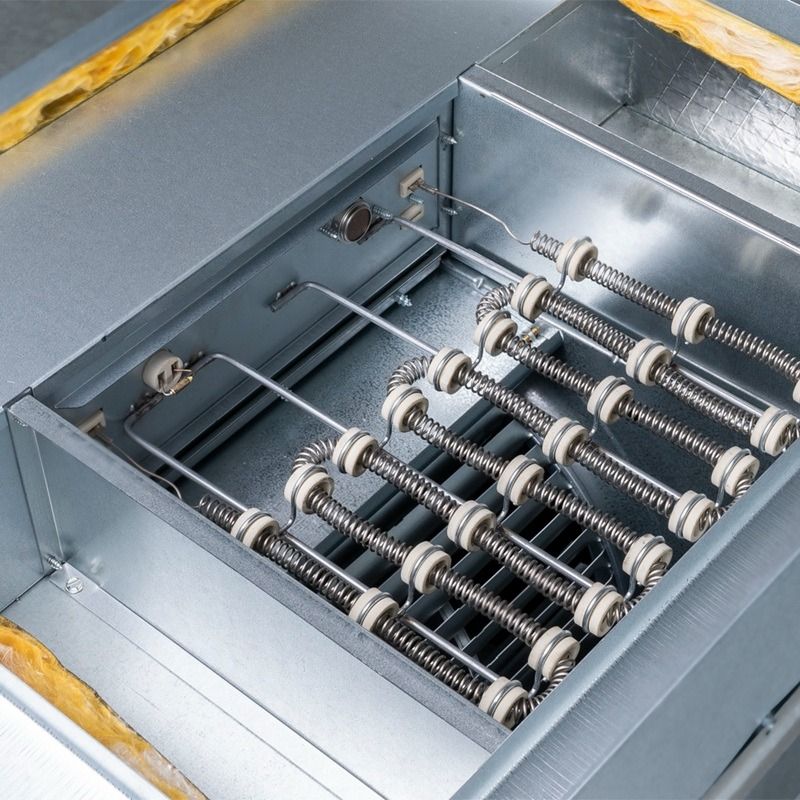

  • Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW
  • Factory-installed pull-type disconnect
  • Aluminum tube coils on all models
  • AHRI Certified
  • ETL Listed
  • Thermoplastic drain pan with bottom primary and secondary drain connections
  • Built-in filter rack (filter included)
  • Large chassis (2.5- and 3-ton units) - front return only
  • Small chassis (1.5- and 2-ton units) - front or bottom return

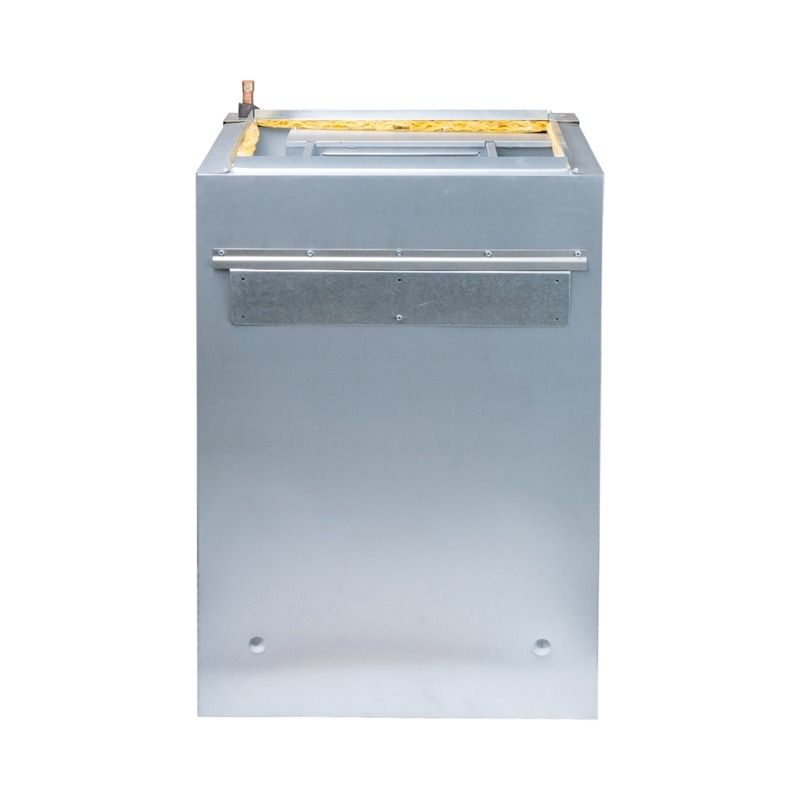

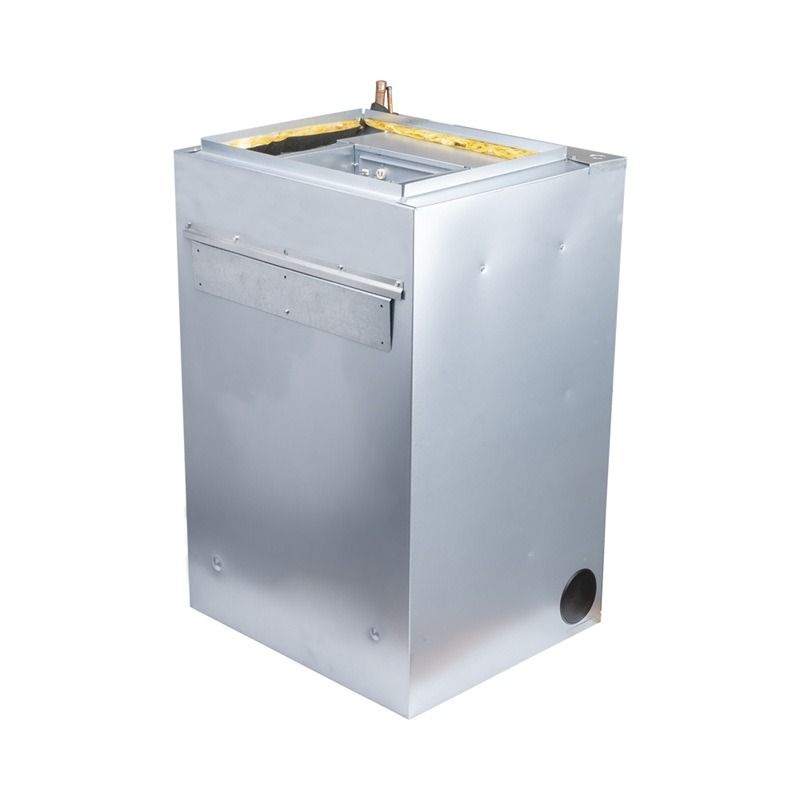

  • Wall-hanging bracket provided
More Information
2 Ton Wall Mounted Goodman Air Handler w/ 5kW Heat - R32
SKUAWST24SU1305
Weight (in lbs)84.000000
Brand/ManufacturerGoodman
Product FeaturesSpace-Saving
Additional Information14" x 18" x 1" Small Chassis Filter
Cooling BTU24,000 BTU
Blower MotorMulti Speed Direct Drive Motor
Maximum CFM846
Horsepower1/3 HP
Electric Heat5 Kilowatts
RefrigerantR32
Liquid Line3/8"
Suction Line5/8"
Electrical208/230v Single Phase 60 Hz
Max Breaker Size25/30 Amps
Min. Breaker Size24.9/28.3 Amps
Tonnage2 Ton
Fuel TypeElectric
Height36"
Width20 1/4"
Depth16 1/8"
Warranty10 Years Parts with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Write Your Own Review
You're reviewing:2 Ton Wall Mounted Goodman Air Handler w/ 5kW Heat - R32
Your Rating
Customer Questions
What outside unit matches this inside wall mounted unit?
There are three units that pair with this air handler: GLXS3BN2410, GLXS4BA2410, and GLZS4BA2410. The first two model numbers are ACs. The last one is a heat pump condenser. You can find our full assortment of condenser/wall-mount air handler systems in our Multi-Tenant Systems category (https://hvacdirect.com/heating/multi-tenant-systems.html). If you have any further questions, please call us and we will be happy to assist you.
