2 Ton Wall Mounted Goodman Air Handler w/ 8kW Heat - R32

Goodman Wall-Mount Air Handler with Electric Heat

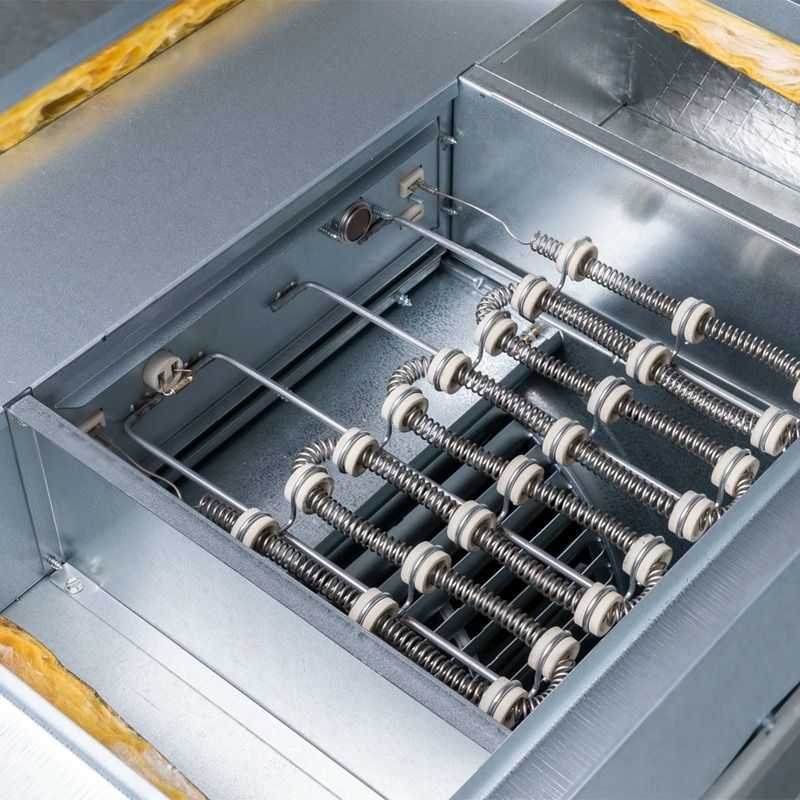

Goodman Wall-Mount Air Handler with Electric Heat Goodman Wall-Mount Air Handler Electric Heat Kit Location
By

Goodman

In stock
Model

AWST24SU1308

ID

186690

Be the first to review this product
ONLY 3 LEFT!
$1,004.00

Free Shipping

The Goodman AWST wall-mounted air handler is a space-saving alternative to traditional air handlers. Designed to be stud-mounted to a wall or installed in tight recessed spaces, this air handler comes built with a fully insulated, galvanized-steel cabinet for added durability. These air handlers are excellent options for any multi-tenant buildings, such as apartments, condos, and townhomes. With the AWST air handler, Goodman upholds its goals to bring efficiency and enhanced comfort to a cost-effective solution.

Features

  • Suitable for use with R32 refrigerant
  • Equipped with a fully adjustable TXV for cooling-only and heat pump operation
  • Direct-drive, multi-speed motor allows air volume variation for heating and cooling
  • Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW
  • Factory-installed pull-type disconnect
  • Aluminum tube coils on all models
  • AHRI Certified
  • ETL Listed
  • Thermoplastic drain pan with bottom primary and secondary drain connections
  • Built-in filter rack (filter included)
  • Large chassis (2.5- and 3-ton units) - front return only
  • Small chassis (1.5- and 2-ton units) - front or bottom return
  • Wall-hanging bracket provided
More Information
2 Ton Wall Mounted Goodman Air Handler w/ 8kW Heat - R32
SKUAWST24SU1308
Weight84.000000
Brand/ManufacturerGoodman
Product FeaturesSpace-Saving
Additional Information14" x 18" x 1" Small Chassis Filter
Cooling BTU24,000 BTU
Blower MotorMulti Speed Direct Drive Motor
Maximum CFM846
Horsepower1/3 HP
Electric Heat8 Kilowatts
RefrigerantR32
Liquid Line3/8"
Suction Line5/8"
Electrical208/230v Single Phase 60 Hz
Max Breaker Size40/45 Amps
Min. Breaker Size36.2/41.3 Amps
Tonnage2 Ton
Fuel TypeElectric
Height36"
Width20 1/4"
Depth16 1/8"
Warranty10 Years Parts with Online Registration
