AHRI Number:208650740
OVERVIEW

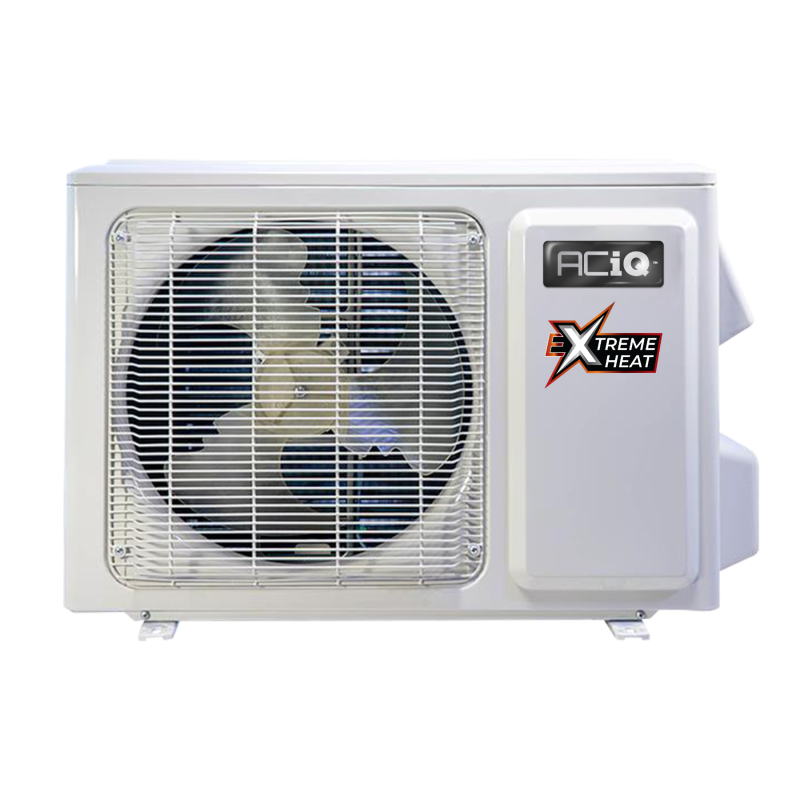

ACiQ Single Zone SC-24ZGLD-HP230 heat pump condenser has a Gen 3 variable inverter compressor for even, predictable cooling and heating without temperature swings, or noisy on and off cycling. The condenser ships with a pre-charge of eco-friendly R410a refrigerant.
QUICK FACTS
24,000 BTU, 24 SEER
A system this size is suitable for rooms up to 1,000 square feet depending on climate in your area. The SEER rating of 24 means you pay less for this amount of heating and cooling compared to systems with lower SEER values.
12 Year Warranty
ACiQ features a 12 warranty with online registration. The standard warranty on the SC-24ZGLD-HP230 is a 5-year parts and 7-year limited compressor warranty. With online registration and an installation following state and local installation codes, the warranty increases to 12 years for the compressor and 7 years for parts.
Durability and Reliability
Rugged construction, combined with an acrylic resin fin coating adds up to a long, trouble-free service life. Precision engineering is behind every ACiQ mini split system, resulting in powerful performance across a punishing range of conditions. This SC-24ZGLD-HP230 provides continuous heat even with outside temperatures down to 0 degrees Fahrenheit.
Installation and Maintenance
Every ACiQ condenser comes pre-charged with refrigerant, enough for 25’ of line set per air handler. The line set fittings are compression-type and will require evacuation prior to refrigerant release. Line set kits, including both refrigerant lines, control wire and drain hose extensions are available under Accessories on this page. ACiQ mini split heat pumps feature self-diagnosing electronics. Should the system detect a fault, error codes will display on the front of the inside unit.
Extreme Heat technology
Extreme Heat technology provides efficient heating all the way down to -22 F outdoor temperatures.
Please note: This system includes only the outdoor condenser, indoor air handlers and wall-mounted or remote thermostats (depending on model) as depicted in the photo above. Additional Accessories are required to complete the installation. Each air handler requires a separate refrigerant line set, control wire and condensation control. The condenser requires connection to household power, wired through a disconnect switch and flexible, weatherproof conduit (whip). Additional optional accessories are also available. For help configuring your system, call (888) 377-2850
Each ACiQ condenser has integrated Extreme Heat technology to maximize heat performance in extreme cold weather. Extended heat pump performance (HyperHeat) harnesses the power of inverter condenser with outdoor temp sensing, variable refrigerant flow and variable condenser fan speed to maximize heat extraction all the way down to -22°F. Plus, every Extreme Heat ACiQ condenser includes a base pan heater to keep ice from collecting on the condenser coil during heat pump operation.
Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. Register equipment at ACiQ.com to extend warranty protection to 7 years parts, 12 years compressor.
ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.
The Stealth Pinnacle Series has native Wi-Fi capability. To control via smartphone or tablet, simply download the Gree + app from the Apple Store or Google Play. You can also sync your system with Google Home or Alexa. See instructions for set-up.
The Stealth Emerald Series features a 14 warranty. The standard warranty is a 5-year part and a 7-year limited compressor warranty. With online registration and installation following state and local installation codes, the compressor warranty increases to 14 years.
The Stealth Emerald Series offers whisper-quiet operations even at the highest workloads while providing precision temperature control. It is a system that creates seamless comfort with maximum efficiency at a competitive price.
With its modern and sleek appearance, the Stealth Emerald Series effortlessly blends into any environment. Making it the perfect addition to any décor. In addition, it has state-of-the-art features such as soft LED displays, timer function, sleep mode, and energy save mode. Also, included is the I-Follow remote control location temperature sensing.
Rugged construction, combined with an acrylic resin fin coating adds up to a long, trouble-free service life. Precision engineering is behind every Stealth Series model, resulting in powerful performance across a punishing range of conditions. This Stealth Emerald provides continuous heat even with outside temperatures down to -4 degrees Fahrenheit.
Every Stealth series condenser comes pre-charged with refrigerant, enough for 25’ of line set per air handler. The line set fittings are compression-type and will require evacuation prior to refrigerant release. Line set kits, including both refrigerant lines, control wire and drain hose extensions are available under Accessories on this page. The Stealth Emerald Series features self-diagnosing electronics. Should the system detect a fault, error codes will display on the front of the inside unit.
Please note: This system includes only the outdoor condenser, indoor air handlers, and wall-mounted or remote thermostats depending on model. Additional Accessories are required to complete the installation. Each air handler requires a separate refrigerant line set, control wire, and condensation control. The condenser requires connection to household power, wired through a disconnect switch, and flexible, weatherproof conduit (whip). Additional optional accessories are also available. For help configuring your system, call (888) 397-1392.
| 24,000 BTU 24 SEER ACiQ Mini-Split Single Zone Condenser w/ Extreme Heat | |
|---|---|
| SKU | SC-24ZGLD-HP230 |
| Weight (in lbs) | 153.200000 |
| AHRI Certificate Number | 208650740 |
| Brand/Manufacturer | ACiQ |
| Additional Information | Heat Pump |
| Additional Information | Maximum Line Set Length: 82' |
| Additional Information | Minimum Line Set Length: 10' |
| Additional Information | Drain: 5/8" |
| HSPF | 10 |
| Cooling BTU | 22,000 |
| Heating BTU | 24,000 |
| Maximum CFM | 735 CFM |
| Decibel Level (dBA) | 62 dB(A) Max |
| Energy Star | Yes |
| Refrigerant | R410A |
| SEER1 (Efficiency) | 18-20 |
| EER | 13.1 |
| Compressor Type | Rotary |
| Liquid Line | 1/4" |
| Suction Line | 5/8" |
| Electrical | 208/230V 1 Phase 60 Hz |
| Phase | Single Phase |
| Max Breaker Size | 25 Amps |
| Min. Breaker Size | 16 Amps |
| Tonnage | 2 Ton |
| BTU/Tonnage | 24,000 BTU/2 Ton |
| Mini-Split Type | Wall Mounted |
| Min/Max Outdoor Temp for Heating | -22F - 86F |
| Min/Max Outdoor Temp for Cooling | -20F - 122F |
| Zone Compatibility | Single Zone |
| Height | 31.1" |
| Width | 38.6" |
| Depth | 14.5" |
| Warranty | 12 year compressor, 7 year parts with online registration |
| Resources | |
| Safety Information | PROPOSITION 65 WARNING |
