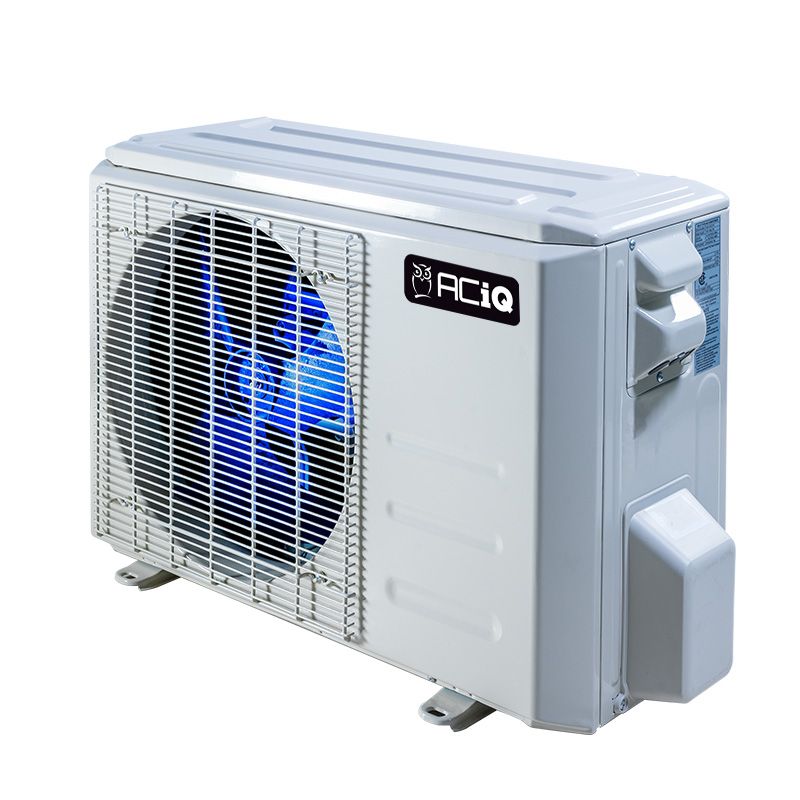

24,000 BTU ACiQ Standard Single Zone Mini Split Heat Pump Condenser - R454B | 230V

By

ACiQ

In stock
Model

ACIQ-24ZS-HP230C

ID

205308

In Stock - 30 Ready to Ship
Was $1,549.22 Your Low Price Special Price $1,006.99

Free Shipping
  • Intelligent Comfort at an Affordable Price
  • Heating & Cooling
  • Ductless Solution
  • Efficient Cooling from 5°F - 122°F Outdoor Temperatures
  • Efficient Heating from 5°F - 86°F Outdoor Temperatures
  • Single-Zone/Room Compatible

OVERVIEW

The ACIQ Single Zone series ACIQ-24ZS-HP230C heat pump condenser features inverter technology allowing for superior, adaptive performance. Whether you are in cooling or heat mode, the ACIQ-24ZS-HP230C uses as little power as possible without sacrificing comfort. That's why we say that ACIQ brings intelligence to your heating and cooling needs. NEW REFRIGERANT: R454B Model.

QUICK FACTS

  • Intelligent comfort at an affordable cost
  • Ideal for up to an average sized room (depending on climate)
  • 24,000 BTU, 23.5 SEER2 wall mounted mini split
  • Efficient cooling from 5 F to 122 F outdoor temperatures
  • Efficient heating from 5 F to 86 F outdoor temperatures
  • Gold Fin full-protection coating
  • Quiet operation at even the highest workloads

24,000 BTU, 23.5 SEER2

At a rated capacity of 24,000 BTU, the output of the ACIQ-24ZS-HP230C when paired with a matching air handler can easily cover an average sized room in ideal climates. Thanks to the unit's high-efficiency rotary compressor and an inverter-integrated motor, the ACIQ-24ZS-HP230C has an efficiency of 23.5 SEER2. With such a high system SEER2 rating, the system can heat and cool almost any space suitable for its output much more efficiently than most standard central split systems.

Please note that this model of equipment does not have quick connect line set connectors and is not a DIY unit. Installation materials such as line sets, control wire, drain hose, whip and disconnect are not included, but are available at additional cost in the Accessories section on this page.You will need a professional to add more refrigerant and vacuum the lines as needed. The automated cleaning function will clean your system, but it is recommended to periodically clean the unit's filters manually.


ACiQ Quality Construction

Quality Construction

State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life. Most models have low ambient heating and cooling.


Highest Efficiency

ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.

ACiQ Highest Efficiency

ACiQ Longer Warranty

Longer life, longer warranty

Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. Register equipment at ACiQ.com to extend warranty protection to 7 years parts, 12 years compressor.


Self Cleaning Condenser

ACiQ condensers stay clean and efficient with self-cleaning technology built right in. At the end of each cycle, the fan reverses direction and blows air out the back of the unit — helping remove leaves, dirt, and debris before buildup can begin.

More Information
24,000 BTU ACiQ Standard Single Zone Mini Split Heat Pump Condenser - R454B | 230V
FeatureSpec
SKUACIQ-24ZS-HP230C
AHRI Certificate Number216980870
Depth16.14"
HSPF210.0
SEER2 (Efficiency)23.5
Width37.24"
Height31.89"
Weight (in lbs)132.280000
Decibel Level (dBA)60
Warranty12 year compressor, 7 year parts with online registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Electrical208/230V, 1 Phase, 60 Hz
BTU/Tonnage24,000 BTU/2 Ton
Cooling BTU24,000 BTU
Energy StarYes
Heating BTU25,000 BTU
Liquid Line3/8"
RefrigerantR454B
Brand/ManufacturerACiQ
Suction Line5/8"
PhaseSingle Phase
Compressor TypeRotary
Mini Split TypeWall Mounted
Max Breaker Size25 Amps
Min. Breaker Size24 Amps
Tonnage2 Ton
Electric HeatHeat Pump
Refrigerant Charge70.55 oz.
Safety InformationPROPOSITION 65 WARNING
Zone CompatibilitySingle Zone
