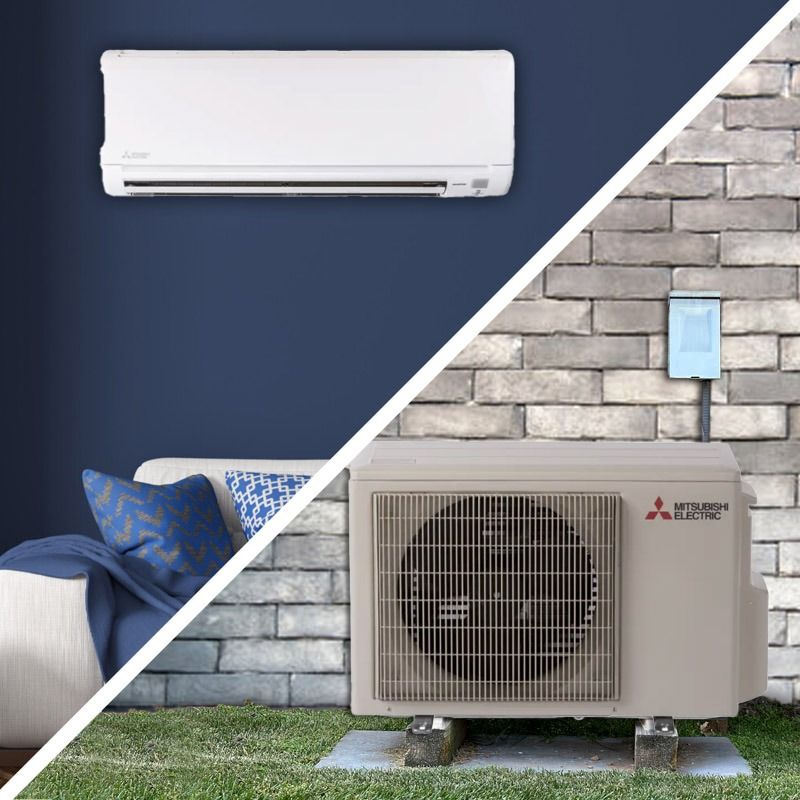

24,000 BTU Mitsubishi HM-Series 20 SEER2 Single Zone Wall Mounted Mini Split Heat Pump System - R410A

24,000 BTU Mitsubishi HM-Series 20 SEER2 Single Zone Wall Mounted Mini Split Heat Pump System - R410A | MUZ-HM24NA / MSZ-HM24NA
24,000 BTU Mitsubishi HM-Series 20 SEER2 Single Zone Wall Mounted Mini Split Heat Pump System - R410A | MUZ-HM24NA / MSZ-HM24NA 24,000 BTU Mitsubishi HM-Series 20 SEER2 Single Zone Wall Mounted Mini Split Heat Pump System - R410A | MUZ-HM24NA / MSZ-HM24NA MUZ-HM24NA MSZ-HM24NA BM101WA BM101WA BM101WA BM101WA BM101WA BM101WA 87762 EL1838-3 87762 / EL1838-3 87762 / EL1838-3 87762 / EL1838-3 MSK001 221885 366426 216748 366427 366428 ACB-30
24,000 BTU Mitsubishi HM-Series 20 SEER2 Single Zone Wall Mounted Mini Split Heat Pump System - R410A
24,000 BTU Mitsubishi HM-Series 20 SEER2 Single Zone Wall Mounted Mini Split Heat Pump System - R410A

Required Fields *

By

Mitsubishi

In stock

Model

MUZ-HM24NA / MSZ-HM24NA

ID

207051

Be the first to review this product
In Stock - 10 Ready to Ship
Was $4,037.00
Your Low Price $2,421.89

Free Shipping
Product Features
  • Single-Zone Heating and Cooling
  • Perfect for a 1000-1500 sq ft Rooms/Zones
  • All Electric R410a System
  • Ductless Solution
  • SEER2 of 20 & AHRI Certified
  • 10-Year Warranty with Online Registration
Customize 24,000 BTU Mitsubishi HM-Series 20 SEER2 Single Zone Wall Mounted Mini Split Heat Pump System - R410A
24,000 BTU Mitsubishi Single Zone Condenser - R410A
24,000 BTU Mitsubishi Single Zone Condenser - R410A
24,000 BTU Mitsubishi Single Zone Condenser - R410A   + $1,607.39
24,000 BTU Wall Mount
24,000 BTU Wall Mount
24,000 BTU Wall Mount   + $814.50
Installation Kit for Condensers
Wall Mount Bracket for Condensers 30"
Cielo Breez Max Mini Split Thermostat with WiFi
Refrigerant Line Set with 3/8" and 5/8" Line Ends - 30 feet
24,000 BTU Mitsubishi HM-Series 20 SEER2 Single Zone Wall Mounted Mini Split Heat Pump System - R410A | MUZ-HM24NA / MSZ-HM24NA

$2,421.89

24,000 BTU Mitsubishi HM-Series Single Zone Mini Split System - MSZ-HM24NA / MUZ-HM24NZ - R410A

This Mitsubishi 24,000 BTU HM-Series Single Zone Mini Split System combines the MSZ-HM24NA air handler and MUZ-HM24NZ condenser for high-capacity, energy-efficient heating and cooling. Designed for large residential or light commercial spaces, it uses inverter technology and R410A refrigerant. Ideal for spacious rooms or open floor plans.

  • 24,000 BTU single-zone mini split system
  • Features the MSZ-HM24NA indoor unit and MUZ-HM24NZ outdoor condenser
  • Uses R410A refrigerant
  • Quiet, energy-efficient inverter compressor
  • Perfect for large spaces

This HM-Series system delivers powerful, year-round comfort with Mitsubishi’s proven technology.

More Information
24,000 BTU Mitsubishi HM-Series 20 SEER2 Single Zone Wall Mounted Mini Split Heat Pump System - R410A
SKUMUZ-HM24NA / MSZ-HM24NA
AHRI Certificate Number209832269
Brand/ManufacturerMitsubishi
Cooling BTU22,500
Heating BTU26,000
RefrigerantR410A
SEER2 (Efficiency)20
Liquid Valve Size 3/8
Suction Valve Size 5/8
Electrical208/230V, 1 phase, 60Hz
BTU/Tonnage24,000 BTU/2 Ton
Mini Split TypeWall Mounted
Min/Max Outdoor Temp for Heating-4°F - 75°F
Min/Max Outdoor Temp for Cooling14°F - 115°F
Zone CompatibilitySingle Zone
Indoor Units15 + 15 + 18
Zone/Room 1 Size24k for 1,000-1,500 sq ft
Warranty10 Years with Online Registration
Safety InformationPROPOSITION 65 WARNING
24,000 BTU Mitsubishi HM-Series Single Zone Mini Split Heat Pump Condenser - R410A
SKUMUZ-HM24NA
Refrigerant ChargePre-Charged For: 25'
Weight (in lbs)121.000000
AHRI Certificate Number209832269
Brand/ManufacturerMitsubishi
HSPF210
Cooling BTU22,500
Heating BTU26,000
Decibel Level (dBA)54-55
Energy StarNo
RefrigerantR410A
CapacityDehumidification Rate: 0.19 gal/hr
SEER2 (Efficiency)20
Compressor TypeTwin Rotary
Liquid Line3/8"
Suction Line5/8"
Liquid Valve Size 3/8
Suction Valve Size 5/8
Electrical208/230V, 1 phase, 60Hz
PhaseSingle Phase
Max Breaker Size15
Min. Breaker Size14
Tonnage2 Ton
BTU/Tonnage24,000 BTU/2 Ton
Min/Max Outdoor Temp for Heating-4°F – 75°F
Min/Max Outdoor Temp for Cooling14°F – 115°F
Zone CompatibilitySingle Zone
Operating ModeCooling, Heating
Height34.63
Width33.06
Depth13
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING

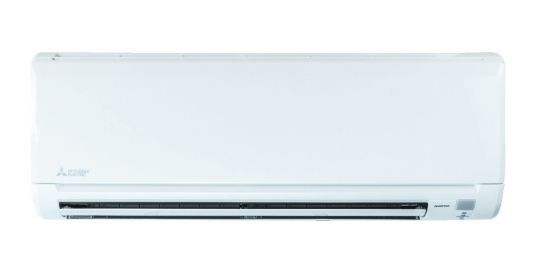

24,000 BTU Mitsubishi HM-Series Single Zone Wall Mounted Air Handler - R410A
SKUMSZ-HM24NA
Weight (in lbs)28.000000
Brand/ManufacturerMitsubishi
HSPF210
Cooling BTU22,500 BTU
Heating BTU26,000 BTU
Maximum CFM318-702
Decibel Level (dBA)32-50
RefrigerantR410A
CapacityDehumidification Rate: 0.77 gal/hr
Liquid Line3/8"
Suction Line5/8"
Electrical208/230v 1 Phase 60 Hz
PhaseSingle Phase
BTU/Tonnage24,000 BTU/2 Ton
Mini Split TypeWall Mounted
Zone CompatibilitySingle Zone
Operating ModeCooling, Heating
Height9.81
Width36.31
Depth12
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Installation Kit for Condensers - Accessory Set
SKUMSK001
Weight (in lbs)15.000000
Brand/ManufacturerOnline Supply
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
E Lite Equipment Pad 18" x 38" x 3"
SKUEL1838-3
Weight (in lbs)16.000000
Brand/ManufacturerOnline Supply
Height3"
Width18"
Depth38"
Safety InformationPROPOSITION 65 WARNING
Wall Mount Bracket for Condensers 30"
SKUACB-30
Weight (in lbs)9.200000
Brand/ManufacturerOnline Supply
Length30"
Height16"
Width2"
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Condenser Risers - 4" x 18" - 2 Pack
SKU87762
Weight (in lbs)5.000000
Brand/ManufacturerOnline Supply
E Lite Equipment Pad and Risers Kit 18" x 38" x 3"
SKU87762 / EL1838-3
Weight (in lbs)25.000000
Brand/ManufacturerOnline Supply
Height3"
Width18"
Depth38"
Safety InformationPROPOSITION 65 WARNING
Cielo Breez Max Mini Split Thermostat with WiFi
SKUBM101WA
Weight (in lbs)1.000000
Brand/ManufacturerCielo
ElectricalMicro USB with Standard Plug
Height4.25"
Width4.25"
Depth1"
Warranty1 Year Full Replacement
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 3/8" and 5/8" Line Ends - 30 feet
SKU216748
Weight (in lbs)30.000000
Brand/ManufacturerOnline Supply
Length30'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 3/8" and 5/8" Line Ends - 50 feet
SKU366428
Weight (in lbs)45.000000
Brand/ManufacturerOnline Supply
Length50'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 3/8" and 5/8" Line Ends - 25 feet
SKU366426
Weight (in lbs)25.000000
Brand/ManufacturerOnline Supply
Length25'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 3/8" and 5/8" Line Ends - 15 feet
SKU221885
Weight (in lbs)15.000000
Brand/ManufacturerOnline Supply
Length25'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 3/8" and 5/8" Line Ends - 35 feet
SKU366427
Weight (in lbs)35.000000
Brand/ManufacturerOnline Supply
Length35'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
