24,000 BTU ACiQ Essentials 21 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R454B | 230V

SAVE $732.30
24,000 BTU ACiQ Essentials 21 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R454B | 230V

Required Fields *

By

ACiQ

In stock

Model

ACiQ-K24Z-HP230B / ACiQ-K24W-W-HP230B

ID

197957

In Stock - 32 Ready to Ship
Was $2,092.29
Your Low Price $1,359.99

Free Shipping
  • Intelligent LED Display
  • Heating & Cooling
  • Ductless Solution for a 1000-1500 sq ft Room/Zone
  • Sleek Wall Mounted Design
  • Wi-Fi Enabled, Google Assistant & Amazon Alexa Compatible
  • Single-Zone/Room Compatible
  • 16ft Line Set Included
Customize 24,000 BTU ACiQ Essentials 21 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R454B | 230V
24,000 BTU ACiQ Essentials Single Zone Mini Split Heat Pump Condenser - R454B | 230V
24,000 BTU ACiQ Essentials Single Zone Mini Split Heat Pump Condenser - R454B | 230V   + $877.49
24,000 BTU ACiQ Essentials Single Zone Wall Mount Mini Split Air Handler - R454B | 230V
24,000 BTU ACiQ Essentials Single Zone Wall Mount Mini Split Air Handler - R454B | 230V   + $482.50
Equipment Pad
Installation Kit for Condensers

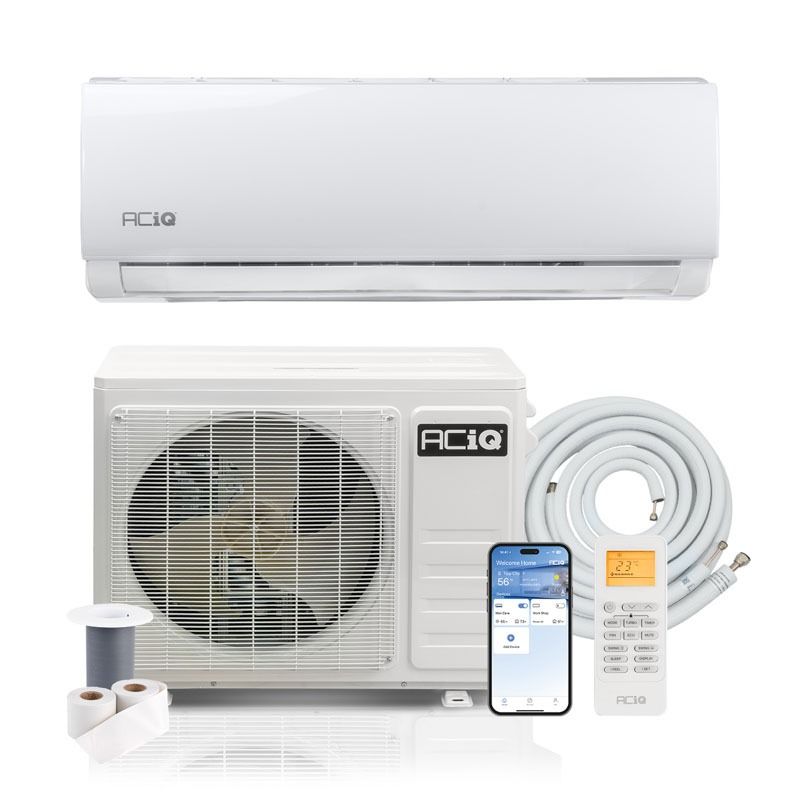

24,000 BTU ACiQ Essentials 21 SEER2 Single Zone Wall Mounted Mini Split Heat Pump System - R454B | White | 230V

$1,359.99

OVERVIEW

ACiQ is a brand designed to bring intelligence to purchasing, installing, and maintaining your home's comfort. The ACiQ-K24W-W-HP230B single zone air handler can handle smaller spaces using adaptive technology to constantly monitor and maintain your setpoint temperature as weather conditions change through day and night.

  • The ACiQ Essentials 24,000 BTU 21 SEER2 Single Zone Wall Mounted Mini Split System is the perfect solution for cooling a single room or area in your home. With its sleek design and efficient cooling capabilities, this system is sure to keep you comfortable all year round.
  • This system features WiFi connectivity, allowing you to control the temperature and settings from anywhere using your smartphone or tablet. The 21 SEER2 rating ensures energy efficiency, helping you save on your utility bills while staying cool.
  • Installation is easy with the included mounting hardware and step-by-step instructions. The ACiQ Essentials Single Zone Wall Mounted Mini Split System is designed for quiet operation, so you can enjoy a peaceful environment without any distractions. This is not a DIY system and will need to be installed by a registered HVAC Technician.

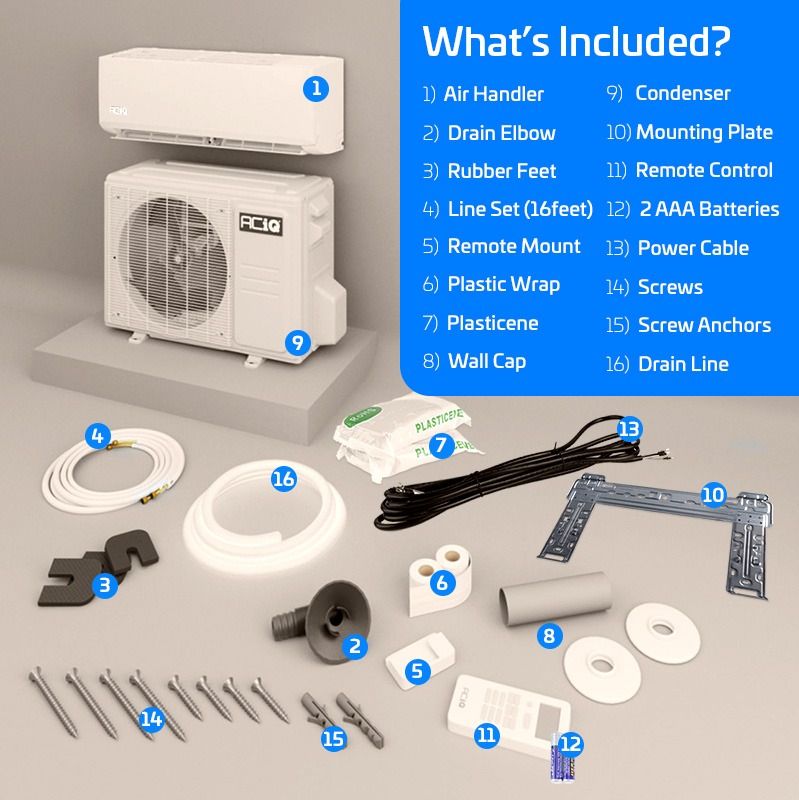

What is included in this bundle:

  • 1 ACiQ Essentials Condenser
  • 1 ACiQ Essentials Air Handler in White
  • 1 ACiQ Essentials Remote Control
  • Rubber Feet
  • Plasticene
  • Mounting Plate
  • Plastic Wrap
  • Screws (Short)
  • Drain Elbow
  • Drain Lines
  • 2 AAA Batteries
  • 16 foot Line Set (Not Precharged)
  • Wall Cap
  • Anchors
  • Power Cords
  • Screws (Long)

Upgrade your home's cooling system with the ACiQ Essentials 24,000 BTU 21 SEER2 Single Zone Wall Mounted Mini Split System and enjoy reliable, efficient cooling all year long.

The ACiQ-K24Z-HP230B / ACiQ-K24W-W-HP230B air handler is designed with a soft LED display on the front of the unit giving you information at a glance. The display shows room temperature by default but can also show temperature setpoint changes and mode changes. To ensure your unit runs properly throughout its lifetime, this display will also show any error codes from its self-diagnosing control board. The display can be switched off if desired, and the included smart remote has a built-in LCD display to show these notifications as well.

WiFi Options

ACiQ is WiFi ready! The wall mounted air handlers come with everything you need to control your home's heating and cooling via smart device (iOS or Android) from anywhere in the world. ACiQ is also compatible with Amazon Alexa and Google Assistant.

Please note that in order to function, this air handler must be installed with a condenser and other installation equipment, available at an additional cost if not already included in this product bundle.

More Information
24,000 BTU ACiQ Standard Single Zone Mini Split Heat Pump Condenser - R454B | 230V
SKUACIQ-K24Z-HP230B
Refrigerant Charge45.15 oz.
Weight (in lbs)101.400000
Brand/ManufacturerACiQ
HSPF2Region IV / V: 9.5 / 8.2
Cooling BTU24000 BTU
Heating BTU24600 BTU
Decibel Level (dBA)58 (Max)
RefrigerantR454B
SEER1 (Efficiency)21
SEER2 (Efficiency)21
Compressor TypeRotary
Liquid Line1/4"
Suction Line1/2"
Electrical208/230V, 1 Ph, 60 Hz
PhaseSingle Phase
Max Breaker SizeMOP: 25A
Min. Breaker SizeMCA: 17A
Tonnage2 Ton
System Tonnage2 Ton
BTU/Tonnage24,000 BTU/2 Ton
Min/Max Outdoor Temp for Heating-4°F ~ 86°F
Min/Max Outdoor Temp for Cooling5°F ~ 122°F
Zone CompatibilitySingle Zone

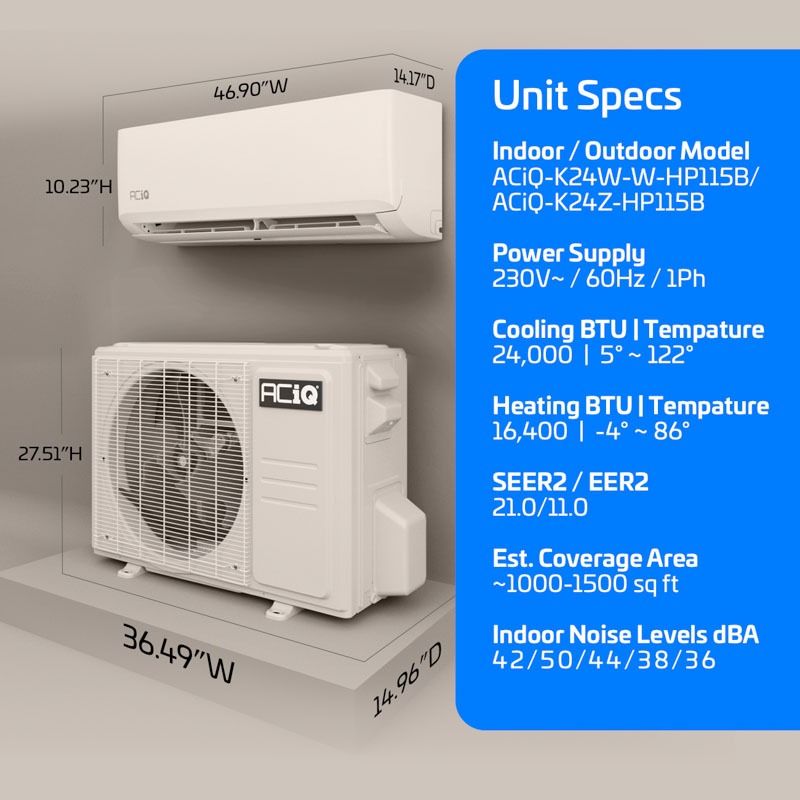

Height27.52"
Width36.50"
Depth14.96"
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
24,000 BTU ACiQ Standard Single Zone Wall Mount Mini Split Air Handler - R454B | 230V
SKUACIQ-K24W-W-HP230B
Weight (in lbs)43.000000
AHRI Certificate Number217606042
Brand/ManufacturerACiQ
ReplacesACiQ-K24W-HP230
HSPF2Region IV / V: 9.5 / 8.2
Cooling BTU24000 BTU
Heating BTU24600 BTU
Maximum CFMUp to 847 CFM
Decibel Level (dBA)As low as 36 Decibels
RefrigerantR454B
SEER1 (Efficiency)21
SEER2 (Efficiency)21
Liquid Line1/4"
Suction Line1/2"
Electrical208/230V, 1 Ph, 60 Hz
PhaseSingle Phase
Tonnage2 Ton
BTU/Tonnage24,000 BTU/2 Ton
Mini Split TypeWall Mounted
Zone CompatibilitySingle Zone
Height14.17"
Width46.89"
Depth10.16"
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
E Lite Equipment Pad 18" x 38" x 3"
SKUEL1838-3
Weight (in lbs)16.000000
Brand/ManufacturerOnline Supply
Height3"
Width18"
Depth38"
Safety InformationPROPOSITION 65 WARNING
Wall Mount Bracket for Mini Split Systems
SKUHW-600
Weight (in lbs)9.200000
Brand/ManufacturerOnline Supply
Length17"
Height20"
Width6"
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Condenser Risers - 4" x 18" - 2 Pack
SKU87762
Weight (in lbs)5.000000
Brand/ManufacturerOnline Supply
E Lite Equipment Pad and Risers Kit 18" x 38" x 3"
SKU87762 / EL1838-3
Weight (in lbs)25.000000
Brand/ManufacturerOnline Supply
Height3"
Width18"
Depth38"
Safety InformationPROPOSITION 65 WARNING
Installation Kit for Condensers - Accessory Set
SKUMSK001
Weight (in lbs)15.000000
Brand/ManufacturerOnline Supply
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Write Your Own Review
You're reviewing:24,000 BTU ACiQ Essentials 21 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R454B | 230V
Your Rating
Customer Questions
What is the minimum operating temperature?
The minimum operating temperature for this unit is 5°F for heating and 50°F for cooling, as listed in the submittal.
Did you find what you were looking for?
Why Choose ACiQ?
Why Choose ACiQ?

ACiQ designs AC systems that are based on principles learned from nature: clean, energy-efficient, and quiet. ACiQ systems are built in a such a way that they are easily adapted to fit multiple variations a homeowner needs. ACiQ offers technology in mini-split and full split inverter system offerings that provide the smartest way to buy and save on your home’s comfort solution, so that it meets the needs of your family. ACiQ specializes in home comfort, regardless of your needs.
