Mitsubishi 24,000 BTU GX-Series 20 SEER2 3 Zone Wall Mounted Mini Split Heat Pump System - R454B | 230V - 9 + 9 + 9
Required Fields *
By
Mitsubishi
In stock
Model
MXZ-3D24NL / 3-MSZ-GX09NL
ID
199908
Was $7,214.06
Your Low Price $5,771.25
Free Shipping
In Stock - Ready to Ship

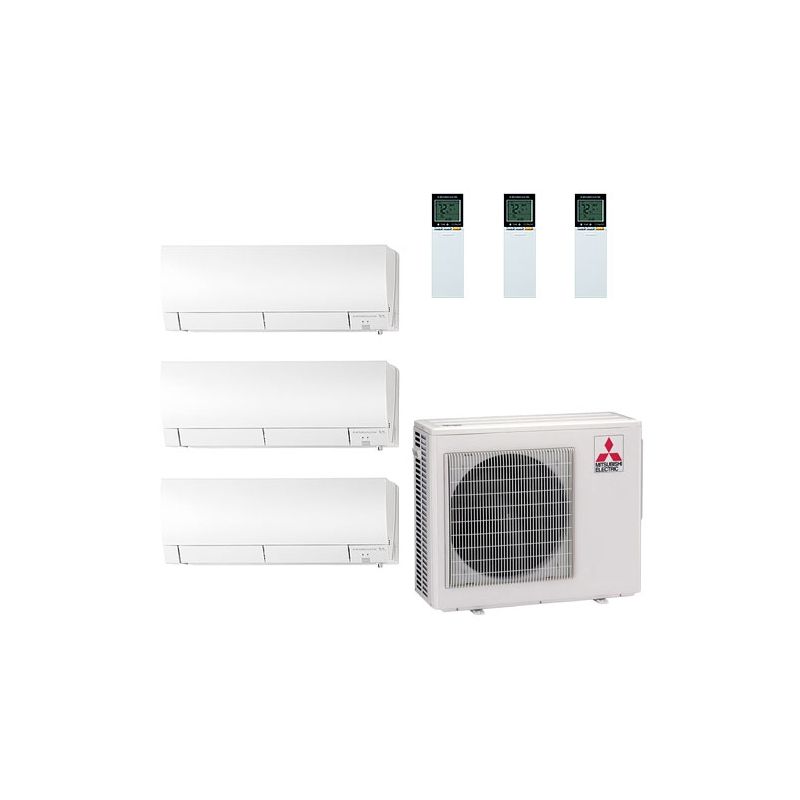

24,000 BTU Mitsubishi GX-Series 20 SEER2 Three Zone Wall Mounted Mini Split Heat Pump System - R454B | 9 + 9 + 9
The Mitsubishi GX-Series MXZ-3D24NL multi-zone mini split system delivers reliable, energy-efficient comfort for three zones, each powered by a24,000 BTU wall-mounted indoor unit. Ideal for bedrooms, living areas, and offices, this configuration is designed to evenly distribute heating and cooling throughout your space while maintaining low energy consumption. With advanced inverter technology, a SEER2 rating of up to 20.0, and eco-friendly R454B refrigerant, this system offers superior performance and environmental responsibility.
System Highlights
- Multi-Zone Capability: Accommodates three24,000 BTU wall-mounted units for targeted comfort in multiple areas.
- Energy Efficiency: Achieves up to 20.0 SEER2 and up to 10.0 HSPF2 depending on installation type.
- Low-GWP Refrigerant: Uses R454B, meeting stringent environmental standards and helping reduce carbon footprint.
- Quiet Operation: Outdoor unit operates as quietly as 51 dB(A) during cooling and 55 dB(A) during heating.
- Cold-Weather Ready: Delivers reliable heating down to 5°F outdoor ambient temperature.
Cooling Specifications
- Rated Cooling Capacity: 24,000 BTU/h
- Maximum Cooling Capacity: 24,000 BTU/h
- SEER2:
- 20.0 (Non-Ducted)
- 18.0 (Mixed)
- 16.0 (Ducted)
- EER2: Up to 13.70
- Cooling Sound Pressure: 51 dB(A)
Heating Specifications
- Rated Heating Capacity at 47°F: 24,000 BTU/h
- Maximum Heating Capacity at 47°F: 24,000 BTU/h
- Heating Capacity at 17°F: 24,000 BTU/h (Max), 24,000 BTU/h (Rated)
- Heating Capacity at 5°F: Up to 24,000 BTU/h
- HSPF2:
- 10.0 (Non-Ducted)
- 9.3 (Mixed)
- 8.6 (Ducted)
- Heating Sound Pressure: 55 dB(A)
Electrical Information
- Power Supply: 208/230V, 1 Phase, 60 Hz
- Voltage Range: 198V - 253V
- MCA (Minimum Circuit Ampacity): 28.7 A
- MOCP (Maximum Overcurrent Protection): 48 A
- SCCR: 5 kA
Compressor and Fan Details
- Compressor Type: Inverter-Driven Twin Rotary
- Compressor Model: SRB220FQYMC-L
- Oil Type / Charge: RM68EH / 20.3 oz
- Fan Motor Output: 88W
- Airflow (Cooling/Heating): 2,119 / 2,228 CFM
Outdoor Unit Specifications
- Dimensions (W x D x H): 37-11/32" x 13" x 31-11/32"
- Net Weight: 123 lbs
- Corrosion Protection: Blue Fin coating and salt-resistant base panel tested for 2,000 hours of exposure
Installation and Piping
- Maximum Total Line Length: 262.5 ft
- Maximum Vertical Separation: 49.2 ft
- Flexibility: Ideal for multi-room installations requiring precise climate control
The Mitsubishi GX-Series mini split system in the 9 + 9 + 9 BTU configuration provides robust and balanced climate control for three equally sized rooms. Its advanced inverter-driven compressor, compact outdoor unit, and quiet operation make it an excellent solution for energy-conscious homeowners and small businesses alike.
24,000 BTU Mitsubishi Multi Zone Condenser - R454B
MXZ-3D24NL - Heat Pump Outdoor Unit
The MXZ-3D24NL is a high-performance outdoor heat pump unit designed for residential and light commercial applications. It offers efficient heating and cooling capabilities, ensuring year-round comfort. Below are the key features and specifications of this model:
Key Features:
- Variable Speed INVERTER-Driven Compressor: Adjusts compressor speed to match heating or cooling demand, optimizing energy efficiency and maintaining consistent indoor temperatures.
- Quiet Operation: Operates at sound pressure levels as low as 51 dB(A) in cooling mode and 55 dB(A) in heating mode, minimizing noise disturbances.
- Blue Fin Heat Exchanger Coating: Enhances corrosion resistance, extending the unit's lifespan, especially in coastal or humid environments.
- Built-in Base Pan Heater: Prevents ice buildup in the base pan during heating operation in cold weather conditions.
- Advanced Protections: Includes high-pressure protection, fan motor overheating/voltage protection, compressor thermal protection, and compressor overcurrent detection for enhanced safety and reliability.
- Seacoast Protection: Rated for 2,000 hours of spraying time per ASTM B117 Standard, making it suitable for coastal areas.
Specifications:
- Cooling Capacity at 95°F:
- Maximum: 22,000 BTU/h
- Rated: 22,800 BTU/h (Mixed), 23,600 BTU/h (Ducted)
- Minimum: 11,600 BTU/h (Non-Ducted), 11,300 BTU/h (Mixed), 11,000 BTU/h (Ducted)
- Heating Capacity at 47°F:
- Maximum: 30,600 BTU/h
- Rated: 25,200 BTU/h (Mixed), 25,400 BTU/h (Ducted)
- Minimum: 13,200 BTU/h (Mixed), 12,800 BTU/h (Ducted)
- Heating Capacity at 17°F:
- Rated: 15,600 BTU/h (Mixed), 16,000 BTU/h (Ducted)
- Heating Capacity at 5°F:
- Maximum: 19,800 BTU/h
- Efficiency Ratings:
- SEER2: 20
- EER2: 13.7
- HSPF2: 10
- Electrical Requirements:
- Power Supply: 208/230 V AC, Single-phase, 60 Hz
- Guaranteed Voltage Range: 198 - 253 V AC
- Voltage (Indoor to Outdoor, S1-S2): 208/230 V AC
- Voltage (Indoor to Outdoor, S2-S3): 24 V DC
- Recommended Wire Size (Indoor to Outdoor): AWG 14
- Short-circuit Current Rating (SCCR): 5 kA
- Minimum Circuit Ampacity (MCA): 28.7 A
- Maximum Overcurrent Protection (MOCP): 48 A
- Fan Motor:
- Full Load Amperage: 1.74 A
- Output: 88 W
- Airflow Rate: 2,119 CFM (Cooling), 2,228 CFM (Heating)
- Unit Dimensions:
- Width: 37-11/32 inches
- Depth: 13 inches
- Height: 31-11/32 inches
- Weight: 137 lbs
The MXZ-3D24NL is ideal for applications requiring efficient heating and cooling performance. Its advanced features ensure reliable operation and enhanced comfort throughout the year.
9,000 BTU Mitsubishi GX-Series Wall Mount Mini Split Air Handler - R454B
MSZ-GX09NL Air Handler Overview
The MSZ-GX09NL air handler provides efficient and reliable heating and cooling for residential and light commercial spaces. Designed for consistent indoor comfort, it delivers quiet operation, improved air quality, and user-friendly controls. Its compact and durable design allows for flexible installation in a variety of environments.
Key Features
- Energy-Efficient Operation: The MSZ-GX09NL is designed to optimize energy use while maintaining consistent indoor temperatures and comfort, helping reduce electricity costs.
- Quiet Performance: Engineered for minimal noise, this air handler ensures a peaceful indoor environment, suitable for bedrooms, offices, or other quiet spaces.
- Compact and Modern Design: The sleek, space-saving design allows the unit to integrate seamlessly into both residential and commercial interiors, maximizing usable space.
- Enhanced Air Quality: Equipped with a high-performance filtration system, the MSZ-GX09NL helps remove dust, allergens, and other airborne particles, promoting a healthier indoor environment.
- Durable Construction: With corrosion-resistant materials, the unit is built for long-lasting reliability even in humid or challenging conditions.
Specifications
- Cooling Capacity: 9,000 BTU/h
- Heating Capacity: 10,900 BTU/h
- Power Supply: 208-230V, 60Hz, 1-phase
- Dimensions: 31-1/2" (W) x 11-5/8" (H) x 25-1/4" (D)
- Weight: 24 lbs
Advanced Features and Benefits
- Remote Control: Easily adjust temperature, fan speed, and operation modes from anywhere in the room using the included remote.
- Auto Restart Function: After a power interruption, the air handler automatically restores previous settings to maintain uninterrupted comfort.
- Self-Diagnosis System: Detects issues and displays error codes for easier troubleshooting, reducing downtime and service calls.
- Washable Filters: Filters can be removed and cleaned easily to maintain efficient performance and improve indoor air quality.
Installation and Maintenance
- Flexible Installation: Compact design allows for versatile placement in homes, apartments, and light commercial spaces, even in tight or hard-to-reach areas.
- Low Maintenance: Regular cleaning of washable filters ensures optimal airflow and performance, reducing the need for frequent maintenance.
Applications
- Residential Use: Ideal for small to medium-sized homes, apartments, or individual rooms, offering quiet and efficient climate control.
- Light Commercial Use: Suitable for small offices, retail spaces, or server rooms where reliable and efficient heating and cooling are required.
In summary, the MSZ-GX09NL air handler delivers quiet, energy-efficient operation with improved air quality and durable construction. Its compact design, ease of installation, and low maintenance requirements make it an excellent choice for residential and light commercial HVAC applications.
15 feet - 1/4" and 3/8" Line Set
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Installation Kit for Condensers
4Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.
Key Features:
✔ All-in-One Kit: Includes key accessories for a professional-grade installation.
✔ Enhanced System Protection: Features a surge protector and disconnect safety switch for added safety.
✔ Reliable Electrical Connections: Comes with a whip and charging adapter to ensure proper power supply.
✔ Secure Wall Penetration: Telescoping wall sleeve protects and stabilizes refrigerant and electrical lines.
✔ HVAC Professional Recommended: Ideal for new installations and system replacements.
What’s Included:
- 3/4" x 6' Electrical Whip – SKU: 84138
- 60A Non-Fused Disconnect – SKU: 83335
- Surge Protector – SKU: ICM517
- CPS Charging Adapter – SKU: 87-AD87
- Telescoping Wall Sleeve – SKU: NFP-75
Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!
Equipment Pad and Risers Kit
E Lite Condenser Pad and Risers
E Lite Condenser Pad
E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.
Key Features:
- Reliable Support: Abundance of ridges for stable ground support.
- Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
- Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
- Simple Appearance: Gray color with size labels.
- Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.
E Lite Risers
E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.
Key Features:
- Weather Resistance: Made from tough PVC for long-lasting performance.
- Secure Setup: The track securely holds bolts in place.
- Bolts Included: Each set comes with two bolts.
- Strong Support: Capable of handling loads of up to 397 pounds.
E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.
No Return Policy
All sales of this product are final and are non-refundable.
Mitsubishi MHK2 Wireless Remote Controller
The Mitsubishi MHK2 is the second revision of Mitsubishi's most popular wireless controller set, now available for M & P Series residential and light commercial units. This controller offers in-depth 7-day scheduling and an easy to read, backlit display.
The updated MHK2 can now be used in tandem with the Kumo Cloud wi-fi adapter, sold separately. No longer do you have to choose between internet and wireless control: you can use both!
The MRCH2 is the main body of the thermostat. This can be placed anywhere within 200 feet of the indoor unit and does not require line of sight. The ;MRC2 cable will connect to the CN105 connector on the indoor unit's control board. The other end of this cable will connect to the MIFH2 receiver. The MIFH2 should be placed on the right side of a wall mounted unit, in the pocket of a MLZ-KP cassette, or anywhere near the control side of a ducted or square cassette unit.
Features:
- Includes MRCH2 thermostat, MIFH2 wireless receiver, and MRC2 cable
- Backlit display
- Can sense temperature at indoor unit (default) or at controller
- Fahrenheit °F / Celsius °C
- No batteries required
- Single zone compatible
- Multi zone compatible
- English, French, Spanish
Compatible Indoor Units:
Wall Mounted
- GL Series: MSZ-GL06NA-U1, MSZ-GL09NA-U1, MSZ-GL12NA-U1, MSZ-GL15NA-U1, MSZ-GL18NA-U1, MSZ-GL24NA-U1, MSY-GL09NA-U1, MSY-GL12NA-U1, MSY-GL15NA-U1, MSY-GL18NA-U1, MSY-GL24NA-U1
- FH Series: MSZ-FH06NA, MSZ-FH09NA, MSZ-FH12NA, MSZ-FH15NA, MSZ-FH18NA2
- EF Series: MSZ-EF09NAB-U1, MSZ-EF09NAS-U1, MSZ-EF09NAW-U1, MSZ-EF12NAB-U1, MSZ-EF12NAS-U1, MSZ-EF12NAW-U1, MSZ-EF15NAB-U1, MSZ-EF15NAS-U1, MSZ-EF15NAW-U1, MSZ-EF18NAB-U1, MSZ-EF18NAS-U1, MSZ-EF18NAW-U1
- JP Series: MSZ-JP09WA-U1, MSZ-JP12WA-U1
- WR Series: MSZ-WR09NA-U1, MSZ-WR12NA-U1, MSZ-WR18NA-U1, MSZ-WR24NA-U1
- D Series: MSZ-D30NA-8, MSZ-D36NA-8, MSY-D30NA-8, MSY-D36NA-8
- P Series: PKA-A12HA7, PKA-A18HA7,PKA-A24KA7, PKA-A30KA7, PKA-A36KA7
Ducted
- KD Series: SEZ-KD09NA4R1.TH, SEZ-KD12NA4R1.TH, SEZ-KD15NA4R1.TH, SEZ-KD18NA4R1.TH
- P Series: PEAD-A09AA7, PEAD-A12AA7, PEAD-A15AA7, PEAD-A18AA7, PEAD-A24AA7, PEAD-A30AA7, PEAD-A36AA7, PEAD-A42AA7
Ceiling Cassette
- KF Series: SLZ-KF09NA, SLZ-KF12NA, SLZ-KF15NA, SLZ-KF18NA
- KP Series: MLZ-KP09NA, MLZ-KP12NA, MLZ-KP18NA
- P Series: PLA-A12EA7, PLA-A18EA7, PLA-A24EA7, PLA-A30EA7, PLA-A36EA7, PLA-A42EA7
Floor Mounted
- MFZ-KJ09NA-U1, MFZ-KJ12NA-U1, MFZ-KJ15NA-U1, MFZ-KJ18NA-U1
Multi Position Air Handler
- KP: SVZ-KP12NA, SVZ-KP18NA, SVZ-KP24NA, SVZ-KP30NA, SVZ-KP36NA
- P Series: PVA-A12AA7, PVA-A18AA7, PVA-A24AA7, PVA-A30AA7, PVA-A36AA7, PVA-A42AA7
Ceiling Suspended
- P Series: PCA-A24KA7, PCA-A30KA7, PCA-A36KA7, PCA-A42KA7
35 feet - 1/4" and 3/8" Line Set
This insulated refrigerant line set for mini split systems comes as a pair, including both the liquid line and suction line. It is used to connect the indoor air handler to the outdoor condenser. The line set is 35’ feet long. The liquid line has 1/4 inch outside diameter flared ends. The suction line has 3/8 inch outside diameter flared ends.
Features:
- Insulated
- Flared Line Ends
- Heavy Duty Refrigerant Lines
Equipment Pad
E Liteis a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.
- High recycled plastic content
- Subtle texture resists unit slide
- Unaffected by UV or weather
- Uniform ribbing transfers load evenly
- Drillable for securing unit
- Lightweight, yet rugged
No Return Policy
All sales of this product are final and are non-refundable.
50 feet - 1/4" and 3/8" Line Set
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Condenser Risers - 4" x 18" - 2 Pack
Provides simple and secure mounting for small and large piping systems, ductwork runs, cable trays and smaller equipment such as condensers. Linear track offers adjustable mounting. Manufactured from exterior grade materials.
Features
- Ideal for piping, duct runs, cable trays and condensers
- Weather resistant PVC
- Linear track holds 3/8" hex head bolts
- Two 7/8" long bolts included
- Weighs up to 397 Ib
25 feet - 1/4" and 3/8" Line Set
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
17" Wall Mount Bracket for Mini Split Systems
This wall mount bracket is perfect for outdoor mini split condensers. The length of the the wall bracket arms are 17” long. The condensing unit is mounted onto the L-shaped brackets and fastened using the bolts and anti-vibration washers provided.
Features:- 17” Arm Length
- Weight capacity of 220 lbs per arm
- Bolts and anti-vibration washers included
No Return Policy
All sales of this product are final and are non-refundable.
30 feet - 1/4" and 3/8" Line Set
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Write Your Own Review
Customer Questions
Why Choose Mitsubishi Mini Splits?
Mitsubishi mini split air conditioners and heat pumps provide exceptional comfort, energy efficiency, and ultra-quiet performance in any climate. Engineered for reliability and precision, these systems offer year-round heating and cooling while reducing energy costs and enhancing indoor air quality.
