Mitsubishi 24,000 BTU HX-Series 20 SEER2 Single Zone Wall Mount Mini Split Heat Pump System – R454B | 230V

Mitsubishi 24,000 BTU HX-Series 20 SEER2 Single Zone Wall Mount Mini Split Heat Pump System – R454B | 230V - MUZ-HX24NL / MSZ-HX24NL
Mitsubishi 24,000 BTU HX-Series 20 SEER2 Single Zone Wall Mount Mini Split Heat Pump System – R454B | 230V - MUZ-HX24NL / MSZ-HX24NL Mitsubishi 24,000 BTU HX-Series 20 SEER2 Single Zone Wall Mount Mini Split Heat Pump System – R454B | 230V - MUZ-HX24NL / MSZ-HX24NL Mitsubishi 24,000 BTU HX-Series 20 SEER2 Single Zone Wall Mount Mini Split Heat Pump System – R454B | 230V - MUZ-HX24NL / MSZ-HX24NL Mitsubishi 24,000 BTU HX-Series 20 SEER2 Single Zone Wall Mount Mini Split Heat Pump System – R454B | 230V - MUZ-HX24NL / MSZ-HX24NL Mitsubishi 24,000 BTU HX-Series 20 SEER2 Single Zone Wall Mount Mini Split Heat Pump System – R454B | 230V - MUZ-HX24NL / MSZ-HX24NL Mitsubishi 24,000 BTU HX-Series 20 SEER2 Single Zone Wall Mount Mini Split Heat Pump System – R454B | 230V - MUZ-HX24NL / MSZ-HX24NL Mitsubishi 24,000 BTU HX-Series 20 SEER2 Single Zone Wall Mount Mini Split Heat Pump System – R454B | 230V - MUZ-HX24NL / MSZ-HX24NL Mitsubishi 24,000 BTU HX-Series 20 SEER2 Single Zone Wall Mount Mini Split Heat Pump System – R454B | 230V - MUZ-HX24NL / MSZ-HX24NL Mitsubishi 24,000 BTU HX-Series 20 SEER2 Single Zone Wall Mount Mini Split Heat Pump System – R454B | 230V - MUZ-HX24NL / MSZ-HX24NL MUZ-HX24NL MUZ-HX24NL MUZ-HX24NL MSZ-HX24NL MSZ-HX24NL 201814 / CW-144-15 366400 / CW-144-25 216741 / CW-144-30 366401 / CW-144-35 366402 / CW-144-50 87762 / EL1838-3 87762 / EL1838-3 87762 / EL1838-3 230-B2L MSK001 MHK2 MHK2 230-B2L MHK2 MHK2

Required Fields *

By

Mitsubishi

In stock

Model

MUZ-HX24NL / MSZ-HX24NL

ID

199126

Rating:
4.5
4.5 3  Reviews Add Your Review
Was $3,699.38
Your Low Price $2,959.50
In Stock - Ready to Ship
Free Shipping

Customize Mitsubishi 24,000 BTU HX-Series 20 SEER2 Single Zone Wall Mount Mini Split Heat Pump System – R454B | 230V

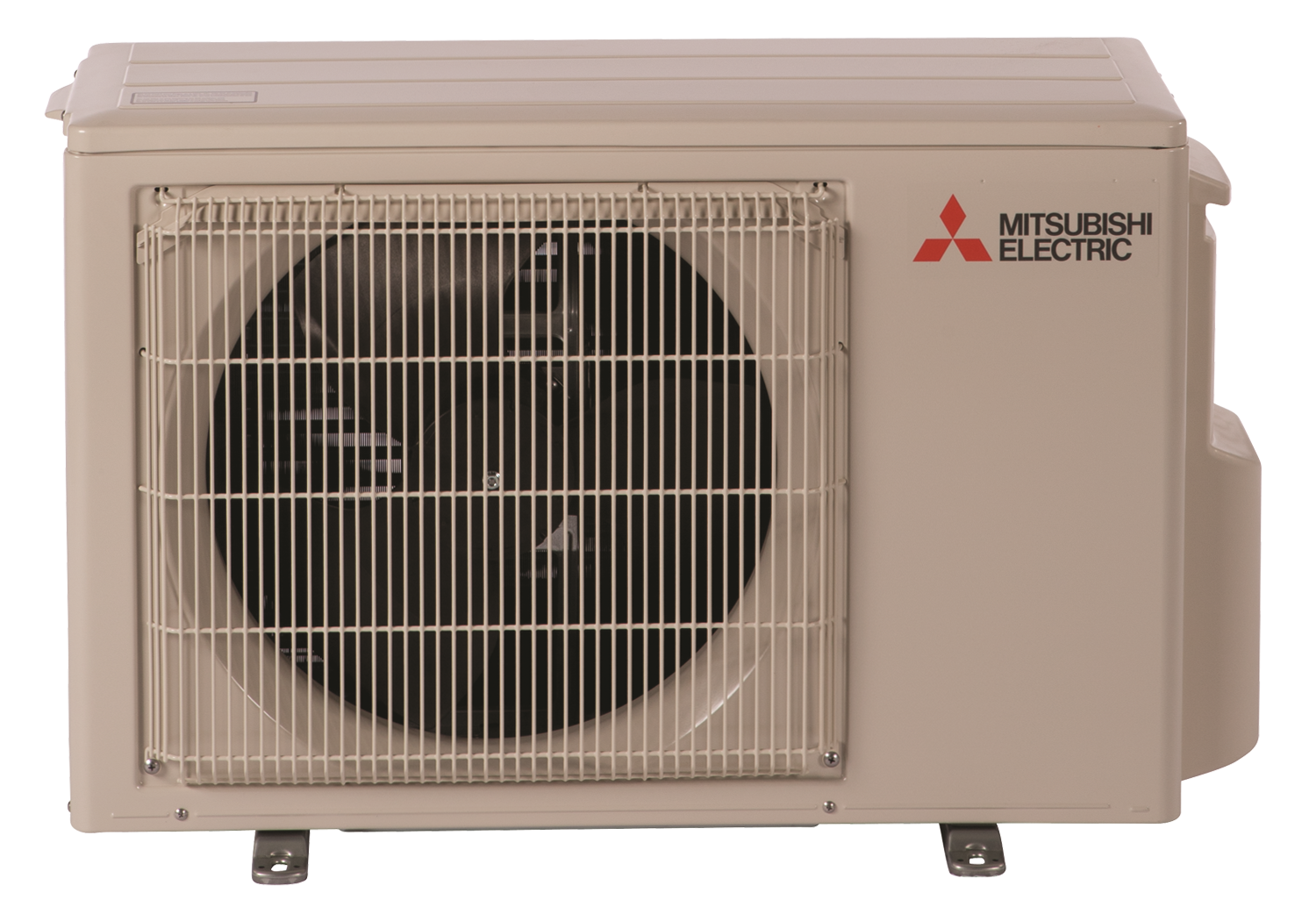

24,000 BTU Mitsubishi Single Zone Condenser - R454B
24,000 BTU Mitsubishi Single Zone Condenser - R454B
24,000 BTU Mitsubishi Single Zone Condenser - R454B   + $1,990.50

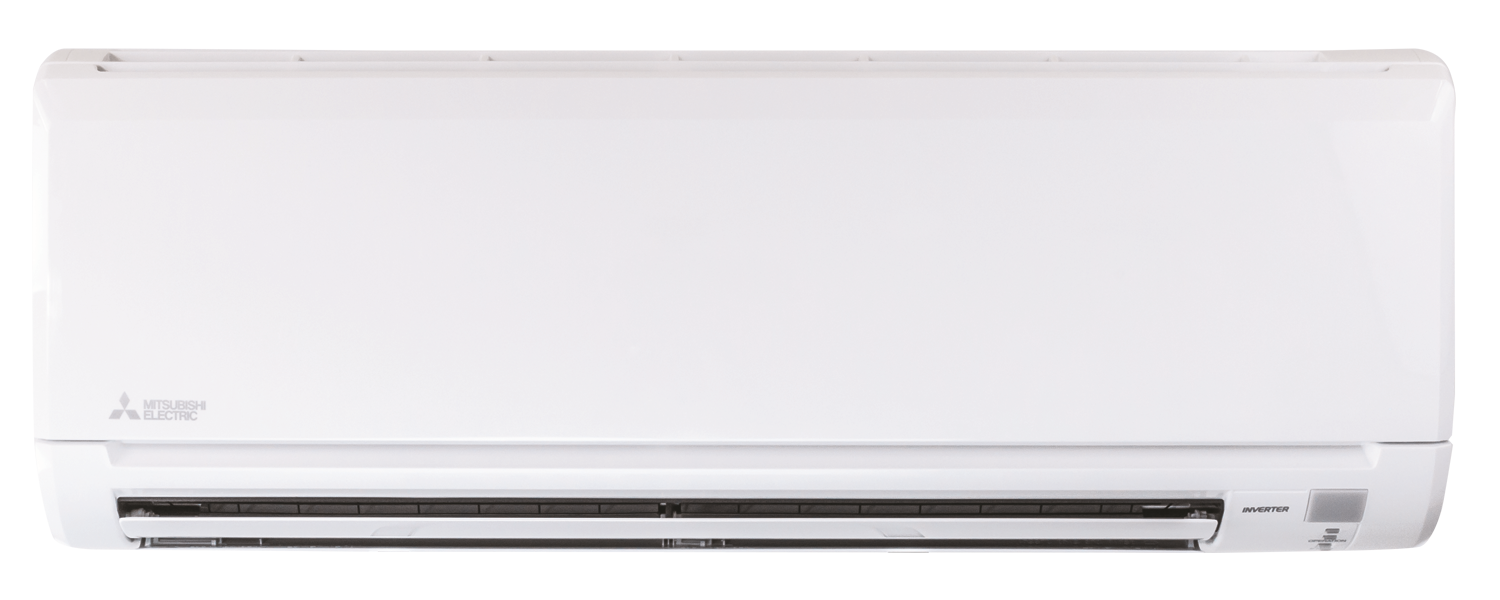

24,000 BTU Mitsubishi HX-Series Wall Mount Mini Split Air Handler - R454B
24,000 BTU Mitsubishi HX-Series Wall Mount Mini Split Air Handler - R454B
24,000 BTU Mitsubishi HX-Series Wall Mount Mini Split Air Handler - R454B   + $969.00
15 feet - 1/4" and 1/2" Line Set & Control Wire
Equipment Pad and Risers Kit
Installation Kit for Condensers with 3/4" Whip
Mitsubishi MHK2 Wireless Remote Controller
22,400 BTU Mitsubishi HX-Series Mini Split – 20 SEER2 Efficiency & R454B Quiet Comfort for Small Spaces

$2,959.50

Efficient mini split heat pump system designed to deliver quiet year-round comfort for large spaces with dependable wall-mounted performance.

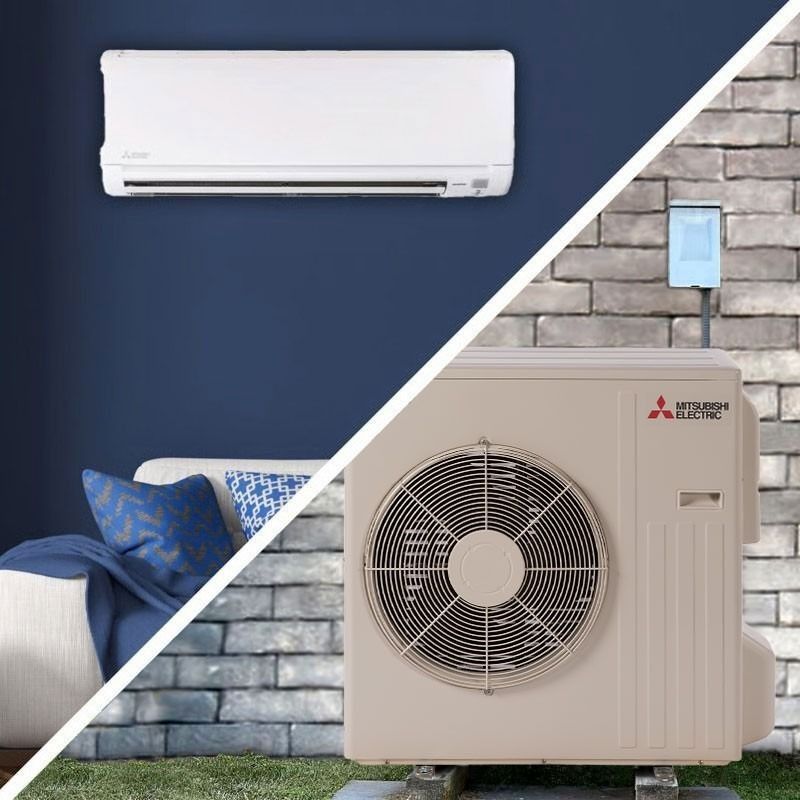

The Mitsubishi HX-Series 24,000 BTU single-zone mini split heat pump system provides reliable heating and cooling for larger spaces, including living areas, offices, and open rooms. With inverter-driven technology and a sleek wall-mounted indoor unit, it delivers dependable comfort, efficient operation, and a modern space-saving design.

Mitsubishi HX-Series Single Zone Wall Mount Features and Benefits

  • 20 SEER2 Efficiency – Delivers strong energy savings with efficient heating and cooling performance.
  • Year-Round Comfort – Provides reliable heating and cooling from one complete system.
  • Wall-Mounted Design – Saves floor space with a clean, modern indoor unit appearance.
  • R454B Refrigerant – Uses a lower-GWP refrigerant for a more eco-conscious footprint.

Quiet Comfort

The indoor and outdoor components are engineered for low-noise performance, making this system a great choice for living rooms, offices, and larger everyday spaces where quiet operation matters.

Compact Wall-Mounted Design

The sleek wall-mounted indoor unit provides efficient comfort while preserving floor space and blending seamlessly with a variety of interior styles.

Right-Sized Performance

With 24,000 BTU of capacity, this system is ideal for large spaces requiring efficient and reliable year-round climate control.

What’s Included

  • Mitsubishi Single Zone Mini Split Heat Pump Condenser — 24,000 BTU cooling / 24,000 BTU heating
  • Mitsubishi 24,000 BTU Wall-Mounted Mini Split Indoor Unit — MSZ-HX24NL
  • Wireless remote control
  • Owner's Manual, Guides, and Other Documents

Recommended Accessories

  • 21" Wall Mount Bracket for Mini Split Systems – 230-B2L
  • Mitsubishi Wireless Remote Controller – MHK2
  • E Lite Equipment Pad and Risers Kit – 87762 / EL1838-3
  • Installation Kit – MSK001
    • • 3/4"" x 6' Electrical Whip – SKU: 84138 • 60A Non-Fused Disconnect – SKU: 83335 • Surge Protector – SKU: ICM517 • CPS Charging Adapter – SKU: 87-AD87 • Telescoping Wall Sleeve – SKU: NFP-75
  • Additional line set options
    • • 15 ft – 201814 / CW-144-15 • 25 ft – 366400 / CW-144-25 • 30 ft – 216741 / CW-144-30 • 35 ft – 366401 / CW-144-35 • 50 ft – 366402 / CW-144-50

Warranty

10-year limited warranty with online registration.

More Information
Mitsubishi 24,000 BTU HX-Series Single Zone Mini Split Heat Pump Condenser R454B | 230V
FeatureSpec
SKUMUZ-HX24NL
Refrigerant Charge3.00 lbs (Pre-charged for 50ft line set)
Weight (in lbs)115
Brand/ManufacturerMitsubishi
ReplacesMUZ-HM24NA-U2
UPC605468195635
Cooling BTU22,400 BTU
Heating BTU26,000 BTU
Decibel Level (dBA)55 dBA
Energy StarYes
RefrigerantR454B
HSPF29.5
SEER2 (Efficiency)20
EER211.75
Liquid Line1/4"
Suction Line1/2"
Electrical230V | 1 Phase | 60Hz
Max Breaker Size40 Amps
Min. Breaker Size23 Amps
BTU/Tonnage24,000 BTU/2 Ton
Min/Max Outdoor Temp for Heating-5°F to 75°F
Min/Max Outdoor Temp for Cooling14°F to 115°F
Zone CompatibilitySingle Zone
Height34.63"
Width33.06"
Depth13"
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Mitsubishi 24,000 BTU HX-Series Single Zone Wall Mounted Mini Split Air Handler R454B | 230V
FeatureSpec
SKUMSZ-HX24NL
Weight (in lbs)28
Brand/ManufacturerMitsubishi
ReplacesMSZ-HM24NA-U1
UPC605468392942
Cooling BTU24,000 BTU
Heating BTU24,000 BTU
Maximum CFM720 Turbo / 586 Hi / 484 Med / 378 Lo
Decibel Level (dBA)51 dBA
RefrigerantR454B
Liquid Line1/4"
Suction Line5/8"
Electrical208/230V | 1 Phase | 60Hz
BTU/Tonnage24,000 BTU/2 Ton
Mini Split TypeWall Mounted
Zone CompatibilitySingle Zone
Height12.00"
Width36.31"
Depth10.88"
Warranty10 Year Compressor / 7 Years Parts Warranty with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Installation Kit for Condensers with 3/4" Whip - Accessory Set
FeatureSpec
SKUMSK001
Weight15
ManufacturerOnline Supply
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
E Lite Equipment Pad and Risers Kit 18" x 38" x 3"
FeatureSpec
SKU87762 / EL1838-3
Weight25
ManufacturerOnline Supply
UPCna
Height3"
Width18"
Depth38"
Safety InformationPROPOSITION 65 WARNING
21" Wall Mount Bracket for Mini Split Systems
FeatureSpec
SKU230-B2L
Weight9.2
ManufacturerOnline Supply
UPC0095247127436
Length40"
Height3"
Width6"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 1/2" Line Ends & Control Wire - 50 feet
FeatureSpec
SKU366402 / CW-144-50
Weight45
ManufacturerOnline Supply
UPCna
Length50'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 1/2" Line Ends & Control Wire - 35 feet
FeatureSpec
SKU366401 / CW-144-35
Weight35
ManufacturerOnline Supply
UPCna
Length15'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 1/2" Line Ends & Control Wire - 30 feet
FeatureSpec
SKU216741 / CW-144-30
Weight30
ManufacturerOnline Supply
UPCna
Length30'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 1/2" Line Ends & Control Wire - 25 feet
FeatureSpec
SKU366400 / CW-144-25
Weight25
ManufacturerOnline Supply
UPCna
Length25'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 1/2" Line Ends & Control Wire - 15 feet
FeatureSpec
SKU201814 / CW-144-15
Weight15
ManufacturerOnline Supply
UPCna
Length15'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Mitsubishi MHK2 Wireless Remote Controller
FeatureSpec
SKUMHK2
Weight (in lbs)2
Brand/ManufacturerMitsubishi
ReplacesMHK3
UPC85267267533
LengthCable:39-23/64"
HeightThermostat: 4-5/64” | Receiver: 3-3/32”
WidthThermostat: 4-5/64” | Receiver: 1-3/4”
DepthThermostat: 1-1/16" | Receiver: 39/64”
Warranty5 Years Parts Warranty
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
