OVERVIEW

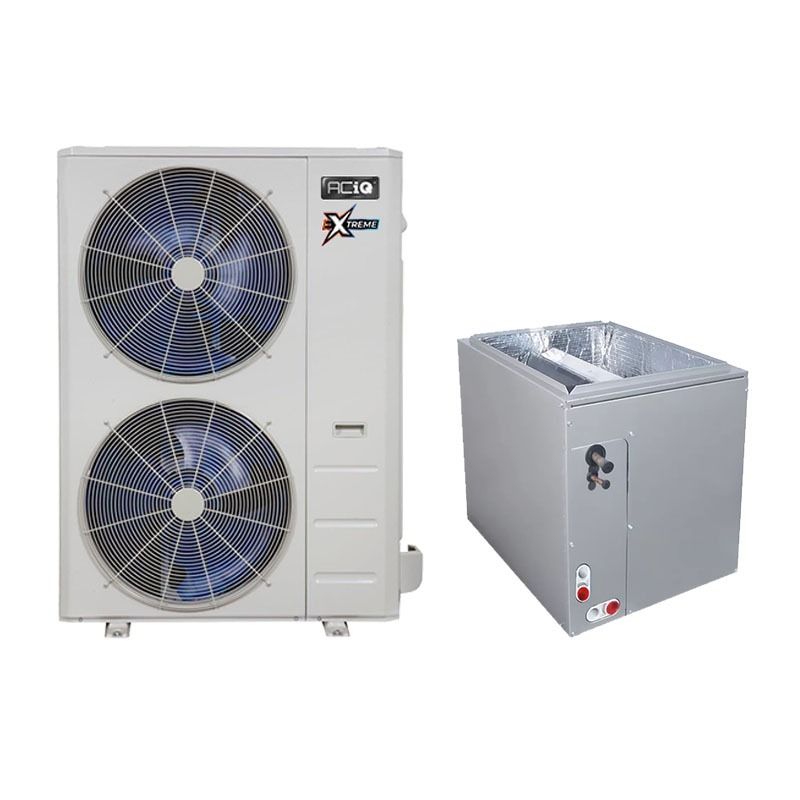

ACiQ takes pride in its ability to provide a high-quality system, including all system components.The ACiQ-48-ACL multi-positional A-coil stands out as a superior choice for various applications, ensuring optimal unit efficiency through its factory-integrated TXV kit, maximizing energy optimization. With its outstanding performance features and versatile orientation options, this coil becomes the ultimate solution for achieving unmatched comfort in your home.

QUICK FACTS

• 4 ton multi-positional evaporator coil
• Works in almost any upflow, downflow, or horizontal system setup
• Compatible with both AC-only and heat pump condensers
• Factory-installed TXV kit for enhanced energy optimization
• Sturdy and compact design

4 Tons

The ACiQ-48-ACL is rated for up to 4 tons of heating and cooling. With its ability to be installed with either an AC-only condenser or a heat pump condenser, this unit is ideal for many applications. In some packages, this coil will be larger than its paired condenser, which will increase the overall efficiency of the entire unit, but the coil should never be smaller than its paired condenser. Please note that this item cannot operate independently from a compatible condenser and blower or furnace, each available at an additional cost.

OVERVIEW

Inverter condenser - Inverter technology changes AC power to DC, allowing the compressor inside your condenser to speed up and slow down. This allows the system to self-adjust BTU output based on demand. As the weather changes, so will your system output.

Learning system - This system is packed with sensors and controls air temperature inside and outside, system performance, duct pressure, refrigerant temperature. The first time you start your system it enters a learning mode keeping air moving across the sensors and storing information so future startups and run cycles will be at max efficiency.

Size for heat - The self-adjusting inverter design allows you to size your system based on heat demand. With standard heat pumps, sizing for heat can mean a muggy house during summer. The ACiQ Next Gen 4-ton heat pump system automatically adjusts to run like a 3-ton, 2-ton or a 1.5-ton to keep you cool and dry

Extreme Heat Technology - Extreme Heat means extended temperature range heating all the way down to -22°F. Traditional heat pumps don't make significant heat below about 30°F outside temperature, below that, they rely on expensive backup electric heat. The ACiQ Next Gen with Extreme Heat uses the inverter to vary the refrigerant flow, allowing for maximum heat extraction during extreme cold temperatures. The backup electric heat supplements the heat pump, and only takes over below -22°F. The heat pump gives 100% at 0°F, and still gives 80% at -22°F, saving you up to 75% on cold weather heating bills.

QUICK FACTS

• Intelligent comfort at an affordable cost
• 48,000 BTU, 15.6 SEER2 heat pump system for use with ductwork
• Efficient cooling from 5°F to 122°F outdoor temperatures
• Efficient heating from -22°F to 75°F outdoor temperatures
• Durable Gold Fin condenser coil coating
• Quiet operation at even the highest workloads

48,000 BTU, 15.6 SEER2

With an efficiency rating of 16 SEER2, the variable output ACiQ-48-HPB will keep you comfortable across a wide range of conditions. Use our handy size calculator Here to determine the demand for your home. For cooling, this system can operate anywhere from 12,000 BTU to 48,000 BTU without short cycling. For heating, this system is capable of 38,400 BTU at -22°F all the way up to 63,744 BTU at 50°F. This increased range means it fits more possible applications.

Please note that this condenser requires an ACiQ unitary ducted air handler to function, if not already included in the bundle on this page, along with line sets and other installation accessories available at an additional cost in the Accessories section of this page. It is recommended to have a professional install this system because it is not compatible with pre-charged line sets or other DIY equipment.

---

Extreme Heat Base Pan Heater Technology

Each ACiQ condenser has integrated Extreme Heat technology to maximize heat performance in extreme cold weather. Extended heat pump performance (HyperHeat) harnesses the power of inverter condenser with outdoor temp sensing, variable refrigerant flow and variable condenser fan speed to maximize heat extraction all the way down to -22°F. Plus, every Extreme Heat ACiQ condenser includes a base pan heater to keep ice from collecting on the condenser coil during heat pump operation.



---



Quality Construction

State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life. Most models have low ambient heating and cooling.

---

Highest Efficiency

ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.



---



Longer life, longer warranty

Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. Register equipment at ACiQ.com to extend warranty protection to 7 years parts, 12 years compressor.

Designed for residential, commercial, and industrial applications, the Cielo Smart Thermostat is the perfect blend of cutting-edge technology and user convenience, allowing home and business owners to create comfortable and energy-efficient living and working environments.

Features

• Supports conventional systems (2H/2C), heat pumps (4H/2C), and unit heaters
• Smart thermostat with programmable temperature schedules
• WiFi connectivity for easy control through your phone
• Capable of automatic temperature adjustments with location-based triggers
• Sleek touchscreen color interface
• Compatible with Alexa, Google Assistant, Siri, SmartThings, and IFTTT
• Hassle-free installation with the included C-Wire Adapter
• Install location flexibility - Can be installed in areas that prevent unwanted usage from others
