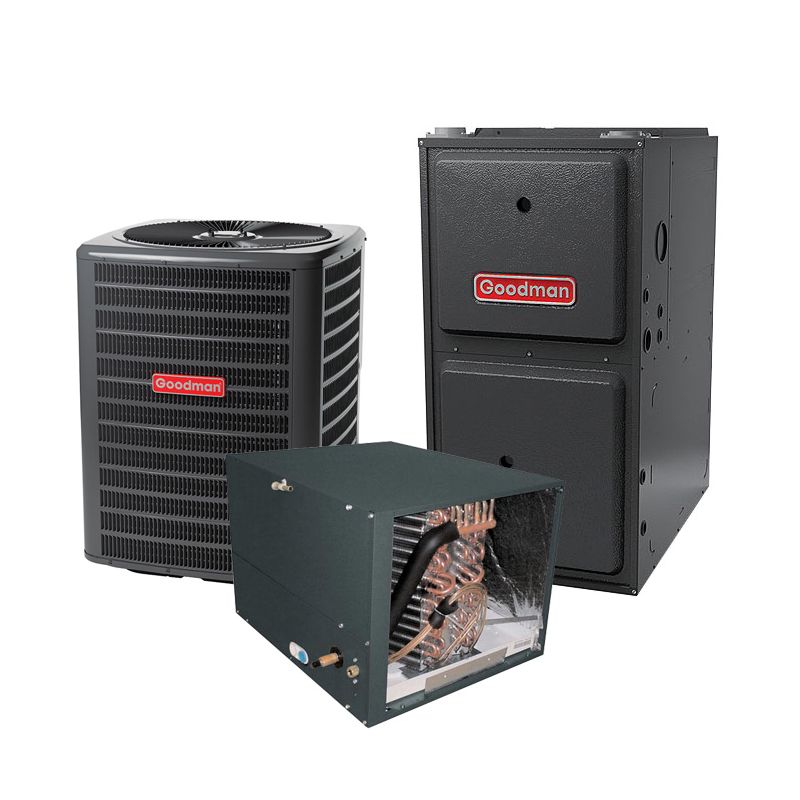

Today's Hours 8am - 11pm est3.5 Ton 13 SEER 96% AFUE 80,000 BTU Goodman Gas Furnace and Air Conditioner System - Horizontal
Required Fields *
Customer reviews
Out of stock
By
Goodman
Out of stock
Model
GSX130421 / CHPF3743C6 / GMVC960804CN / TX5N4
ID
20783
This Goodman system provides 3.5 Ton of cooling, 80,000 BTU of heating, and acheives 13 SEER. These features make it a perfect choice for your next system.
The Goodman GMVC960804CN furnace features a two stage gas valve, variable-speed blower motor, and provides exceptional indoor comfort and quiet operation. This furnace is compatible with the ComfortBridge communicating system and is designed for uplfow or horizontal configurations. These furnaces are run-tested for heating or combination heating and cooling applications. Not intended for use in mobile homes.
The Goodman GMVC960804CN furnace has a 96% AFUE rating which means that for every every $1.00 you spend, 96 cents goes towards heating your home.
Furnace Features
- ComfortBridge communicating systems compatible
- Heavy-Duty aluminized-steel tubular heat exchanger
- Stainless-steel secondary heat exchanger
- Two-stage gas valve provides quiet, economical heating
- Durable silicon nitride ignitor
- Quiet two-speed induced draft blower
- Self-diagnostic control board with constant memory fault code history output to a dual 7-segment display
- Color-coded low-voltage terminals with provisions for electronic air cleaner and humidifier
- Efficient and quiet variable-speed airflow system gently ramps up or down according to heating or cooling demand
- Multiple continuous fan speed options offer quiet air circulation
- Auto-comfort and enhanced dehumidification modes available
The GSX130421 Goodman 3.5 Ton Air Conditioner Condenser uses the chlorine-free refrigerant R-410A to help prevent damage to the Ozone Layer. This unit is equipped with sound-dampening features to provide operating sound levels are among the lowest in the heating and cooling industry. Using high-quality components,the Goodman GSX130421 air conditioner condenser is rated at 13 SEER and will help reduce energy consumption throughout the life of the system.
Please note that this product is regulated by DOE Efficiency Standards.
- R-410A chlorine-free refrigerant
- Factory-installed filter dryer
- Copper tube/enhanced aluminum fin coil
- Service valves with sweat connections and easy-access gauge ports
- Contactor with lug connection
- Ground lug connection
- AHRI Certified; ETL Listed
- Goodman brand louvered sound control top design
- Steel louver coil guard
- Heavy-gauge galvanized-steel cabinet
- Baked-on powder-paint finish with 500-hour salt-spray approval
- Top and side maintenance access
- Single-panel access to controls with space provided for field-installed accessories
- When properly anchored, meets the 2010 Florida Building Code unit integrity requirements for hurricane-type winds
This unit (and all 13 SEER units) cannot be shipped or installed in the following states: Alabama, Arizona, Arkansas, California, Delaware, Florida, Georgia, Kentucky, Louisiana, Maryland, Mississippi, Nevada, New Mexico, North Carolina, Oklahoma, South Carolina, Tennessee, Texas, and Virginia
Click here to see the 14 SEER unit that is available in these states.
For more information about state efficiency requirements, please click here.
