3 Ton 14.3 SEER2 Trane Heat Pump Split System - Multi-Positional

OVERVIEW

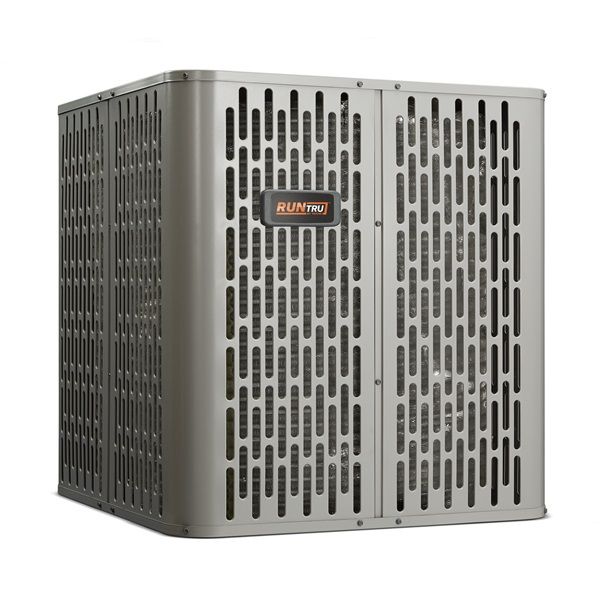

The RunTru by Trane A5HP4036A1 is a standard heat pump condenser. Designed with comfort in mind and an inexpensive option for nearly any application, this condenser is considered a good all-around option for almost any application.

QUICK FACTS

• 3 ton, 14.3 SEER2 heat pump condenser
• Proudly Made in the USA: High-quality HVAC equipment crafted with precision and reliability
• Can heat and cool up to a medium size house in average conditions
• Single stage compressor

3 Tons

The RunTru by Trane A5HP4036A1 heat pump condenser has an output of 3 tons, generally enough to heat and cool up to a medium size house in ideal climates. In many system configurations, the tonnage of the unit's paired coil or air handler will be larger in tonnage than this condenser, which maintains the efficiency of the unit. Please note that this condenser cannot function on its own, and it needs an indoor coil or air handler to work. This unit will also only heat down to around 35°F, and if you need heat any lower than this, a backup heat strip will be needed to act as straight electric heating in a compatible air handler.

14.3 SEER2

The RunTru by Trane A5HP4036A1 heat pump condenser is rated at 14.3 SEER2, making it between 5-7% more efficient than standard 13.4 SEER2 units, saving you money in electric bills over the entire lifetime of your unit. In general, heat pumps will heat more efficiently than straight electric furnaces.

Disclaimer: This condenser contains R454B refrigerant, which is classified as an A2L refrigerant. To comply with safety standards, this unit must be paired with an R454B air handler or evaporator coil equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-888-557-9206 if you have any questions.

OVERVIEW

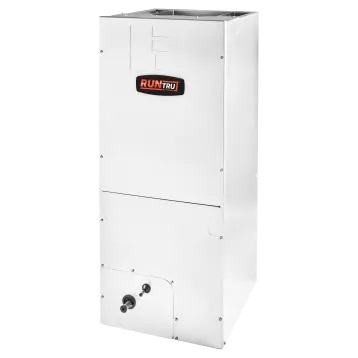

With its efficient 4-speed direct drive blower motor and factory-installed TXV kit, the RunTru by Trane A5AHC004A1D3 is a convenient and efficient air handler to provide comfort to your home. If you want superior quality and enhanced comfort, look no further than this model.

QUICK FACTS

• Can be used with 2 to 3.5 ton RunTru by Trane condensers
• R454B
• Proudly Made in the USA: High-quality HVAC equipment crafted with precision and reliability
• 4-Speed direct drive blower motor
• Multi-positional - can be installed in the upflow, downflow, and horizontal configurations
• Factory-installed TXV kit for enhanced energy optimization
• Compatible with both AC-only and heat pump condensers
• Sturdy, fully insulated cabinet

2 - 3.5 Tons

The Runtru by Trane A5AHC004A1D3 air handler is rated for an output of 2 - 3.5 tons. In many cases, this air handler will be larger in tonnage than the condenser it is paired with to maintain the unit's overall efficiency. Please note that for this unit to provide cooling, an outdoor condenser is required for it to function. The unit can support electric heating as a straight electric furnace or as a backup for a heat pump, offered at an additional cost to be field installed.

Warranty

RunTru by Trane offers a 10 year indoor coil and parts warranty on this unit. For these warranties to be upheld, the unit must be installed following your state and local codes and the entire system must be registered online through the manufacturer. After your purchase, a representative will reach out to you to retrieve installation information so we can register the product for you.

Installation and Durability

To make a more versatile unit, RunTru by Trane designed the A5AHC004A1D3 to easily be installed in an upflow, downflow, or horizontal position. A TXV kit is already installed on the unit so your installer does not have to install one, decreasing installation costs. For durability, the A5AHC004A1D3 air handler is designed with an extremely strong, one-piece outer casing to protect the unit, and the coil is designed with corrosion-resistant aluminum.

Intelligent Comfort

The A5AHC004A1D3 air handler has an efficient 4-speed direct drive blower motor, providing stable temperatures in your home and making you more comfortable. The control board will automatically communicate with your thermostat to adjust the output of the blower to suit your needs.
