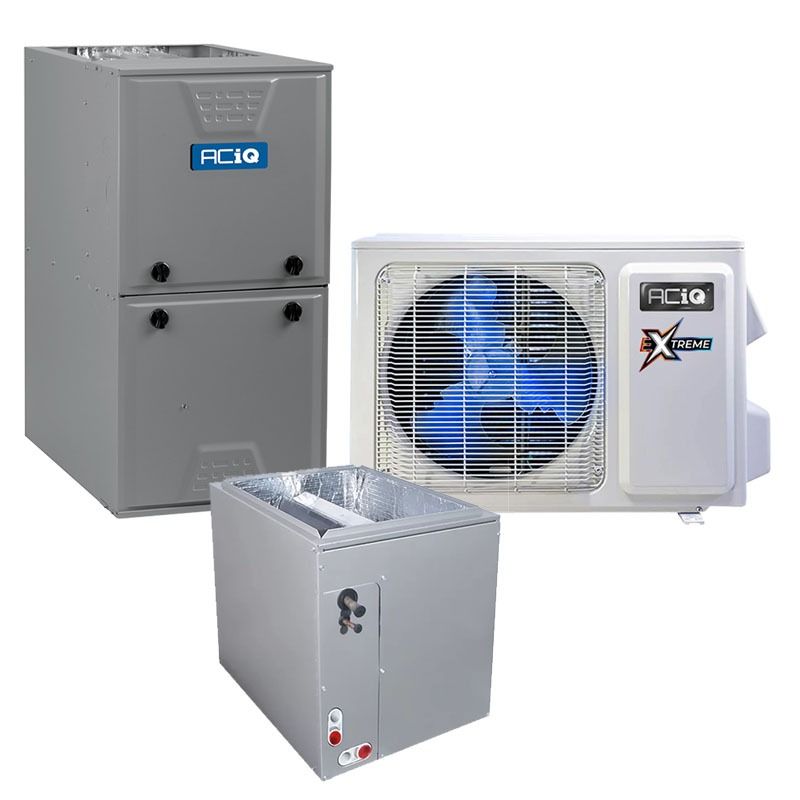

3 Ton 15.2 SEER2 96% AFUE 80,000 BTU ACiQ Gas Furnace and High Efficiency Heat Pump System | Inverter | Extreme Series

OVERVIEW

Designed to be a high-efficiency furnace, the ACiQ N96MSN0802120A is a money saving unit to provide heating throughout even the coldest months of the year. With its multi-positional design, this unit is a good all-around choice for nearly any application.

QUICK FACTS

• 80,000 BTU, 96% AFUE natural gas furnace
• Generally suitable for up to an medium house in ideal applications
• Multi-positional design, can be installed in the upflow, downflow, or horizontal orientations
• Single stage burner with a multi-speed blower
• Field-convertible to propane with an optional LP kit
• On board self-diagnostics
• Energy Star certified

80,000 BTU, 96% AFUE

The ACiQ N96MSN0802120A has an input of 80,000 BTU. With an efficiency of 96%, this means that the furnace has an output of 76,800 BTU. The 96% AFUE also means that for the gas going into the furnace, 96% of it is used to heat your home while only 4% is lost out of the flue piping and lost to normal furnace operations. All furnaces at this efficiency (90% and above) requires plastic/PVC flue venting, and if metal flue venting is required for your installation, an 80% efficient furnace would be needed instead. While this unit uses natural gas as fuel out of the box, we also have an LP conversion kit, available at an additional cost. Please note that this furnace is not Ultra Low NOx compliant and if shipped to California may be subject to a mitigation fee.

Warranty

ACiQ offers 10 year parts warranty and lifetime (20 year) heat exchanger limited warranty. Please note that in order for these warranties to be upheld, installation following your state and local codes are required, along with timely registration through the manufacturer.

Installation and Durability

With its ability to be installed in any configuration, upflow, downflow, or horizontal, the ACiQ N96MSN0802120A is very versatile in application potential. The unit has a durable outer casing that can withstand wear-and-tear through its entire lifetime, providing the peace of mind that your home will stay comfortable year-round. Please note that this furnace is not intended for use in a mobile home on its own.

---

Quiet Comfort

Every ACiQ furnace is designed to keep your family warm and comfortable year after year. Whisper-quiet ECM blower fans, solid construction with thicker sheet metal and
more cabinet insulation give you near-silent operation. From entry level to top-of-the-line, your comfort is the priority.

---

High Efficiency

ACiQ saves you money up front, but also over time by reducing energy bills. Multi-speed or Variable Speed ECM blowers come in every furnace. Adding options such as high-efficiency secondary heat exchangers, two stage heating, modulating burners and variable blowers all can further reduce your energy bills while increasing comfort.

---

Longer life, longer warranty

Thicker sheet metal, more cabinet insulation and aluminized steel heat exchangers reflect the highest build quality you can get. Every furnace is backed by ACiQ’s 10 year, 20 year or lifetime (depending on model) heat exchanger extended warranty with online registration.

OVERVIEW

Inverter Condenser - Inverter technology changes AC power to DC, allowing the compressor inside your condenser to speed up and slow down. This allows the system to self-adjust BTU output based on demand. As the weather changes, so will your system output.

Learning system - This system is packed with sensors and controls air temperature inside and outside, system performance, duct pressure, refrigerant temperature. The first time you start your system it enters a learning mode keeping air moving across the sensors and storing information so future startups and run cycles will be at max efficiency.

Size for heat - The self-adjusting inverter design allows you to size your system based on heat demand. With standard heat pumps, sizing for heat can mean a muggy house during summer. The ACiQ Next Gen 3-ton heat pump system automatically adjusts to run like a 2 ton or a 1 ton to keep you cool and dry.

Extreme Heat Technology - Extreme Heat means extended temperature range heating all the way down to -22°F. Traditional heat pumps don't make significant heat below about 30°F outside temperature, below that, they rely on expensive backup electric heat. The ACiQ Next Gen with Extreme Heat uses the inverter to vary the refrigerant flow, allowing for maximum heat extraction during extreme cold temperatures. The backup electric heat supplements the heat pump, and only takes over below -22°. The heat pump gives 100% at 0°F, and still gives 80% at -22°F, saving you up to 75% on cold weather heating bills.

QUICK FACTS

• 12,000 BTU to 36,000 BTU variable output based on demand
• Inverter heat pump system for use with ductwork
• Efficient cooling from 5°F to 122°F outdoor temperatures
• Efficient heating from -22°F to 85°F outdoor temperatures
• Durable Gold Fin condenser coil coating
• Quiet operation at even the highest workloads

36,000 BTU, 16 SEER2

With an efficiency rating of 16 SEER2, the variable output ACiQ-36-HPC will keep you comfortable across a wide range of conditions. Use our handy size calculator Here to determine the demand for your home. For cooling, this system can operate anywhere from 12,000 BTU to 36,000 BTU without short cycling. For heating, this system is capable of 28,000 BTU at -22°F all the way up to 58,588 BTU at 50°F. This increased range means it fits more possible applications.

---

Extreme Heat Base Pan Heater Technology

Each ACiQ condenser has integrated Extreme Heat technology to maximize heat performance in extreme cold weather. Extended heat pump performance (HyperHeat) harnesses the power of inverter condenser with outdoor temp sensing, variable refrigerant flow and variable condenser fan speed to maximize heat extraction all the way down to -22°F. Plus, every Extreme Heat ACiQ condenser includes a base pan heater to keep ice from collecting on the condenser coil during heat pump operation.

---

Quality Construction

State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life. Most models have low ambient heating and cooling.

---

Highest Efficiency

ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.

---

Longer life, longer warranty

Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. Register equipment at ACiQ.com to extend warranty protection to 7 years parts, 12 years compressor.

OVERVIEW

ACiQ takes pride in its ability to provide a high-quality system, including all system components.The ACiQ-36-ACL multi-positional A-coil stands out as a superior choice for various applications, ensuring optimal unit efficiency through its factory-integrated TXV kit, maximizing energy optimization. With its outstanding performance features and versatile orientation options, this coil becomes the ultimate solution for achieving unmatched comfort in your home.

QUICK FACTS

• 3 ton multi-positional evaporator coil
• Works in almost any upflow, downflow, or horizontal system setup
• Compatible with both AC-only and heat pump condensers
• Factory-installed TXV kit for enhanced energy optimization
• Sturdy and compact design

3 Tons

The ACiQ-36-ACL is rated for up to 3 tons of heating and cooling. With its ability to be installed with either an AC-only condenser or a heat pump condenser, this unit is ideal for many applications. In some packages, this coil will be larger than its paired condenser, which will increase the overall efficiency of the entire unit, but the coil should never be smaller than its paired condenser. Please note that this item cannot operate independently from a compatible condenser and blower or furnace, each available at an additional cost.

Ensure efficient refrigerant flow and optimal HVAC performance with this 50-foot insulated line set. Designed for seamless connection between an outdoor condensing unit or heat pump and an indoor air handler or evaporator coil, this line set offers durability, flexibility, and superior thermal protection for long-lasting operation.

Key Features:

✔ Premium Copper Tubing: 3/8" liquid line (LL) and 3/4" suction line (SL) for efficient refrigerant transfer.
✔ Pre-Insulated for Efficiency: 3/8" thick insulation minimizes energy loss and condensation buildup.
✔ Versatile Application: Compatible with heat pumps and conventional split systems.
✔ Easy Installation: Flexible and durable copper tubing allows for smooth routing and connection.
✔ Extended 50-Foot Length: Ideal for larger residential and light commercial HVAC installations.

Upgrade your HVAC system with this high-quality insulated line set, engineered for reliability, efficiency, and ease of installation.

The Ecobee is more than a smart thermostat. Most thermostats only read the temperature in one place (usually the hallway) which can make other rooms uncomfortable. Ecobee5 comes with a room sensor to help manage hot or cold spots. When you place sensors in your favorite rooms, ecobee5 can read the temperature and detect occupancy. That's how it ensures comfort in the rooms that matter.

With Amazon Alexa Voice Service built inside, ecobee5 can perform the many 'skills' that come with Alexa. All you have to do is ask, and watch the blue light pipe on top of the thermostat blink in response. For total hands-free control, it can even hear you from across the room. Imagine you’re throwing a last-minute dinner party. Simply ask your ecobee5 to walk you through each step out loud – from finding the right recipes to the ideal music playlist. ecobee5 has embedded microphones with far-field voice recognition and a speaker engineered for clear voice and full sound. It’s the smart thermostat that looks at home on your wall – that you can hear and speak to from across the room.

Features

Designed for residential, commercial, and industrial applications, the Cielo Smart Thermostat is the perfect blend of cutting-edge technology and user convenience, allowing home and business owners to create comfortable and energy-efficient living and working environments.

Features

• Supports conventional systems (2H/2C), heat pumps (4H/2C), and unit heaters
• Smart thermostat with programmable temperature schedules
• WiFi connectivity for easy control through your phone
• Capable of automatic temperature adjustments with location-based triggers
• Sleek touchscreen color interface
• Compatible with Alexa, Google Assistant, Siri, SmartThings, and IFTTT
• Hassle-free installation with the included C-Wire Adapter
• Install location flexibility - Can be installed in areas that prevent unwanted usage from others
