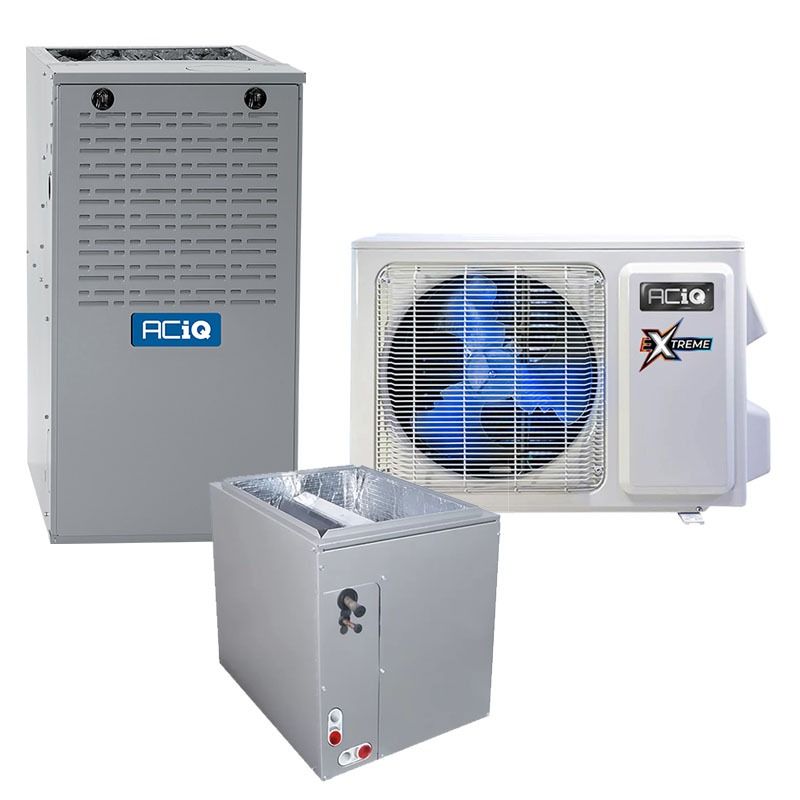

With tons of extra features and a great price, an ACiQ dual fuel heat pump system is the perfect choice for all of your heating and cooling needs for any time of year. All ACiQ models come with a 10 year parts warranty.
88,000 BTU 80% AFUE Two Stage Multi-Positional ACiQ Gas Furnace
OVERVIEW
With its variable speed blower motor and two stage burner, the ACiQ G80CTL0902120A can provide a consistently superior comfort to almost any application.
QUICK FACTS
88,000 BTU, 80% AFUE natural gas furnace
Generally suitable for up to a medium-sized house in ideal applications
Communicating variable speed blower with a two stage burner
Multi-positional design - can be installed in the upflow, downflow, or horizontal orientations
California Low NOx compliant
Field-convertible to propane with an optional LP kit
On board self-diagnostics
88,000 BTU, 80% AFUE
The ACiQ G80CTL0902120A has an input of 88,000 BTU. With an efficiency of 80%, this means that the furnace has an output of 71,000 BTU. The 80% AFUE also means that for the gas going into the furnace, 80% of it is used to heat your home while the remaining 20% is lost out the flue piping and lost to normal furnace operations. All 80% furnaces require metal flue venting, and if you need it to be plastic/PVC venting a furnace with an efficiency of 90% or above is required. While this unit uses natural gas as fuel out of the box, we also have an LP conversion kit, available at an additional cost.
Warranty
ACiQ offers a 10 year no hassle unit replacement, 10 year parts, and lifetime heat exchanger limited warranty. Please note that in order for the heat exchanger and parts warranties to be upheld, the unit must be registered through the manufacturer within 90 days of installation. The installation must also follow your state and local codes.
Installation and Durability
With its ability to be installed in any configuration (upflow, downflow, or horizontal), the ACiQ G80CTL0902120A is very versatile in application potential. The unit has a durable outer casing that can withstand wear-and-tear through its entire lifetime, providing the peace of mind that your home will stay comfortable year-round. Please note that this furnace is not designed to be suitable for a mobile home on its own.
Superior Comfort
All ACiQ-brand equipment is manufactured, one of the leaders of superior comfort in the industry. The ACiQ G80CTL0902120A definitely lives up to the name thanks in part to its communicating variable speed blower motor and its two stage burner. Both of these prominent features provide the most precise temperature and airflow output possible, making you as comfortable as possible in your home year-round.
Quiet Comfort
Every ACiQ furnace is designed to keep your family warm and comfortable year after year. Whisper-quiet ECM blower fans, solid construction with thicker sheet metal and more cabinet insulation give you near-silent operation. From entry level to top-of-the-line, your comfort is the priority.
High Efficiency
ACiQ saves you money up front, but also over time by reducing energy bills. Multi-speed or Variable Speed ECM blowers come in every furnace. Adding options such as high-efficiency secondary heat exchangers, two stage heating, modulating burners and variable blowers all can further reduce your energy bills while increasing comfort.
Longer life, longer warranty
Thicker sheet metal, more cabinet insulation and aluminized steel heat exchangers reflect the highest build quality you can get. Every furnace is backed by ACiQ’s 10 year, 20 year or lifetime (depending on model) heat exchanger extended warranty with online registration.
ACiQ 3 Ton 18 SEER High Efficiency Central Heat Pump | Inverter | Extreme Series
OVERVIEW
Inverter Condenser - Inverter technology changes AC power to DC, allowing the compressor inside your condenser to speed up and slow down. This allows the system to self-adjust BTU output based on demand. As the weather changes, so will your system output.
Learning system - This system is packed with sensors and controls air temperature inside and outside, system performance, duct pressure, refrigerant temperature. The first time you start your system it enters a learning mode keeping air moving across the sensors and storing information so future startups and run cycles will be at max efficiency.
Size for heat - The self-adjusting inverter design allows you to size your system based on heat demand. With standard heat pumps, sizing for heat can mean a muggy house during summer. The ACiQ Next Gen 3-ton heat pump system automatically adjusts to run like a 2 ton or a 1 ton to keep you cool and dry.
Extreme Heat Technology - Extreme Heat means extended temperature range heating all the way down to -22°F. Traditional heat pumps don't make significant heat below about 30°F outside temperature, below that, they rely on expensive backup electric heat. The ACiQ Next Gen with Extreme Heat uses the inverter to vary the refrigerant flow, allowing for maximum heat extraction during extreme cold temperatures. The backup electric heat supplements the heat pump, and only takes over below -22°. The heat pump gives 100% at 0°F, and still gives 80% at -22°F, saving you up to 75% on cold weather heating bills.
QUICK FACTS
12,000 BTU to 36,000 BTU variable output based on demand
Inverter heat pump system for use with ductwork
Efficient cooling from 5°F to 122°F outdoor temperatures
Efficient heating from -22°F to 85°F outdoor temperatures
Durable Gold Fin condenser coil coating
Quiet operation at even the highest workloads
36,000 BTU, 16 SEER2
With an efficiency rating of 16 SEER2, the variable output ACiQ-36-HPC will keep you comfortable across a wide range of conditions. Use our handy size calculator Here to determine the demand for your home. For cooling, this system can operate anywhere from 12,000 BTU to 36,000 BTU without short cycling. For heating, this system is capable of 28,000 BTU at -22°F all the way up to 58,588 BTU at 50°F. This increased range means it fits more possible applications.
Extreme Heat Base Pan Heater Technology
Each ACiQ condenser has integrated Extreme Heat technology to maximize heat performance in extreme cold weather. Extended heat pump performance (HyperHeat) harnesses the power of inverter condenser with outdoor temp sensing, variable refrigerant flow and variable condenser fan speed to maximize heat extraction all the way down to -22°F. Plus, every Extreme Heat ACiQ condenser includes a base pan heater to keep ice from collecting on the condenser coil during heat pump operation.
Quality Construction
State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life. Most models have low ambient heating and cooling.
Highest Efficiency
ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.
Longer life, longer warranty
Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. Register equipment at ACiQ.com to extend warranty protection to 7 years parts, 12 years compressor.
ACiQ 3 Ton 21" Width Multi-Positional Evaporator Cased Coil
OVERVIEW
ACiQ takes pride in its ability to provide a high-quality system, including all system components.The ACiQ-36-ACL multi-positional A-coil stands out as a superior choice for various applications, ensuring optimal unit efficiency through its factory-integrated TXV kit, maximizing energy optimization. With its outstanding performance features and versatile orientation options, this coil becomes the ultimate solution for achieving unmatched comfort in your home.
QUICK FACTS
3 ton multi-positional evaporator coil
Works in almost any upflow, downflow, or horizontal system setup
Compatible with both AC-only and heat pump condensers
Factory-installed TXV kit for enhanced energy optimization
Sturdy and compact design
3 Tons
The ACiQ-36-ACL is rated for up to 3 tons of heating and cooling. With its ability to be installed with either an AC-only condenser or a heat pump condenser, this unit is ideal for many applications. In some packages, this coil will be larger than its paired condenser, which will increase the overall efficiency of the entire unit, but the coil should never be smaller than its paired condenser. Please note that this item cannot operate independently from a compatible condenser and blower or furnace, each available at an additional cost.
