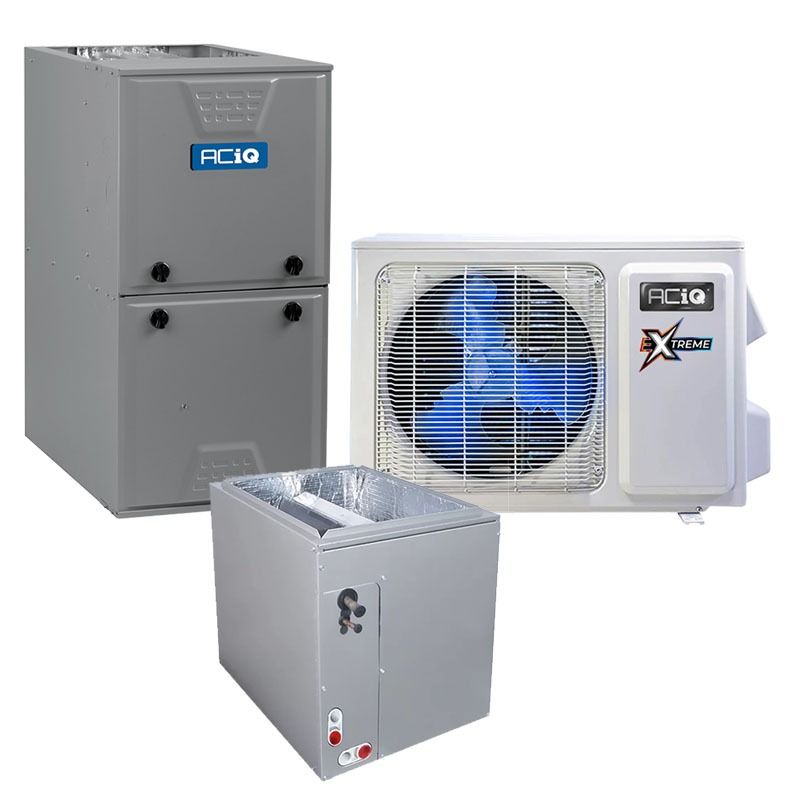

Hybrid 3 Ton 18 SEER 96% AFUE 80,000 BTU ACiQ High Efficiency Heat Pump and Furnace System | Inverter | Extreme Heat​

By

ACiQ

Model

ACiQ-36-HPC / EAM4X36L17A / N95ESN0801716A

ID

142710

Rating:
98% of 100

Authorized ACiQ Dealer

Suggested Retail $5,396.25
Your Low Price $4,161.00



Save up to 70% off Local HVAC Prices

Free Shipping

Required Fields *

Customize Hybrid 3 Ton 18 SEER 96% AFUE 80,000 BTU ACiQ High Efficiency Heat Pump and Furnace System | Inverter | Extreme Heat​
80,000 BTU 96% AFUE Single Stage Multi-Positional ACiQ Gas Furnace
80,000 BTU 96% AFUE Single Stage Multi-Positional ACiQ Gas Furnace   + $1,597.00
ACiQ 3 Ton 18 SEER High Efficiency Central Heat Pump | Inverter | Extreme Heat​
ACiQ 3 Ton 18 SEER High Efficiency Central Heat Pump | Inverter | Extreme Heat​   + $2,047.00
ACiQ 3 Ton 17.5" Width Multi-Positional Evaporator Cased Coil
ACiQ 3 Ton 17.5" Width Multi-Positional Evaporator Cased Coil   + $517.00
Hybrid 3 Ton 18 SEER 96% AFUE 80,000 BTU ACiQ High Efficiency Heat Pump and Furnace System | Inverter | Extreme Heat​

$4,161.00

Accessories for this product
Call 1-800-397-1392 for Best Pricing
Customer Reviews
BBB Rating
Best Pricing

Description

An ACiQ combination system is a great choice to keep your home warm all season long. With tons of extra features and a great price, the N95ESN0801716A is a perfect choice for heating.

All ACiQ models come with a 10 year parts warranty and 20 year heat exchanger limited warranty. Not intended for use in mobile homes.

80,000 BTU 96% AFUE Single Stage Multi-Positional ACiQ Gas Furnace

OVERVIEW

Designed to be a high-efficiency furnace, the ACiQ N95ESN0801716A is a money saving unit to provide heating throughout even the coldest months of the year. With its multi-positional design, this unit is a good all-around choice for nearly any application.

QUICK FACTS

  • 80,000 BTU, 96% AFUE natural gas furnace
  • Generally suitable for up to an average-sized house in ideal applications
  • Multi-positional design can be installed in the upflow, downflow, or horizontal orientations
  • Single stage burner with a multi-speed blower
  • Field-convertible to propane with an optional LP kit
  • On board self-diagnostics
  • Energy Star certified

80,000 BTU, 96% AFUE

The ACiQ N95ESN0801716A has an input of 80,000 BTU. With an efficiency of 96%, this means that the furnace has an output of 76,800 BTU. The 96% AFUE also means that for the gas going into the furnace, 96% of it is used to heat your home while only 4% is lost out of the flue piping and lost to normal furnace operations. All furnaces at this efficiency (90% and above) requires plastic/PVC flue venting, and if metal flue venting is required for your installation, an 80% efficient furnace would be needed instead. While this unit uses natural gas as fuel out of the box, we also have an LP conversion kit, available at an additional cost. Please note that this furnace is not Ultra Low NOx compliant and if shipped to California may be subject to a mitigation fee.

Warranty

ACiQ offers 10 year parts warranty and lifetime (20 year) heat exchanger limited warranty. Please note that in order for these warranties to be upheld, installation following your state and local codes are required, along with timely registration through the manufacturer.

Installation and Durability

With its ability to be installed in any configuration, upflow, downflow, or horizontal, the ACiQ N95ESN0801716A is very versatile in application potential. The unit has a durable outer casing that can withstand wear-and-tear through its entire lifetime, providing the peace of mind that your home will stay comfortable year-round. Please note that this furnace is not intended for use in a mobile home.


Quality FurnaceQuality Furnace

Quiet Comfort

Every ACiQ furnace is designed to keep your family warm and comfortable year after year. Whisper-quiet ECM blower fans, solid construction with thicker sheet metal and
more cabinet insulation give you near-silent operation. From entry level to top-of-the-line, your comfort is the priority.


High Efficiency

ACiQ saves you money up front, but also over time by reducing energy bills. Multi-speed or Variable Speed ECM blowers come in every furnace. Adding options such as high-efficiency secondary heat exchangers, two stage heating, modulating burners and variable blowers all can further reduce your energy bills while increasing comfort.

High Efficient FurnaceHigh Efficient Furnace

Longer life, longer warranty

Thicker sheet metal, more cabinet insulation and aluminized steel heat exchangers reflect the highest build quality you can get. Every furnace is backed by ACiQ’s 10 year, 20 year or lifetime (depending on model) heat exchanger extended warranty with online registration.

ACiQ 3 Ton 17.5" Width Multi-Positional Evaporator Cased Coil

OVERVIEW

ACiQ takes pride in its ability to provide a high-quality system, including all system components. Leaving no exception, the EAM4X36L17A horizontal coil is a superior option for almost any application while maintaining the entire unit's efficiency with a factory-integrated TXV kit for enhanced energy optimization. With its unique performance features along with its ability to be applied in any orientation, this coil is a superior option for your home's comfort.

QUICK FACTS

  • 3 ton multi-positional evaporator coil
  • Works in almost any upflow, downflow, or horizontal system setup
  • Compatible with both AC-only and heat pump condensers
  • Factory-installed TXV kit for enhanced energy optimization
  • Sturdy and compact design

3 Tons

The ACiQ EAM4X36L17A is rated for up to 3 tons of heating and cooling. With its ability to be installed with either an AC-only condenser or a heat pump condenser, this unit is ideal for many applications. In some packages, this coil will be larger than its paired condenser, which will increase the overall efficiency of the entire unit, but the coil should never be smaller than its paired condenser. Please note that this item cannot operate independently from a compatible condenser and blower or furnace, each available at an additional cost.

Warranty

ACiQ offers a 10 year parts warranty on their coils when they are installed following your state and local codes, as well as the system is paired with a certified system matchup. Please note that in order to obtain the entire length of this warranty, the entire unit must be registered through the manufacturer.

ACiQ 3 Ton 18 SEER High Efficiency Central Heat Pump | Inverter | Extreme Heat​

OVERVIEW

Inverter Condenser - Inverter technology changes AC power to DC, allowing the compressor inside your condenser to speed up and slow down. This allows the system to self-adjust BTU output based on demand. As the weather changes, so will your system output.

Learning system - This system is packed with sensors and controls air temperature inside and outside, system performance, duct pressure, refrigerant temperature. The first time you start your system it enters a learning mode keeping air moving across the sensors and storing information so future startups and run cycles will be at max efficiency.

Size for heat - The self-adjusting inverter design allows you to size your system based on heat demand. With standard heat pumps, sizing for heat can mean a muggy house during summer. The ACiQ Next Gen 3-ton heat pump system automatically adjusts to run like a 2 ton or a 1 ton to keep you cool and dry.

Extreme Heat Technology - Extreme Heat means extended temperature range heating all the way down to -22°F. Traditional heat pumps don't make significant heat below about 30°F outside temperature, below that, they rely on expensive backup electric heat. The ACiQ Next Gen with Extreme Heat uses the inverter to vary the refrigerant flow, allowing for maximum heat extraction during extreme cold temperatures. The backup electric heat supplements the heat pump, and only takes over below -22°. The heat pump gives 100% at 0°F, and still gives 80% at -22°F, saving you up to 75% on cold weather heating bills.

QUICK FACTS

  • 12,000 BTU to 36,000 BTU variable output based on demand
  • Inverter heat pump system for use with ductwork
  • Efficient cooling from 5°F to 122°F outdoor temperatures
  • Efficient heating from -22°F to 85°F outdoor temperatures
  • Durable Gold Fin condenser coil coating
  • Quiet operation at even the highest workloads

36,000 BTU, 16 SEER2

With an efficiency rating of 16 SEER2, the variable output ACiQ-36-HPC will keep you comfortable across a wide range of conditions. Use our handy size calculator Here to determine the demand for your home. For cooling, this system can operate anywhere from 12,000 BTU to 36,000 BTU without short cycling. For heating, this system is capable of 28,000 BTU at -22°F all the way up to 58,588 BTU at 50°F. This increased range means it fits more possible applications.


Extreme Heat Base Pan Heater Technology

Each ACiQ condenser has integrated Extreme Heat technology to maximize heat performance in extreme cold weather. Extended heat pump performance (HyperHeat) harnesses the power of inverter condenser with outdoor temp sensing, variable refrigerant flow and variable condenser fan speed to maximize heat extraction all the way down to -22°F. Plus, every Extreme Heat ACiQ condenser includes a base pan heater to keep ice from collecting on the condenser coil during heat pump operation.

ACIQ IntelliHeat Base Pan Heater TechnologyACIQ IntelliHeat Base Pan Heater Technology

ACIQ Quality ConstructionACIQ Quality Construction

Quality Construction

State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life. Most models have low ambient heating and cooling.


Highest Efficiency

ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.

ACIQ Highest Efficiency CompressorACIQ Highest Efficiency Compressor

ACIQ Longer life, longer warrantyACIQ Longer life, longer warranty

Longer life, longer warranty

Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. Register equipment at ACiQ.com to extend warranty protection to 7 years parts, 12 years compressor.

Product Specifications

More Information
80,000 BTU 96% AFUE Single Stage Multi-Positional ACiQ Gas Furnace
SKUN95ESN0801716A
Weight (in lbs)146.000000
AHRI Certificate Number213148760
Brand/ManufacturerACiQ
Equivalent

Carrier Equivalent: 59SC5B080E17--16

Tempstar Equivalent: TN95ESN0801716A

Bryant Equivalent: 915SB48080E17

Furnace Efficiency / AFUE 96%
Heating BTU80,000
Blower MotorECM
Maximum CFM1665
ConfigurationUpflow/Downflow/Horizontal
Energy StarYes
Burner StagesSingle
Fuel TypePropane, Natural Gas
Height35"
Width17.5"
Depth29 1/2"
Warranty20 Year Heat Exchanger / 10 Year Parts with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information
This gas appliance requires a trained technician to install. Improperly connecting gas lines or improperly connecting a gas flue or venting may result in death. By purchasing this item, you are agreeing that you are using a trained technician to install this gas appliance. We will not be responsible for any injury or property damage arising from improper service or service procedures. Whoever installs or services this unit assumes responsibility for any personal injury or property damage which may result. Many jurisdictions require a license to install this equipment.

PROPOSITION 65 WARNING
ACiQ 3 Ton 17.5" Width Multi-Positional Evaporator Cased Coil
SKUEAM4X36L17A
Weight (in lbs)71.000000
Brand/ManufacturerACiQ
Equivalent

Carrier Equivalent: CAPMP3617ALA

Tempstar Equivalent: EAM4X36L17A

Bryant Equivalent: CAPMP3617ALA

ConfigurationMulti-Positional
RefrigerantR410A
Liquid Line3/8"
Suction Line3/4"
Tonnage3 Ton
StyleA-Coil
CertificationUL Listed
Height29 3/4"
Width17 1/2"
Depth20 5/8"
Warranty10 Years Parts Warranty with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
ACiQ 3 Ton 18 SEER High Efficiency Central Heat Pump | Inverter | Extreme Heat​
SKUACiQ-36-HPC
Refrigerant Charge25'
Weight (in lbs)166.000000
AHRI Certificate Number213500937
Brand/ManufacturerACiQ
HSPF10.4
HSPF29.5
Cooling BTU36000 BTU
Heating BTU40000 BTU
Maximum CFM1082.35
Decibel Level (dBA)64
Electric HeatHeat Pump
Energy StarYes
RefrigerantR410A
SEER1 (Efficiency)18
SEER2 (Efficiency)16
EER10.5
Compressor TypeRotary
Liquid Line3/8"
Suction Line3/4"
Electrical208/230V 1 Phase 60 Hz
Max Breaker Size35 Amps
Min. Breaker Size30 Amps
Tonnage3 Ton
BTU/Tonnage36,000 BTU/3 Ton
Mini-Split TypeMulti-Positional
Min/Max Outdoor Temp for Heating -22~75
Min/Max Outdoor Temp for Cooling 5~122
Zone CompatibilitySingle Zone
Ambient Temperature Range -22~122
Height31.89"
Width37.24"
Depth16.14"
Warranty12 year compressor, 7 year parts with online registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
