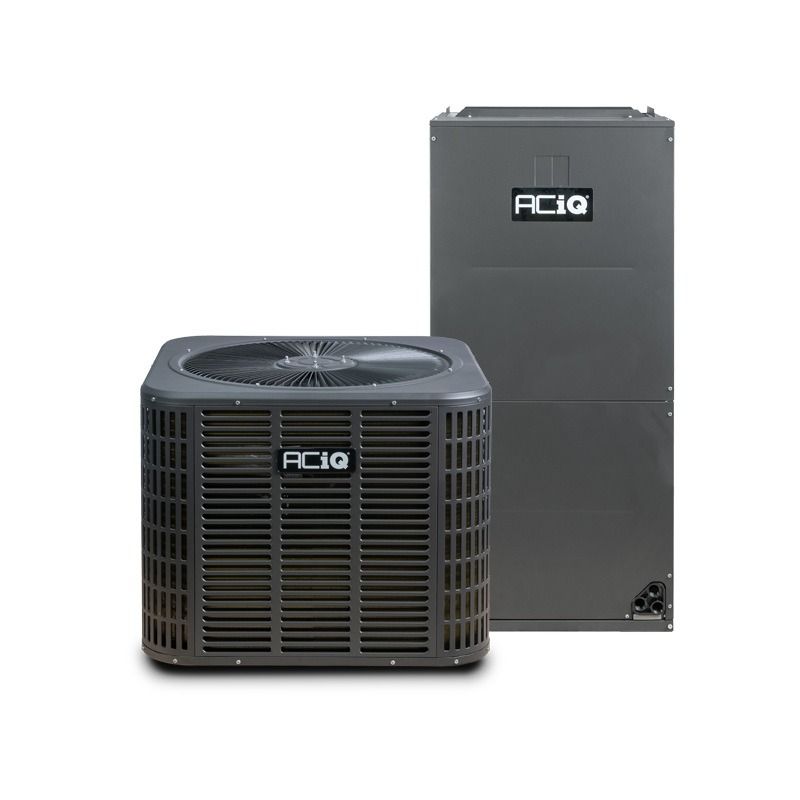

ACiQ 3 Ton 19 SEER2 High Efficiency Central Heat Pump Split System - R454B Inverter - Multi-Positional
Required Fields *
By
ACiQ
In stock
Model
ACiQ-36TD-HP / ACiQ-36TD-AH
ID
205169
Was $4,813.00
Your Low Price $3,850.00
Â
Free Shipping
Product Features
- Complete all-electric heating and cooling system
- Pre-charged with R454B refrigerant
- Can be installed in upflow, downflow, or horizontal applications
- Well-suited for medium-sized homes in various climates
- days
- Hours
- Minutes
- Seconds
With tons of extra features and a great price, an ACiQ inverter heat pump split system is the perfect choice for all of your heating and cooling needs for any time of year.

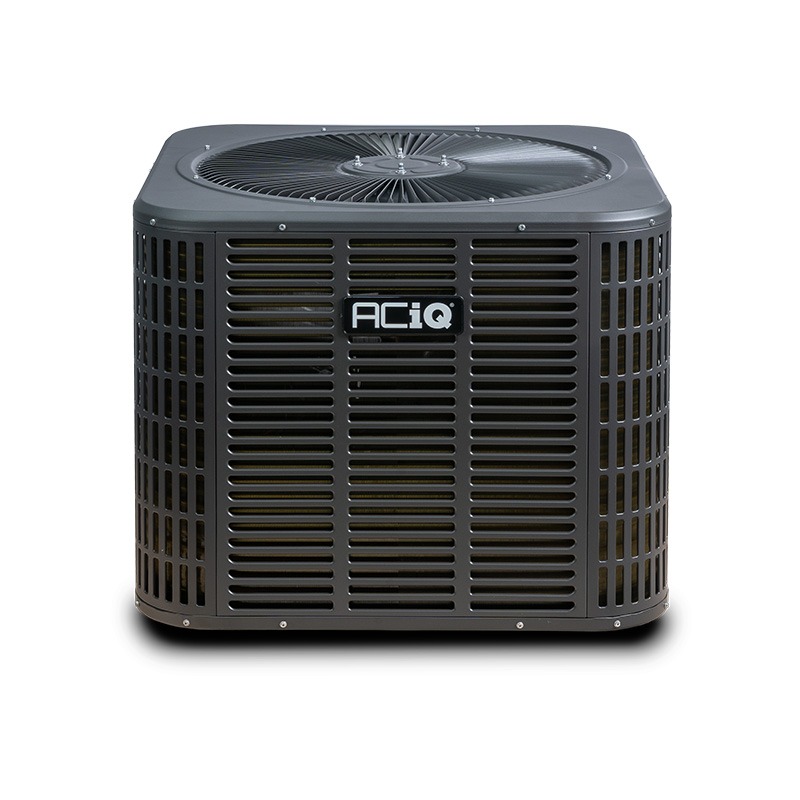

ACiQ 3 Ton 19 SEER2 High Efficiency Central Heat Pump Condenser - R454B Inverter
OVERVIEW
The ACiQ-36TD-HP is a 3-ton heat pump condenser engineered to provide optimal comfort year-round. With its advanced inverter technology and high SEER rating, this system ensures efficient heating and cooling, making it an excellent choice for homeowners seeking reliability and performance.
QUICK FACTS
- 3 ton, 19 SEER2 heat pump condenser
- Can heat and cool a medium-sized house in average conditions
- Pre-charged with R454B refrigerant
- Utilizes a variable-speed compressor that adjusts to real-time heating and cooling demands, enhancing comfort and reducing energy consumption
3 Tons
The ACiQ ACiQ-36TD-HP heat pump condenser has an output of 3 tons, generally enough to heat and cool a medium-sized house in ideal climates. In many system configurations, the tonnage of the unit's paired coil or air handler will be larger in tonnage than this condenser, which maintains the efficiency of the unit. Please note that this condenser cannot function on its own, and it needs an indoor coil or air handler to work.
Disclaimer: This condenser contains R454B refrigerant, which is classified as an A2L refrigerant. To comply with safety standards, this unit must be paired with an R454B air handler or evaporator coil equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-888-557-9206 if you have any questions.

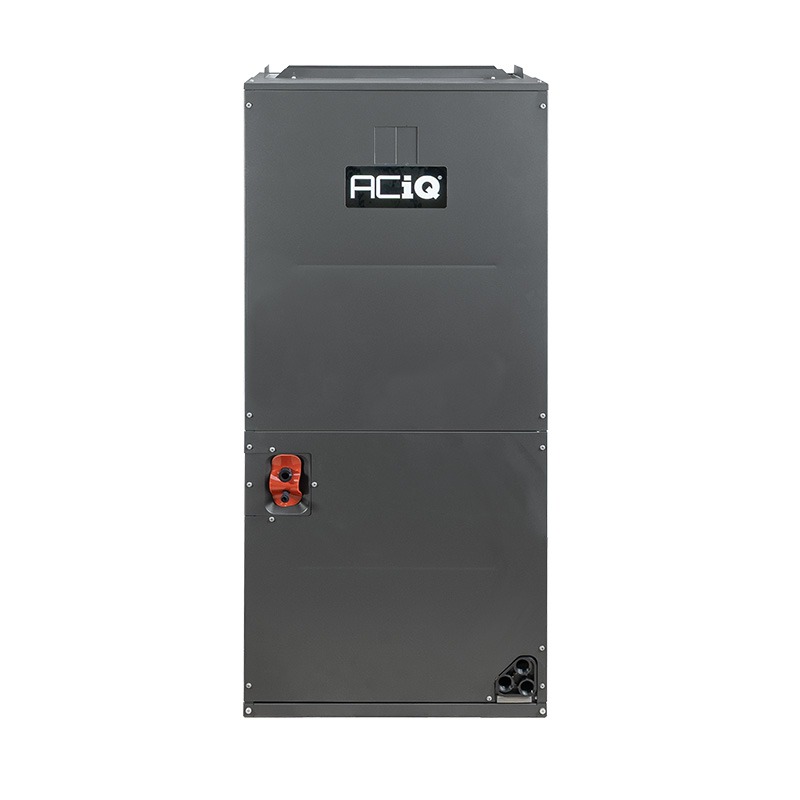

ACiQ 3 Ton Multi-Positional Inverter Central Air Handler - 21" Width - R454B
With its efficient multi-speed blower motor, the ACiQ-36TD-AH is a convenient and efficient air handler to provide comfort to your home. If you want superior quality and enhanced comfort, look no further than this model.
QUICK FACTS
- 3 ton central ducted air handler
- Compatible with any 24v thermostat
- Multi speed constant torque blower motor
- Multi-positional - Can be installed in upflow, downflow, or horizontal left/right orientations
- Compatible with R454B refrigerant
3 Tons
The ACiQ-36TD-AH air handler is rated for an output of 3 tons. While the unit does require a condenser to function, heat kits may be installed in the air handler to provide supplemental electric heating, which can be used as a backup heat option for a heat pump setup.
Installation and Durability
To make a more versatile unit, ACiQ designed the ACiQ-36TD-AH to easily be installed in an upflow, downflow, or horizontal left/right position. For durability, the ACiQ-36TD-AH air handler is designed with an extremely strong outer casing to protect the unit.

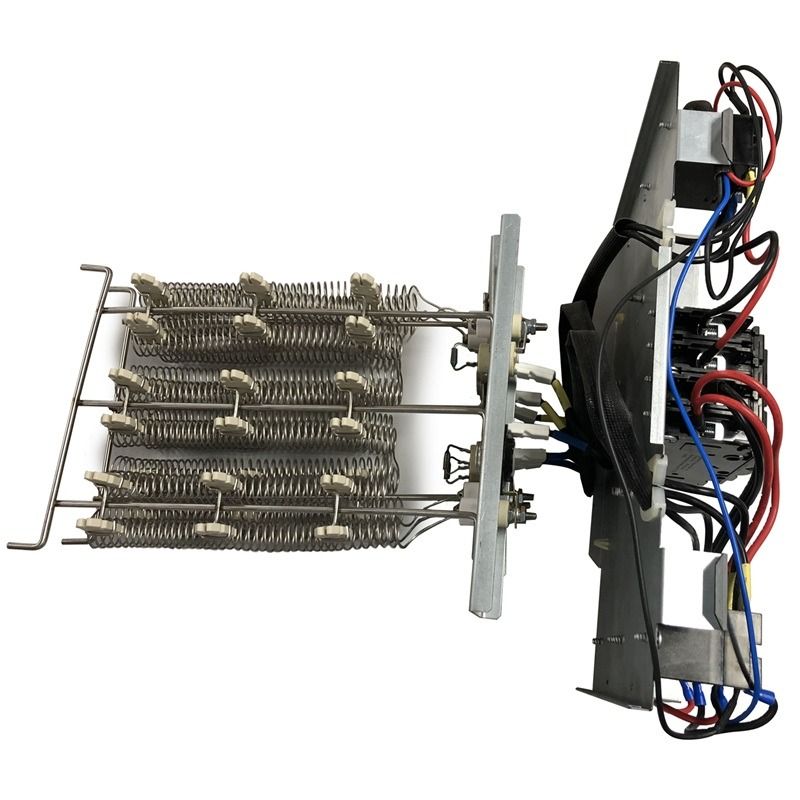

ACiQ 15 Kilowatt Electric Heat Kit
The EAH-15TD is a 15kW electric heat kit designed for use in ACiQ unitary air handlers, allowing you to add straight electric heating to ACiQ unitary ducted heat pump systems. A circuit breaker is included with this heat kit.
Compatible Air Handlers
- ACiQ-36TD-AH
- ACiQ-48TD-AH
- ACiQ-60TD-AH
ACiQ 10 Kilowatt Electric Heat Kit
The EAH-10TD is a 10kW electric heat kit designed for use in ACiQ unitary air handlers, allowing you to add straight electric heating to ACiQ unitary ducted heat pump systems. A circuit breaker is included with this heat kit.
Compatible Air Handlers
- ACiQ-24TD-AH
- ACiQ-36TD-AH
- ACiQ-48TD-AH
- ACiQ-60TD-AH
ACiQ 5 Kilowatt Electric Heat Kit
The EAH-05TD is a 5kW electric heat kit designed for use in ACiQ unitary air handlers, allowing you to add straight electric heating to ACiQ unitary ducted heat pump systems. A circuit breaker is included with this heat kit.
Compatible Air Handlers
- ACiQ-24TD-AH
- ACiQ-36TD-AH
- ACiQ-48TD-AH
- ACiQ-60TD-AH

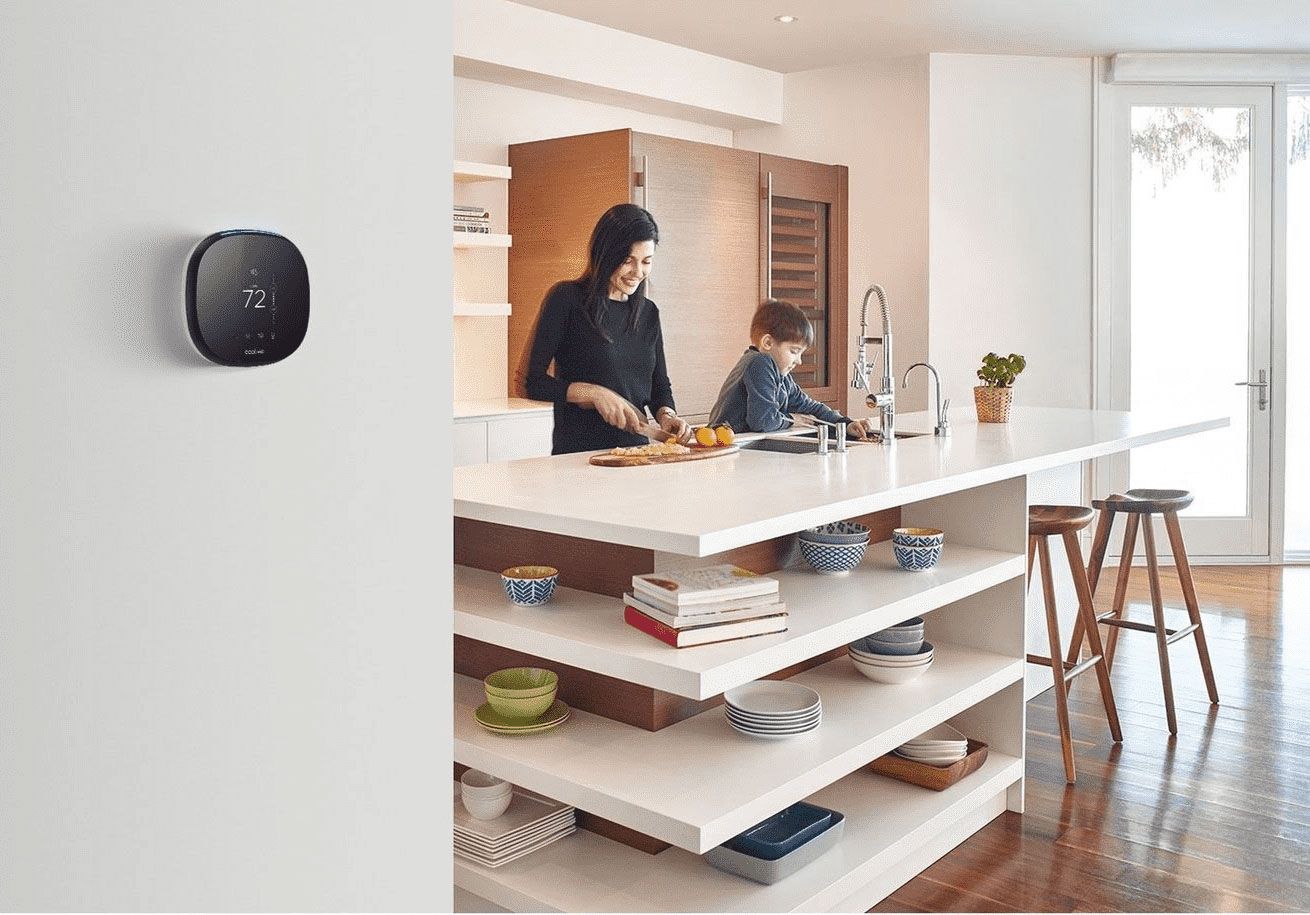

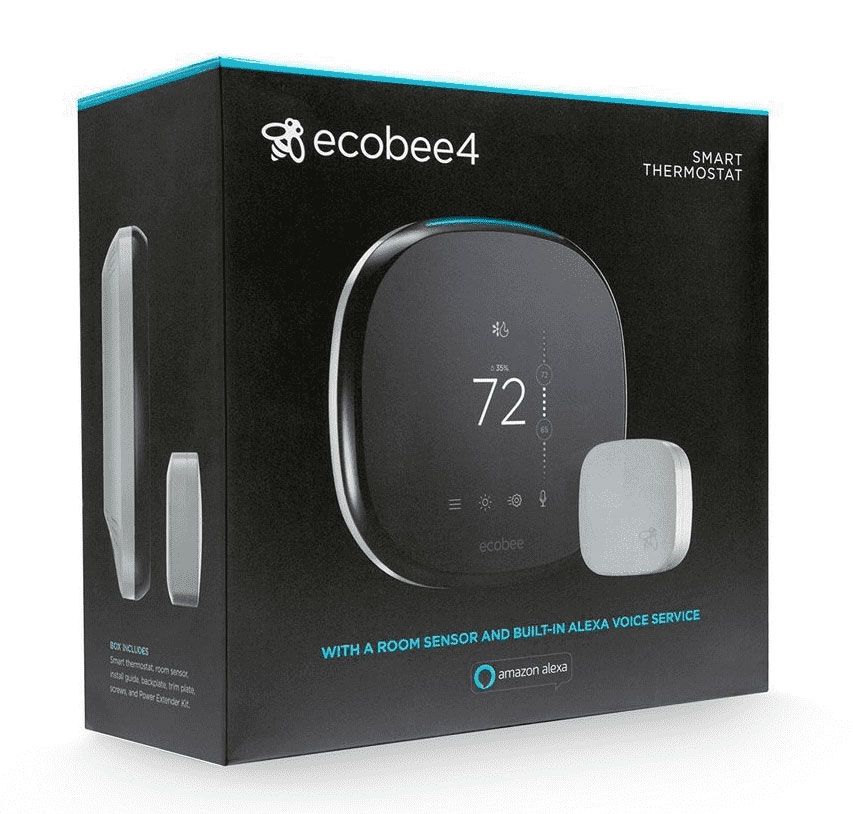

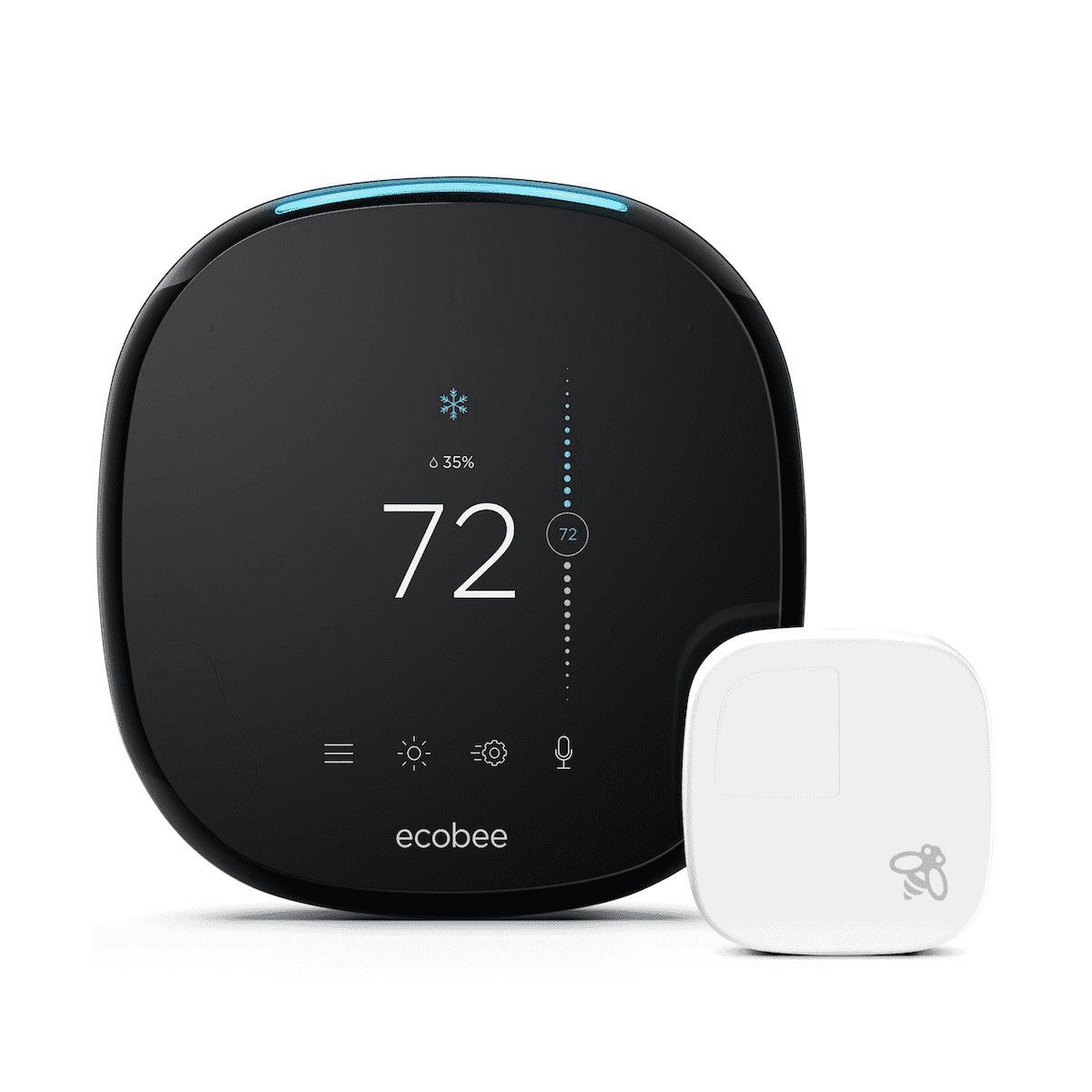

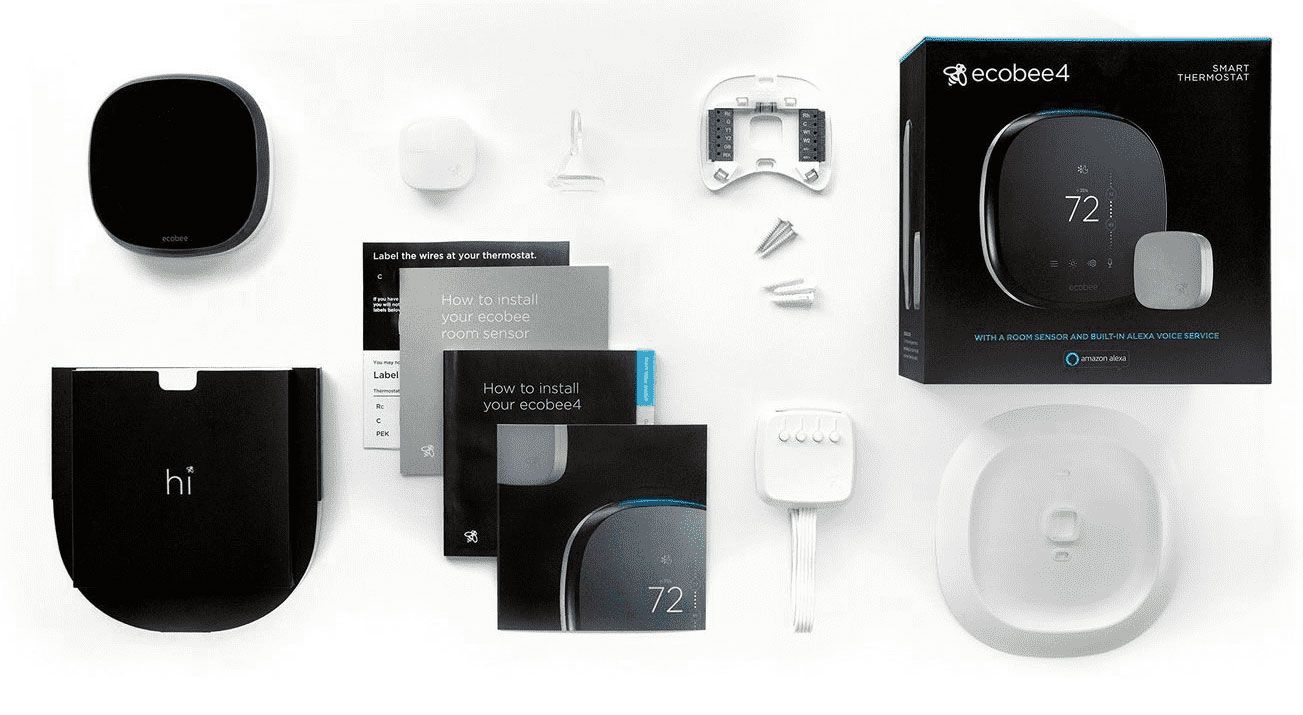

Ecobee Smart WiFi Thermostat with Alexa
The Ecobee is more than a smart thermostat. Most thermostats only read the temperature in one place (usually the hallway) which can make other rooms uncomfortable. Ecobee5 comes with a room sensor to help manage hot or cold spots. When you place sensors in your favorite rooms, ecobee5 can read the temperature and detect occupancy. That's how it ensures comfort in the rooms that matter.
With Amazon Alexa Voice Service built inside, ecobee5 can perform the many 'skills' that come with Alexa. All you have to do is ask, and watch the blue light pipe on top of the thermostat blink in response. For total hands-free control, it can even hear you from across the room. Imagine you’re throwing a last-minute dinner party. Simply ask your ecobee5 to walk you through each step out loud – from finding the right recipes to the ideal music playlist. ecobee5 has embedded microphones with far-field voice recognition and a speaker engineered for clear voice and full sound. It’s the smart thermostat that looks at home on your wall – that you can hear and speak to from across the room.
Features
Not at your thermostat? No problem.

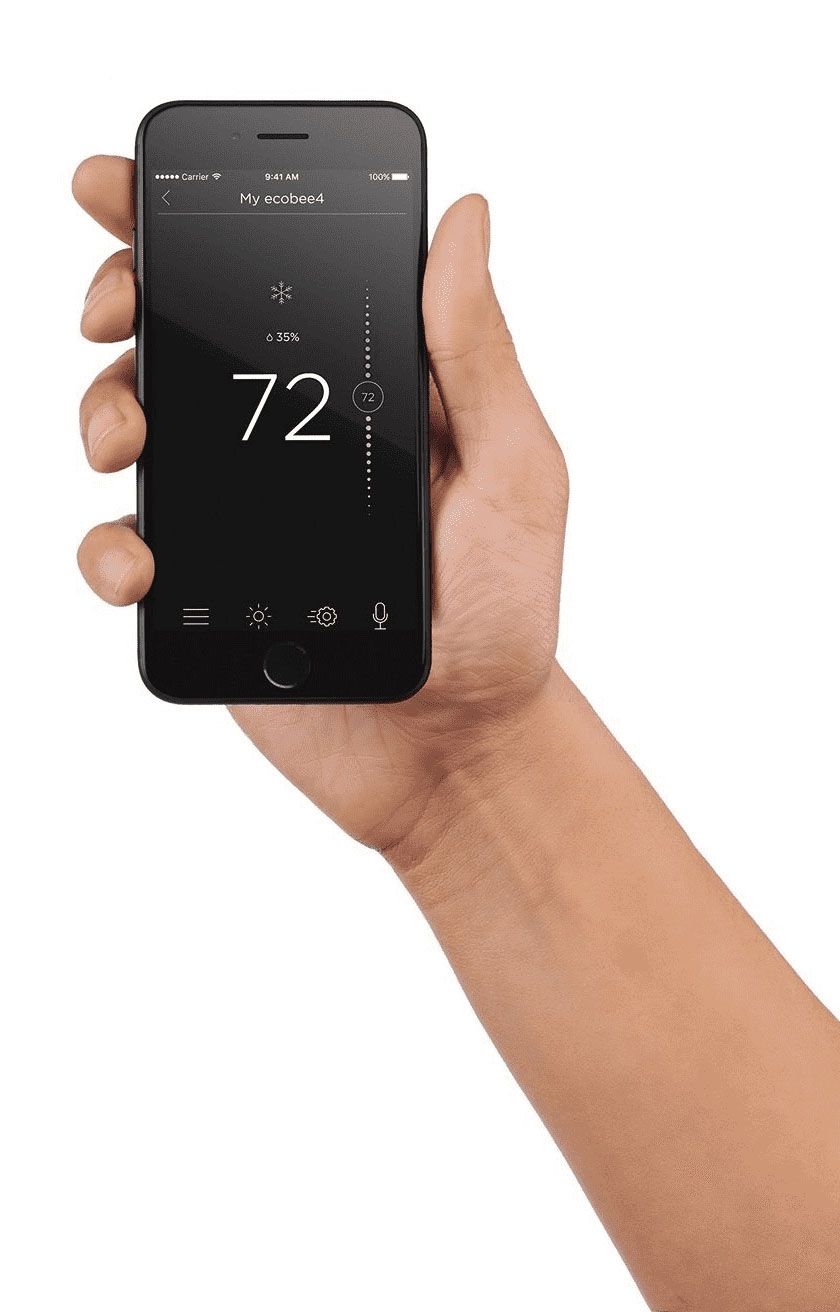

Adjust temperature and comfort settings easily from the ecobee mobile app on your Android and iOS devices, including Apple Watch.
Connects to your existing home network
Convenient Wi-Fi capabilities offer a secure and reliable connection.
Knows you have a life
Vacationing and forgot to let your ecobee know? Make a vacation event using the ecobee mobile app. If something’s wrong with your equipment, we can send you service alerts and reminders.
Control the volume
If it's getting a little loud for your taste, you can use the app to adjust the volume.
Built to last
ecobee thermostats are hardwired, which means your thermostat isn’t relying on a battery or your HVAC equipment to charge itself.

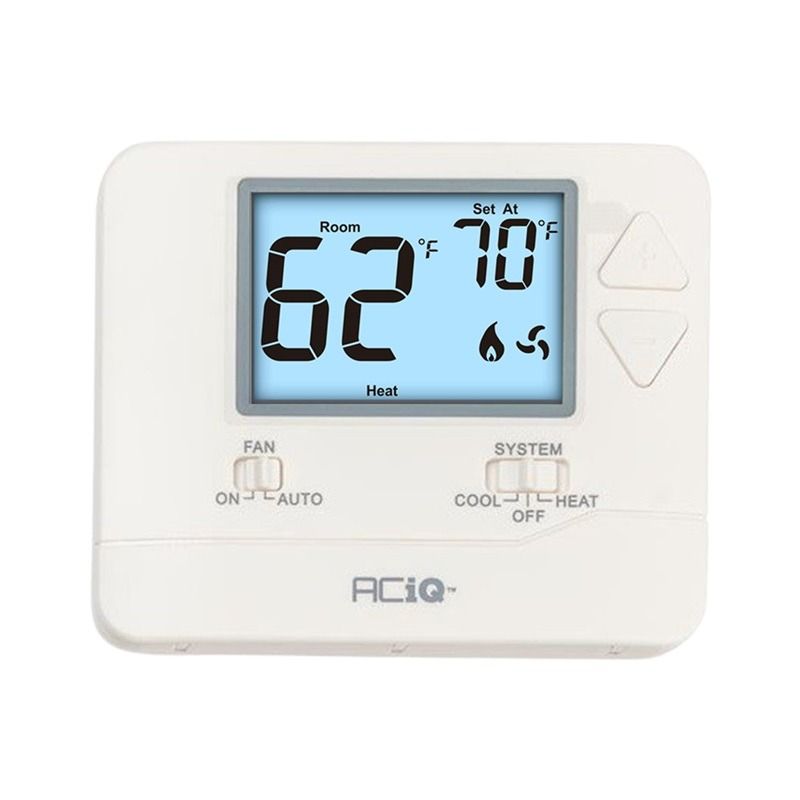

ACiQ Single-Stage Dual Powered Non-Programmable Thermostat
The ACiQ STN701 Single-Stage Dual Powered Non-Programmable Thermostat is a cost effective solution to temperature control! Designed with a bright blue backlight and large easy to read characters, ACiQ thermostats are easy to operate for all consumers.
- 1 Heat / 1 Cool Non-Programmable Thermostat
- Operable with AAA batteries or 24v power
- Large, easy to ready clear LCD display with different backlight color options
- Configurable with Electric or Gas Systems
- Separate B & O terminals
- Handles heating and cooling temperature swing adjustments separately
- Toggleable 5 minute compressor delay protection
- Temperature Range: 32°F-99°F (1°C-40°C)
- Temperature Accuracy: ±1.8°F (±1°C)
ACiQ TL04-1 Smart Thermostat – 24V & HA/HB Compatible
Smarter Comfort. Sleek Control.
The ACiQ TL04-1 Smart Thermostat is engineered to bring precise, intelligent control to your home’s HVAC system. Compatible with both standard 24V wiring and HA & HB communication protocols, it delivers flexibility for new builds or system upgrades.
ÂQUICK FACTS
- Dual Compatibility: Supports 24V systems and HA/HB non-polarity communication systems Â
- Control Options: Works with single and two-stage heating, cooling, and heat pump systems with auxiliary/emergency heat
- Modern Touchscreen: Auto-wake screen with responsive touch interface
- Clean Installation: Includes M-base, trim plate, wire labels, screws, and anchors
- Smart Safety: Built-in installation tips, safety reminders, and FCC/IC compliance
- Perfect for homeowners looking to upgrade their comfort with modern, intelligent technology
Installation Kit for Condensers - Accessory Set
Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.
Key Features:
✔ All-in-One Kit: Includes key accessories for a professional-grade installation.
✔ Enhanced System Protection: Features a surge protector and disconnect safety switch for added safety.
✔ Reliable Electrical Connections: Comes with a whip and charging adapter to ensure proper power supply.

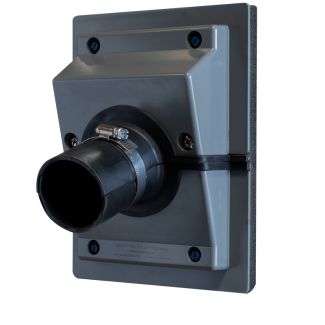

✔ Secure Wall Penetration: Telescoping wall sleeve protects and stabilizes refrigerant and electrical lines.
✔ HVAC Professional Recommended: Ideal for new installations and system replacements.
What’s Included:

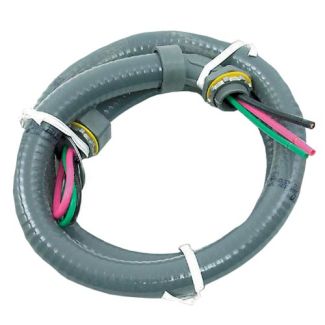

- 1/2" x 6' Electrical Whip – SKU: 84136

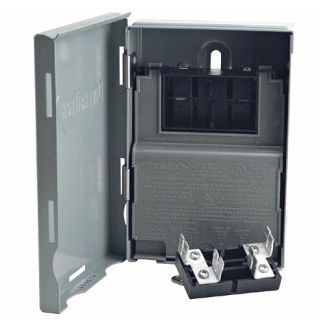

- 60A Non-Fused Disconnect – SKU: 83335
- Surge Protector – SKU: ICM517
- CPS Charging Adapter – SKU: 87-AD87
- Telescoping Wall Sleeve – SKU: NFP-75
Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!

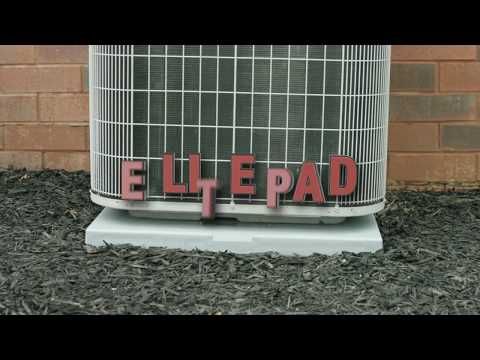

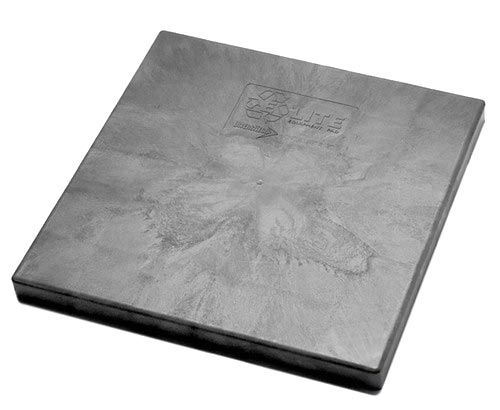

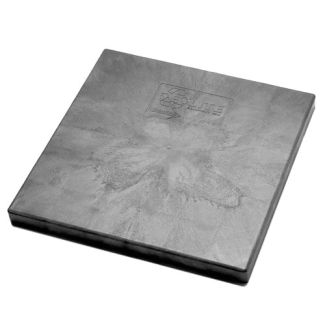

E Lite Equipment Pad 32" x 32" x 3"
E Lite is a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.
- High recycled plastic content
- Subtle texture resists unit slide
- Unaffected by UV or weather
- Uniform ribbing transfers load evenly
- Drillable for securing unit
- Lightweight, yet rugged
No Return Policy
All sales of this product are final and are non-refundable.
Wall Mount Bracket for Condensers 48"
This wall mount bracket is perfect for outdoor condensers. The length of the the wall bracket arms are 48" long. The condensing unit is mounted onto the L-shaped brackets and fastened using bolts and anti-vibration washers (not included with brackets).
Features:
- Steel: 10 GA
- Powder-coated grey Finish
- Load rating: 600 lbs per pair
- Holes will accommodate anchors for installation
- Warranty: 1 year
- ACB line of wall brackets are approved by the Florida Building Commission and are High Velocity Hurricane Zone (HVHZ) approved. (See product certification documentation for complete details.)
No Return Policy
All sales of this product are final and are non-refundable.

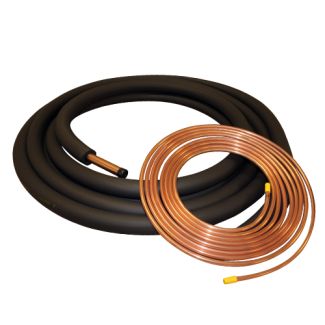

30 Feet of 3/8" LL x 3/4" SL x 3/8" Insulated Line Set
Line sets are the copper lines which connect an outdoor condensing unit/heat pump to an inside air handler or evaporator coil. Line sets are available in different lengths and diameters to fit most applications.
50 Feet of 3/8" LL x 3/4" SL x 3/8" Insulated Line Set
Ensure efficient refrigerant flow and optimal HVAC performance with this 50-foot insulated line set. Designed for seamless connection between an outdoor condensing unit or heat pump and an indoor air handler or evaporator coil, this line set offers durability, flexibility, and superior thermal protection for long-lasting operation.
Key Features:
✔ Premium Copper Tubing: 3/8" liquid line (LL) and 3/4" suction line (SL) for efficient refrigerant transfer.
✔ Pre-Insulated for Efficiency: 3/8" thick insulation minimizes energy loss and condensation buildup.
✔ Versatile Application: Compatible with heat pumps and conventional split systems.
✔ Easy Installation: Flexible and durable copper tubing allows for smooth routing and connection.
✔ Extended 50-Foot Length: Ideal for larger residential and light commercial HVAC installations.
Upgrade your HVAC system with this high-quality insulated line set, engineered for reliability, efficiency, and ease of installation.

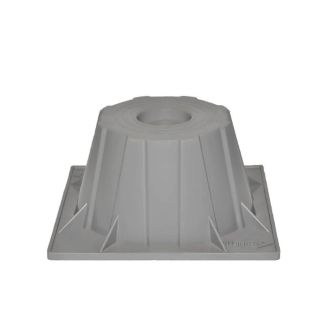

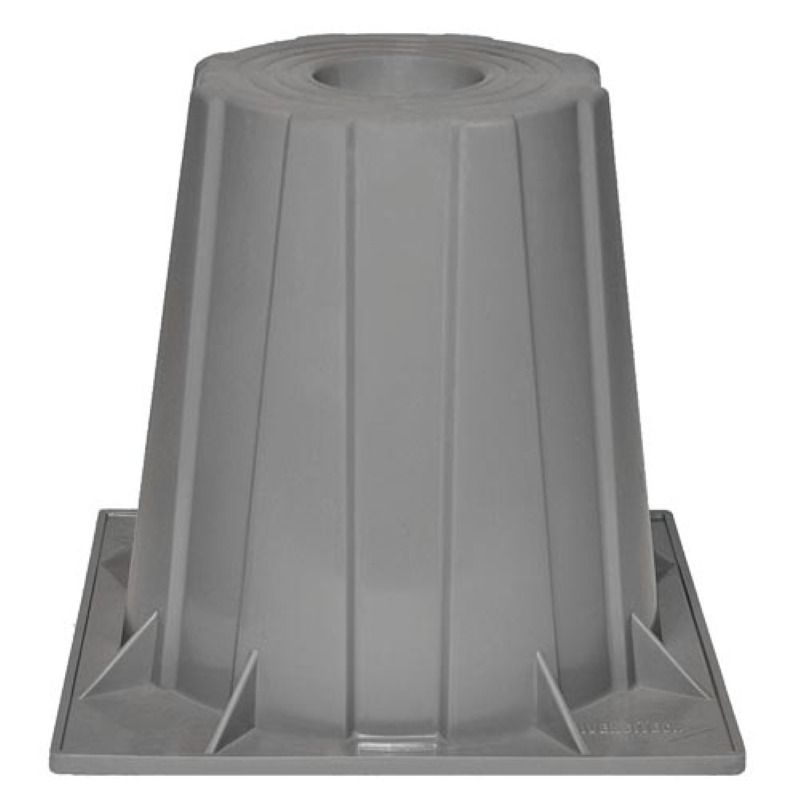

6 Inch Heat Pump Risers (4 pack)
Heat pump risers provide a sturdy and stable solution for adding elevation to a heat pump in colder climates to keep the heat pump above average snow levels. The one-piece, heavy duty plastic unit is manufactured with thick wall sections and generous reinforcements are employed in the most effective areas, yielding a strong yet lightweight structure.
- Elevates heat pumps, air conditioners, air handlers, or other equipment
- Allows drainage, and keeps corrosion of metal bases to a minimum
- Absorbs vibrations and noise
- Comes in 4-pack
| ACiQ 3 Ton 19 SEER2 High Efficiency Central Heat Pump Condenser - R454B Inverter | |
|---|---|
| SKU | ACIQ-36TD-HP |
| Refrigerant Charge | 100.53 oz. |
| Weight (in lbs) | 176.000000 |
| AHRI Certificate Number | 217006582 |
| Brand/Manufacturer | ACiQ |
| Product Features | Inverter, Two Stage Condenser, Variable Speed Condenser |
| HSPF2 | 9.0 |
| Cooling BTU | 34000 BTU |
| Heating BTU | 36,000 BTU |
| Decibel Level (dBA) | 68 Decibels |
| Refrigerant | R454B |
| SEER2 (Efficiency) | 19 |
| Condenser Stages | Single Stage |
| Compressor Type | Scroll |
| Liquid Valve Size | 3/8" |
| Suction Valve Size | 3/4" |
| Electrical | 208/230V, 1 Phase, 60 Hz |
| Phase | Single Phase |
| Max Breaker Size | 35A |
| Min. Breaker Size | 22A |
| Tonnage | 3 Ton |
| Zone Compatibility | Single Zone |
| Height | 24-15/16" |
| Width | 29-1/8" |
| Depth | 29-1/8" |
| Warranty | 12 Years Compressor and 7 Years Parts with Online Registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| ACiQ 3 Ton Multi-Positional Inverter Central Air Handler - 21" Width - R454B | |
| SKU | ACIQ-36TD-AH |
| Weight (in lbs) | 154.000000 |
| AHRI Certificate Number | 217006582 |
| Brand/Manufacturer | ACiQ |
| HSPF2 | 9.0 |
| Cooling BTU | 34000 BTU |
| Heating BTU | 36000 BTU |
| Maximum CFM | 1150 |
| Decibel Level (dBA) | 58 Decibels |
| Horsepower | 1/2 HP |
| Electric Backup Heat Capabilities (Optional) | 5 Kilowatts, 10 Kilowatts, 15 Kilowatts |
| Configuration | Multi-Positional |
| Refrigerant | R454B |
| Filter Size | 18" x 20" |
| SEER2 (Efficiency) | 19 |
| Condenser Stages | Variable Speed |
| Liquid Valve Size | 3/8" |
| Suction Valve Size | 3/4" |
| Electrical | 208/230V, 1 Phase, 60 Hz |
| Phase | Single Phase |
| Tonnage | 3 Ton |
| Connection | Flare to Braze |
| Height | 46-1/2" |
| Width | 21" |
| Depth | 21" |
| Warranty | 7 Years Parts with Online Registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| ACiQ 15 Kilowatt Electric Heat Kit | |
| SKU | EAH-15TD |
| Weight (in lbs) | 10.000000 |
| Brand/Manufacturer | ACiQ |
| Heating BTU | 51,150 BTU |
| Electric Heat | 15 Kilowatts |
| Electrical | 208/230v 1 Phase 60 Hz |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| ACiQ 10 Kilowatt Electric Heat Kit | |
| SKU | EAH-10TD |
| Weight (in lbs) | 8.000000 |
| Brand/Manufacturer | ACiQ |
| Heating BTU | 34,100 BTU |
| Electric Heat | 10 Kilowatts |
| Electrical | 208/230v 1 Phase 60 Hz |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| ACiQ 5 Kilowatt Electric Heat Kit | |
| SKU | EAH-05TD |
| Weight (in lbs) | 8.000000 |
| Brand/Manufacturer | ACiQ |
| Heating BTU | 16,200 BTU |
| Electric Heat | 5 Kilowatts |
| Electrical | 208/230v 1 Phase 60 Hz |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Ecobee Smart WiFi Thermostat with Alexa | |
| SKU | EB-STATE6P-01 |
| Weight (in lbs) | 0.500000 |
| Brand/Manufacturer | ecobee |
| Product Features | Programmable, WiFi, Heat Pump Capable, 3 Heat, 2 Cool |
| Energy Star | Yes |
| Warranty | 3 years |
| Resources | |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| ACiQ Single-Stage Dual Powered Non-Programmable Thermostat | |
| SKU | STN701 |
| Weight (in lbs) | 1.000000 |
| Brand/Manufacturer | ACiQ |
| Product Features | Heat Pump Capable, Non Programmable, 1 Heat, 1 Cool |
| Resources | Braeburn Brochure
Braeburn User Guide |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| ACiQ 7-Day Programmable Thermostat with WiFi | |
| SKU | STN855W |
| Weight (in lbs) | 1.000000 |
| Brand/Manufacturer | ACiQ |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| ACiQ TL04-1 Smart Thermostat – 24V & HA/HB Compatible | |
| SKU | TL04-1 |
| Weight (in lbs) | 0.700000 |
| Brand/Manufacturer | ACiQ |
| Product Features | Heat Pump Capable, Programmable, WiFi, 1 Heat, 2 Heat, 3 Heat, 1 Cool, 2 Cool |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Installation Kit for Condensers - Accessory Set | |
| SKU | MSK001 |
| Weight (in lbs) | 15.000000 |
| Brand/Manufacturer | Online Supply |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| E Lite Equipment Pad 32" x 32" x 3" | |
| SKU | EL3232-3 |
| Weight (in lbs) | 20.000000 |
| Brand/Manufacturer | Online Supply |
| Height | 3" |
| Width | 30" |
| Depth | 30" |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Wall Mount Bracket for Condensers 48" | |
| SKU | ACB-48 |
| Weight (in lbs) | 9.200000 |
| Brand/Manufacturer | Online Supply |
| Length | 30" |
| Height | 16" |
| Width | 2" |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| 30 Feet of 3/8" LL x 3/4" SL x 3/8" Insulated Line Set | |
| SKU | LS38343830 |
| Weight (in lbs) | 35.000000 |
| Brand/Manufacturer | Online Supply |
| Liquid Line | 3/8" |
| Suction Line | 3/4" |
| Suction Line Insulation Thickness | 3/4" |
| Length | 30 feet |
| 50 Feet of 3/8" LL x 3/4" SL x 3/8" Insulated Line Set | |
| SKU | LS38343850 |
| Weight (in lbs) | 22.000000 |
| Brand/Manufacturer | Online Supply |
| Liquid Line | 3/8" |
| Suction Line | 3/4" |
| Suction Line Insulation Thickness | 3/4" |
| Length | 50 feet |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| 6 Inch Heat Pump Risers (4 pack) | |
| SKU | HPR-6 |
| Weight (in lbs) | 1.000000 |
| Brand/Manufacturer | Online Supply |
| Height | 6" |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
Write Your Own Review
Customer Questions
What happens if this breaks down?
HVACDirect.com gives you lifetime tech support. Many common problems can be solved with a phone call to us. HVACDirect.com is an authorized dealer of ACiQ, therefore equipment we sell carries the full manufacturer's warranty. The warranty applies to all parts. You have to register the products online in order to extend the warranty to the full 10 years, otherwise the term is 5 years. If a part fails under warranty, you will not pay anything for the replacement part. Should a part fail under warranty, the first step is to have a professional confirm what part needs to be replaced. Then, contact us at customerservice@hvacdirect.com or by calling and asking for customer service.
How can I find an installer?
It’s easier than you think – the key is to find an independent contractor or small company as opposed to a larger HVAC service. A one or two person outfit will do the work more quickly and cheaply than a bigger company, too. Yelp.com, Thumbtack.com, and Porch.com are websites are designed to help you connect with a professional in your area. You could also place a call to the last professional who did work on your home and see if they have any recommendations.
Did you find what you were looking for?
Why Choose ACiQ?
ACiQ designs AC systems that are based on principles learned from nature: clean, energy-efficient, and quiet. ACiQ systems are built in a such a way that they are easily adapted to fit multiple variations a homeowner needs. ACiQ offers technology in mini-split and full split inverter system offerings that provide the smartest way to buy and save on your home’s comfort solution, so that it meets the needs of your family. ACiQ specializes in home comfort, regardless of your needs.
Accessories
Got everything you needed to install? See the recommended and/or required options for installation below.
Check the items you would like to include with your order
