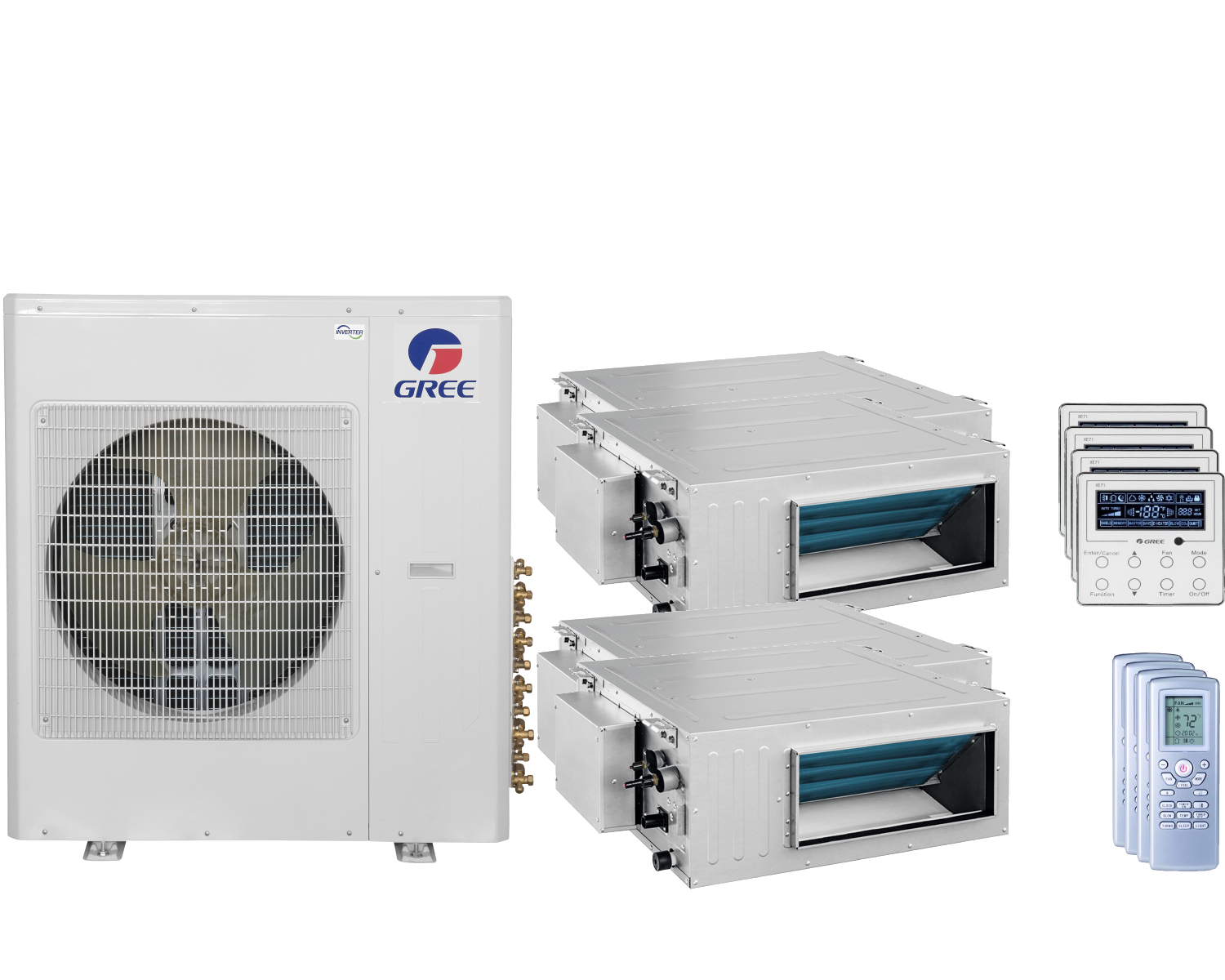

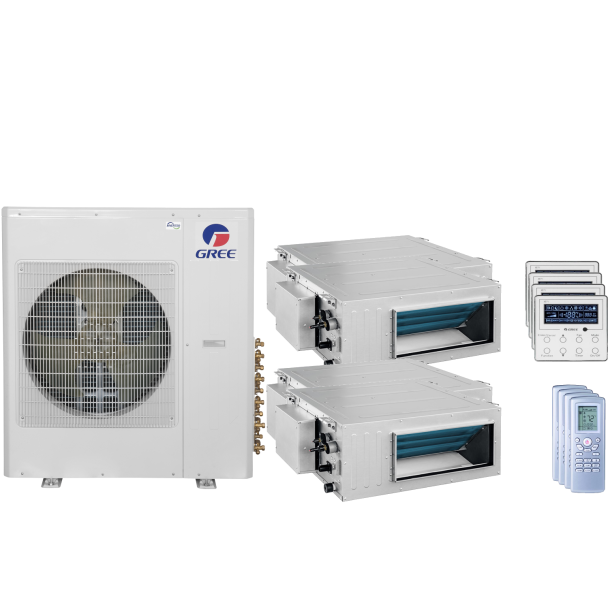

36,000 BTU 14 SEER Quad Zone Concealed Duct Gree Heat Pump System 9+12+12+12

36,000 BTU 14 SEER Quad Zone Concealed Duct Gree Heat Pump System 9+12+12+12

Required Fields *

By

Gree

Out of stock

Model

MULTIU36HP230V1DO / DUCT09HP230V1BD / 3-DUCT12HP230V1BD

ID

53689

Ships in 2-4 Business Days
Was $1,102.80
Your Low Price $919.00

Free Shipping
Customize 36,000 BTU 14 SEER Quad Zone Concealed Duct Gree Heat Pump System 9+12+12+12
9k BTU Concealed Duct - High Static
9k BTU Concealed Duct - High Static   + $919.00

The Gree Quad Zone Mini Split Systems are state of the art ductless mini split heat pump systems, providing both heating and cooling for your home. Rated at 14 SEER, this efficient system will keep operating costs down while providing year-round comfort. Each living space has its own air-handling unit.

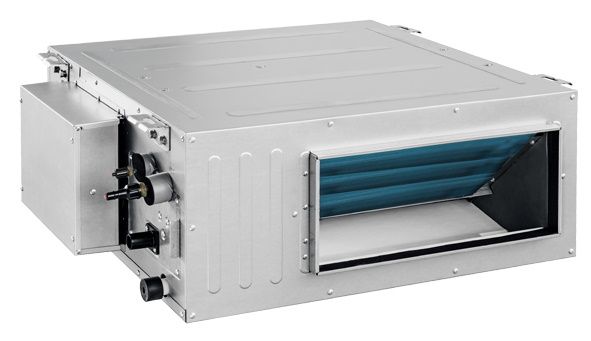

9,000 BTU Concealed Duct Gree Mini Split High Static Multi Zone Air Handler - R410A

The Gree High Static Slim Duct indoor unit offers flexibility. It is designed to be installed above suspended ceilings, or in open closet spaces. This unit delivers conditioned air via ducting and ceiling or wall grilles. It has a high static pressure capability and is only 13-5/8" High.

The Gree High Static Slim Duct is AHRI Certified and comes with a 5-year limited warranty.

Features:

  • Heating, Cooling, Dry, and Fan modes
  • Fahrenheit °F / Celsius °C

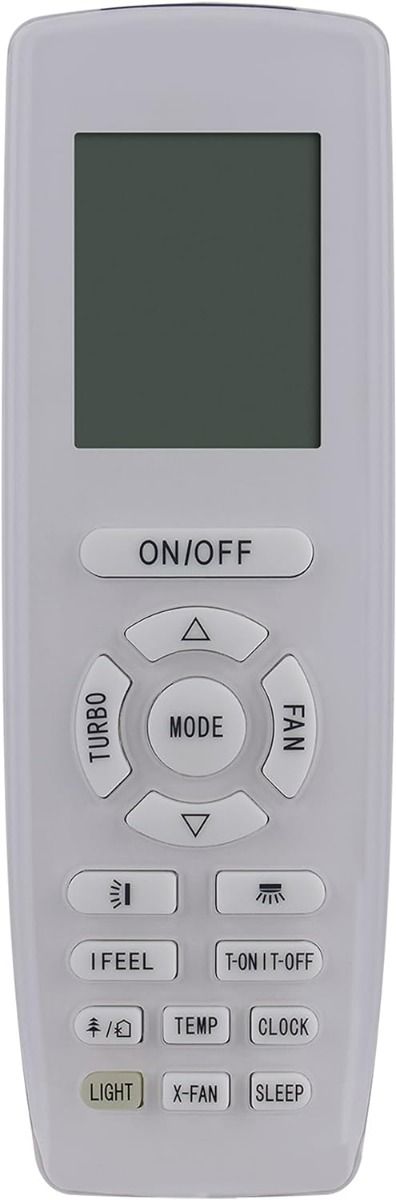

  • Handheld IR remote control and XK-19 wall mounted control included
More Information
36,000 BTU 23 SEER Gree Mini Split Multi+ Ultra 2-4 Zone Heat Pump Condenser - R410A
SKUMULTIU36HP230V1DO
Refrigerant ChargePre-charged for: 131'
Weight (in lbs)298.000000
AHRI Certificate Number204288780 & 204630894 & 204664397
Brand/ManufacturerGree
Product FeaturesLow Ambient Heating
Additional InformationHeat Pump
Additional InformationMaximum Line Set Length: 82'
Additional InformationMaximum System Piping: 246'
HSPF10
Cooling BTU36,000
Heating BTU36,000
Decibel Level (dBA)Outdoor Unit: 62 dB(A)
Energy StarNo
RefrigerantR410A
SEER1 (Efficiency)23-24
EER9
Compressor TypeRotary
Liquid Lineliquid_line=1/4" (5)
Suction Linesuction_line=3/8" (5)
Electrical208/230V 1 Phase 60Hz
PhaseSingle Phase
Max Breaker Size40 amps
Min. Breaker Size23 amps
Tonnage3 Ton
BTU/Tonnage36,000 BTU/3 Ton
Min/Max Outdoor Temp for Heating-31F - 75F
Min/Max Outdoor Temp for Cooling0F - 115F
Height43.5"
Width40"
Depth17.3"
Warranty5 year Limited Parts Warranty
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
9,000 BTU Concealed Duct Gree Mini Split High Static Multi Zone Air Handler - R410A
SKUDUCT09HP230V1BD
Weight (in lbs)84.000000
Brand/ManufacturerGree
Product FeaturesLow Ambient Heating
Additional InformationDrain: 1"
Cooling BTU9,000
Heating BTU9,500
Maximum CFM188-324 CFM
Decibel Level (dBA)Indoor Unit: 25-42 dB(A)
RefrigerantR410A
Liquid Lineliquid_line=1/4"
Suction Linesuction_line=3/8"
Electrical208/230V 1 Phase 60Hz
BTU/Tonnage9,000 BTU/0.75 Ton
Mini Split TypeConcealed Duct
Zone CompatibilityMulti Zone
Height13.6"
Width32.7"
Depth29.7"
Warranty5 year Limited Parts Warranty
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
12,000 BTU Concealed Duct Gree Mini Split High Static Multi Zone Air Handler
SKUDUCT12HP230V1BD
Weight (in lbs)84.000000
Brand/ManufacturerGree
Product FeaturesLow Ambient Heating
Additional InformationDrain: 1"
Cooling BTU12,000
Heating BTU13,000
Maximum CFM211-353 CFM
Decibel Level (dBA)Indoor Unit: 26-42 dB(A)
RefrigerantR410A
Liquid Lineliquid_line=1/4"
Suction Linesuction_line=1/2"
Electrical208/230V 1 Phase 60Hz
BTU/Tonnage12,000 BTU/1 Ton
Mini Split TypeConcealed Duct
Zone CompatibilityMulti Zone
Height13.6"
Width32.7"
Depth29.7"
Warranty5 year Limited Parts Warranty
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
