Today's Hours 8am - 11pm est36,000 BTU 18 SEER ACiQ Single-Zone Mini Split Outdoor Unit – R410A
Out of stock
By
ACiQ
Out of stock
Model
SC-36ZGLD-HP230B
ID
210833
No Return Policy: All sales of this product are final and are non-refundable.

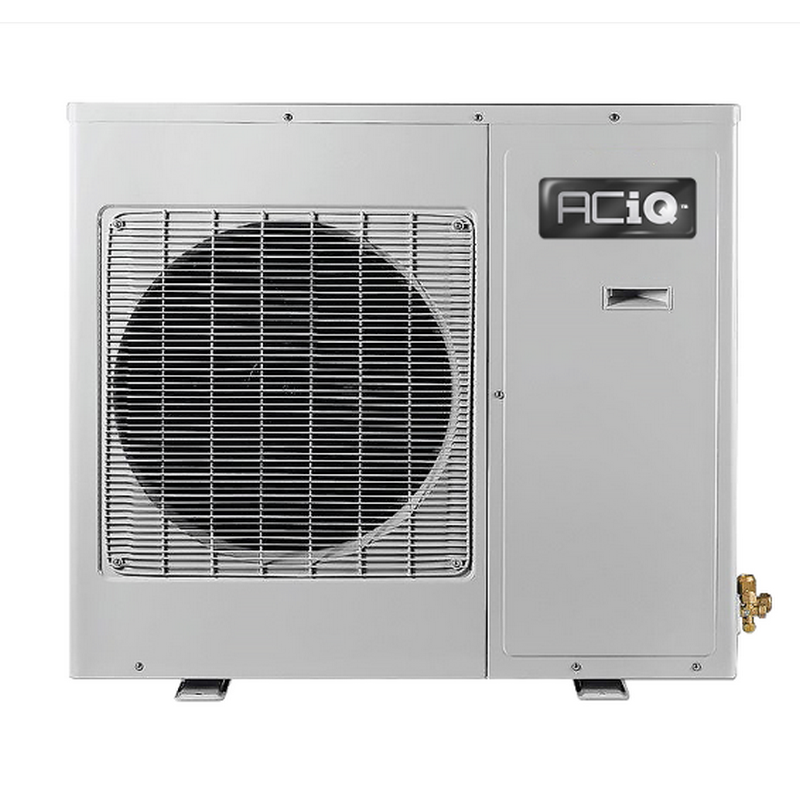

ACiQ SC-36ZGLD-HP230B 36,000 BTU Outdoor Condenser Unit
Important: This outdoor unit must be paired with compatible indoor units to function (sold separately).
Key Specifications
- Cooling Capacity: 33,600 BTU/h
- Heating Capacity: 34,600 BTU/h
- SEER: 18
- EER: 8.2
- HSPF: 9
- Refrigerant: R-410A
- Voltage: 208/230V, 1 Phase, 60 Hz
- Compressor Type: Rotary
- Maximum CFM: 412–736 CFM
- Decibel Level: 65 dBA
- Liquid Line: 1/4"
- Suction Line: 5/8"
- Drain Line: 5/8"
- Max Breaker Size: 40 Amps
- Min Breaker Size: 24 Amps
- Line Set Length: 10–98 feet
- Outdoor Temperature Range (Cooling): 0°F – 115°F
- Outdoor Temperature Range (Heating): -22°F – 75°F
- Dimensions (H × W × D): 31.1" × 38.6" × 15.2"
- Weight: 172 lbs
- Compatible Indoor Units: ACiQ SC-36WGLD-HP230B and other ACiQ single-zone units
Features & Benefits
- Inverter Technology for energy-efficient and consistent performance
- Low Ambient Heating for reliable operation in cold climates
- Durable Construction with acrylic resin fin coating for environmental protection
- Quiet Operation for near-silent comfort
- Wi-Fi Compatibility for remote control and monitoring
Longer life, longer warranty
Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. Register equipment at ACiQ.com to extend warranty protection to 7 years parts, 12 years compressor.
Quality Construction
State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life. Most models have low ambient heating and cooling.
