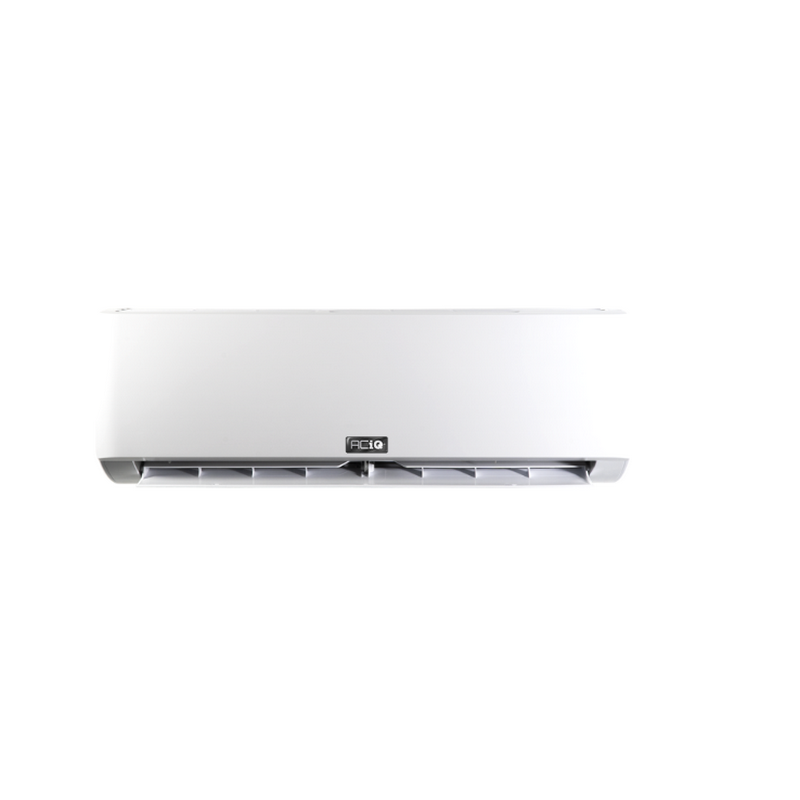

36,000 BTU ACiQ Wall Mount Air Handler - R410A

36,000 BTU ACiQ Wall Mount Single Zone Air Handler w/ WiFi - R410A - SC-36WGLD-HP230B
36,000 BTU ACiQ Wall Mount Air Handler - R410A
SAVE $784.80
By

ACiQ

In stock
Model

SC-36WGLD-HP230B

ID

210786

Be the first to review this product
ONLY 7 LEFT!
Was $1,299.99 Your Low Price Special Price $515.19


No Return Policy: All sales of this product are final and are non-refundable.

Enhanced Comfort

ACiQ single zone air handler constantly monitors return air to maintain your setpoint temperature as weather conditions change throughout the day and night. 

  • Efficient cooling from 0°F to 115°F outdoor temperatures
  • Efficient heating from -4°F to 75°F outdoor temperatures
  • Quiet operation at even the highest workloads
  • Soft LED display for temperature, mode change, diagnostic alerts
  • Timer function, Sleep Mode, Energy Save mode

Information at a glance

ACiQ wall mount air handlers have a soft LED display on the front cover showing temperature, as well as mode changes and diagnostic alert codes.

Wi-Fi Options

ACiQ wall mount air handlers have native Wi-Fi capability. To control via smartphone or tablet, simply download the Gree + app from the app store or Google Play.

Please note: in order to function, this air handler must be installed with a condenser and other installation equipment, available at an additional cost if not already included in this product bundle.

ACiQ Wall Mount Mini Split

Quiet Comfort

Every ACiQ system is precision engineered to quickly achieve set temperature and hold it there, no matter what the weather is outside. With whisper quiet indoor and outdoor units, ACiQ never intrudes on your peace and quiet.

Smartphone App

In addition to the handheld or wired remote that is already included, wall mounted units are WiFi ready, and can be controlled from anywhere with a free app on your tablet or smartphone.

ACiQ Smartphone App

Installation and Maintenance

ACiQ multi zone condensers are pre-charged with R410-A refrigerant for 25' per air handler connection. In many cases, no additional refrigerant is needed. All units are run-tested at the factory for years of trouble-free performance. Troubleshooting is easy thanks to unit's self diagnosing control board with alerts that are sent to each connected air handler.

ACIQ Installation and MaintenanceACIQ Installation and Maintenance
More Information
36,000 BTU ACiQ Wall Mount Air Handler - R410A
SKUSC-36WGLD-HP230B
Weight (in lbs)42.000000
Brand/ManufacturerACiQ
Product FeaturesWiFi
Additional InformationHeat Pump
Additional InformationMaximum Line Set Length: 98'
Additional InformationMinimum Line Set Length: 10'
Additional InformationDrain: 5/8"
Cooling BTU33,600
Heating BTU34,600
Maximum CFM412-736 CFM
Decibel Level (dBA)Indoor Unit: 37-54 dB(A) | Outdoor Unit: 65 dB(A)
Electric HeatHeat Pump
Energy StarNo
RefrigerantR410A
SEER1 (Efficiency)23-24
EER8.2
Compressor TypeRotary
Liquid Line1/4"
Suction Line5/8"
Electrical208/230V 1 Phase 60Hz
PhaseSingle Phase
Max Breaker Size40 Amps
Min. Breaker Size24 Amps
BTU/Tonnage36,000 BTU/3 Ton
Mini Split TypeWall Mounted
Min/Max Outdoor Temp for Heating-31F - 75F
Min/Max Outdoor Temp for Cooling0F - 115F
Zone CompatibilitySingle Zone
HeightIndoor Unit: 12.8" | Outdoor Unit: 31.1"
WidthIndoor Unit: 53.1" | Outdoor Unit: 38.6"
DepthIndoor Unit: 10" | Outdoor Unit: 14.5"
Additional InfoIndoor Unit Weight: 53.1 lbs | Outdoor Unit Weight: 172 lbs
Warranty12 year compressor, 7 year parts with online registration
