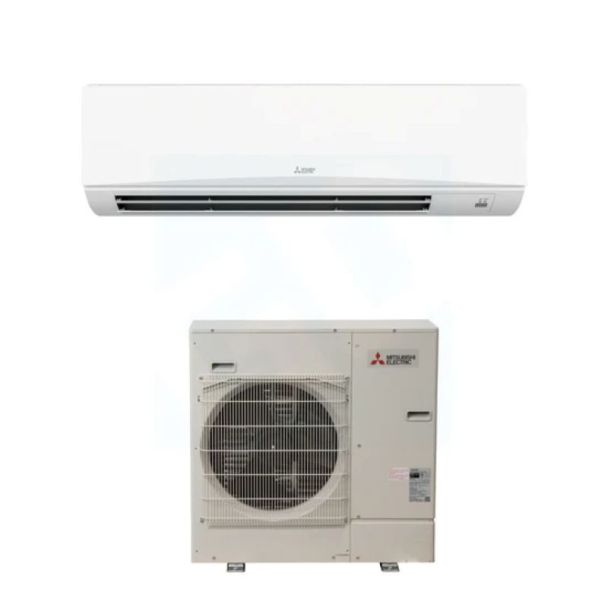

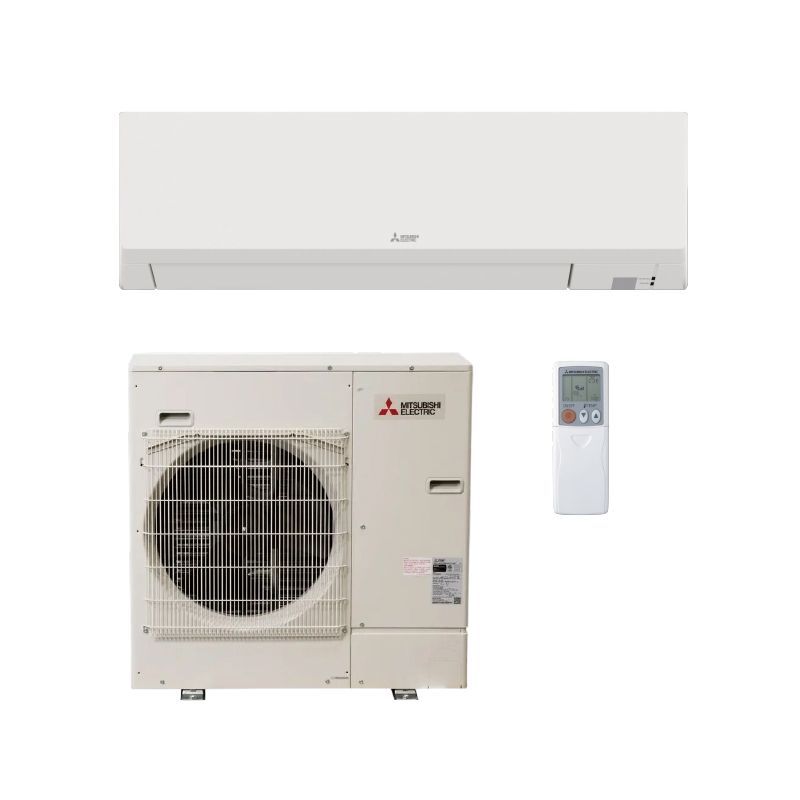

36,000 BTU Mitsubishi GX-Series 18.5 SEER2 Single Wall Mounted Mini Split Cooling Only System - R454B | MUY-GX36NL / MSY-GX36NL
Required Fields *
By
Mitsubishi
In stock
Model
MUY-GX36NL / MSY-GX36NL
ID
199080
In Stock - Ready to Ship
Was $6,165.00
Your Low Price $4,932.00
Â
Free Shipping
- days
- Hours
- Minutes
- Seconds
People that viewed this product purchased this instead:

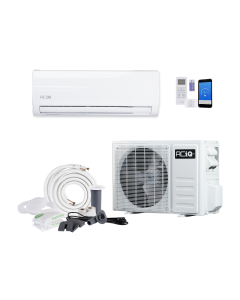

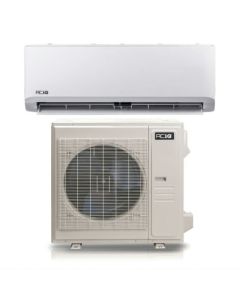

36,000 BTU ACiQ Gold 18 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R410A | 230V
Was $2,899.98
Special Price $2,099.98

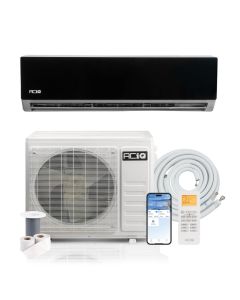

36,000 BTU ACiQ Essentials 19 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R454B | 230V
Rating:
100%
Was $3,470.75
Special Price $2,099.99

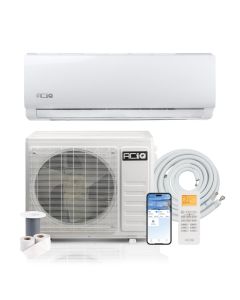

36,000 BTU ACiQ Essentials 19 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R454B | 230V
Was $3,470.75
Special Price $2,099.99
36,000 BTU ACiQ Essentials 19 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R454B | 230V
Was $3,486.14
Special Price $2,109.99
36,000 BTU Mitsubishi GX-Series 18.5 SEER2 Single Wall Mounted Mini Split Cooling Only System - R454B | MUY-GX36NL / MSY-GX36NL
The 36,000 BTU Mitsubishi GX-Series Cooling Only Mini Split is built for maximum cooling performance in extra-large spaces. With 18.5 SEER2 efficiency, this system offers powerful operation, energy savings, and quiet comfort for homes or commercial settings.
Key Features:- 18.5 SEER2 Efficiency: Delivers powerful cooling performance while helping reduce energy costs.
- Cooling Only Operation: Specially designed to provide efficient cooling without heat.
- Wall-Mounted Design: Modern, space-efficient design suitable for larger rooms or commercial areas.
- Quiet Operation: Operates with low noise levels for a peaceful indoor environment.
- R454B Refrigerant: Low-GWP refrigerant for sustainable and environmentally friendly cooling.
- Indoor Unit: MSY-GX36NL Wall-Mounted Air Handler
- Outdoor Unit: MUY-GX36NL Condenser
- Ideal for open-concept living areas or commercial spaces

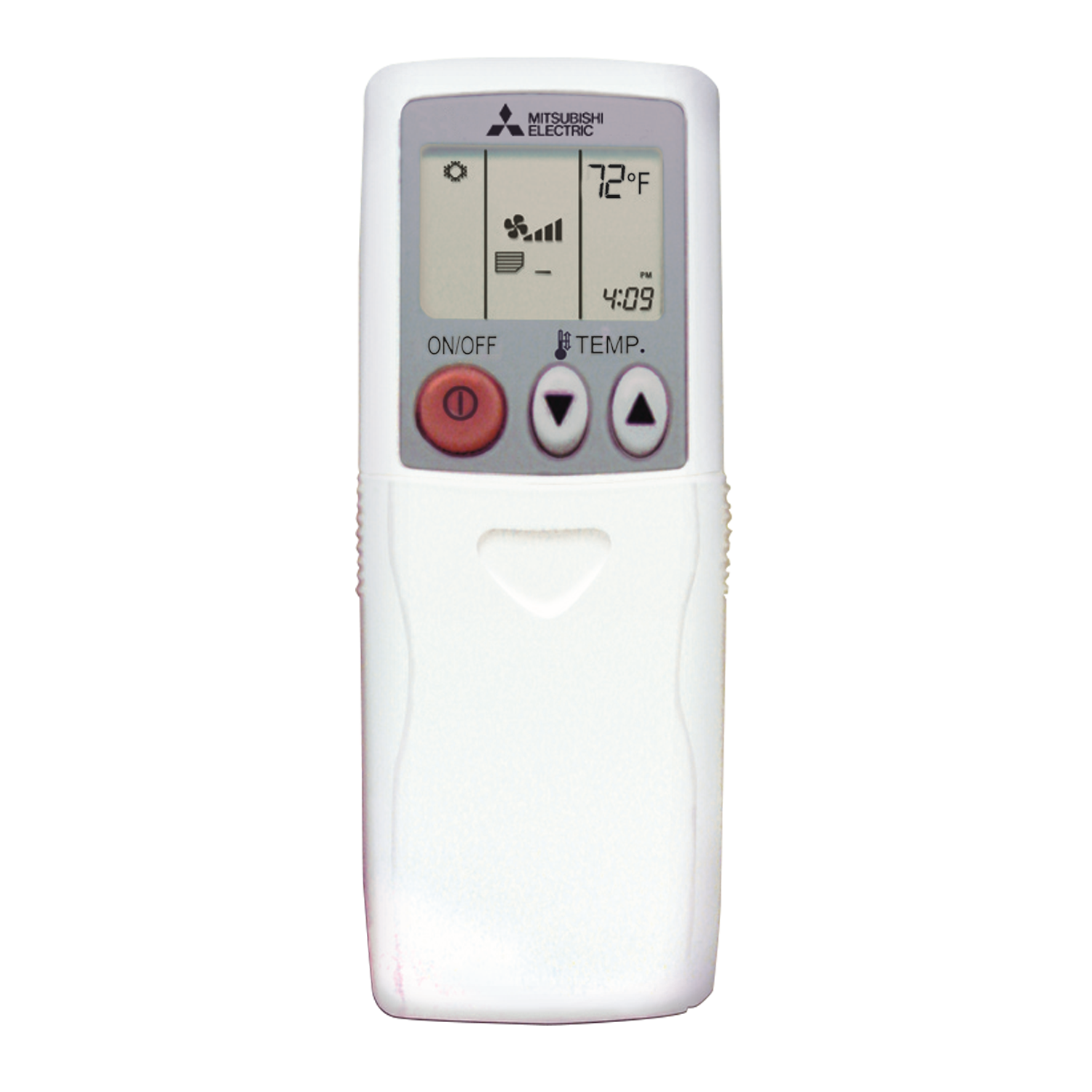

- Easy remote control operation
- Advanced air filtration improves indoor air quality
- Backed by Mitsubishi’s trusted performance and reliability
Get strong, efficient cooling for your biggest spaces with the Mitsubishi GX-Series 36,000 BTU cooling only system—perfect for when comfort and capacity matter most.
36,000 BTU Mitsubishi GX-Series Single Zone Mini Split Cooling Only Condenser - R454B - MUY-GX36NL

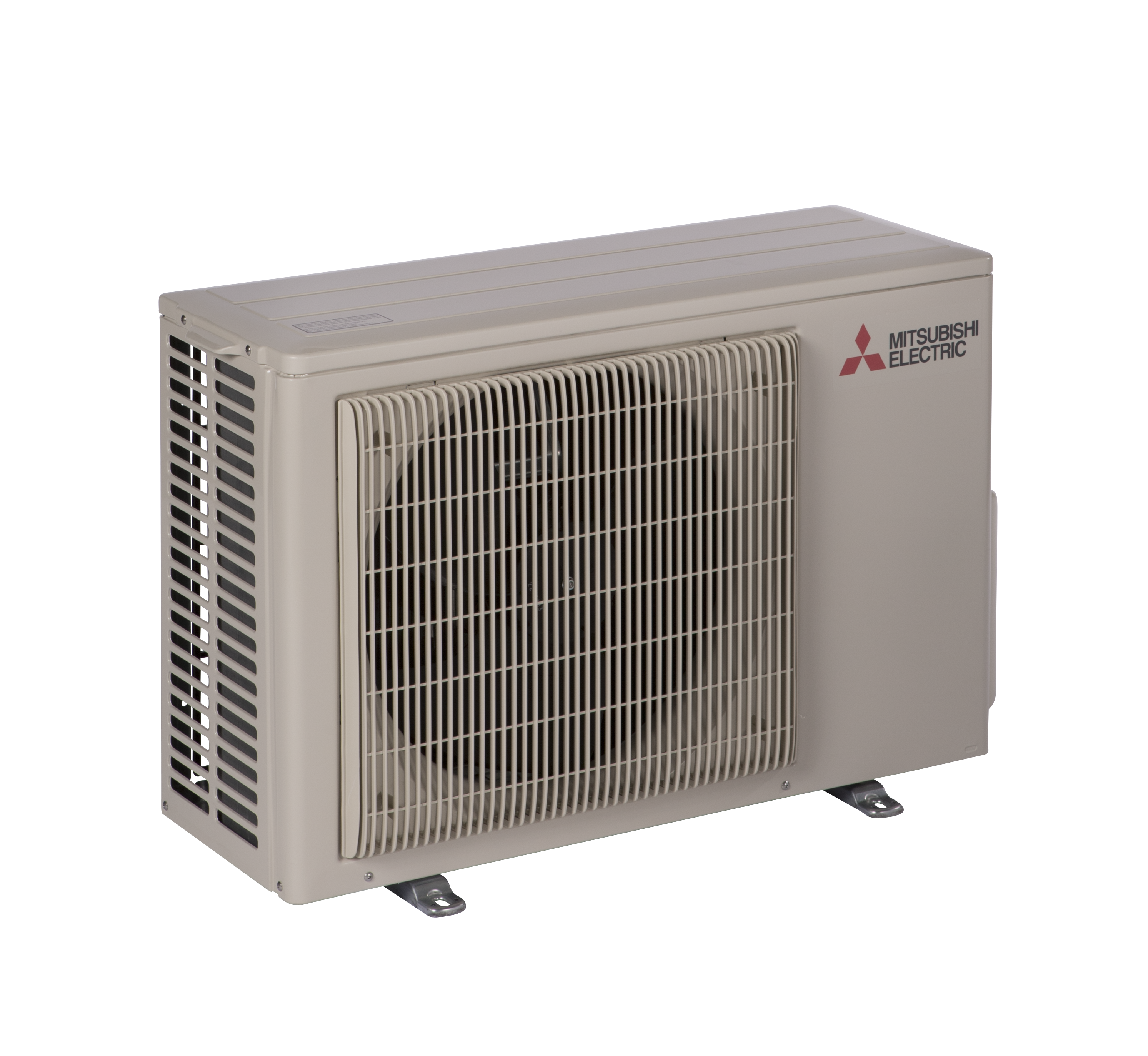

MUY-GX36NL - Inverter Cooling Outdoor Unit
The MUY-GX36NL is a high-performance inverter-driven outdoor unit designed for efficient cooling in residential and commercial applications. It pairs with the MSY-GX36NL indoor unit to provide reliable and energy-efficient climate control. Below are the key features and specifications of this unit:
Key Features:
- Inverter-Driven Compressor: The inverter-driven compressor ensures precise capacity control, offering significant energy savings while maintaining optimal comfort levels.
- Blue Fin Coating: The heat exchanger is treated with Blue Fin coating, providing superior protection against corrosion caused by salt, sulfur, and other environmental contaminants.
- Efficient Cooling: The MUY-GX36NL delivers a rated cooling capacity of 33,800 BTU/h, with a cooling efficiency (EER21) of 8.4 and a SEER2 rating of 18.5, reducing operational costs while providing consistent comfort.
- Quiet Operation: The unit operates at a noise level of 57 dB(A) during cooling, ensuring minimal disruption in residential or office environments.
- Energy Star Certified: This unit is ENERGY STAR® certified, meeting stringent energy efficiency guidelines to help reduce overall energy consumption and environmental impact.
- Automatic Restart: After a power outage, the system automatically restarts when power is restored, providing uninterrupted operation.
Specifications:
- Electrical Requirements: The unit operates on 208-230V, 1 phase, 60Hz power with a maximum power input of 4,020W and a rated power input of 4,020W.
- Refrigerant: Uses R454B refrigerant, which is more environmentally friendly compared to traditional refrigerants.
- Maximum Piping Length: The system supports a maximum piping length of 100 feet and a maximum height difference of 50 feet, allowing for flexible installation options.
- Dimensions: The unit measures 33-1/16 inches (W) x 13 inches (D) x 34-5/8 inches (H) and weighs 116 lbs (52.30 kg).
- Operating Temperature Range: The outdoor unit is designed for operation in cooling mode at outdoor temperatures from 14°F to 115°F, ensuring reliable performance in various climates.
- Compressor Type: The MUY-GX36NL features a twin rotary compressor for enhanced performance and energy efficiency.
- Airflow Rate: The unit provides an airflow rate of 2,202 CFM, ensuring effective cooling distribution across the installation area.
- Noise Level: The outdoor unit operates at a sound pressure level of 57 dB(A) during cooling mode.
The MUY-GX36NL outdoor unit is engineered to provide high-efficiency cooling with minimal energy consumption. Its advanced technology, coupled with its durable design, ensures long-term, reliable operation for residential and commercial spaces.
36,000 BTU Mitsubishi GX-Series Single Zone Wall Mounted Mini Split Air Handler - R454B

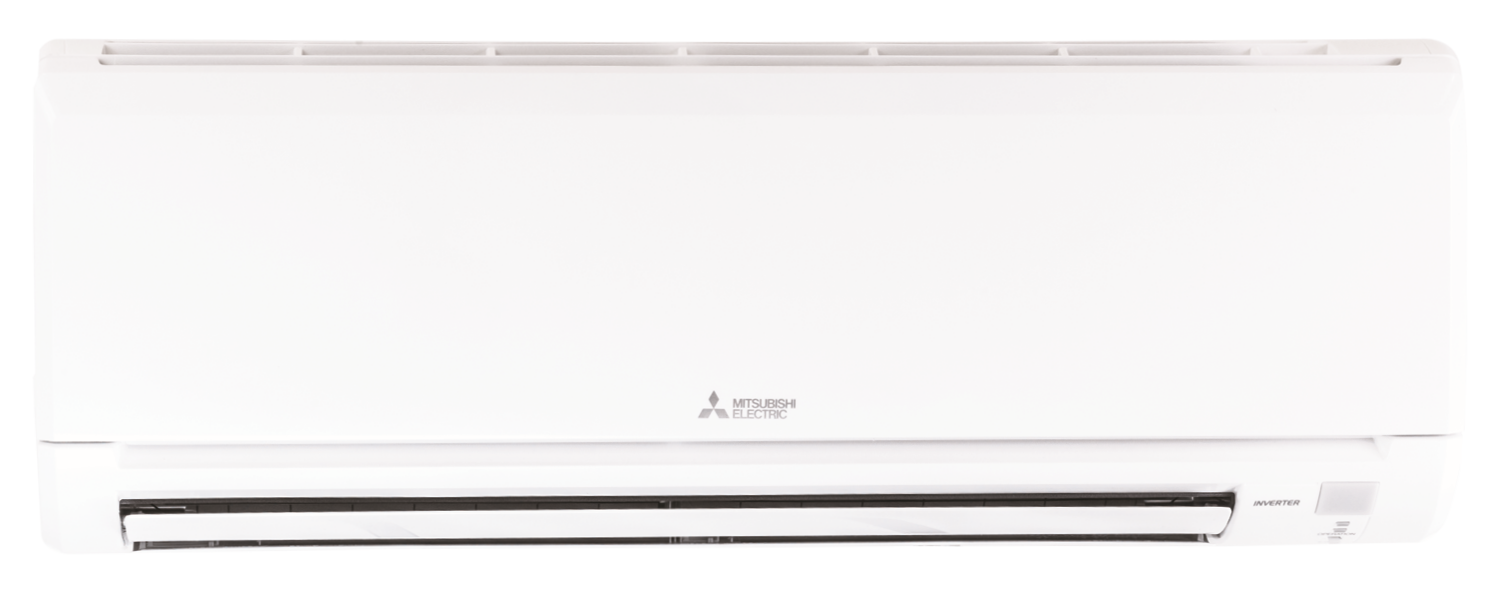

Mitsubishi Electric MSY-GX36NL Wall-Mounted Air Handler
The Mitsubishi Electric MSY-GX36NL is a high-performance, wall-mounted air handler designed to provide efficient and reliable cooling for residential and commercial applications. It incorporates advanced features that enhance comfort, air quality, and energy efficiency, making it an ideal choice for modern climate control solutions.
Key Features
- Dual Barrier Coating: Prevents the accumulation of dust, dirt, and oil on internal components, ensuring long-term performance and reduced maintenance requirements.
- Econo Cool Mode: Adjusts airflow distribution and temperature settings to optimize energy consumption while maintaining comfort.
- Multi-Speed Fan: Offers multiple fan speed settings, including Low, Medium, High, Powerful, and Auto, for customized airflow control.
- Quiet Operation: Designed to operate with minimal noise, making it ideal for bedrooms, offices, and other noise-sensitive environments.
- Smart Dry Mode: Enhances dehumidification while maintaining optimal cooling, reducing excess moisture in the air.
- Powerful Mode: Provides a temporary boost in cooling capacity for rapid temperature adjustments.
- Wi-Fi Compatibility: Allows seamless integration with smart home systems and mobile applications for remote control.
- Advanced Filtration: Includes a Nano Platinum Filter that helps reduce airborne contaminants and improve indoor air quality.
- Compact and Sleek Design: The slim, modern design ensures easy installation and blends well with various interior spaces.
Performance Specifications
- Cooling Capacity: 33,800 BTU/h (Maximum), 10,300 BTU/h (Minimum)
- Moisture Removal: 10 pints per hour, enhancing humidity control.
- Airflow Rates: 324, 392, 454, 636, and 765 CFM based on fan speed selection.
- Sound Pressure Levels: 30 dB(A) (Low) to 53 dB(A) (High), ensuring quiet operation.
- Energy Efficiency Ratings: SEER2: 18.5, EER2: 8.4, meeting ENERGY STAR® certification requirements.
Electrical and Installation Details
- Power Supply: 208/230V AC, single-phase, 60Hz.
- Recommended Breaker Size: 25A.
- Indoor Unit Dimensions (W x D x H): 43-5/16" x 10-1/8" x 12-13/16" (1,100 mm x 257 mm x 325 mm).
- Drain Pipe Size: 5/8 inch (15.88 mm) outer diameter.
- Installation Flexibility: Designed for easy mounting and compatibility with various room layouts.
The Mitsubishi Electric MSY-GX36NL air handler combines energy-efficient operation with innovative technology to deliver superior cooling and comfort. Its advanced features, quiet performance, and modern design make it an excellent choice for maintaining a comfortable indoor environment.
Installation Kit for Condensers - Accessory Set
Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.
Key Features:
✔ All-in-One Kit: Includes key accessories for a professional-grade installation.
✔ Enhanced System Protection: Features a surge protector and disconnect safety switch for added safety.
✔ Reliable Electrical Connections: Comes with a whip and charging adapter to ensure proper power supply.
✔ Secure Wall Penetration: Telescoping wall sleeve protects and stabilizes refrigerant and electrical lines.
✔ HVAC Professional Recommended: Ideal for new installations and system replacements.
What’s Included:
- 1/2" x 6' Electrical Whip – SKU: 84136
- 60A Non-Fused Disconnect – SKU: 83335
- Surge Protector – SKU: ICM517
- CPS Charging Adapter – SKU: 87-AD87
- Telescoping Wall Sleeve – SKU: NFP-75
Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!
Wall Mount Bracket for Condensers 30"
This wall mount bracket is perfect for outdoor condensers. The length of the wall bracket arms are 30" long. The condensing unit is mounted onto the L-shaped brackets and fastened using bolts and anti-vibration washers (not included with brackets).
Features:
- Steel: 10 GA
- Powder-coated grey Finish
- Load rating: 600 lbs per pair
- Holes will accommodate anchors for installation
- Warranty: 1 year
- ACB line of wall brackets are approved by the Florida Building Commission and are High Velocity Hurricane Zone (HVHZ) approved. (See product certification documentation for complete details.)
No Return Policy
All sales of this product are final and are non-refundable.
E Lite Equipment Pad 18" x 38" x 3"
E Liteis a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.
- High recycled plastic content
- Subtle texture resists unit slide
- Unaffected by UV or weather
- Uniform ribbing transfers load evenly
- Drillable for securing unit
- Lightweight, yet rugged
No Return Policy
All sales of this product are final and are non-refundable.
Condenser Risers - 4" x 18" - 2 Pack
Provides simple and secure mounting for small and large piping systems, ductwork runs, cable trays and smaller equipment such as condensers. Linear track offers adjustable mounting. Manufactured from exterior grade materials.
Features
- Ideal for piping, duct runs, cable trays and condensers
- Weather resistant PVC
- Linear track holds 3/8" hex head bolts
- Two 7/8" long bolts included
- Weighs up to 397 Ib
E Lite Equipment Pad and Risers Kit 18" x 38" x 3"
E Lite Condenser Pad and Risers
E Lite Condenser Pad
E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.
Key Features:
- Reliable Support: Abundance of ridges for stable ground support.
- Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
- Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
- Simple Appearance: Gray color with size labels.
- Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.
E Lite Risers
E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.
Key Features:
- Weather Resistance: Made from tough PVC for long-lasting performance.
- Secure Setup: The track securely holds bolts in place.
- Bolts Included: Each set comes with two bolts.
- Strong Support: Capable of handling loads of up to 397 pounds.
E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.
No Return Policy
All sales of this product are final and are non-refundable.
Cielo Breez Max Mini Split Thermostat with WiFi
Introducing Cielo Breez Max, the ultimate smart thermostat for your mini-splits, designed to elevate your comfort with intelligent climate control. Transform your air conditioner into a smart powerhouse and manage your cooling or heating from anywhere using your phone. This award-winning device, available in black and white, prevents overheating or overcooling with AI-powered Comfy Max, while seamlessly detecting any mini-split brand for hassle-free setup.
Features:
- Energy Savings
- WiFi Connectivity
- Weekly Schedule
- Geofencing
- Temperature Range Lock
- Real-Time Notifications
- HVAC Zoning
Weekly Schedule lets you set on and off periods throughout the week based on your needs.
Geofencing uses your smartphone's location to trigger actions in your system, such as turning the air conditioner on or off based on your proximity to home.
Temperature Range Lock ensures your air conditioner operates within a set temperature range for optimal comfort and efficiency.
Real-Time Notifications keep you informed with important updates, helping you manage your air conditioner better.
HVAC Zoning allows you to create customized temperature control zones by grouping multiple mini-split units.
The Cielo Breez Max offers innovative features and extraordinary performance, making it a perfect fit for any room air conditioner. Enjoy maximum energy savings and simplified home comfort with this advanced smart thermostat.
Refrigerant Line Set with 1/4" and 5/8" Line Ends - 15 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 1/4" and 5/8" Line Ends - 30 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 1/4" and 5/8" Line Ends - 50 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 1/4" and 5/8" Line Ends - 25 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 1/4" and 5/8" Line Ends - 35 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 35 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
| 36,000 BTU Mitsubishi GX-Series Single Zone Mini Split Cooling Only Condenser - R454B - MUY-GX36NL | |
|---|---|
| SKU | MUY-GX36NL |
| Weight (in lbs) | 116.000000 |
| Brand/Manufacturer | Mitsubishi |
| Replaces | MUY-GS36NA2-U1 |
| Cooling BTU | 33800 |
| Decibel Level (dBA) | 57 |
| Refrigerant | R454B |
| SEER2 (Efficiency) | 18.5 |
| Compressor Type | Twin Rotary |
| Liquid Valve Size | 1/4 |
| Suction Valve Size | 5/8 |
| Electrical | 208/230V 1 Phase 60 Hz |
| Max Breaker Size | 40 |
| Min. Breaker Size | 23 |
| BTU/Tonnage | 36,000 BTU/3 Ton |
| Zone Compatibility | Single Zone |
| Height | 34.62" |
| Width | 33.06" |
| Depth | 13" |
| Warranty | 10 Years with Online Registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| 36,000 BTU Mitsubishi GX-Series Single Zone Wall Mounted Mini Split Air Handler - R454B | |
| SKU | MSY-GX36NL |
| Weight (in lbs) | 37.000000 |
| Brand/Manufacturer | Mitsubishi |
| Replaces | MSY-GS36NA2-U1 |
| Decibel Level (dBA) | 30-53 |
| Refrigerant | R454B |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Single Zone |
| Height | 12-13/16" |
| Width | 43-5/16" |
| Depth | 10-1/8" |
| Warranty | 10 Years with Online Registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Installation Kit for Condensers - Accessory Set | |
| SKU | MSK001 |
| Weight (in lbs) | 15.000000 |
| Brand/Manufacturer | Online Supply |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Wall Mount Bracket for Condensers 30" | |
| SKU | ACB-30 |
| Weight (in lbs) | 9.200000 |
| Brand/Manufacturer | Online Supply |
| Length | 30" |
| Height | 16" |
| Width | 2" |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| E Lite Equipment Pad 18" x 38" x 3" | |
| SKU | EL1838-3 |
| Weight (in lbs) | 16.000000 |
| Brand/Manufacturer | Online Supply |
| Height | 3" |
| Width | 18" |
| Depth | 38" |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Condenser Risers - 4" x 18" - 2 Pack | |
| SKU | 87762 |
| Weight (in lbs) | 5.000000 |
| Brand/Manufacturer | Online Supply |
| E Lite Equipment Pad and Risers Kit 18" x 38" x 3" | |
| SKU | 87762 / EL1838-3 |
| Weight (in lbs) | 25.000000 |
| Brand/Manufacturer | Online Supply |
| Height | 3" |
| Width | 18" |
| Depth | 38" |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Cielo Breez Max Mini Split Thermostat with WiFi | |
| SKU | BM101WA |
| Weight (in lbs) | 1.000000 |
| Brand/Manufacturer | Cielo |
| Electrical | Micro USB with Standard Plug |
| Height | 4.25" |
| Width | 4.25" |
| Depth | 1" |
| Warranty | 1 Year Full Replacement |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Refrigerant Line Set with 1/4" and 5/8" Line Ends - 15 feet | |
| SKU | 218863 |
| Weight (in lbs) | 15.000000 |
| Brand/Manufacturer | Online Supply |
| Length | 15' |
| Height | 1/2" |
| Width | 1/2" |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Refrigerant Line Set with 1/4" and 5/8" Line Ends - 30 feet | |
| SKU | 219066 |
| Weight (in lbs) | 30.000000 |
| Brand/Manufacturer | Online Supply |
| Length | 30' |
| Height | 1/2" |
| Width | 1/2" |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Refrigerant Line Set with 1/4" and 5/8" Line Ends - 50 feet | |
| SKU | 366408 |
| Weight (in lbs) | 45.000000 |
| Brand/Manufacturer | Online Supply |
| Length | 50' |
| Height | 1/2" |
| Width | 1/2" |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Refrigerant Line Set with 1/4" and 5/8" Line Ends - 25 feet | |
| SKU | 366406 |
| Weight (in lbs) | 25.000000 |
| Brand/Manufacturer | Online Supply |
| Length | 15' |
| Height | 1/2" |
| Width | 1/2" |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Refrigerant Line Set with 1/4" and 5/8" Line Ends - 35 feet | |
| SKU | 366407 |
| Weight (in lbs) | 35.000000 |
| Brand/Manufacturer | Online Supply |
| Length | 30' |
| Height | 1/2" |
| Width | 1/2" |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
Write Your Own Review
Customer Questions
No Questions
Did you find what you were looking for?
Why Choose Mitsubishi Mini Splits?
Mitsubishi mini split air conditioners and heat pumps provide exceptional comfort, energy efficiency, and ultra-quiet performance in any climate. Engineered for reliability and precision, these systems offer year-round heating and cooling while reducing energy costs and enhancing indoor air quality.
Accessories
Got everything you needed to install? See the recommended and/or required options for installation below.
Check the items you would like to include with your order
