Mitsubishi 36,000 BTU SEZ-AD-Series 23 SEER2 4 Zone Ceiling Cassette Mini Split Heat Pump System R454B | 230V - 9 + 9 + 9 + 9
Required Fields *
By
Mitsubishi
In stock
Model
MXZ-SM36NL / 4-SLZ-AF09NL
ID
200464
Was $12,612.17
Your Low Price $10,089.75
Free Shipping
In Stock - Ready to Ship

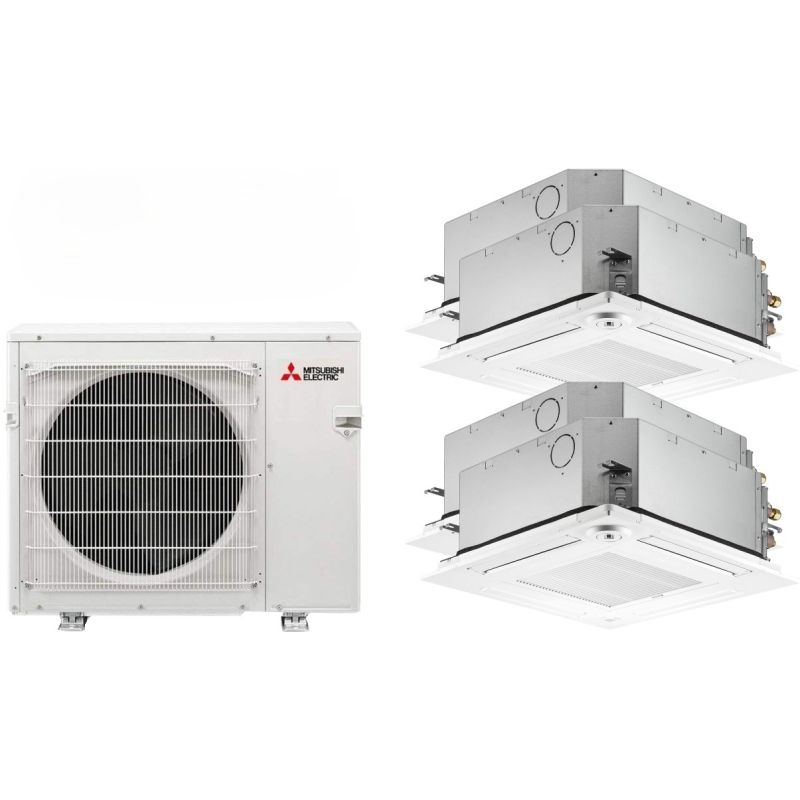

36,000 BTU Mitsubishi P-Series 23 SEER2 Four Zone Ceiling Cassette Mini Split Heat Pump System - R454B | 9 + 9 + 9 + 9
This Mitsubishi P-Series system features four 9,000 BTU ceiling cassette indoor units, powered by the MXZ-SM36NL outdoor unit. With a SEER2 rating of 23, it is designed for energy-efficient, unobtrusive cooling in commercial or residential spaces requiring reliable multi-zone temperature control.
- Total Capacity: 36,000 BTU
- SEER2 Rating: 23
- System Type: Four Zone Ceiling Cassette Heat Pump
- Indoor Unit Sizes: 9,000 + 9,000 + 9,000 + 9,000 BTU
- Refrigerant: R454B - Environmentally friendly
- Best For: Spaces where ceiling-mounted units are preferred for aesthetics and efficient air distribution
This system provides consistent cooling with a low-profile design, ideal for rooms where wall-mounted units are not an option.
* Please Note * This product does NOT include a remote controller and one would need to be purchased separately. The MHK2 Thermostat can be used in place of a remote controller.

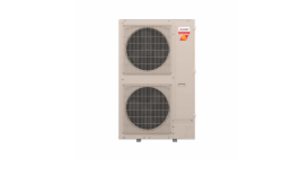

36,000 BTU Mitsubishi Multi Zone Condenser - R454B
MXZ-SM36NL - SMART MULTI Hyper-Heating Heat Pump Outdoor Unit
The MXZ-SM36NL is a high-performance outdoor heat pump unit from Mitsubishi Electric's SMART MULTI series, designed for multi-zone applications. Capable of connecting up to four indoor units with a branch box, it offers efficient heating and cooling solutions for residential and light commercial settings, ensuring year-round comfort. Below are the key features and specifications of this model:
Key Features:
- Variable Speed INVERTER-Driven Compressor: Adjusts compressor speed to match heating or cooling demand, optimizing energy efficiency and maintaining consistent indoor temperatures.
- Quiet Operation: Operates at sound pressure levels as low as 49 dB(A), minimizing noise disturbances in your environment.
- Seacoast Protection: Features a heat exchanger and base panel rated for 2,000 hours of protection in accordance with ASTM B117 testing, enhancing durability in coastal regions.
- Comprehensive Protections: Equipped with compressor overcurrent detection, thermal protection, high-pressure protection, and fan motor overheating/voltage protection for enhanced safety and reliability.
- Hyper-Heating Performance: Delivers 100% heating capacity at 5°F and 75% heating capacity at -13°F, ensuring consistent warmth even in extreme cold conditions.
- ENERGY STAR® Certified: Meets ENERGY STAR® standards in non-ducted configurations, promoting energy efficiency and potential cost savings.
Specifications:
- Cooling Capacity at 95°F:
- Maximum Capacity: 36,000 BTU/h
- Rated Capacity: 36,000 BTU/h (Non-Ducted), 36,000 BTU/h (Mixed), 36,000 BTU/h (Ducted)
- Minimum Capacity: 13,000 BTU/h (Non-Ducted), 13,000 BTU/h (Mixed), 13,000 BTU/h (Ducted)
- Heating Capacity at 47°F:
- Maximum Capacity: 41,000 BTU/h
- Rated Capacity: 41,000 BTU/h (Non-Ducted), 41,000 BTU/h (Mixed), 41,000 BTU/h (Ducted)
- Minimum Capacity: 12,600 BTU/h (Non-Ducted), 12,600 BTU/h (Mixed), 12,600 BTU/h (Ducted)
- Heating Capacity at 17°F:
- Maximum Capacity: 36,000 BTU/h
- Rated Capacity: 26,400 BTU/h (Non-Ducted), 26,400 BTU/h (Mixed), 26,600 BTU/h (Ducted)
- Heating Capacity at 5°F:
- Maximum Capacity: 29,000 BTU/h
- Heating Capacity at -13°F:
- Maximum Capacity: 18,600 BTU/h
- Efficiency Ratings:
- SEER2: 23.0 (Non-Ducted), 20.6 (Mixed), 18.2 (Ducted)
- EER2: 14.1 (Non-Ducted), 12.05 (Mixed), 10.0 (Ducted)
- HSPF2 (IV): 11.0 (Non-Ducted), 10.5 (Mixed), 10.0 (Ducted)
- COP at 47°F: 4.0 (Non-Ducted), 3.55 (Mixed), 3.10 (Ducted)
- COP at 17°F (Maximum Capacity): 2.04 (Non-Ducted), 1.92 (Mixed), 1.80 (Ducted)
- COP at 5°F (Maximum Capacity): 2.20 (Non-Ducted), 2.08 (Mixed), 1.98 (Ducted)
- Electrical Requirements:
- Power Supply: 208/230 V AC, Single-phase, 60 Hz
- Guaranteed Voltage Range: 198 - 253 V AC
- Voltage (Indoor to Outdoor, S1-S2): 230 V AC
- Short-circuit Current Rating (SCCR): 5 kA
- Recommended Fuse/Breaker Size if Branch Box Powered by Outdoor Unit: 40 A
- Recommended Fuse/Breaker Size without Branch Box or Branch Box Powered Separate: 30 A
- Minimum Circuit Ampacity (MCA) if Branch Box Powered by Outdoor Unit: 42 A
- Maximum Overcurrent Protection (MOCP) if Branch Box Powered by Outdoor Unit: 70 A
- Minimum Circuit Ampacity (MCA) without Branch Box or Branch Box Powered Separate: 36 A
- Maximum Overcurrent Protection (MOCP) without Branch Box or Branch Box Powered Separate: 64 A
- Outdoor Unit Dimensions:
- Width: 41-17/48 inches
- Depth: 13 inches
- Height: 52-11/16 inches
- Weight: 276 lbs
The MXZ-SM36NL is ideal for applications requiring efficient heating and cooling performance across multiple zones. Its advanced features ensure reliable operation and enhanced comfort throughout the year.

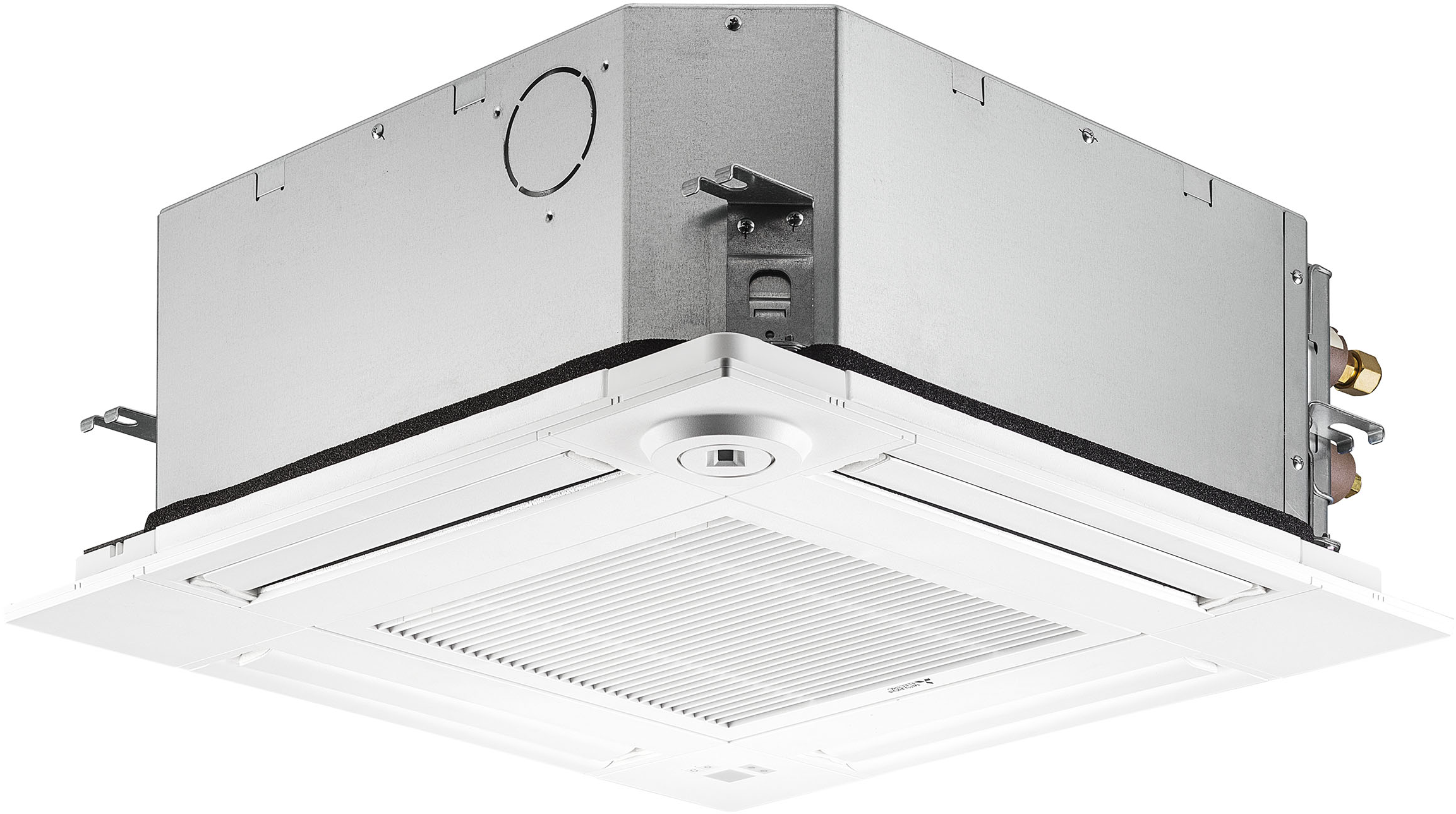

9,000 BTU Mitsubishi P-Series Ceiling Cassette Mini Split Air Handler - R454B
SLZ-AF09NL Air Handler Overview
The SLZ-AF09NL is a high-performance air handler designed for residential and light commercial use. Paired with the SUZ-AA09NL outdoor unit, this air handler offers reliable and efficient heating and cooling solutions. It features a compact, low-profile design that allows for easy installation in tight spaces, making it ideal for applications where space is limited.
Key Features
- Compact and Low-Profile Design: The SLZ-AF09NL is designed to fit into tight spaces such as ceilings or recessed areas, offering flexibility in installation while maintaining high performance.
- High Energy Efficiency: The air handler is engineered with energy-saving features that reduce electricity consumption, making it a cost-effective option for both residential and commercial applications.
- Quiet Operation: With its advanced noise-reduction technology, the SLZ-AF09NL operates quietly, ensuring a comfortable and peaceful indoor environment.
- Advanced Filtration: The unit is equipped with a high-efficiency filter that improves indoor air quality by capturing dust, allergens, and other airborne particles.
- Flexible Drain Options: The air handler provides flexibility in installation, with options for both horizontal and vertical drainage to suit different building layouts.
Specifications
- Cooling Capacity: 9,000 BTU/h
- Heating Capacity: 9,000 BTU/h
- Power Supply: 208-230V, 60Hz, 1-phase
- Dimensions (W x H x D): 26-3/8" x 10-1/8" x 27-1/4â€Â
- Weight: 39.7 lbs
- Refrigerant: R410A
- Airflow: 490 CFM
Benefits
- Space-Saving Design: The compact size of the SLZ-AF09NL allows it to fit into small or confined spaces, making it ideal for installations in apartments, small offices, or commercial settings.
- Energy Efficiency: By optimizing cooling and heating output, the SLZ-AF09NL helps reduce energy costs while maintaining high comfort levels.
- Quiet and Comfortable: The quiet operation makes it suitable for environments where noise levels need to be minimized, such as bedrooms, living rooms, or offices.
- Improved Air Quality: With its advanced filtration system, the SLZ-AF09NL enhances indoor air quality by trapping harmful particles, providing a healthier indoor environment.
Applications
- Residential Applications: Perfect for homes where space is limited, the SLZ-AF09NL provides efficient heating and cooling without taking up valuable room space.
- Light Commercial Applications: Ideal for small commercial spaces, such as small offices, retail stores, and other commercial environments requiring compact and efficient climate control.
Maintenance
- Low Maintenance: The SLZ-AF09NL air handler is designed for easy maintenance. Regular filter cleaning and occasional professional servicing ensure long-lasting performance.
- Durable Components: Built with high-quality materials, this air handler is designed to withstand regular use and provide reliable performance for many years.
The SLZ-AF09NL is an efficient, compact air handler suitable for both residential and light commercial applications. Paired with the SUZ-AA09NL outdoor unit, it provides a reliable and cost-effective solution for year-round comfort. With its advanced features, such as quiet operation, high energy efficiency, and flexible installation options, it is an excellent choice for anyone looking to enhance indoor comfort while minimizing energy consumption.
* Please Note * This product does NOT include a remote controller and one would need to be purchased separately. The MHK2 Thermostat can be used in place of a remote controller.
Mitsubishi M-Series - 5 Ports - Branch Box
Mitsubishi Electric PAC-LMA50BC Branch Box Overview
The Mitsubishi Electric PAC-LMA50BC Branch Box is a key component in multi-zone HVAC systems, designed to efficiently distribute refrigerant and optimize the performance of connected indoor units. Supporting up to five indoor units, this branch box is ideal for both residential and commercial applications where reliable and balanced operation is required.
Key Features
- Supports Multiple Indoor Units: Connects up to five indoor units, allowing flexible system configurations for a variety of spaces.
- Balanced Refrigerant Flow: Ensures consistent refrigerant distribution to each connected indoor unit, enhancing overall system efficiency and performance.
- Durable Construction: Made with galvanized steel, the PAC-LMA50BC offers long-lasting durability and resistance to environmental factors.
- Compact, Space-Saving Design: Its small footprint allows installation in areas with limited space, making it suitable for tight mechanical rooms or ceilings.
- Low Power Usage: Operates efficiently with minimal energy consumption, reducing operating costs.
Technical Specifications
- Power Supply: Single-phase, 208/230V, 60Hz
- Input Power: 0.003 kW
- Running Current: 0.15A
- Dimensions:
- Width: 17-3/4 inches (450 mm)
- Depth: 11-1/16 inches (280 mm)
- Height: 6-3/4 inches (170 mm)
- Weight: 16.0 lbs (7.4 kg)
Piping Connections
- Indoor Unit Connections:
- Liquid Line: 1/4" (6.35 mm) x 5 [A, B, C, D, E]
- Gas Line: 3/8" (9.52 mm) x 4 [A, B, C, D], 1/2" (12.7 mm) x 1 [E]
- Outdoor Unit Connections:
- Liquid Line: 3/8" (9.52 mm)
- Gas Line: 5/8" (15.88 mm)
Optional Accessories
- Branch Box Enclosure (BBE-1): Provides extra protection for the branch box in exposed or demanding installations.
- Port Adapters: Facilitate connection to various pipe diameters, including:
- ADP3812: 3/8" to 1/2"
- PAC-SK88RJ-E: 1/2" to 3/8"
- PAC-SK89RJ-E: 1/2" to 5/8"
- PAC-493PI: 1/4" to 3/8"
- PAC-SK90RJ-E: 3/8" to 5/8"
- ADP5834: 5/8" to 3/4"
Applications
- Residential Multi-Zone Systems: Ideal for homes requiring multiple indoor units, ensuring consistent performance and comfort throughout the space.
- Light Commercial Use: Suitable for offices, retail shops, or small commercial buildings where multiple indoor units are connected to a single outdoor unit.
Overall, the PAC-LMA50BC Branch Box is a reliable and versatile component that simplifies multi-zone HVAC installations. Its durable construction, compact design, and efficient refrigerant distribution make it an essential part of residential and commercial HVAC systems.
Mitsubishi SLP-18FAU Grille for KF Cassettes
The Mitsubishi SLP-18FAU is the standard grille option required to complete a KF cassette installation.
Features:
- Overlaps a 2' x 2' ceiling tile to hide indoor unit from view.
Compatible Indoor Units:
Ceiling Cassette
- KF Series: SLZ-KF09NA, SLZ-KF12NA, SLZ-KF15NA, SLZ-KF18NA
Mitsubishi MHK2 Wireless Remote Controller
The Mitsubishi MHK2 is the second revision of Mitsubishi's most popular wireless controller set, now available for M & P Series residential and light commercial units. This controller offers in-depth 7-day scheduling and an easy to read, backlit display.
The updated MHK2 can now be used in tandem with the Kumo Cloud wi-fi adapter, sold separately. No longer do you have to choose between internet and wireless control: you can use both!
The MRCH2 is the main body of the thermostat. This can be placed anywhere within 200 feet of the indoor unit and does not require line of sight. The ;MRC2 cable will connect to the CN105 connector on the indoor unit's control board. The other end of this cable will connect to the MIFH2 receiver. The MIFH2 should be placed on the right side of a wall mounted unit, in the pocket of a MLZ-KP cassette, or anywhere near the control side of a ducted or square cassette unit.
Features:
- Includes MRCH2 thermostat, MIFH2 wireless receiver, and MRC2 cable
- Backlit display
- Can sense temperature at indoor unit (default) or at controller
- Fahrenheit °F / Celsius °C
- No batteries required
- Single zone compatible
- Multi zone compatible
- English, French, Spanish
Compatible Indoor Units:
Wall Mounted
- GL Series: MSZ-GL06NA-U1, MSZ-GL09NA-U1, MSZ-GL12NA-U1, MSZ-GL15NA-U1, MSZ-GL18NA-U1, MSZ-GL24NA-U1, MSY-GL09NA-U1, MSY-GL12NA-U1, MSY-GL15NA-U1, MSY-GL18NA-U1, MSY-GL24NA-U1
- FH Series: MSZ-FH06NA, MSZ-FH09NA, MSZ-FH12NA, MSZ-FH15NA, MSZ-FH18NA2
- EF Series: MSZ-EF09NAB-U1, MSZ-EF09NAS-U1, MSZ-EF09NAW-U1, MSZ-EF12NAB-U1, MSZ-EF12NAS-U1, MSZ-EF12NAW-U1, MSZ-EF15NAB-U1, MSZ-EF15NAS-U1, MSZ-EF15NAW-U1, MSZ-EF18NAB-U1, MSZ-EF18NAS-U1, MSZ-EF18NAW-U1
- JP Series: MSZ-JP09WA-U1, MSZ-JP12WA-U1
- WR Series: MSZ-WR09NA-U1, MSZ-WR12NA-U1, MSZ-WR18NA-U1, MSZ-WR24NA-U1
- D Series: MSZ-D30NA-8, MSZ-D36NA-8, MSY-D30NA-8, MSY-D36NA-8
- P Series: PKA-A12HA7, PKA-A18HA7,PKA-A24KA7, PKA-A30KA7, PKA-A36KA7
Ducted
- KD Series: SEZ-KD09NA4R1.TH, SEZ-KD12NA4R1.TH, SEZ-KD15NA4R1.TH, SEZ-KD18NA4R1.TH
- P Series: PEAD-A09AA7, PEAD-A12AA7, PEAD-A15AA7, PEAD-A18AA7, PEAD-A24AA7, PEAD-A30AA7, PEAD-A36AA7, PEAD-A42AA7
Ceiling Cassette
- KF Series: SLZ-KF09NA, SLZ-KF12NA, SLZ-KF15NA, SLZ-KF18NA
- KP Series: MLZ-KP09NA, MLZ-KP12NA, MLZ-KP18NA
- P Series: PLA-A12EA7, PLA-A18EA7, PLA-A24EA7, PLA-A30EA7, PLA-A36EA7, PLA-A42EA7
Floor Mounted
- MFZ-KJ09NA-U1, MFZ-KJ12NA-U1, MFZ-KJ15NA-U1, MFZ-KJ18NA-U1
Multi Position Air Handler
- KP: SVZ-KP12NA, SVZ-KP18NA, SVZ-KP24NA, SVZ-KP30NA, SVZ-KP36NA
- P Series: PVA-A12AA7, PVA-A18AA7, PVA-A24AA7, PVA-A30AA7, PVA-A36AA7, PVA-A42AA7
Ceiling Suspended
- P Series: PCA-A24KA7, PCA-A30KA7, PCA-A36KA7, PCA-A42KA7
15 feet - 1/4" and 3/8" Line Set
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
