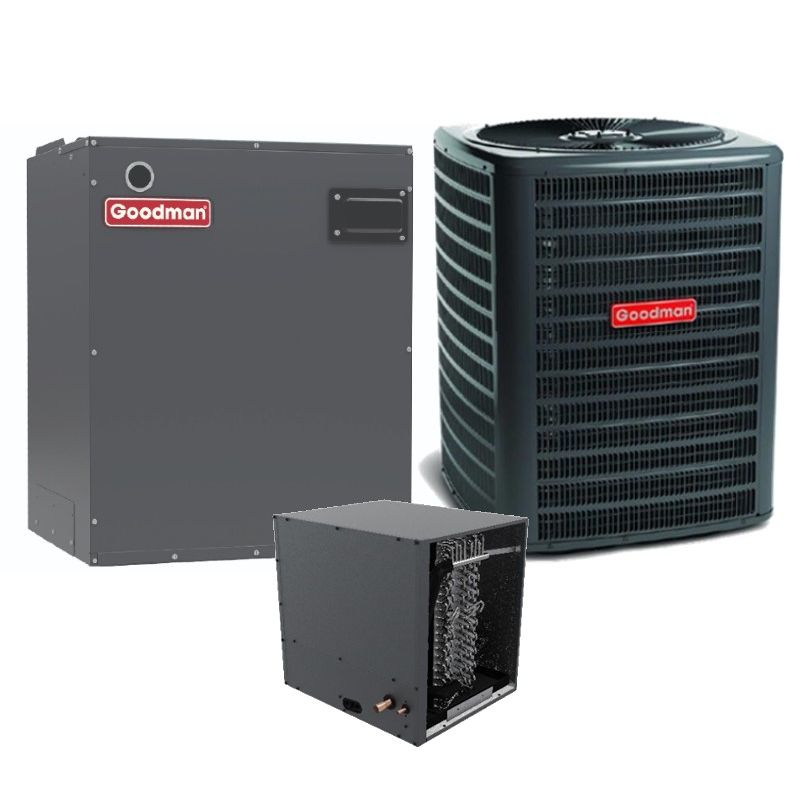

4 Ton 13.4 SEER2 Goodman Air Conditioner Split System - Horizontal

By

Goodman

Model

GSXN3N4810 / CHPT4860D4 / MBVC1601AA-1

ID

153712

Rating:
100% of 100
Availability: Ships in 5-7 Business Days
Goodman

Authorized Goodman Dealer

AHRI Certified

AHRI Number:210567494

Your Low Price $3,771.00


Add to Cart for Best Price
Free Shipping

Required Fields *

Customize 4 Ton 13.4 SEER2 Goodman Air Conditioner Split System - Horizontal
Goodman 4 Ton 13.4 SEER2 Air Conditioner Condenser
Goodman 4 Ton 13.4 SEER2 Air Conditioner Condenser   + $2,082.00
3.5 to 5 Ton 24.5" Height Goodman Horizontal Evaporator Coil - Cased
3.5 to 5 Ton 24.5" Height Goodman Horizontal Evaporator Coil - Cased   + $751.00
3.5 to 4 Ton 21" Wide Variable Speed Goodman Modular Blower with Optional Electric Heater
3.5 to 4 Ton 21" Wide Variable Speed Goodman Modular Blower with Optional Electric Heater   + $938.00
4 Ton 13.4 SEER2 Goodman Air Conditioner Split System - Horizontal

$3,771.00

Accessories for this product
Call 1-800-397-1392 for Best Pricing
Customer Reviews
BBB Rating
Best Pricing

Description

3.5 to 4 Ton 21" Wide Variable Speed Goodman Modular Blower with Optional Electric Heater

OVERVIEW

The Goodman MBVC1601AA-1 is a variable speed modular blower designed for heating in more compact spaces. Designed to work alone as a straight electric furnace or to work with an AC or heat pump system, the MBVC1601AA-1 is an energy efficient choice that is compatible with ComfortNet communicating technology, all providing an enhanced comfort to your home.

QUICK FACTS

  • 3.5 to 4 ton modular blower
  • Electric heat compatible, available at an additional cost
  • Efficient variable speed blower
  • Multi-positional (upflow, downflow, or horizontal)

3.5 to 4 Tons

The Goodman MBVC1601AA-1 modular blower has an output that is rated to match up to a 3.5 to 4 ton system. Although not always the case, in order for a paired air conditioning or heat pump system to function at peak heating and cooling efficiency, ideal system configurations will have the coil within the range of this modular blower. Please note that in order for the modular blower to provide straight electric heating, a compatible electric heat kit is required, available to be field-installed at an additional cost.

Warranty

Goodman offers a 12 year parts warranty on their variable speed modular blowers when your installation that follows your state and local codes. Please note that in order for the warranty to be upheld, you must register the unit online through the manufacturer.

Installation and Durability

The Goodman MBVC1601AA-1 modular blower is designed to be flexible in installation application. With its small form factor and ability to work with a separate AC or heat pump coil, the unit is easily installable. For durability, there is foil-faced insulation inside the cabinet, and the outer casing is constructed from strong galvanized steel.

Enhanced Comfort

The Goodman MBVC1601AA-1 uses a variable speed ECM blower motor, providing precise adjustments to keep your home’s temperature as stable as possible. The unit is also compatible with ComfortNet communicating equipment, and with paired with it, temperature control, efficiency, and overall comfort are enhanced even further. Either way, the MBVC1601AA-1 lives up to the Goodman name.

3.5 to 5 Ton 24.5" Height Goodman Horizontal Evaporator Coil - Cased

OVERVIEW

The Goodman CHPT4860D4 evaporator coil is ready for any horizontal installation that you need it for. With a built-in TXV kit for efficiency, the CHPT4860D4 lives up to Goodman's expectations to provide an enhanced comfort with a superior efficiency, all while staying within your budget. If you want the best possible coil for your home, this is it.

Quick Facts

  • 3.5 to 5 ton horizontal evaporator coil
  • Can be used with heat pump and AC-only condensers
  • Galvanized, embossed, and insulated coil cabinet to protect the coil and prevent air leakage
  • Factory-installed TXV kit

3.5 to 5 Tons

At an output of 3.5to 5 tons, the Goodman CHPT4860D4 evaporator coil is ready for almost any horizontal application that matches that output need. In entire system configurations, the coil will be either larger or the same size as the condenser's tonnage. As such, the tonnages of the coil and the condenser may be different in order to maintain the unit's efficiency. Please note that for this coil to function, a furnace or blower and a condenser is required, all sold separately. This coil is not designed to replace a coil in a single-piece air handler.

Warranty

The CHPT4860D4 coil is covered under Goodman's standard 10 year parts warranty when the unit is installed following your state and local codes, the coil is paired with a compatible R410A condenser, and the entire system is registered online through the manufacturer.

Installation and Durability

The Goodman CHPT4860D4 horizontal evaporator coil is designed with aluminum tubing and fin coils, lowering wear and tear on the unit. The coil also comes with a TXV kit factory-installed, making it one less thing for your installer to have to install, lowering installation costs. For easier maintenance access, the front of the coil's durable cabinet has a split-seam.

Enhanced Comfort and Efficiency

The Goodman CHPT4860D4 horizontal evaporator coil's built-in TXV kit provides a significant increase in refrigerant control, increasing the overall efficiency of the entire system and providing a more precise temperature output to make you more comfortable in your home. On top of that, the coil has a mold-resistant, thermoplastic drain pan set that lowers potentially dangerous particle buildup. All of these features allow the CHPT4860D4 to live up to the Goodman quality name.

Goodman 4 Ton 13.4 SEER2 Air Conditioner Condenser

OVERVIEW

The Goodman GSXN3N4810 is a cooling-only condenser unit. Providing a 13.4 SEER2 efficiency with a single stage, reciprocating compressor, the GSXN3N4810 is an inexpensive condenser to cool your home when paired with an AC coil.

QUICK FACTS

  • Ideal size to cover a medium-sized house
  • 4 ton, 13.4 SEER2 AC-only condenser
  • Low sound output
  • Fully charged for up to 15' of line set
  • Factory-installed filter drier

4 ton

The GSXN3N4810 condenser is a 4 ton AC only unit. In an ideal climate situation, the GSXN3N4810 can usually cover a medium-sized house. For this unit to function, an indoor air handler or coil is required, and this unit is cooling only with no heating capacity on its own.

13.4 SEER2

The Goodman GSXN3N4810 AC condenser is designed to be 13.4 SEER2. This is the lowest efficiency on the market today, making it an inexpensive option for northern states. Please note that this product is regulated by DOE Efficiency Standards.

Due to new efficiency requirements, this unit cannot be installed in the following states: Alabama, Arizona, Arkansas, California, Delaware, Florida, Georgia, Kentucky, Louisiana, Maryland, Mississippi, Nevada, New Mexico, North Carolina, Oklahoma, South Carolina, Tennessee, Texas, and Virginia.

Warranty

The GSXN3N4810 condenser comes with Goodman's standard 10 year parts warranty with online registration through the manufacturer. An installation that follows your state and local codes is required for the warranty to be upheld.

Durability and Reliability

With an enhanced copper tube and aluminum fin coil, the GSXN3N4810 is designed to prevent coil degradation. With the baked-on powder-paint finish, the condenser's heavy-gauge galvanized-steel cabinet is approved for up to 500 hours of salt-spray. The factory-installed filter dryer lowers general wear-and-tear on the unit. All of these features provide you with a durable, reliable condenser to be used whenever you need to cool your home.

Installation and Maintenance

The Goodman GSXN3N4810 AC condenser comes standard with service valves that have sweat connections and easy-access gauge ports, both providing a lower installation difficulty and time to lower installation costs. The outer casing has both a top and a side access to allow for easier maintenance and warranty access when necessary.

Comfort in Mind

The Goodman brand always has its customer's comfort in mind. The GSXN3N4810 is no exception, with not only using high-quality components but also providing enhanced sound-dampening features that allows the brand to manufacture some of the lowest sound output levels in the industry.

Product Specifications

More Information
3.5 to 4 Ton 21" Wide Variable Speed Goodman Modular Blower with Optional Electric Heater
SKUMBVC1601AA-1
Weight (in lbs)80.000000
Brand/ManufacturerGoodman
Blower MotorVariable Speed - ECM
Maximum CFM1,600
Electric Backup Heat Capabilities (Optional)3 Kilowatts, 5 Kilowatts, 6 Kilowatts, 8 Kilowatts, 10 Kilowatts, 15 Kilowatts
RefrigerantR410A
Max Breaker Size15 amps
Tonnage4 Ton
Height30"
Width21"
Depth21"
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
3.5 to 5 Ton 24.5" Height Goodman Horizontal Evaporator Coil - Cased
SKUCHPT4860D4
Weight (in lbs)81.000000
Brand/ManufacturerGoodman
ConfigurationHorizontal
RefrigerantR410A
Liquid Line3/8"
Suction Line7/8"
Tonnage5 Ton
StyleA-Coil
CertificationETL Listed | AHRI Certified
Height24.5"
Width26"
Depth21 1/8"
Warranty10 Years Parts with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Goodman 4 Ton 13.4 SEER2 Air Conditioner Condenser
SKUGSXN3N4810
Weight (in lbs)235.000000
Brand/ManufacturerGoodman
ReplacesGSX130481
Cooling BTU48,000
Decibel Level (dBA)74
RefrigerantR410A
SEER2 (Efficiency)13.4
Condenser StagesSingle Stage
Compressor TypeScroll
Liquid Line3/8"
Suction Line1 1/8"
Liquid Valve Size3/8"
Suction Valve Size7/8"
Electrical208 / 230 V. 1 Phase 60 Hz
PhaseSingle Phase
Max Breaker Size40 amps
Min. Breaker Size24.4 amps
Tonnage4 Ton
Valve TypeSweat
Height35.75"
Width35.5"
Depth35.5"
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
