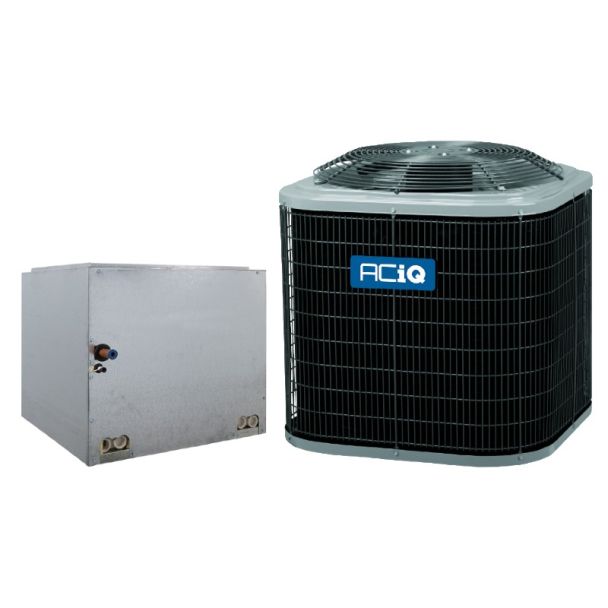

4 Ton 14.3 SEER2 ACiQ Heat Pump with 21" Vertical Cased Coil-R410A

OVERVIEW

The ACiQ R4H5S48AKAAA is a standard heat pump condenser. Designed with comfort in mind and an inexpensive option for nearly any application, this condenser is considered a good all-around option for almost any application.

QUICK FACTS

• Factory pre-charged with enough refrigerant for a 15-foot line set, ensuring proper performance and efficiency right out of the box.
• 4 ton, 14.3 SEER2 heat pump condenser
• Can cool up to a medium to large house in average conditions
• Single stage compressor
• Pre-charged with R-410A refrigerant
• Filter drier included to be field-installed

4 Tons

The ACiQ R4H5S48AKAAA heat pump condenser has an output of 4 tons, generally enough to heat and cool up to a medium to large house in ideal climates. In many system configurations, the tonnage of the unit's paired coil or air handler will be larger in tonnage than this condenser, which maintains the efficiency of the unit. Please note that this condenser cannot function on its own, and it needs an indoor coil or air handler to work. This unit will also only heat down to around 35°F, and if you need heat any lower than this, a backup heat strip will be needed to act as straight electric heating in a compatible air handler.

14.3 SEER2

The ACiQ R4H5S48AKAAA air conditioner condenser is rated at 14.3 SEER2, making it between 5-7% more efficient than standard 13.4 SEER2 units, saving you money in electric bills over the entire lifetime of your unit. In general, heat pumps will heat more efficiently than straight electric furnaces.

All ACiQ condensers come pre-charged with enough refrigerant for a 15-foot line set, making installation faster and more convenient. This pre-charged design saves installers time and reduces labor costs by eliminating the need for manual refrigerant charging. It also helps ensure the system starts with the correct amount of refrigerant, minimizing the risk of improper charging that could impact performance and efficiency. If a longer line set is required, your installer will need to add additional refrigerant to maintain optimal operation.

---

Quiet Comfort

Leave fossil fuels behind with an ACiQ heat pump system. Every ACiQ heat pump condenser uses a scroll compressor to give exceptional cooling
performance and highly efficient, all-electric heat. WiFi-capable communicating condensers are also available.

---

High Efficiency

ACiQ heat pumps come in a range of efficiency options to fit your budget's needs and your local weather conditions. Save up to 63% on energy costs with a newer model.

---

Longer life, longer warranty

ACiQ heat pump condensers are 100% run-tested at the factory. Protective coatings on the fins and baked-on galvanized finishes mean long life even in harsh conditions. ACiQ’s extended warranty with online registration provides 10 year protection.

OVERVIEW

Upgrade your HVAC system with our eco-friendly 4-ton cased coil! Sustainable materials and durable design make this coil a smart choice for both your home and the planet. Compatible with R22 and R410 refrigerants, it's the perfect blend of performance and sustainability.

Additional Specs

• Type: Cased Piston Coil
• Finish: Galvanized
• Material: Aluminum/Copper
• Sustainability features: Made from sustainable materials and designed for energy efficiency
• Compatibility: Compatible with a wide range of HVAC systems
• Installation: Quick and easy installation, suitable for both residential and commercial applications
• Performance: High-efficiency design for optimal performance and energy savings
• Durability: Built to last with high-quality materials and construction

Note: This coil comes with a built-in R410A piston. For R22 setups, we recommend swapping the R410A piston with the one from your condenser. You can also reuse the piston from your previous R22 evaporator coil.
