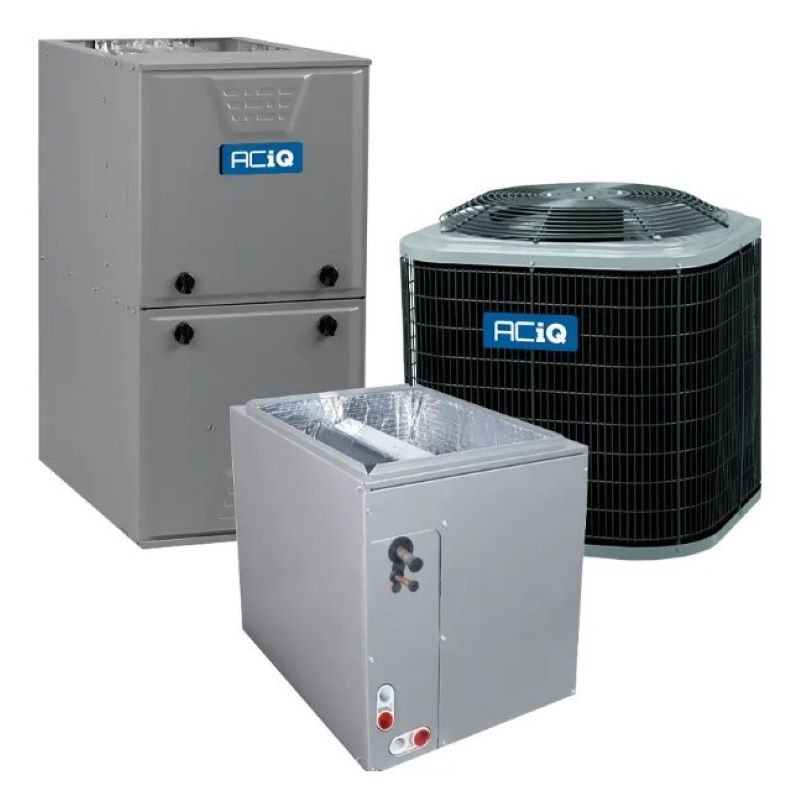

4 Ton 14.5 SEER2 96% AFUE 80,000 BTU ACiQ Gas Furnace and Heat Pump System - Multi-Positional

OVERVIEW

Designed to be a high-efficiency furnace, the ACiQ N96MSN0802120A is a money saving unit to provide heating throughout even the coldest months of the year. With its multi-positional design, this unit is a good all-around choice for nearly any application.

QUICK FACTS

• 80,000 BTU, 96% AFUE natural gas furnace
• Generally suitable for up to an medium house in ideal applications
• Multi-positional design, can be installed in the upflow, downflow, or horizontal orientations
• Single stage burner with a multi-speed blower
• Field-convertible to propane with an optional LP kit
• On board self-diagnostics
• Energy Star certified

80,000 BTU, 96% AFUE

The ACiQ N96MSN0802120A has an input of 80,000 BTU. With an efficiency of 96%, this means that the furnace has an output of 76,800 BTU. The 96% AFUE also means that for the gas going into the furnace, 96% of it is used to heat your home while only 4% is lost out of the flue piping and lost to normal furnace operations. All furnaces at this efficiency (90% and above) requires plastic/PVC flue venting, and if metal flue venting is required for your installation, an 80% efficient furnace would be needed instead. While this unit uses natural gas as fuel out of the box, we also have an LP conversion kit, available at an additional cost. Please note that this furnace is not Ultra Low NOx compliant and if shipped to California may be subject to a mitigation fee.

Warranty

ACiQ offers 10 year parts warranty and lifetime (20 year) heat exchanger limited warranty. Please note that in order for these warranties to be upheld, installation following your state and local codes are required, along with timely registration through the manufacturer.

Installation and Durability

With its ability to be installed in any configuration, upflow, downflow, or horizontal, the ACiQ N96MSN0802120A is very versatile in application potential. The unit has a durable outer casing that can withstand wear-and-tear through its entire lifetime, providing the peace of mind that your home will stay comfortable year-round. Please note that this furnace is not intended for use in a mobile home on its own.

---

Quiet Comfort

Every ACiQ furnace is designed to keep your family warm and comfortable year after year. Whisper-quiet ECM blower fans, solid construction with thicker sheet metal and
more cabinet insulation give you near-silent operation. From entry level to top-of-the-line, your comfort is the priority.

---

High Efficiency

ACiQ saves you money up front, but also over time by reducing energy bills. Multi-speed or Variable Speed ECM blowers come in every furnace. Adding options such as high-efficiency secondary heat exchangers, two stage heating, modulating burners and variable blowers all can further reduce your energy bills while increasing comfort.

---

Longer life, longer warranty

Thicker sheet metal, more cabinet insulation and aluminized steel heat exchangers reflect the highest build quality you can get. Every furnace is backed by ACiQ’s 10 year, 20 year or lifetime (depending on model) heat exchanger extended warranty with online registration.

OVERVIEW

The Santa Fe Ultra70 was the first compact whole house ventilating dehumidifier built for tight, low-clearance installs. It removes up to 70 pints of moisture per day and covers homes up to 1,800 square feet, which makes it a strong match for smaller houses, condos, and apartments.

Ducted into your HVAC system, the Ultra70 controls humidity everywhere at once instead of one room at a time. That means no musty basement smell, no clammy upstairs bedrooms, and no conditions that let mold and wood rot get started.

The cabinet measures 12" W x 12" H x 28" L and converts between horizontal and vertical airflow discharge, so it works in mechanical rooms, closets, attics, basements, and crawl spaces alike. Now running R454B refrigerant, it exceeds Department of Energy efficiency standards and is built at Santa Fe's headquarters in Madison, Wisconsin.

Key Features:

• 70 Pints Per Day – Whole-home moisture control for spaces up to 1,800 sq. ft.
• Optional Fresh Air Ventilation – Duct outdoor air in to dilute indoor pollutants
• MERV-13 Filtration – Standard filter captures fine airborne particles
• Convertible Discharge – Rotate the panel for horizontal or vertical airflow
• Compact 12" x 12" x 28" Cabinet – Fits where standard units can't
• R454B Refrigerant – Exceeds DOE efficiency standards
• 115V / 5.4 Amps – Plugs into a standard grounded outlet
• Made in Madison, Wisconsin – Heavy-duty steel construction

Customized Installation and Operation

The Ultra70 gives you three ways to install it. Tie it into your existing HVAC system with a dedicated 8" return and a supply connection with backdraft damper. Run it on its own separate ductwork. Or set it freestanding in a basement or crawl space when ducting isn't practical.

Both the return air inlet and supply air outlet use 8" duct collars. The back panel comes configured for horizontal flow through and rotates for vertical flow through with a T20 torx bit, which is what lets the same unit work in an attic, a closet, or under a floor.

Fresh air ventilation is optional and simple to add. A "T" into the inlet duct brings outdoor air into the system to dilute pollutants and maintain normal oxygen levels indoors, and the volume is adjustable with a range of dampers and controls.

• HVAC Integration – Dedicated return plus ducted supply to the air handler
• Dedicated Ducting – Runs on its own duct system independent of HVAC
• Freestanding Operation – Works standalone in basements and crawl spaces
• Optional Outdoor Air – Ventilation duct T's into the inlet, regulated by dampers and controls
• Continuous Drain – Gravity drainage, no manual emptying

Warranty Information

Santa Fe warrants the Ultra70 Dehumidifier to be free from defects in materials and workmanship. The unit includes a 5-year limited warranty, with extended coverage on select components. Warranty coverage may vary based on installation, application, and registration requirements. Refer to the manufacturer’s documentation for complete warranty details.
