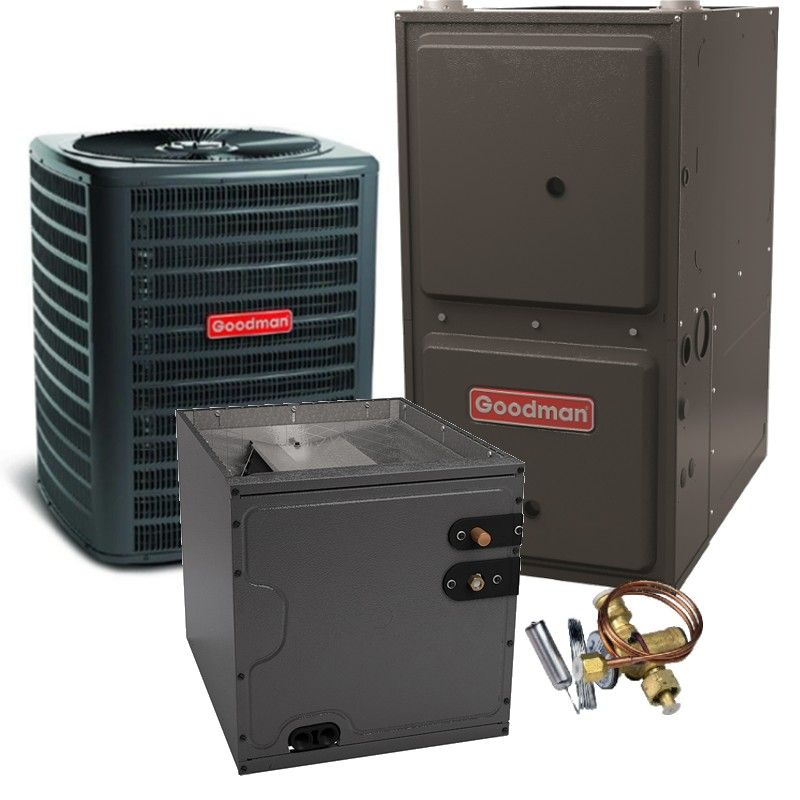

Goodman 4 Ton 15.2 SEER2 96% 100,000 BTU Furnace & AC System - R410A Downflow

Goodman 4 Ton 15.2 SEER2 96% 100,000 BTU Furnace & AC System - R410A Downflow

Required Fields *

Customer reviews
Rating:
4.8 out of 5
Out of stock
By

Goodman

Out of stock

Model

GSXH504810 / CAPF4961C6 / GCVC961005CN / 0151R00212S

ID

119876

A Goodman combination system is a great choice to keep your home warm all season long. With tons of extra features and a great price, a Goodman furnace and air conditioning system is the perfect choice for all of your heating and cooling needs.

Goodman 5 Ton Fixed TXV Kit - R-410A Refrigerant

Thermostatic Expansion Valves (TXVs) are:

  • Required for 14 SEER or higher split system heat pumps
  • Required for many condensers or heat pump systems designed for R-410A refrigerant
  • An optional upgrade for any other air conditioner or heat pump systems

Your system will operate better and with higher efficiency with a TXV kit. This kit offers more control over how much liquid refrigerant enters the evaporator coil. The valves only allow a certain amount of liquid into the coil to make sure that all liquid that enters completely evaporates. This allows for the prevention of too little liquid from entering the evaporator which would make the system run less efficiently. It also stops too much liquid from entering the evaporator which can cause excess in the lines. Thermostatic Expansion Valves are provide multi-position mounting on the evaporator coil inlet and are consistent, efficient and virtually hassle-free. Select the TXV to match the tonnage of your air conditioner or heat pump, as well as to match the type of refrigerant your systems uses, R-22 (standard) or R-410A (new alternative)

This capacitor gives an extra "jolt" of electricity upon startup to push the refrigerant against higher head pressures that are present with a TXV system. When using a TXV, manufacturer's recommend also installing a hard-start in your heat pump or condenser. If a hard-start capacitor is not installed, the equipment compressor has a possibility of having trouble getting started.

Compatibility

Please note that this is not an exhaustive list. Use Ctrl+F to simplify your search. This part is compatible with the following models:

GSXC704810 GSXC706010 GSXH504210 GSXH504810 GSXH506010 GSXB404210 GSXB404810 GSXB406010 GSXN404210 GSXN404810 GSXN406010 GSXN3N4210 GSXN3N4810 GSXN3N6010 GSZH504210 GSZH504810 GSZH506010 GSZB404210 GSZB404810 GSZB406010

More Information
Goodman 96% 100,000 BTU Variable Speed Two Stage Gas Furnace | 21" Width | Downflow / Horizontal
FeatureSpec
SKUGCVC961005CN
Weight (in lbs)145
AHRI Certificate Number7368844
Airflow DirectionDownflow/Horizontal
Exhaust Flue RequirementPlastic / PVC
Brand/ManufacturerGoodman
UPC663051618565
Furnace Efficiency / AFUE 96%
Heating BTU100,000
Blower MotorVariable Speed - ECM
Maximum CFM2000
ConfigurationDownflow/Horizontal
Energy StarYes
Electrical115 V. 1 Phase 60 Hz
Burner StagesTwo
Fuel TypePropane, Natural Gas
Height34.5"
Width21"
Depth28.75"
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information
This gas appliance requires a trained technician to install. Improperly connecting gas lines or improperly connecting a gas flue or venting may result in death. By purchasing this item, you are agreeing that you are using a trained technician to install this gas appliance. We will not be responsible for any injury or property damage arising from improper service or service procedures. Whoever installs or services this unit assumes responsibility for any personal injury or property damage which may result. Many jurisdictions require a license to install this equipment.

PROPOSITION 65 WARNING
Goodman 4 Ton 15.2 SEER2 High Efficiency Central Air Conditioner Condenser - R410A Single Stage
FeatureSpec
SKUGSXH504810
Weight (in lbs)282
Brand/ManufacturerGoodman
ReplacesGSX160481
UPC663051628977
Cooling BTU48,000
Blower MotorSingle Speed PSC Motor
Decibel Level (dBA)73
Horsepower0.25 HP
RefrigerantR410A
SEER2 (Efficiency)15.2
Condenser StagesSingle Stage
Compressor TypeScroll
Liquid Line3/8"
Suction Line7/8"
Electrical208/230v 1 Phase 60Hz
Max Breaker Size45 Amps
Min. Breaker Size26.2 Amps
Tonnage4 Ton
ConnectionSweat
Height36 1/2"
Width35 1/2"
Depth35 1/2"
Warranty10 Years Parts with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
4 to 5 Ton 21" Width Goodman Vertical Evaporator Cased Coil
FeatureSpec
SKUCAPF4961C6
Weight (in lbs)46
Brand/ManufacturerGoodman
UPC663051440418
ConfigurationUpflow / Downflow
RefrigerantR410A or R22
Liquid Line3/8"
Suction Line7/8"
Tonnage5 Ton
StyleA-Coil
Height30"
Width21"
Depth21"
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Goodman 5 Ton Fixed TXV Kit - R-410A Refrigerant
FeatureSpec
SKU0151R00212S
Weight (in lbs)2.5
Brand/ManufacturerGoodman
ReplacesTXV-FX-KX-5T
RefrigerantR410A
Safety InformationPROPOSITION 65 WARNING
