Today's Hours 8am - 11pm est4 Ton 15.5 SEER 97% AFUE 80,000 BTU Goodman Gas Furnace and Air Conditioner System - Downflow
Required Fields *
Customer reviews
Out of stock
By
Goodman
Out of stock
Model
GSX160481 / CAPF4961D6 / GCVM970804CN / TXV-48 / SST-CD-R6
ID
21831

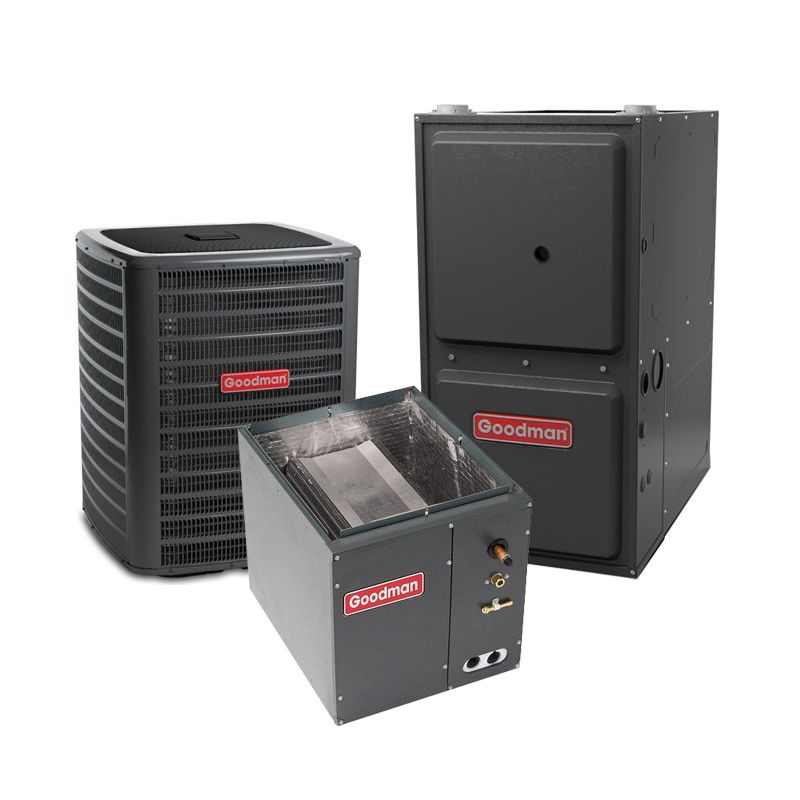

This Goodman system provides 4 Ton of cooling, 80,000 BTU of heating, and acheives 15.5 SEER. These features make it a perfect choice for your next system.
The Goodman GCVM970804CN furnace is a high-efficient gas furnace that features a modulating gas valve and a variable-speed circulating blower provides efficient and economical performance.Unlike single stage gas furnaces that operate either all on or all off, a Goodman modulating gas furnace typically runs at the lowest possible speed to precisely maintain a constant, steady temperature in your house. This furnace is designed to be installed in either a downflow or horizontal configuration. Not intended for mobile homes.
The Goodman GCVM970804CN furnace has a 97% AFUE rating which means that for every every $1.00 you spend, 97 cents goes towards heating your home.
Furnace Features
- Heavy-duty aluminized-steel tubular heat exchanger
- Stainless-steel secondary heat exchanger
- ComfortNet Communicating System compatible
- Uses ComfortNet communicating, two-stage or single-stage thermostats
- Self-calibrating modulating gas valve auto-configured for each installation
- Quiet variable-speed induced draft blower or cooling demand
- Self-diagnostic control board with constant memory fault code history output to a dual 7-segment display
- Durable 110-volt Silicon Nitride Igniter
- Color-coded low-voltage terminals with provisions for electronic air cleaner and humidifier
- Efficient and quiet variable-speed airflow system gently ramps up or down according to heating or cooling demand
- Multiple continuous fan speed options offer quiet air circulation
- Electronic control board with self-diagnostics and provisions for air cleaner and humidifier
- Auto-comfort mode for enhanced dehumidification
- Cabinet air leakage (QLeak) = <2%
- All models comply with California Low NOx emissions standards
The GSX160481 Goodman 16 SEER Central Air Conditioner uses the environmentally friendly refrigerant R-410A and features energy efficiencies and operating sound levels that are among the best in the heating and air conditioning industry. R-410A is chlorine-free to help prevent damage to the ozone layer. The GSX160481 Goodman 4 Ton AC Unit features a high-efficiency Copeland scroll compressor and is designed for the consumer who desires superior comfort, quiet operation, and environmentally friendly air conditioning performance.
In order to achieve the 16 SEER efficiency this central air conditioner must be installed with the manufacturer recommended evaporator coil, furnace, variable speed air handler, or variable speed modular blower and thermostatic expansion valve (TXV). A 16 SEER system will reduce your electric bill approximately 7% - 8% more than a 15 SEER system. This 4 Ton HVAC unit price is wholesale making it more affordable than any similar unit out there. Order this 4 Ton air conditioner and make instant savings today!
Standard Features of this Central Air Conditioner
- R-410A environmentally friendly refrigerant
- High-efficiency Copeland Ultratech scroll compressor
- Factory-installed filter dryer
- Fully charged for 15 feet of tubing length
- Copper tube/enhanced aluminum fin coil
- Sweat connection service valves with easy access to gauge ports
- Contactor with lug connection
- Ground lug connection
- AHRI Certified
- ETL Listed
Cabinet Features
- Unique Goodman brand louvered sound control top design
- Steel louver coil guard
- Heavy-gauge galvanized-steel cabinet
- Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
- Top and side maintenance access
- Single-panel access to controls with space provided for field-installed accessories
- When central air conditioner is properly anchored, meets the 2010 Florida Building Code unit integrity requirements for hurricane-type winds
Goodman 4 Ton Fixed TXV Kit - R-410A
Thermostatic Expansion Valves (TXVs) are:
- AÂ requirement for 14 SEER or higher split system heat pumps
- A requirement for many condensers or heat pump systems that use the new R-410A refrigerant
- An optional upgrade for any other air conditioner or heat pump system
Your system will operate more precisely and with greater efficiency with a TXV. These valves offer more control over how much liquid refrigerant enters the evaporator coil. The valves only allow a precise amount of liquid into the evaporator coil to ensure that all liquid that enters fully evaporates. This prevents too little liquid from entering the evaporator making the system run less efficiently. It also prevents too much liquid from entering the evaporator which can cause excess liquid in the suction line. Thermostatic Expansion Valves can be mounted in any position on the evaporator coil inlet and are reliable, efficient and virtually trouble-free. Select the TXV to correspond with the tonnage of your air conditioner or heat pump, as well as to match the type of refrigerant your systems uses, R-22 (standard) or R-410A (new alternative).Â
When using a TXV, manufacturer's recommend also installing a hard-start capacitor in your heat pump or condenser. This capacitor gives an extra "jolt" of electricity upon startup to push the refrigerant against higher head pressures that are present with a TXV system. If a hard-start capacitor isn't installed, the equipment compressor may sometimes have difficulty starting.
Compatibility
Please note that this is not an exhaustive list. Use Ctrl+F to simplify your search. This part is compatible with the following models:
Goodman GSX160481 Air Conditioners
