Mitsubishi 42,000 BTU GX-Series 21.5 SEER2 Five Zone Wall Mounted Mini Split Heat Pump System – R454B | 230V - 6 + 6 + 9 + 12 + 18

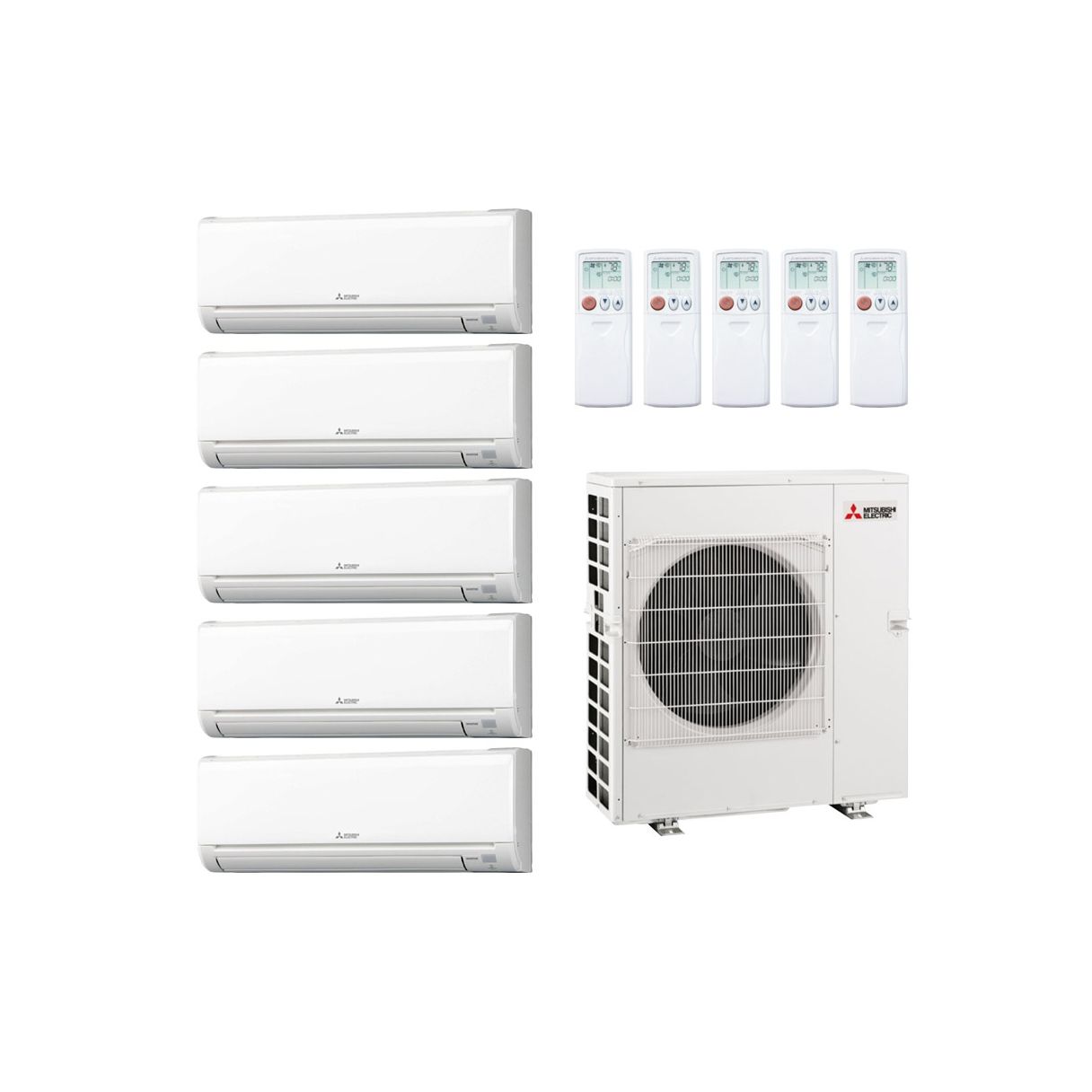

40,500 BTU Mitsubishi GX-Series 21.5 SEER2 Five Zone Wall Mounted Mini Split Heat Pump System - R454B |6 + 6 + 9 + 12 + 18
40,500 BTU Mitsubishi GX-Series 21.5 SEER2 Five Zone Wall Mounted Mini Split Heat Pump System - R454B |6 + 6 + 9 + 12 + 18 87762 EL1838-3 87762 / EL1838-3 87762 / EL1838-3 87762 / EL1838-3 MSK001 MSZ-GX06NL MHK2 MHK2 201813 366390 216740 366395 366396 HW-600 MHK2 MHK2

Required Fields *

By

Mitsubishi

In stock

Model

MXZ-5D42NL / 2-MSZ-GX06NL / MSZ-GX09NL / MSZ-GX12NL / MSZ-GX18NL

ID

200752

Be the first to review this product
Expected Arrival - January 2026
Was $772.20
Your Low Price $702.00

Free Shipping
Customize Mitsubishi 42,000 BTU GX-Series 21.5 SEER2 Five Zone Wall Mounted Mini Split Heat Pump System – R454B | 230V - 6 + 6 + 9 + 12 + 18
6,000 BTU Mitsubishi GX-Series Wall Mount Mini Split Air Handler - R454B
6,000 BTU Mitsubishi GX-Series Wall Mount Mini Split Air Handler - R454B
6,000 BTU Mitsubishi GX-Series Wall Mount Mini Split Air Handler - R454B   + $702.00
15 feet - 1/4" and 3/8" Line Set
15 feet - 1/4" and 3/8" Line Set
15 feet - 1/4" and 3/8" Line Set
Installation Kit for Condensers
Mitsubishi MHK2 Wireless Remote Controller
Condenser Risers - 4" x 18" - 2 Pack
40,500 BTU Mitsubishi GX-Series 21.5 SEER2 Five Zone Wall Mounted Mini Split Heat Pump System - R454B |6 + 6 + 9 + 12 + 18

$702.00

42,000 BTU Mitsubishi GX-Series 21.5 SEER2 Five Zone Wall Mounted Mini Split Heat Pump System - R454B | 6 + 6 + 9 + 12 + 18

This configuration features 6,000, 9,000, 12,000, and 42,000 BTU units, providing energy-efficient heating and cooling across five zones. Perfect for larger homes or offices with varying space and temperature needs.

  • Total Capacity: 42,000 BTU
  • SEER2 Rating: 21.5
  • Indoor Unit Sizes: 6,000 + 6,000 + 9,000 + 12,000 + 42,000 BTU
  • Refrigerant: R454B - Eco-friendly refrigerant
  • Ideal For: Larger homes or offices requiring flexible and efficient temperature control across multiple rooms

Ensure consistent climate control in every room with this high-performing, multi-zone mini split system.

Mitsubishi 6,000 BTU GX-Series Single or Multi Zone Wall Mounted Mini Split Air Handler – R454B | 230V

MSZ-GX06NL 6,000 BTU/H Wall-Mounted Indoor Unit

The MSZ-GX06NL is a 6,000 BTU/H wall-mounted indoor unit designed to provide efficient cooling and heating solutions. Its advanced features ensure both comfort and energy savings for residential or light commercial spaces.

  • Cooling Capacity: 6,000 BTU/h
  • Heating Capacity: 7,200 BTU/h
  • Electrical Specifications: 208/230 V, 1 Phase, 60 Hz
  • Airflow Rate (Cooling, Dry): 151-448 CFM
  • Airflow Rate (Heating, Dry): 151-459 CFM
  • Unit Dimensions: 31-13/32 x 9-21/32 x 11-25/32 inches (798 x 245 x 299 mm)
  • Weight: 23 lbs (10.4 kg)
  • Piping: Liquid pipe size 1/4 inch (6.35 mm), Gas pipe size 3/8 inch (9.52 mm)
  • Drain Pipe: 5/8 inch (16 mm)

Key Features

  • Dual Barrier Coating: Prevents dust, fibers, and smoke from collecting on the heat pump's inner surface, ensuring optimal airflow.
  • Econo Cool: Adjusts the airflow based on heat exchanger temperature to save energy while maintaining comfort.
  • Electrostatic Enzyme Filter: Attracts charged particles, including airborne non-living particulates like dust and smoke.
  • Quiet Operation: Both the indoor and outdoor units operate quietly, providing a peaceful environment.
  • Powerful Mode: Temporarily increases fan speed to quickly bring the room to the desired temperature.
  • Smart Dry Mode: Improves humidity control with minimal over-cooling.
  • Wi-Fi Enabled: Pairs with the Comfort app for remote control over temperature, fan speeds, and settings.
  • Multiple Control Options: Includes a back-lit remote controller, comfort app, and both wired and wireless controllers.

Indoor Unit Accessories

  • Wireless Remote Controller: RCMKP1CB
  • Microparticle Filter: MAC-EMF515FT-E
  • Condensate Pump Options: Blue Diamond Advanced Mini Condensate Pump X87-721, Refco Condensate Pump COMBI
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 15 feet

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

  • One pair, heavy duty refrigerant lines
  • Flared line ends
Mitsubishi MHK2 Wireless Remote Controller

The Mitsubishi MHK2 is the second revision of Mitsubishi's most popular wireless controller set, now available for M & P Series residential and light commercial units. This controller offers in-depth 7-day scheduling and an easy to read, backlit display.

The updated MHK2 can now be used in tandem with the Kumo Cloud wi-fi adapter, sold separately. No longer do you have to choose between internet and wireless control: you can use both!

The MRCH2 is the main body of the thermostat. This can be placed anywhere within 200 feet of the indoor unit and does not require line of sight. The ;MRC2 cable will connect to the CN105 connector on the indoor unit's control board. The other end of this cable will connect to the MIFH2 receiver. The MIFH2 should be placed on the right side of a wall mounted unit, in the pocket of a MLZ-KP cassette, or anywhere near the control side of a ducted or square cassette unit.

Features:

  • Includes MRCH2 thermostat, MIFH2 wireless receiver, and MRC2 cable
  • Backlit display
  • Can sense temperature at indoor unit (default) or at controller
  • Fahrenheit °F / Celsius °C
  • No batteries required
  • Single zone compatible
  • Multi zone compatible
  • English, French, Spanish

Compatible Indoor Units:

Wall Mounted

  • GL Series: MSZ-GL06NA-U1, MSZ-GL09NA-U1, MSZ-GL12NA-U1, MSZ-GL15NA-U1, MSZ-GL18NA-U1, MSZ-GL24NA-U1, MSY-GL09NA-U1, MSY-GL12NA-U1, MSY-GL15NA-U1, MSY-GL18NA-U1, MSY-GL24NA-U1
  • FH Series: MSZ-FH06NA, MSZ-FH09NA, MSZ-FH12NA, MSZ-FH15NA, MSZ-FH18NA2
  • EF Series: MSZ-EF09NAB-U1, MSZ-EF09NAS-U1, MSZ-EF09NAW-U1, MSZ-EF12NAB-U1, MSZ-EF12NAS-U1, MSZ-EF12NAW-U1, MSZ-EF15NAB-U1, MSZ-EF15NAS-U1, MSZ-EF15NAW-U1, MSZ-EF18NAB-U1, MSZ-EF18NAS-U1, MSZ-EF18NAW-U1
  • JP Series: MSZ-JP09WA-U1, MSZ-JP12WA-U1
  • WR Series: MSZ-WR09NA-U1, MSZ-WR12NA-U1, MSZ-WR18NA-U1, MSZ-WR24NA-U1
  • D Series: MSZ-D30NA-8, MSZ-D36NA-8, MSY-D30NA-8, MSY-D36NA-8
  • P Series: PKA-A12HA7, PKA-A18HA7,PKA-A24KA7, PKA-A30KA7, PKA-A36KA7

Ducted

  • KD Series: SEZ-KD09NA4R1.TH, SEZ-KD12NA4R1.TH, SEZ-KD15NA4R1.TH, SEZ-KD18NA4R1.TH
  • P Series: PEAD-A09AA7, PEAD-A12AA7, PEAD-A15AA7, PEAD-A18AA7, PEAD-A24AA7, PEAD-A30AA7, PEAD-A36AA7, PEAD-A42AA7

Ceiling Cassette

  • KF Series: SLZ-KF09NA, SLZ-KF12NA, SLZ-KF15NA, SLZ-KF18NA
  • KP Series: MLZ-KP09NA, MLZ-KP12NA, MLZ-KP18NA
  • P Series: PLA-A12EA7, PLA-A18EA7, PLA-A24EA7, PLA-A30EA7, PLA-A36EA7, PLA-A42EA7

Floor Mounted

  • MFZ-KJ09NA-U1, MFZ-KJ12NA-U1, MFZ-KJ15NA-U1, MFZ-KJ18NA-U1

Multi Position Air Handler

  • KP: SVZ-KP12NA, SVZ-KP18NA, SVZ-KP24NA, SVZ-KP30NA, SVZ-KP36NA
  • P Series: PVA-A12AA7, PVA-A18AA7, PVA-A24AA7, PVA-A30AA7, PVA-A36AA7, PVA-A42AA7

Ceiling Suspended

  • P Series: PCA-A24KA7, PCA-A30KA7, PCA-A36KA7, PCA-A42KA7
Wall Mount Bracket for Mini Split Systems

This wall mount bracket is perfect for outdoor mini split condensers. The length of the the wall bracket arms are 17” long. The condensing unit is mounted onto the L-shaped brackets and fastened using the bolts and anti-vibration washers provided.

Features:
  • 17” Arm Length
  • Weight capacity of 220 lbs per arm
  • Bolts and anti-vibration washers included

No Return Policy

All sales of this product are final and are non-refundable.

E Lite Equipment Pad 18" x 38" x 3"

E Liteis a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.

  • High recycled plastic content
  • Subtle texture resists unit slide
  • Unaffected by UV or weather
  • Uniform ribbing transfers load evenly
  • Drillable for securing unit
  • Lightweight, yet rugged

No Return Policy

All sales of this product are final and are non-refundable.

E Lite Equipment Pad and Risers Kit 18" x 38" x 3"

E Lite Condenser Pad and Risers

E Lite Condenser Pad

E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.

Key Features:

  • Reliable Support: Abundance of ridges for stable ground support.
  • Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
  • Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
  • Simple Appearance: Gray color with size labels.
  • Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.

E Lite Risers

E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.

Key Features:

  • Weather Resistance: Made from tough PVC for long-lasting performance.
  • Secure Setup: The track securely holds bolts in place.
  • Bolts Included: Each set comes with two bolts.
  • Strong Support: Capable of handling loads of up to 397 pounds.

E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.

No Return Policy

All sales of this product are final and are non-refundable.

Condenser Risers - 4" x 18" - 2 Pack

Provides simple and secure mounting for small and large piping systems, ductwork runs, cable trays and smaller equipment such as condensers. Linear track offers adjustable mounting. Manufactured from exterior grade materials.

Features

  • Ideal for piping, duct runs, cable trays and condensers
  • Weather resistant PVC
  • Linear track holds 3/8" hex head bolts
  • Two 7/8" long bolts included
  • Weighs up to 397 Ib
Installation Kit for Condensers - Accessory Set

Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.

Key Features:

✔ All-in-One Kit: Includes key accessories for a professional-grade installation.
✔ Enhanced System Protection: Features a surge protector and disconnect safety switch for added safety.
✔ Reliable Electrical Connections: Comes with a whip and charging adapter to ensure proper power supply.
✔ Secure Wall Penetration: Telescoping wall sleeve protects and stabilizes refrigerant and electrical lines.
✔ HVAC Professional Recommended: Ideal for new installations and system replacements.

What’s Included:

  • 1/2" x 6' Electrical Whip – SKU: 84136
  • 60A Non-Fused Disconnect – SKU: 83335
  • Surge Protector – SKU: ICM517
  • CPS Charging Adapter – SKU: 87-AD87
  • Telescoping Wall Sleeve – SKU: NFP-75

Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!

Refrigerant Line Set with 1/4" and 3/8" Line Ends - 50 feet

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

  • One pair, heavy duty refrigerant lines
  • Flared line ends
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 35 feet

This insulated refrigerant line set for mini split systems comes as a pair, including both the liquid line and suction line. It is used to connect the indoor air handler to the outdoor condenser. The line set is 35’ feet long. The liquid line has 1/4 inch outside diameter flared ends. The suction line has 3/8 inch outside diameter flared ends.

Features:

  • Insulated
  • Flared Line Ends
  • Heavy Duty Refrigerant Lines
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 30 feet

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

  • One pair, heavy duty refrigerant lines
  • Flared line ends
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 25 feet

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

  • One pair, heavy duty refrigerant lines
  • Flared line ends
More Information
Mitsubishi 6,000 BTU GX-Series Single or Multi Zone Wall Mounted Mini Split Air Handler – R454B | 230V
SKUMSZ-GX06NL
Weight26.000000
ManufacturerMitsubishi
ReplacesMSZ-GS06NA-U1
Decibel Level (dBA)19-43
RefrigerantR454B
Mini Split TypeWall Mounted
Zone CompatibilityMulti Zone
Height11-5/8"
Width 9-1/8"
Depth31-7/16"
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 15 feet
SKU201813
Weight15.000000
ManufacturerOnline Supply
Length15'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Mitsubishi MHK2 Wireless Remote Controller
SKUMHK2
Weight2.000000
ManufacturerMitsubishi
LengthCable:39-23/64"
HeightThermostat: 4-5/64” | Receiver: 3-3/32”
WidthThermostat: 4-5/64” | Receiver: 1-3/4”
DepthThermostat: 1-1/16" | Receiver: 39/64”
Warranty5 Years Parts Warranty
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Wall Mount Bracket for Mini Split Systems
SKUHW-600
Weight9.200000
ManufacturerOnline Supply
Length17"
Height20"
Width6"
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
E Lite Equipment Pad 18" x 38" x 3"
SKUEL1838-3
Weight16.000000
ManufacturerOnline Supply
Height3"
Width18"
Depth38"
Safety InformationPROPOSITION 65 WARNING
E Lite Equipment Pad and Risers Kit 18" x 38" x 3"
SKU87762 / EL1838-3
Weight25.000000
ManufacturerOnline Supply
Height3"
Width18"
Depth38"
Safety InformationPROPOSITION 65 WARNING
Condenser Risers - 4" x 18" - 2 Pack
SKU87762
Weight5.000000
ManufacturerOnline Supply
Installation Kit for Condensers - Accessory Set
SKUMSK001
Weight15.000000
ManufacturerOnline Supply
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 50 feet
SKU366396
Weight45.000000
ManufacturerOnline Supply
Length50'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 35 feet
SKU366395
Weight35.000000
ManufacturerOnline Supply
Length35'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 30 feet
SKU216740
Weight30.000000
ManufacturerOnline Supply
Length30'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 25 feet
SKU366390
Weight25.000000
ManufacturerOnline Supply
Length25'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Write Your Own Review
You're reviewing:Mitsubishi 42,000 BTU GX-Series 21.5 SEER2 Five Zone Wall Mounted Mini Split Heat Pump System – R454B | 230V - 6 + 6 + 9 + 12 + 18
Your Rating
Customer Questions
No Questions
Did you find what you were looking for?
Why Choose Mitsubishi Mini Splits?
Why Choose Mitsubishi Mini Splits?

Mitsubishi mini split air conditioners and heat pumps provide exceptional comfort, energy efficiency, and ultra-quiet performance in any climate. Engineered for reliability and precision, these systems offer year-round heating and cooling while reducing energy costs and enhancing indoor air quality.
