AHRI Number:200059149

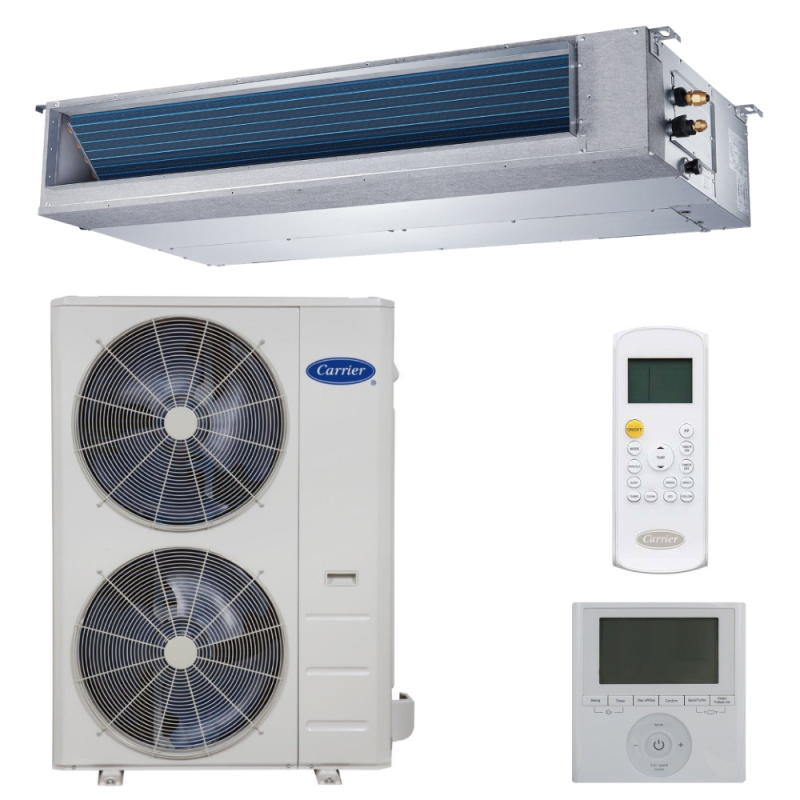

The 40MBDQ48-3 / 38MBRBQ48AA3 Performance series single zone mini split is a heat pump solution with a slim ducted air handler for almost any space. It has a flexible installation style; the indoor unit can be installed with ducts in a drop ceiling or attic as a ducted air handler, in a soffit for direct supply into a room, or rotated vertically to mimic a radiator/fan coil. With its wide heating and cooling range and quiet operation, the 40MBDQ48-3 / 38MBRBQ48AA3 is a reasonably priced solution for almost any application.
With an output of 48,000 BTU, the 40MBDQ48-3 / 38MBRBQ48AA3 has the capability to heat and cool up to a large room in average climates. With an efficiency rating of 17.4 SEER, bringing comfort to that space is possible while maintaining a high efficiency over many other solutions, allowing you to keep more of your hard-earned money over time by not spending it on your electric bill. Moreover, for installation in almost any space or set of adjacent spaces, the 40MBDQ48-3 / 38MBRBQ48AA3 is designed with a slim ducted air handler, allowing you to connect ductwork to it to move air where needed instead of having an air handler inside the room.
With an installation that follows your state and local installation codes and registration through the manufacturer within 90 days of installation, the 40MBDQ48-3 / 38MBRBQ48AA3 is backed by Carrier's 10 year parts and compressor warranty for the original registrant.
With its many settings selectable from the unit's included remote, the 40MBDQ48-3 / 38MBRBQ48AA3 can match almost any comfort-based need, from its Follow Me setting that senses the temperature at the remote instead of at the unit to your standard, unchanged output setting. These settings along with others and its quiet operation allow the 40MBDQ48-3 / 38MBRBQ48AA3 to bring a high quality of comfort to almost any space.
For a much more reliable operation, safety monitors all over the 40MBDQ48-3 / 38MBRBQ48AA3 are constantly taking readings to prevent any possible problems that may arise from general wear-and-tear on the unit. Moreover, the unit has an integrated base pan heater, allowing it to heat all the way down to -22°F.
48,000 BTU 17.4 SEER Concealed Duct Carrier Mini-Split Performance Single Zone Heat Pump | |
---|---|
SKU | 40MBDQ48-3 / 38MBRBQ48AA3 |
Refrigerant Charge | Pre-charged for: 26' |
Weight (in lbs) | 100.000000 |
AHRI Certificate Number | 200059149 |
Brand/Manufacturer | Carrier |
Controller | Wireless Included |
Additional Information | Heat Pump |
Additional Information | Minimum Line Set Length: 10 |
Additional Information | Maximum Line Set Length: 213' |
Additional Information | Drain: 1" |
HSPF | 10.3 |
Cooling BTU | 48,000 BTU |
Heating BTU | 49,500 BTU |
Maximum CFM | 720-1230 CFM |
Energy Star | No |
Refrigerant | R410A |
EER | 9.2 |
Liquid Line | 3/8" |
Suction Line | 5/8" |
Electrical | 208/230V 1 Phase 60Hz |
Phase | Single Phase |
Max Breaker Size | 50 Amps |
Min. Breaker Size | 35 Amps |
Amperage Requirement | 50A |
Tonnage | 4 Ton |
System Tonnage | 4 Ton |
BTU/Tonnage | 48,000 BTU/4 Ton |
Mini-Split Type | Concealed Duct |
Min/Max Outdoor Temp for Heating | -22°F-86°F |
Min/Max Outdoor Temp for Cooling | -13°F-122°F |
Zone Compatibility | Single Zone |
Height | Indoor Unit: 11.81" | Outdoor Unit: 52.48" |
Width | Indoor Unit: 47.24" | Outdoor Unit: 37.48" |
Depth | Indoor Unit: 34.41" | Outdoor Unit: 16.34" |
Warranty | 10 years with online registration, 5 years without |
