5 Ton 14.3 SEER2 80% AFUE 70,000 BTU ACiQ Gas Furnace and Heat Pump System - Multi-Positional

OVERVIEW

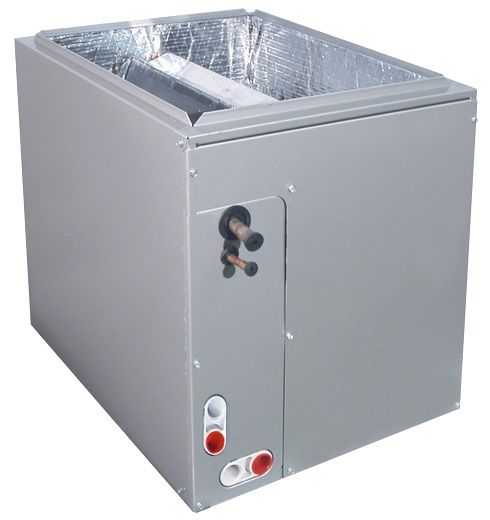

ACiQ takes pride in its ability to provide a high-quality system, including all system components. Leaving no exception, the EAM4X60L24A horizontal coil is a superior option for almost any application while maintaining the entire unit's efficiency with a factory-integrated TXV kit for enhanced energy optimization. With its unique performance features along with its ability to be applied in any orientation, this coil is a superior option for your home's comfort.

QUICK FACTS

• 5 ton multi-positional evaporator coil
• Works in almost any upflow, downflow, or horizontal system setup
• Compatible with both AC-only and heat pump condensers
• Factory-installed TXV kit for enhanced energy optimization
• Sturdy and compact design

5 Tons

The ACiQ EAM4X60L24A is rated for up to 5 tons of heating and cooling. With its ability to be installed with either an AC-only condenser or a heat pump condenser, this unit is ideal for many applications. In some packages, this coil will be larger than its paired condenser, which will increase the overall efficiency of the entire unit, but the coil should never be smaller than its paired condenser. Please note that this item cannot operate independently from a compatible condenser and blower or furnace, each available at an additional cost.

Warranty

ACiQ offers a 10 year parts warranty on their coils when they are installed following your state and local codes, as well as the system is paired with a certified system matchup. Please note that in order to obtain the entire length of this warranty, the entire unit must be registered through the manufacturer.

OVERVIEW

With its variable speed blower motor and two stage burner, the ACiQ G80CTL0702120A can provide a consistently superior comfort to almost any application.

QUICK FACTS

• 66,000 BTU, 80% AFUE natural gas furnace
• Generally suitable for up to a small to medium house in ideal applications
• Communicating variable speed blower with a two stage burner
• Multi-positional design - can be installed in the upflow, downflow, or horizontal orientations
• California Low NOx compliant
• Field-convertible to propane with an optional LP kit
• On board self-diagnostics

66,000 BTU, 80% AFUE

The ACiQ G80CTL0702120A has an input of 66,000 BTU. With an efficiency of 80%, this means that the furnace has an output of 53,000 BTU. The 80% AFUE also means that for the gas going into the furnace, 80% of it is used to heat your home while the remaining 20% is lost out the flue piping and lost to normal furnace operations. All 80% furnaces require metal flue venting, and if you need it to be plastic/PVC venting a furnace with an efficiency of 90% or above is required. While this unit uses natural gas as fuel out of the box, we also have an LP conversion kit, available at an additional cost.

Warranty

ACiQ offers a 10 year no hassle unit replacement, 10 year parts, and lifetime heat exchanger limited warranty. Please note that in order for the heat exchanger and parts warranties to be upheld, the unit must be registered through the manufacturer within 90 days of installation. The installation must also follow your state and local codes.

Installation and Durability

With its ability to be installed in any configuration (upflow, downflow, or horizontal), the ACiQ G80CTL0702120A is very versatile in application potential. The unit has a durable outer casing that can withstand wear-and-tear through its entire lifetime, providing the peace of mind that your home will stay comfortable year-round. Please note that this furnace is not designed to be suitable for a mobile home on its own.

Superior Comfort

All ACiQ-brand equipment is manufactured, one of the leaders of superior comfort in the industry. The ACiQ G80CTL0702120A definitely lives up to the name thanks in part to its communicating variable speed blower motor and its two stage burner. Both of these prominent features provide the most precise temperature and airflow output possible, making you as comfortable as possible in your home year-round.

---

Quiet Comfort

Every ACiQ furnace is designed to keep your family warm and comfortable year after year. Whisper-quiet ECM blower fans, solid construction with thicker sheet metal and
more cabinet insulation give you near-silent operation. From entry level to top-of-the-line, your comfort is the priority.

---

High Efficiency

ACiQ saves you money up front, but also over time by reducing energy bills. Multi-speed or Variable Speed ECM blowers come in every furnace. Adding options such as high-efficiency secondary heat exchangers, two stage heating, modulating burners and variable blowers all can further reduce your energy bills while increasing comfort.

---

Longer life, longer warranty

Thicker sheet metal, more cabinet insulation and aluminized steel heat exchangers reflect the highest build quality you can get. Every furnace is backed by ACiQ’s 10 year, 20 year or lifetime (depending on model) heat exchanger extended warranty with online registration.

OVERVIEW

The ACiQ N4H7T60AKAAA is a two stage heat pump condenser. Designed with comfort in mind and an inexpensive option for nearly any application, this condenser is considered a good all-around option for almost any application.

QUICK FACTS

• 5 ton, 17 SEER2 heat pump condenser
• Can cool up to a large house in average conditions
• Two Stage
• Filter drier included to be field-installed

5 Tons

The ACiQ N4H7T60AKAAA heat pump condenser has an output of 5 tons, generally enough to heat and cool up to a large house in ideal climates. In many system configurations, the tonnage of the unit's paired coil or air handler will be larger in tonnage than this condenser, which maintains the efficiency of the unit. Please note that this condenser cannot function on its own, and it needs an indoor coil or air handler to work. This unit will also only heat down to around 35°F, and if you need heat any lower than this, a backup heat strip will be needed to act as straight electric heating in a compatible air handler.

17 SEER2

The ACiQ N4H7T60AKAAA air conditioner condenser is rated at 17 SEER2, making it around 12% more efficient than 15.2 SEER2 units, saving you money in electric bills over the entire lifetime of your unit. In general, heat pumps will heat more efficiently than straight electric furnaces.

Warranty

ACiQ offers a 10 year parts warranty on its condensers. For these warranties to be upheld, the unit must be installed following your state and local codes, a new and certified coil must be installed at the same time, and the entire system must be registered online through the manufacturer. After your purchase, a representative will reach out to you to retrieve installation information so we can register the product for you.

Durability

The cabinet of ACiQ units are extremely durable. On the N4H7T60AKAAA, there are reinforced corner posts and the internals of the unit are protected by an additional inlet grille, all to provide enhanced protection to the unit.

---

Quiet Comfort

Leave fossil fuels behind with an ACiQ heat pump system. Every ACiQ heat pump condenser uses a scroll compressor to give exceptional cooling
performance and highly efficient, all-electric heat. WiFi-capable communicating condensers are also available.

---

High Efficiency

ACiQ heat pumps come in a range of efficiency options to fit your budget's needs and your local weather conditions. Save up to 63% on energy costs with a newer model.

---

Longer life, longer warranty

ACiQ heat pump condensers are 100% run-tested at the factory. Protective coatings on the fins and baked-on galvanized finishes mean long life even in harsh conditions. ACiQ’s extended warranty with online registration provides 10 year protection.

Ensure optimal refrigerant flow and HVAC system efficiency with this 30-foot insulated line set. Designed for seamless connection between an outdoor condensing unit or heat pump and an indoor air handler or evaporator coil, this line set provides durability, flexibility, and thermal protection for reliable performance.

Key Features:

✔ Premium Copper Tubing: 3/8" liquid line (LL) and 7/8" suction line (SL) ensure efficient refrigerant transfer.
✔ Pre-Insulated for Efficiency: 3/8" thick insulation reduces energy loss and condensation buildup.
✔ Versatile Application: Compatible with heat pumps and conventional split systems.
✔ Easy Installation: Flexible and durable copper tubing allows for smooth routing and connection.
✔ Standard 30-Foot Length: Ideal for a variety of residential and light commercial HVAC installations.

Upgrade your HVAC system with this high-quality insulated line set, designed for long-lasting performance and efficiency.

Ensure maximum refrigerant flow and HVAC system efficiency with this 50-foot insulated line set. Designed for seamless connection between an outdoor condensing unit or heat pump and an indoor air handler or evaporator coil, this line set offers durability, flexibility, and superior thermal insulation for high-performance HVAC applications.

Key Features:

✔ Premium Copper Tubing: 3/8" liquid line (LL) and 1 1/8" suction line (SL) for optimal refrigerant transfer.
✔ Pre-Insulated for Efficiency: 3/8" thick insulation minimizes energy loss and condensation buildup.
✔ Versatile Application: Ideal for larger capacity heat pumps and split systems requiring greater refrigerant flow.
✔ Easy Installation: Flexible and durable copper tubing allows for smooth routing and secure connections.
✔ Extended 50-Foot Length: Suitable for larger residential, commercial, and industrial HVAC installations.

Upgrade your HVAC system with this high-quality insulated line set, built for long-lasting performance, efficiency, and durability.

Smarter Comfort. Sleek Control.

The ACiQ TL04-1 Smart Thermostat is engineered to bring precise, intelligent control to your home’s HVAC system. Compatible with both standard 24V wiring and HA & HB communication protocols, it delivers flexibility for new builds or system upgrades.

QUICK FACTS

• Dual Compatibility: Supports 24V systems and HA/HB non-polarity communication systems

• Control Options: Works with single and two-stage heating, cooling, and heat pump systems with auxiliary/emergency heat
• Modern Touchscreen: Auto-wake screen with responsive touch interface
• Clean Installation: Includes M-base, trim plate, wire labels, screws, and anchors
• Smart Safety: Built-in installation tips, safety reminders, and FCC/IC compliance
• Perfect for homeowners looking to upgrade their comfort with modern, intelligent technology

The Ecobee is more than a smart thermostat. Most thermostats only read the temperature in one place (usually the hallway) which can make other rooms uncomfortable. Ecobee5 comes with a room sensor to help manage hot or cold spots. When you place sensors in your favorite rooms, ecobee5 can read the temperature and detect occupancy. That's how it ensures comfort in the rooms that matter.

With Amazon Alexa Voice Service built inside, ecobee5 can perform the many 'skills' that come with Alexa. All you have to do is ask, and watch the blue light pipe on top of the thermostat blink in response. For total hands-free control, it can even hear you from across the room. Imagine you’re throwing a last-minute dinner party. Simply ask your ecobee5 to walk you through each step out loud – from finding the right recipes to the ideal music playlist. ecobee5 has embedded microphones with far-field voice recognition and a speaker engineered for clear voice and full sound. It’s the smart thermostat that looks at home on your wall – that you can hear and speak to from across the room.

Features

This wall mount bracket is perfect for outdoor condensers. The length of the wall bracket arms are 30" long. The condensing unit is mounted onto the L-shaped brackets and fastened using bolts and anti-vibration washers (not included with brackets).

Features:

• Steel: 10 GA
• Powder-coated grey Finish
• Load rating: 600 lbs per pair
• Holes will accommodate anchors for installation
• Warranty: 1 year
• ACB line of wall brackets are approved by the Florida Building Commission and are High Velocity Hurricane Zone (HVHZ) approved. (See product certification documentation for complete details.)

No Return Policy

All sales of this product are final and are non-refundable.

Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.

Key Features:

✔ All-in-One Kit: Includes key accessories for a professional-grade installation.
✔ Enhanced System Protection: Features a surge protector and disconnect safety switch for added safety.
✔ Reliable Electrical Connections: Comes with a whip and charging adapter to ensure proper power supply.
✔ Secure Wall Penetration: Telescoping wall sleeve protects and stabilizes refrigerant and electrical lines.
✔ HVAC Professional Recommended: Ideal for new installations and system replacements.

What’s Included:

• 1/2" x 6' Electrical Whip – SKU: 84136
• 60A Non-Fused Disconnect – SKU: 83335
• Surge Protector – SKU: ICM517
• CPS Charging Adapter – SKU: 87-AD87
• Telescoping Wall Sleeve – SKU: NFP-75

Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!
