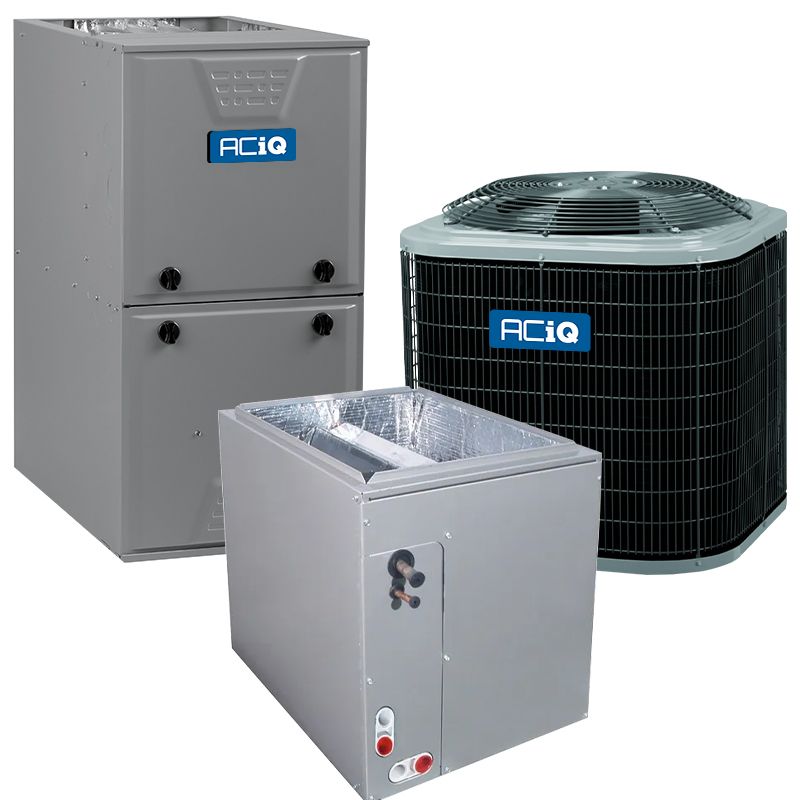

5 Ton 14 SEER 98% AFUE 120,000 BTU ACiQ Gas Furnace and Air Conditioner System - Multi-Positional

By

ACiQ

Model

R4A460GK / EAM4X60L24A / G97CMN1202422A

ID

82585

Rating:
98% of 100
Availability: Ships in 2-3 Weeks

Authorized ACiQ Dealer

AHRI Certified

AHRI Number:203756736

Suggested Retail $7,324.00
Your Low Price $5,858.00

Add to Cart for Best Price
Free Shipping

Requires: Plastic / PVC Flue Vent Piping

Required Fields *

Customize 5 Ton 14 SEER 98% AFUE 120,000 BTU ACiQ Gas Furnace and Air Conditioner System - Multi-Positional
120,000 BTU 97% AFUE Variable Speed Communicating Modulating Multi-Positional ACiQ Gas Furnace
120,000 BTU 97% AFUE Variable Speed Communicating Modulating Multi-Positional ACiQ Gas Furnace   + $3,266.00
5 Ton 14 SEER ACiQ Air Conditioner Condenser
5 Ton 14 SEER ACiQ Air Conditioner Condenser   + $1,939.00
ACiQ 5 Ton 24.5" Width Multi-Positional Evaporator Cased Coil
ACiQ 5 Ton 24.5" Width Multi-Positional Evaporator Cased Coil   + $653.00
5 Ton ACiQ Hybrid Upgrade
5 Ton 14 SEER  AFUE 120,000 BTU AirQuest Gas Furnace and Air Conditioner System - Multi-Positional

$5,858.00

Accessories for this product
Call 1-800-397-1392 for Best Pricing
Customer Reviews
BBB Rating
Best Pricing

Description

An ACiQ combination system is a great choice to keep your home warm all season long. With tons of extra features and a great price, the G97CMN1202422A is a perfect choice for heating.

All ACiQ models come with a 10 year parts warranty and 20 year heat exchanger limited warranty. Not intended for use in mobile homes.

120,000 BTU 97% AFUE Variable Speed Communicating Modulating Multi-Positional ACiQ Gas Furnace

OVERVIEW

With its variable speed blower motor and modulating gas valve, the ACiQ G97CMN1202422A can provide a consistently superior comfort to almost any application. Considered one of the best furnaces offered by ACiQ, the G97CMN1202422A is a great choice to keep you comfortable while saving you money in energy bills year-round.

QUICK FACTS

  • 120,000 BTU, 98% AFUE natural gas furnace
  • Generally suitable for up to a large house in ideal applications
  • Variable speed blower with a modulating gas valve
  • Multi-positional design-can be installed in the upflow, downflow, or horizontal orientations
  • Field-convertible to propane with an optional LP kit
  • On board self-diagnostics
120,000 BTU, 98% AFUE

The ACiQ G97CMN1202422A has an input of 120,000 BTU. With an efficiency of 98%, this means that the furnace has an output of 117,600 BTU, meaning that it is generally suitable for large houses in ideal climates. The 98% AFUE also means that for the gas going into the furnace, 98% of it is used to heat your home while the remaining 2% is lost out the flue piping and lost to normal furnace operations. All 90% and above furnaces require plastic/PVC flue venting, and if you need it to be metal flue venting to match your current setup, you would need to get an 80% efficient furnace. While this unit uses natural gas as fuel out of the box, we also have an LP conversion kit, available at an additional cost.

Warranty

ACiQ offers standard 10 year parts warranty and lifetime (20 year) heat exchanger limited warranty. Please note that in order for these warranties to be upheld, installation following your state and local codes are required, along with timely registration through the manufacturer.

Installation and Durability

With its ability to be installed in any configuration-upflow, downflow, or horizontal-the ACiQ G97CMN1202422A is very versatile in application potential. The unit has a durable outer casing that can withstand wear-and-tear through its entire lifetime, providing the peace of mind that your home will stay comfortable year-round.
Please note that this furnace is not designed to be suitable for a mobile home on its own.

Superior Comfort

All ACiQ-brand equipment is manufactured, one of the leaders of superior comfort in the industry. The ACiQ G97CMN1202422A lives up to the name thanks in part to its variable speed blower motor and its modulating gas valve. Moreover, the furnace is communicating, meaning that with the proper equipment, the furnace will constantly adjust to the needs of your home so that you never go uncomfortable in your home, regardless if it is in Autumn or in the worst part of winter. Considered one of ACiQ's best furnaces, both prominent features provide the most precise temperature and airflow output possible, making you as comfortable as possible in your home year-round.


Quality FurnaceQuality Furnace

Quiet Comfort

Every ACiQ furnace is designed to keep your family warm and comfortable year after year. Whisper-quiet ECM blower fans, solid construction with thicker sheet metal and
more cabinet insulation give you near-silent operation. From entry level to top-of-the-line, your comfort is the priority.


High Efficiency

ACiQ saves you money up front, but also over time by reducing energy bills. Multi-speed or Variable Speed ECM blowers come in every furnace. Adding options such as high-efficiency secondary heat exchangers, two stage heating, modulating burners and variable blowers all can further reduce your energy bills while increasing comfort.

High Efficient FurnaceHigh Efficient Furnace

Longer life, longer warranty

Thicker sheet metal, more cabinet insulation and aluminized steel heat exchangers reflect the highest build quality you can get. Every furnace is backed by ACiQ’s 10 year, 20 year or lifetime (depending on model) heat exchanger extended warranty with online registration.

5 Ton 14 SEER ACiQ Air Conditioner Condenser

OVERVIEW

The ACiQ R4A460GK is a standard AC-only condenser. Designed with comfort in mind and an inexpensive option for nearly any application, this condenser is considered a good all-around option for almost any application.

QUICK FACTS

  • 5 ton, 14 SEER AC-only condenser
  • Can cool up to a large house in average conditions
  • Single stage compressor
  • Filter drier included to be field-installed
  • 5 Tons

    The ACiQ R4A460GK air conditioner condenser has an output of 5 tons, generally enough to cool up to a large house in ideal climates. In many system configurations, the tonnage of the unit's paired coil or air handler will be larger in tonnage than this condenser, which maintains the efficiency of the unit. Please note that this condenser cannot function or provide any sort of heating on its own, and it needs an indoor coil or air handler to work.

    14 SEER

    The ACiQ R4A460GK air conditioner condenser is rated at 14 SEER, making it between 5-7% more efficient than standard 13 SEER units, saving you money in electric bills over the entire lifetime of your unit.

    Due to new efficiency requirements, this unit cannot be installed in the following states: Alabama, Arizona, Arkansas, California, Delaware, Florida, Georgia, Kentucky, Louisiana, Maryland, Mississippi, Nevada, New Mexico, North Carolina, Oklahoma, South Carolina, Tennessee, Texas, and Virginia.

    Warranty

    ACiQ offers a 5 year parts warranty on this condenser. For these warranties to be upheld, the unit must be installed following your state and local codes, a new and certified coil must be installed at the same time, and the entire system must be registered online through the manufacturer.

    Durability

    The cabinet of ACiQ units are extremely durable. On the R4A460GK, there are reinforced corner posts and the internals of the unit are protected by an additional inlet grille, all to provide enhanced protection to the unit.


    Quiet AC CondenserQuiet AC Condenser

    Quiet Comfort

    ACiQ has the power to keep things cool when temperatures rise. Every ACiQ condenser uses a scroll compressor for long life and efficiency operation. From entry level to high efficient, single stage, two stage and communicating models, every ACiQ Condenser keeps you cool year after year.


    High Efficiency

    ACIQ saves you money up front, but also over time by reducing energy bills. Models ranging from standard efficiency to high efficient models can provide you savings from 21% to 63% over older, 10 SEER condensers. Coil construction is either all aluminum or copper/aluminum (depending on model) for max efficiency.

    High Efficient AC UnitsHigh Efficient AC Units

    Longer life, longer warranty

    ACiQ condensers are 100% run-tested at the factory. Protective coatings on the fins mean long life even in harsh conditions. A filter drier is included to keep the system healthy. ACiQ’s extended warranty with online registration provides 10 year protection.

    Nestor

    Installer in Chicago, Illinois

    What Contractors are Saying

    These ACiQ units are easy to work on. The warranty is rock solid and is as good as any warranty in the industry. I'm sold!

    Michael

    Installer in Atlanta, Georgia

    What Contractors are Saying

    These ACiQ units are attractive and durable. I never hesitate to recommend ACiQ units to my customers when it is time for them to replace their air conditioners or furnaces. They love getting a high quality unit for such a great price.

    Luke

    Installer in Dayton, Ohio

    What Contractors are Saying

    Was initially concerned about the ACiQ brand as I had heard little about it. My attitude changed completely once I had a look “under the hood”. These ACiQ units are as good as any other brand that I’ve seen. Plus, they have all the features and quality details that the more expensive brands have, but at a much more attractive price.

    Chris

    Installer in Atlanta, Georgia

    What Contractors are Saying

    I’m a long time HVAC technician. I have an ACiQ furnace in my basement and an ACiQ air conditioner in my yard. I couldn’t be happier with them. ACiQ is always the first brand I offer my customers when it’s time for unit replacement. If it works for me, it will work for them, too. And it does!

    5 Ton ACiQ Hybrid Upgrade
    ACiQ 5 Ton 24.5" Width Multi-Positional Evaporator Cased Coil

    OVERVIEW

    ACiQ takes pride in its ability to provide a high-quality system, including all system components. Leaving no exception, the EAM4X60L24A horizontal coil is a superior option for almost any application while maintaining the entire unit's efficiency with a factory-integrated TXV kit for enhanced energy optimization. With its unique performance features along with its ability to be applied in any orientation, this coil is a superior option for your home's comfort.

    QUICK FACTS

    • 5 ton multi-positional evaporator coil
    • Works in almost any upflow, downflow, or horizontal system setup
    • Compatible with both AC-only and heat pump condensers
    • Factory-installed TXV kit for enhanced energy optimization
    • Sturdy and compact design

    5 Tons

    The ACiQ EAM4X60L24A is rated for up to 5 tons of heating and cooling. With its ability to be installed with either an AC-only condenser or a heat pump condenser, this unit is ideal for many applications. In some packages, this coil will be larger than its paired condenser, which will increase the overall efficiency of the entire unit, but the coil should never be smaller than its paired condenser. Please note that this item cannot operate independently from a compatible condenser and blower or furnace, each available at an additional cost.

    Warranty

    ACiQ offers a 10 year parts warranty on their coils when they are installed following your state and local codes, as well as the system is paired with a certified system matchup. Please note that in order to obtain the entire length of this warranty, the entire unit must be registered through the manufacturer.

    No Thank You

    Product Specifications

    More Information
    120,000 BTU 97% AFUE Variable Speed Communicating Modulating Multi-Positional ACiQ Gas Furnace
    SKUG97CMN1202422A
    Weight (in lbs)203.000000
    AHRI Certificate Number213148472
    Exhaust Flue RequirementPlastic / PVC
    Brand/ManufacturerACiQ
    Equivalent

    Carrier Equivalent: 59MN7B120C24--22

    Furnace Efficiency / AFUE 97%
    Heating BTU120,000
    Blower MotorVariable Speed-ECM
    Maximum CFM2185
    ConfigurationUpflow/Downflow/Horizontal
    Energy StarYes
    Electrical120 V. 1 Phase 60 Hz
    Burner StagesModulating
    Fuel TypePropane, Natural Gas
    Height35"
    Width24-1/2"
    Depth29-1/2"
    Warranty10 Year No Hassle / 20 Year Heat Exchanger / 10 Year Parts with Online Registration
    Resources You will need Adobe® Acrobat® Reader to view PDF documents.
    Safety Information
    This gas appliance requires a trained technician to install. Improperly connecting gas lines or improperly connecting a gas flue or venting may result in death. By purchasing this item, you are agreeing that you are using a trained technician to install this gas appliance. We will not be responsible for any injury or property damage arising from improper service or service procedures. Whoever installs or services this unit assumes responsibility for any personal injury or property damage which may result. Many jurisdictions require a license to install this equipment.

    PROPOSITION 65 WARNING
    5 Ton 14 SEER ACiQ Air Conditioner Condenser
    SKUR4A460GK
    Weight (in lbs)218.000000
    Brand/ManufacturerACiQ
    Cooling BTU60,000
    Maximum CFM3700
    Decibel Level (dBA)73
    Motor RPM1100
    Horsepower.25 HP
    Energy StarYes
    RefrigerantR410A
    SEER1 (Efficiency)14
    EER11.5-12
    Condenser StagesSingle Stage
    Compressor TypeScroll
    Liquid Valve Size3/8"
    Suction Valve Size1 1/8"
    Electrical208/230v 1 Phase 60 Hz
    PhaseSingle Phase
    Max Breaker Size40 Amps
    Min. Breaker Size27.5 Amps
    Amperage Requirement27.5 Amps
    Tonnage5 Ton
    ConnectionSweat
    CertificationUL Listed
    Height31 11/16"
    Width31 3/16"
    Depth31 3/16"
    Warranty10 Years Parts Warranty with Online Registration
    Resources You will need Adobe® Acrobat® Reader to view PDF documents.
    Safety InformationPROPOSITION 65 WARNING
    5 Ton ACiQ Hybrid Upgrade
    SKUACIQ-60-EHPB-UPG
    Weight (in lbs)120.000000
    Brand/ManufacturerACiQ
    RefrigerantR410A
    Safety InformationPROPOSITION 65 WARNING
    ACiQ 5 Ton 24.5" Width Multi-Positional Evaporator Cased Coil
    SKUEAM4X60L24A
    Weight (in lbs)101.000000
    Brand/ManufacturerACiQ
    Equivalent

    Carrier Equivalent: CAPMP6024ALA

    Tempstar Equivalent: EAM4X60L24A

    Bryant Equivalent: CAPMP6024ALA

    ConfigurationMulti-Positional
    RefrigerantR410A
    Liquid Line3/8"
    Suction Line7/8"
    Tonnage5 Ton
    StyleA-Coil
    CertificationUL Listed
    Height35"
    Width24 1/2"
    Depth20 5/8"
    Warranty10 Years Parts Warranty with Online Registration
    Resources You will need Adobe® Acrobat® Reader to view PDF documents.
    Safety InformationPROPOSITION 65 WARNING
    No Thank You
    SKUNOTHANKYOU
    Weight (in lbs)120.000000

    Reviews 4

    Write Your Own Review
    You're reviewing:5 Ton 14 SEER 98% AFUE 120,000 BTU ACiQ Gas Furnace and Air Conditioner System - Multi-Positional
    Your Rating

    Questions and Answers

    Customer Questions
    Who makes ACiQ?
    ACiQ air conditioning systems, standard heat pumps, and gas furnaces are manufactured by the largest HVAC manufacturer in America, who also happens to be the seller of the nation’s #1 brand. However, because our prices are SO LOW, they will not allow us to mention their name! They must protect their current market share where typical home systems retail between $15,000 to $25,000 for the identical equipment that we let you buy direct for under $3,000. We offer homeowners and contractors the highest quality and best warranty HVAC systems in the industry at the absolute lowest price. With our industry-leading, high-tech ACiQ equipment, your home and your savings just got a whole lot smarter!
    What happens if this breaks down?
    HVACDirect.com gives you lifetime tech support. Many common problems can be solved with a phone call to us. HVACDirect.com is an authorized dealer of ACiQ, therefore equipment we sell carries the full manufacturer's warranty. The warranty applies to all parts. You have to register the products online in order to extend the warranty to the full 10 years, otherwise the term is 5 years. If a part fails under warranty, you will not pay anything for the replacement part. Should a part fail under warranty, the first step is to have a professional confirm what part needs to be replaced. Then, contact us at customerservice@hvacdirect.com or by calling and asking for customer service.
    What happens if it arrives damaged?
    If you are present during drop-off and you see obvious signs of damage or rough handling in transit - please ask the driver to wait while you inspect the equipment. If it is damaged badly enough that you believe it can not function, you have the right to refuse the damaged portion of the shipment. If you discover the damage after the driver has left, take photos of the damage and send them to customerservice@hvacdirect.com. Please refer to your order number in the email. This starts the process and one of our representatives will be in touch with you promptly.
    How can I find an installer?
    It’s easier than you think – the key is to find an independent contractor or small company as opposed to a larger HVAC service. A one or two person outfit will do the work more quickly and cheaply than a bigger company, too. Yelp.com, Thumbtack.com, and Porch.com are websites are designed to help you connect with a professional in your area. You could also place a call to the last professional who did work on your home and see if they have any recommendations.
    What's the warranty?
    ACiQ’s 10 year Warranty (online registration required) is one of the top warranties available today.  Many of the higher-SEER units have even higher warranties and some of the higher efficient furnaces have longer heat exchanger warranties.
    I'm looking to replace my Carrier unit and this ACiQ unit seems to have about the same specs - are they the same product?
    ACiQ is made by the same company as Carrier, ICP, as well as brands like Bryant, TempStar and ArcoAire. Many of the internal components can be cross referenced for shared parts. So, yes, apart from the name on the badge – very similar if not identical.
    Is it cheaper to buy a furnace and AC together? (Should I replace my furnace and air conditioner at the same time?)
    Remember to factor labor into the budget. Many times the labor can cost as much as the equipment. Therefore, spending a bit more now to replace everything can be less expensive than re-using an older furnace that still works, or putting in a furnace with a plan to ‘add air conditioning later.” By replacing everything at the same time, you will get matching equipment that is all warrantied together. Then you can typically not have to worry about the system for another 15 to 25 years with proper maintenance.
