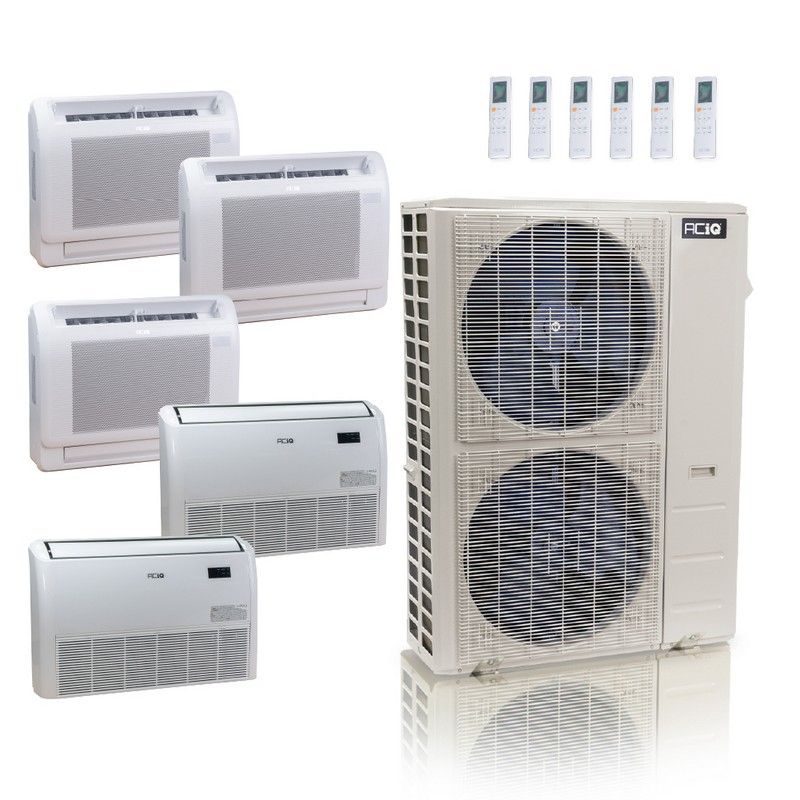

This ACIQ 5-Zone Standard Series System combines high efficiency with advanced climate control. ES-55Z-M6C / ACIQ-09FM-3 / ACIQ-18FM / ACIQ-24FM is the perfect solution for year-round heating and cooling in up to 5 spaces.
ACiQ Standard Series Multi Zone Systems
The ACiQ Standard Series Multi Zone Mini Split Systems provide efficient, customizable comfort by allowing multiple indoor units to connect to a single outdoor condenser. Designed for whole-home or multi-room applications, these systems deliver quiet, energy-efficient heating and cooling with the flexibility to create independent temperature zones throughout your home.
55,000 BTU Standard Multi Zone Condenser
OVERVIEW
ACIQ is the smart solution to adaptive heating and cooling in almost any space and climate -all at an affordable cost. With the ES-55Z-M6C, you can have up to 6 air handlers run off a single condenser, saving space outside and keeping you perfectly comfortable in your home.
QUICK FACTS
55,000 BTU, 22.0 SEER2 multi zone heat pump condenser
Designed to function with up to 6 attached air handlers
Efficient cooling from -13°F to 122°F outdoor temperatures
Efficient heating from -13°F to 75°F outdoor temperatures
Gold Fin full-protection coating on condenser coil
Quiet operation at even the highest workloads
55,000 BTU, 21.3 SEER2
The 55,000 BTU, ES-55Z-M6C is designed to easily support up to 4 air handlers at up to 1.25 times the condenser BTU rating, or 68,750 BTU across all air handlers. This adaptive, inverter condenser is constantly self-adjusting to provide the precise amount of heating or cooling needed to maintain your desired temperature in each room or zone. You can set different temperatures room by room, even turn off heating and cooling in unused areas. This, combined with a high efficiency rating of 22.0 SEER2, means you are buying a system designed to intelligently save you money both up front and over the lifetime of the unit.
Although the condenser is pre-charged, please note that this model of equipment does not have quick connect line set connectors and is not a self-install unit. You will need a professional to add more refrigerant and vacuum the lines as needed. Installation materials such as line sets, control wire, drain hose, whip and disconnect are not included, but are available at additional cost in the Accessories section to the right of this text. For all multi zone ACIQ condensers, a minimum of two air handlers is needed for the unit to function.
Self Cleaning Condenser
ACiQ condensers stay clean and efficient with self-cleaning technology built right in. At the end of each cycle, the fan reverses direction and blows air out the back of the unit — helping remove leaves, dirt, and debris before buildup can begin.
Quality Construction
State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life. Most models have low ambient heating and cooling.
Highest Efficiency
ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.
Longer life, longer warranty
Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. Register equipment at ACiQ.com to extend warranty protection to 7 years parts, 12 years compressor.
Installation and Maintenance
ACiQ multi zone condensers are pre-charged with R410-A refrigerant for 25' per air handler connection. In many cases, no additional refrigerant is needed. All units are run-tested at the factory for years of trouble-free performance. Troubleshooting is easy thanks to unit's self diagnosing control board with alerts that are sent to each connected air handler.
9,000 BTU Floor Mount Air Handler
ACiQ Floor Mounted air handlers are ideal for sun porches and attic rooms where space to mount a standard high wall unit is not available. Sometimes called a heat console type air handler, these units surface mount low on the wall, near or on the floor. The shape is wider, taller and slightly shallower than the high wall unit. These are ideal for sun porches where the only wall space is below windows, or attic remodels with knee-walls, where vertical high walls may not be available.
Optimized for Heat
Like a high wall mount, these units take in return air at the top edge and deliver it at the bottom. This is ideal for heating. By delivering warm air at floor level, stratification due to heat rise is eliminated. When you put the unit into cooling mode, the airflow direction is reversed for better air mixing in the room.
FEATURES
12,000 BTU of Heating or Cooling
Dry and Fan modes also available
Good for a small room in most climates
Remote control thermostat included
Note: The 18k and 24k are slightly different in appearance from the 12k, and can be surface mounted on the floor or ceiling. Please see the appropriate manual for your model.
18,000 BTU Floor Mount Air Handler
ACIQ Floor Mounted air handlers are ideal for sun porches and attic rooms where space to mount a standard high wall unit is not available. Sometimes called a heat console type air handler, these units surface mount low on the wall, near or on the floor. The shape is wider, taller and slightly shallower than the high wall unit. These are ideal for sun porches where the only wall space is below windows, or attic remodels with knee-walls, where vertical high walls may not be available.
The ACIQ-18FM-HH-MB and ACIQ-24FM-HH-MB creatively solve various installation issues.
Unlevel Surfaces: The pitch of the roof is often reflected indoors as well, providing angled surfaces that make mounting traditional air handlers impossible. This system uses threaded rod to allow the air handler to be level, even when the walls are not. The threaded rod can be adjusted to accommodate all geometry angles, allowing the system to touch the ceiling or hang several feet below it
Uninsulated Roofs: The cassette and concealed duct air handler systems want at least a foot of space between the ceiling and the roof, this unit can work with a gap as small as one inch, which is what you often see with metal buildings and 3 season rooms. The air handler will be located near the edge of the room, blowing towards the opposite edge of the room, which is different than a cassette system, that blows air in all directions and is located in the center of a room.
Sun Rooms: The air handler is actually mounted directly to the wall, fitting perfectly under the windowsill, elevated about 2 inches from the floor, even thou this is referred to as a floor mounted air handler, there is no need to drill or modify the floor as all connections can go thru the wall. Perfect for rooms that are mostly windows, these units pull air from the bottom and blow the air upwards, allowing heating the room in winter and automatically shutting off when the large windows are opened during the summer with the optional door-open sensor.
Floor Installation: The unit can be mounted to the floor when drilling holes into the wall is highly undesirable, as it common with brick/marble surfaces. The refrigerant/electrical/drain line can be run thru the floor and entirely hidden from view. The system is pre-wired for a 240vac condensate pump with over-flow shutoff connections.
Note: The 18k and 24k are slightly different in appearance from the 12k, and can be surface mounted on the floor or ceiling. Please see the appropriate manual for your model.
24,000 BTU Floor Mount Air Handler
ACIQ Floor Mounted air handlers are ideal for sun porches and attic rooms where space to mount a standard high wall unit is not available. Sometimes called a heat console type air handler, these units surface mount low on the wall, near or on the floor. The shape is wider, taller and slightly shallower than the high wall unit. These are ideal for sun porches where the only wall space is below windows, or attic remodels with knee-walls, where vertical high walls may not be available.
The ACIQ-18FM-HH-MB and ACIQ-24FM-HH-MB creatively solve various installation issues.
Unlevel Surfaces: The pitch of the roof is often reflected indoors as well, providing angled surfaces that make mounting traditional air handlers impossible. This system uses threaded rod to allow the air handler to be level, even when the walls are not. The threaded rod can be adjusted to accommodate all geometry angles, allowing the system to touch the ceiling or hang several feet below it
Uninsulated Roofs: The cassette and concealed duct air handler systems want at least a foot of space between the ceiling and the roof, this unit can work with a gap as small as one inch, which is what you often see with metal buildings and 3 season rooms. The air handler will be located near the edge of the room, blowing towards the opposite edge of the room, which is different than a cassette system, that blows air in all directions and is located in the center of a room.
Sun Rooms: The air handler is actually mounted directly to the wall, fitting perfectly under the windowsill, elevated about 2 inches from the floor, even thou this is referred to as a floor mounted air handler, there is no need to drill or modify the floor as all connections can go thru the wall. Perfect for rooms that are mostly windows, these units pull air from the bottom and blow the air upwards, allowing heating the room in winter and automatically shutting off when the large windows are opened during the summer with the optional door-open sensor.
Floor Installation: The unit can be mounted to the floor when drilling holes into the wall is highly undesirable, as it common with brick/marble surfaces. The refrigerant/electrical/drain line can be run thru the floor and entirely hidden from view. The system is pre-wired for a 240vac condensate pump with over-flow shutoff connections.
Note: The 18k and 24k are slightly different in appearance from the 12k, and can be surface mounted on the floor or ceiling. Please see the appropriate manual for your model.
15 feet - 1/4" and 3/8" Line Set & Control Wire
Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 15-foot refrigerant line set with 1/4" liquid line and 3/8" suction line featuring durable flared ends for secure connections, along with a matching 15-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.
The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.
What's Included
15 ft. insulated refrigerant line set
15 ft. 14/4 mini-split control wire
1/4" liquid line with flared ends
3/8" suction line with flared ends
Features
1/2" thick insulation for improved efficiency
Heavy-duty refrigerant line construction
Stranded copper wire for reliable conductivity
Flexible and durable installation materials
Compatible with most mini-split systems
Ideal for HVAC installations and replacements
15 feet - 1/4" and 1/2" Line Set & Control Wire
Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 15-foot refrigerant line set with 1/4" liquid line and 1/2" suction line featuring durable flared ends for secure connections, along with a matching 15-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.
The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.
What's Included
15 ft. insulated refrigerant line set
15 ft. 14/4 mini-split control wire
1/4" liquid line with flared ends
1/2" suction line with flared ends
Features
1/2" thick insulation for improved efficiency
Heavy-duty refrigerant line construction
Stranded copper wire for reliable conductivity
Flexible and durable installation materials
Compatible with most mini-split systems
Ideal for HVAC installations and replacements
15 feet - 3/8" and 5/8" Line Set & Control Wire
Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 15-foot refrigerant line set with 3/8" liquid line and 5/8" suction line featuring durable flared ends for secure connections, along with a matching 15-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.
The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.
What's Included
15 ft. insulated refrigerant line set
15 ft. 14/4 mini-split control wire
3/8" liquid line with flared ends
5/8" suction line with flared ends
Features
1/2" thick insulation for improved efficiency
Heavy-duty refrigerant line construction
Stranded copper wire for reliable conductivity
Flexible and durable installation materials
Compatible with most mini-split systems
Ideal for HVAC installations and replacements
30" Wall Mount Bracket
This wall mount bracket is perfect for outdoor condensers. The length of the wall bracket arms are 30" long. The condensing unit is mounted onto the L-shaped brackets and fastened using bolts and anti-vibration washers (not included with brackets).
Features:
Steel: 10 GA
Powder-coated grey Finish
Load rating: 600 lbs per pair
Holes will accommodate anchors for installation
Warranty: 1 year
ACB line of wall brackets are approved by the Florida Building Commission and are High Velocity Hurricane Zone (HVHZ) approved. (See product certification documentation for complete details.)
No Return Policy
All sales of this product are final and are non-refundable.
Installation Kit for Condensers
Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.
What’s Included:
3/4" x 6' Electrical Whip – SKU: 84138
60A Non-Fused Disconnect – SKU: 83335
Surge Protector – SKU: ICM517
CPS Charging Adapter – SKU: 87-AD87
Telescoping Wall Sleeve – SKU: NFP-75
Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!
Cielo Breez Max Mini Split Thermostat with WiFi
Introducing Cielo Breez Max, the ultimate smart thermostat for your mini-splits, designed to elevate your comfort with intelligent climate control. Transform your air conditioner into a smart powerhouse and manage your cooling or heating from anywhere using your phone. This award-winning device, available in black and white, prevents overheating or overcooling with AI-powered Comfy Max, while seamlessly detecting any mini-split brand for hassle-free setup.
Features:
Energy Savings
WiFi Connectivity
Weekly Schedule
Geofencing
Temperature Range Lock
Real-Time Notifications
HVAC Zoning
Weekly Schedule lets you set on and off periods throughout the week based on your needs.
Geofencing uses your smartphone's location to trigger actions in your system, such as turning the air conditioner on or off based on your proximity to home.
Temperature Range Lock ensures your air conditioner operates within a set temperature range for optimal comfort and efficiency.
Real-Time Notifications keep you informed with important updates, helping you manage your air conditioner better.
HVAC Zoning allows you to create customized temperature control zones by grouping multiple mini-split units.
The Cielo Breez Max offers innovative features and extraordinary performance, making it a perfect fit for any room air conditioner. Enjoy maximum energy savings and simplified home comfort with this advanced smart thermostat.
25 feet - 1/4" and 3/8" Line Set & Control Wire
Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 25-foot refrigerant line set with 1/4" liquid line and 3/8" suction line featuring durable flared ends for secure connections, along with a matching 25-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.
The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.
What's Included
25 ft. insulated refrigerant line set
25 ft. 14/4 mini-split control wire
1/4" liquid line with flared ends
3/8" suction line with flared ends
Features
1/2" thick insulation for improved efficiency
Heavy-duty refrigerant line construction
Stranded copper wire for reliable conductivity
Flexible and durable installation materials
Compatible with most mini-split systems
Ideal for HVAC installations and replacements
25 feet - 1/4" and 1/2" Line Set & Control Wire
Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 25-foot refrigerant line set with 1/4" liquid line and 1/2" suction line featuring durable flared ends for secure connections, along with a matching 15-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.
The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.
What's Included
25 ft. insulated refrigerant line set
25 ft. 14/4 mini-split control wire
1/4" liquid line with flared ends
1/2" suction line with flared ends
Features
1/2" thick insulation for improved efficiency
Heavy-duty refrigerant line construction
Stranded copper wire for reliable conductivity
Flexible and durable installation materials
Compatible with most mini-split systems
Ideal for HVAC installations and replacements
25 feet - 3/8" and 5/8" Line Set & Control Wire
Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 25-foot refrigerant line set with 3/8" liquid line and 5/8" suction line featuring durable flared ends for secure connections, along with a matching 25-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.
The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.
What's Included
25 ft. insulated refrigerant line set
25 ft. 14/4 mini-split control wire
3/8" liquid line with flared ends
5/8" suction line with flared ends
Features
1/2" thick insulation for improved efficiency
Heavy-duty refrigerant line construction
Stranded copper wire for reliable conductivity
Flexible and durable installation materials
Compatible with most mini-split systems
Ideal for HVAC installations and replacements
Equipment Pad and Risers Kit
E Lite Condenser Pad and Risers
E Lite Condenser Pad
E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.
Key Features:
Reliable Support: Abundance of ridges for stable ground support.
Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
Simple Appearance: Gray color with size labels.
Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.
E Lite Risers
E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.
Key Features:
Weather Resistance: Made from tough PVC for long-lasting performance.
Secure Setup: The track securely holds bolts in place.
Bolts Included: Each set comes with two bolts.
Strong Support: Capable of handling loads of up to 397 pounds.
E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.
No Return Policy
All sales of this product are final and are non-refundable.
30 feet - 1/4" and 3/8" Line Set & Control Wire
Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 30-foot refrigerant line set with 1/4" liquid line and 3/8" suction line featuring durable flared ends for secure connections, along with a matching 30-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.
The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.
What's Included
30 ft. insulated refrigerant line set
30 ft. 14/4 mini-split control wire
1/4" liquid line with flared ends
3/8" suction line with flared ends
Features
1/2" thick insulation for improved efficiency
Heavy-duty refrigerant line construction
Stranded copper wire for reliable conductivity
Flexible and durable installation materials
Compatible with most mini-split systems
Ideal for HVAC installations and replacements
30 feet - 1/4" and 1/2" Line Set & Control Wire
Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 30-foot refrigerant line set with 1/4" liquid line and 1/2" suction line featuring durable flared ends for secure connections, along with a matching 30-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.
The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.
What's Included
30 ft. insulated refrigerant line set
30 ft. 14/4 mini-split control wire
1/4" liquid line with flared ends
1/2" suction line with flared ends
Features
1/2" thick insulation for improved efficiency
Heavy-duty refrigerant line construction
Stranded copper wire for reliable conductivity
Flexible and durable installation materials
Compatible with most mini-split systems
Ideal for HVAC installations and replacements
30 feet - 3/8" and 5/8" Line Set & Control Wire
Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 30-foot refrigerant line set with 3/8" liquid line and 5/8" suction line featuring durable flared ends for secure connections, along with a matching 30-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.
The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.
What's Included
30 ft. insulated refrigerant line set
30 ft. 14/4 mini-split control wire
3/8" liquid line with flared ends
5/8" suction line with flared ends
Features
1/2" thick insulation for improved efficiency
Heavy-duty refrigerant line construction
Stranded copper wire for reliable conductivity
Flexible and durable installation materials
Compatible with most mini-split systems
Ideal for HVAC installations and replacements
35 feet - 1/4" and 3/8" Line Set & Control Wire
Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 35-foot refrigerant line set with 1/4" liquid line and 3/8" suction line featuring durable flared ends for secure connections, along with a matching 35-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.
The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.
What's Included
35 ft. insulated refrigerant line set
35 ft. 14/4 mini-split control wire
1/4" liquid line with flared ends
3/8" suction line with flared ends
Features
1/2" thick insulation for improved efficiency
Heavy-duty refrigerant line construction
Stranded copper wire for reliable conductivity
Flexible and durable installation materials
Compatible with most mini-split systems
Ideal for HVAC installations and replacements
35 feet - 1/4" and 1/2" Line Set & Control Wire
Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 35-foot refrigerant line set with 1/4" liquid line and 1/2" suction line featuring durable flared ends for secure connections, along with a matching 35-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.
The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.
What's Included
35 ft. insulated refrigerant line set
35 ft. 14/4 mini-split control wire
1/4" liquid line with flared ends
1/2" suction line with flared ends
Features
1/2" thick insulation for improved efficiency
Heavy-duty refrigerant line construction
Stranded copper wire for reliable conductivity
Flexible and durable installation materials
Compatible with most mini-split systems
Ideal for HVAC installations and replacements
35 feet - 3/8" and 5/8" Line Set & Control Wire
Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 35-foot refrigerant line set with 3/8" liquid line and 5/8" suction line featuring durable flared ends for secure connections, along with a matching 35-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.
The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.
What's Included
35 ft. insulated refrigerant line set
35 ft. 14/4 mini-split control wire
3/8" liquid line with flared ends
5/8" suction line with flared ends
Features
1/2" thick insulation for improved efficiency
Heavy-duty refrigerant line construction
Stranded copper wire for reliable conductivity
Flexible and durable installation materials
Compatible with most mini-split systems
Ideal for HVAC installations and replacements
50 feet - 1/4" and 3/8" Line Set & Control Wire
Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 50-foot refrigerant line set with 1/4" liquid line and 3/8" suction line featuring durable flared ends for secure connections, along with a matching 50-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.
The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.
What's Included
50 ft. insulated refrigerant line set
50 ft. 14/4 mini-split control wire
1/4" liquid line with flared ends
3/8" suction line with flared ends
Features
1/2" thick insulation for improved efficiency
Heavy-duty refrigerant line construction
Stranded copper wire for reliable conductivity
Flexible and durable installation materials
Compatible with most mini-split systems
Ideal for HVAC installations and replacements
50 feet - 1/4" and 1/2" Line Set & Control Wire
Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 50-foot refrigerant line set with 1/4" liquid line and 1/2" suction line featuring durable flared ends for secure connections, along with a matching 50-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.
The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.
What's Included
50 ft. insulated refrigerant line set
50 ft. 14/4 mini-split control wire
1/4" liquid line with flared ends
1/2" suction line with flared ends
Features
1/2" thick insulation for improved efficiency
Heavy-duty refrigerant line construction
Stranded copper wire for reliable conductivity
Flexible and durable installation materials
Compatible with most mini-split systems
Ideal for HVAC installations and replacements
50 feet - 3/8" and 5/8" Line Set & Control Wire
Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 50-foot refrigerant line set with 3/8" liquid line and 5/8" suction line featuring durable flared ends for secure connections, along with a matching 50-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.
The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
9,000 BTU ACiQ Platinum Single Zone Floor Mount Mini Split Air Handler - R454B | 230V
Feature
Spec
SKU
ACIQ-09FM-HH-MD
Weight (in lbs)
41.89
Brand/Manufacturer
ACiQ
UPC
810175551265
Controller
Wireless Included
Cooling BTU
9,000 BTU
Heating BTU
9,000 BTU
Maximum CFM
441.4 Turbo / 376.7 Hi / 323.7 Med / 188.4 Lo (Airflow)
Decibel Level (dBA)
22 - 45 dBA
Refrigerant
R454B
Liquid Line
1/4"
Suction Line
3/8"
Electrical
208/230V | 1 Phase | 60 Hz
BTU/Tonnage
9,000 BTU/0.75 Ton
Mini Split Type
Floor Mounted
Zone Compatibility
Multi Zone, Single Zone
Height
24.45"
Width
31.26"
Depth
7.87"
Warranty
12 Year Compressor / 7 Year Parts Warranty with Online Registration
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
9,000 BTU ACiQ Platinum Single Zone Floor Mount Mini Split Air Handler - R454B | 230V
Feature
Spec
SKU
ACIQ-09FM-HH-MD
Weight (in lbs)
41.89
Brand/Manufacturer
ACiQ
UPC
810175551265
Controller
Wireless Included
Cooling BTU
9,000 BTU
Heating BTU
9,000 BTU
Maximum CFM
441.4 Turbo / 376.7 Hi / 323.7 Med / 188.4 Lo (Airflow)
Decibel Level (dBA)
22 - 45 dBA
Refrigerant
R454B
Liquid Line
1/4"
Suction Line
3/8"
Electrical
208/230V | 1 Phase | 60 Hz
BTU/Tonnage
9,000 BTU/0.75 Ton
Mini Split Type
Floor Mounted
Zone Compatibility
Multi Zone, Single Zone
Height
24.45"
Width
31.26"
Depth
7.87"
Warranty
12 Year Compressor / 7 Year Parts Warranty with Online Registration
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
18,000 BTU ACiQ Platinum Single Zone Floor Mount Mini Split Air Handler - R454B | 230V
Feature
Spec
SKU
ACIQ-18FM-HH-MD
Weight (in lbs)
70.55
Brand/Manufacturer
ACiQ
UPC
810175551289
Controller
Wireless Included
Cooling BTU
17,000 BTU
Heating BTU
19,000 BTU
Maximum CFM
576.8 Turbo / 547.4 Hi / 485.6 Med / 420.8 Lo (Airflow)
Decibel Level (dBA)
29 - 45 dBA
Refrigerant
R454B
Liquid Line
1/4"
Suction Line
1/2"
Electrical
208/230V | 1 Phase | 60 Hz
BTU/Tonnage
18,000 BTU/1.5 Ton
Mini Split Type
Floor Mounted
Zone Compatibility
Multi Zone, Single Zone
Height
26.57"
Width
42.05"
Depth
9.25"
Warranty
12 Year Compressor / 7 Year Parts Warranty with Online Registration
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
24,000 BTU ACiQ Platinum Single Zone Floor Mount Mini Split Air Handler - R454B | 230V
Feature
Spec
SKU
ACIQ-24FM-HH-MD
Weight (in lbs)
73.19
Brand/Manufacturer
ACiQ
UPC
810175551296
Controller
Wireless Included
Cooling BTU
22,000 BTU
Heating BTU
26,000 BTU
Maximum CFM
735.8 Turbo / 706.3 Hi / 606.3 Med / 453.2 Lo (Airflow)
Decibel Level (dBA)
29 - 51.5 dBA
Refrigerant
R454B
Liquid Line
3/8"
Suction Line
5/8"
Electrical
208/230V | 1 Phase | 60 Hz
BTU/Tonnage
24,000 BTU/2 Ton
Mini Split Type
Floor Mounted
Zone Compatibility
Multi Zone, Single Zone
Height
26.57"
Width
42.05"
Depth
9.25"
Warranty
12 Year Compressor / 7 Year Parts Warranty with Online Registration
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
55,000 BTU ACiQ Standard Multi-Zone Mini Split Heat Pump Condenser - R454B | 230V
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 1/4" and 1/2" Line Ends & Control Wire - 15 feet
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 1/4" and 1/2" Line Ends & Control Wire - 25 feet
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 1/4" and 1/2" Line Ends & Control Wire - 30 feet
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 1/4" and 1/2" Line Ends & Control Wire - 35 feet
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 1/4" and 1/2" Line Ends & Control Wire - 50 feet
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 3/8" and 5/8" Line Ends & Control Wire - 15 feet
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 3/8" and 5/8" Line Ends & Control Wire - 25 feet
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 3/8" and 5/8" Line Ends & Control Wire - 30 feet
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 3/8" and 5/8" Line Ends & Control Wire - 35 feet
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 3/8" and 5/8" Line Ends & Control Wire - 50 feet
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
E Lite Equipment Pad and Risers Kit 18" x 38" x 3"
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 1/4" and 3/8" Line Ends & Control Wire - 50 feet
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 1/4" and 3/8" Line Ends & Control Wire - 35 feet
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 1/4" and 3/8" Line Ends & Control Wire - 30 feet
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 1/4" and 3/8" Line Ends & Control Wire - 25 feet
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 1/4" and 3/8" Line Ends & Control Wire - 15 feet
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 1/4" and 3/8" Line Ends & Control Wire - 50 feet
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 1/4" and 3/8" Line Ends & Control Wire - 35 feet
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 1/4" and 3/8" Line Ends & Control Wire - 30 feet
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 1/4" and 3/8" Line Ends & Control Wire - 25 feet
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 1/4" and 3/8" Line Ends & Control Wire - 15 feet
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 1/4" and 3/8" Line Ends & Control Wire - 50 feet
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 1/4" and 3/8" Line Ends & Control Wire - 35 feet
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 1/4" and 3/8" Line Ends & Control Wire - 30 feet
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 1/4" and 3/8" Line Ends & Control Wire - 25 feet
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 1/4" and 3/8" Line Ends & Control Wire - 15 feet
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
We are in a northern climate, we utilize the heat pumps for some heat and mostly summer dehumidification. I did 80% of the install myself and was finished by a HVAC contractor who filled the gas. Between price and my work the install was very economical. I now have three compressors and 5 heads in my house and no issues.
Review byDavid
Posted on
When the customer is happy, I'm happy
Quality
100%
Service
80%
Price
100%
I love the ACIQ brand, it's becoming our exclusive installs. Haven't had a problem yet except for a stuck pressure sensor on this model that took a minute to diagnose on a new unit. But once we got it running and had heat the customer was thrilled and called 3 days later to say it was working great! That's all I need.
Review byMichael
Posted on
Great Mini split
Quality
100%
Service
100%
Price
100%
As far as mini splits go I love the ACiQ mini splits the option for indoor units is great. we have installed several of the slim cassettes they are great for in homes fitting in between 16" joists. the technology on these units is great with the features they offer, heating, cooling, humidify, dehumidify and the filter lowers to be cleaned instead of having to get on a ladder. comes with a remote and Wi-Fi to control on your mobile device. the units are very quiet as well are customers love them. the units are a very good price as well the only other company i know who makes these are Mitsubishi with their units costing a considerable amount more.
Review byS&M Heating & Cooling
Posted on
Best source for HVAC equipment
Quality
100%
Service
100%
Price
100%
Just added two 48K ACiQ split systems to heat my 6,000 sq.ft. warehouse. The folks at HVACDirect were excellent in helping me select the right equipment and took the time to understand what I wanted to accomplish. Pricing was great, and the shipment was prompt. Could have used a stronger pallet to ship the two units; by the time they arrived, the pallet was destroyed, but the units arrived in perfect condition nonetheless. HVACDirect was great to work with, and I would highly recommend them to anyone looking to buy equipment for their home or business.
Review byBradley Schneider
Posted on
Awesome
Quality
100%
Service
80%
Price
100%
Everyting was well packaged and not damaged. so looking here at what was ordered it shows I ordered the mini condensate pump but it wasn't there. The installer who is a mii split said aomthing about it not being there I went to the local hardward store and pruchased one. guess I should have contacted the company to get my money back on what I didn't get.
Review bySBS
Posted on
3rd & 4th Aciq System Purchased
Quality
100%
Service
100%
Price
100%
Just finished installing the word Aciq system. Customer is thrilled with the performance! Next is the 4th system install at my own home. 2 12K heads for basement & 1 24K head for garage.
Review byDave
Posted on
Amazing service and warranty
Quality
100%
Service
100%
Price
100%
We ordered a mini split and had an issue with one of the units. I requested an exchange once diagnosed from a local AC professional. HVAC Direct made it easy and sent a replacement. I was extremely impressed with their responsiveness and willingness to help expedite the replacement. Thank you so much!
Review byRick
Posted on
Exceptional product!
Quality
100%
Service
100%
Price
100%
This unit, these units, are excellent. They even feel solid and well built. The app is well thought out the controls are extensive, the wall units work well for cool and heat!
The base unit seems to be working smoothly and without issue.
The app could use a little more clarity around adding devices… once I figured it out for mine the rest were easy!
