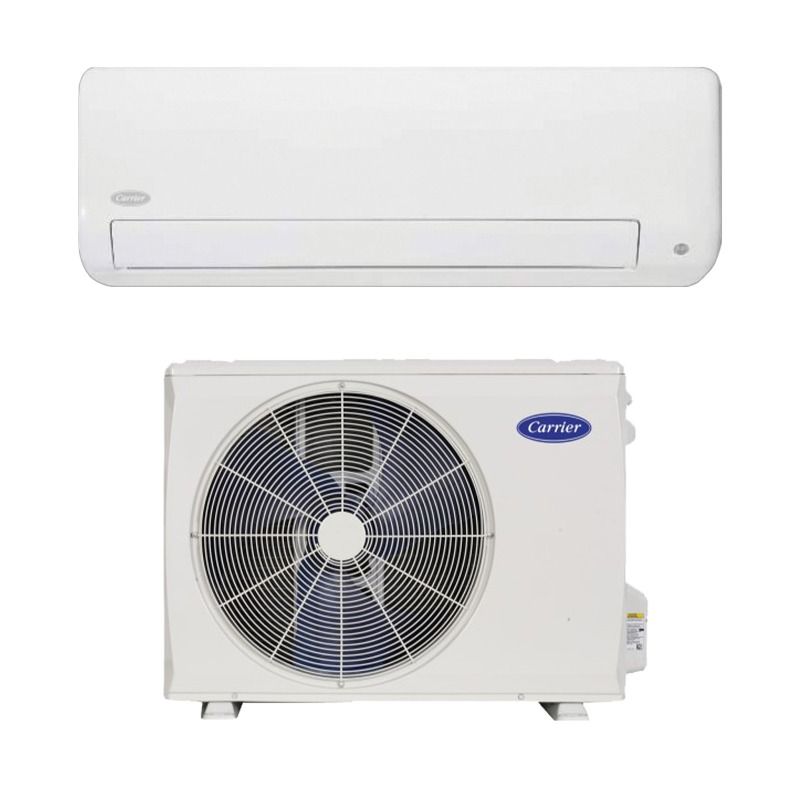

9,000 BTU Carrier Infinity 33.5 SEER2 Single Zone Wall Mount Mini Split Heat Pump System – R454B | 230V

Required Fields *

Be the first to review this product

Ships in 2-3 Business Days

Free Shipping

Carrier

In stock

Model

37MPRAQ09AA3 / 45MPHAQ09XA3

213408

Was $4,050.00

Your Low Price $3,599.99

Product Features

Sized At 9,000 BTU For 400 Sq Ft
Advanced Comfort With 33.5 SEER2 Efficiency
Wireless Remote Included
Cold Climate Heating Down To -22°F
Quiet Indoor Comfort
10-Year Parts Warranty

Customize 9,000 BTU Carrier Infinity 33.5 SEER2 Single Zone Wall Mount Mini Split Heat Pump System – R454B | 230V

See what is Included

9,000 BTU Carrier Single Zone Condenser - R454B

Heat Pump Condenser

Quantity

9,000 BTU Carrier Single Zone Condenser - R454B

9,000 BTU Carrier Single Zone Condenser - R454B + $2,599.99

9,000 BTU Carrier Infinity Single Zone Mini Split Air Handler - R454B

Zone 1

Quantity

9,000 BTU Carrier Infinity Single Zone Mini Split Air Handler - R454B

9,000 BTU Carrier Infinity Single Zone Mini Split Air Handler - R454B + $1,000.00

Choose Your Accessories

Line Set + Control Wire

Quantity

17" Wall Mount Bracket for Mini Split Systems

Mounting Options

Quantity

Install Kit w/ Surge Protector

Quantity

Wi-Fi Add On

Quantity

Qty

$3,599.99

5 Questions Answered

Description

A simple solution for custom comfort, delivering heating and cooling to create the ideal environment for your space.

Designed for spaces up to approximately 400 sq. ft., this ductless mini-split system provides comfortable heating and cooling for bedrooms, home offices, guest rooms, and other living spaces. With quiet operation, multiple comfort modes, and convenient temperature control, it offers dependable year-round comfort without the need for traditional ductwork.

Key Benefits

Quiet Performance – Enjoy quiet indoor operation for a more peaceful and comfortable space.
Flexible Comfort Modes – Choose Cool, Heat, Dry, Fan, or Auto mode to match your comfort needs.
Inverter Technology – Variable-speed performance helps deliver consistent comfort while adjusting to changing conditions.

High Efficiency Comfort

With up to 33.5 SEER2 efficiency and variable-speed inverter technology, this system adjusts operation to help deliver consistent comfort while supporting energy-conscious performance.

Wide Temperature Operating Range

Designed to operate in cooling from -22°F to 122°F and heating from -22°F to 75°F, this system helps provide dependable comfort across a broad range of outdoor conditions.

Modern R454B Refrigerant Design

The system uses R454B refrigerant as part of its modern heat pump design, providing an updated refrigerant platform for efficient year-round heating and cooling.

What's Included

9,000 BTU Outdoor Condenser (37MPRAQ09AA3)
9,000 BTU Wall Mount Air Handler (45MPHAQ09XA3)
Wireless Remote Control
Installation Manual, Owner's Guide, and Supporting Documentation

Recommended Accessories

Line Set + Control Wire:

15FT - 201813 / CW-144-15
25FT - 366390 / CW-144-25
30FT - 216740 / CW-144-30
35FT - 366395 / CW-144-35
50FT - 366396 / CW-144-50

Mounting Options:

17" Wall Mount Bracket for Outdoor Condensers (HW-600)
18" x 38" x 3" Concrete Equipment Pad with Risers Kit (87762 / EL1838-3)

Cielo Breez Max Mini Split Thermostat with WiFi (BM101WA)
Install Kit with Surge Protector (MSK001)

Warranty

This system includes a 10-year parts limited warranty when registered within 90 days of purchase.

Installation Kit for Condensers

Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.

What’s Included:

3/4" x 6' Electrical Whip – SKU: 84138
60A Non-Fused Disconnect – SKU: 83335
Surge Protector – SKU: ICM517
CPS Charging Adapter – SKU: 87-AD87
Telescoping Wall Sleeve – SKU: NFP-75

Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!

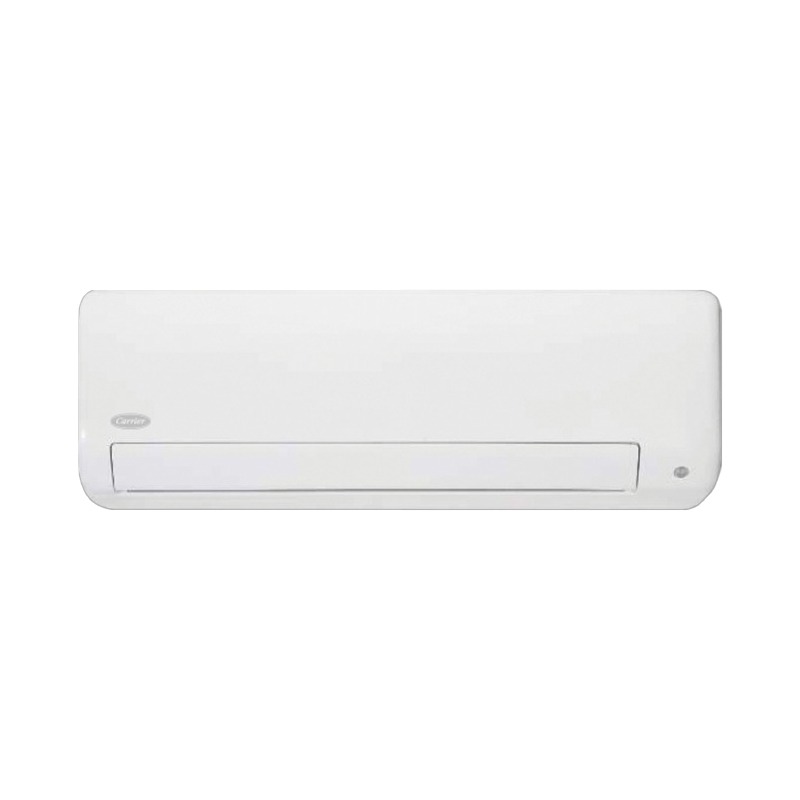

9,000 BTU Carrier Infinity Single Zone Mini Split Air Handler - R454B

Reliable Airflow for Consistent Heating and Cooling with a Dependable System Designed to Maintain Comfortable Indoor Temperatures Throughout Every Season.

This Carrier indoor air handler delivers efficient heating and cooling without traditional ductwork to spaces up to 400 sq. ft. Pair it with a compatible outdoor unit to create a complete mini split system and enjoy comfortable temperatures in the spaces where you need them most..

Key Benefits

Smooth, low-noise performance – Operates at just 19 dB for quiet indoor comfort.
Comfort that fits your home – Wall-mounted design saves space while delivering comfortable airflow.
Simple control with included remote – Easily adjust settings with the included wireless remote control.
Add Wi-Fi Control – Pair with a compatible Wi-Fi adapter to control your comfort remotely from your smartphone.

Warranty

This system includes a 10-year parts limited warranty when registered within 90 days of purchase.

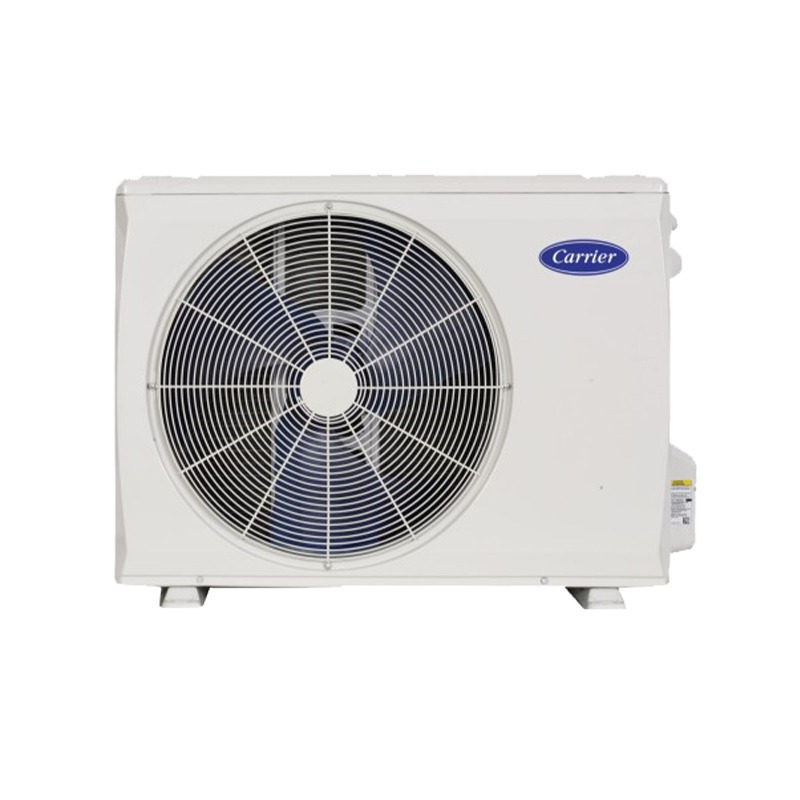

9,000 BTU Carrier Single Zone Condenser - R454B

Enjoy smarter year-round comfort with efficient performance designed to help maintain a comfortable home while making everyday heating and cooling more convenient.

Designed for spaces up to 400 sq. ft., this mini split heat pump provides comfortable heating and cooling without traditional ductwork. Ideal for bedrooms, home offices, and other smaller living areas, it delivers efficient year-round comfort. Pair with a compatible Carrier indoor air handler to create a complete system.

Key Benefits

Energy-efficient SEER2 performance – A 33.5 SEER2 rating delivers highly efficient cooling while helping reduce energy usage.
Sustainable R454B refrigerant platform – R454B refrigerant supports efficient operation with a lower-GWP refrigerant solution.
Reliable heating and cooling in extreme climates – Performs across temperatures ranging from -22°F to 122°F for year-round comfort.
Adaptive speed compressor technology – Carrier ductless systems continually adjust the compressor speed as conditions change—for consistent comfort with lower energy usage.

Warranty

This system includes a 10-year parts limited warranty when registered within 90 days of purchase.

15 feet - 1/4" and 3/8" Line Set & Control Wire

Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 15-foot refrigerant line set with 1/4" liquid line and 3/8" suction line featuring durable flared ends for secure connections, along with a matching 15-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.

The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.

What's Included

15 ft. insulated refrigerant line set
15 ft. 14/4 mini-split control wire
1/4" liquid line with flared ends
3/8" suction line with flared ends

Features

1/2" thick insulation for improved efficiency
Heavy-duty refrigerant line construction
Stranded copper wire for reliable conductivity
Flexible and durable installation materials
Compatible with most mini-split systems
Ideal for HVAC installations and replacements

Carrier Wi-Fi Interface Kit

Carrier KSAIF0701AAA Wi-Fi Interface Kit

Designed for Carrier and compatible ductless HVAC systems, including Comfortmaker, Midea, and Tempstar, the KSAIF0701AAA enables remote control of your system via Wi-Fi with an easy-to-use interface. Features include:

Wi-Fi connectivity for remote control using Carrier CliMate app
Plug-and-play installation with indoor unit control board
Supports highwall, cassette, and console units
Over-the-air firmware updates
Secure and reliable wireless communication

Dimensions: 3.9 in. x 2.3 in. x 1.1 in. (99 x 58 x 28 mm)

Compatible with various Carrier ductless HVAC systems. Ideal for residential and light commercial applications.

25 feet - 1/4" and 3/8" Line Set & Control Wire

Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 25-foot refrigerant line set with 1/4" liquid line and 3/8" suction line featuring durable flared ends for secure connections, along with a matching 25-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.

What's Included

25 ft. insulated refrigerant line set
25 ft. 14/4 mini-split control wire
1/4" liquid line with flared ends
3/8" suction line with flared ends

Features

1/2" thick insulation for improved efficiency
Heavy-duty refrigerant line construction
Stranded copper wire for reliable conductivity
Flexible and durable installation materials
Compatible with most mini-split systems
Ideal for HVAC installations and replacements

30 feet - 1/4" and 3/8" Line Set & Control Wire

Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 30-foot refrigerant line set with 1/4" liquid line and 3/8" suction line featuring durable flared ends for secure connections, along with a matching 30-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.

What's Included

30 ft. insulated refrigerant line set
30 ft. 14/4 mini-split control wire
1/4" liquid line with flared ends
3/8" suction line with flared ends

Features

1/2" thick insulation for improved efficiency
Heavy-duty refrigerant line construction
Stranded copper wire for reliable conductivity
Flexible and durable installation materials
Compatible with most mini-split systems
Ideal for HVAC installations and replacements

35 feet - 1/4" and 3/8" Line Set & Control Wire

Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 35-foot refrigerant line set with 1/4" liquid line and 3/8" suction line featuring durable flared ends for secure connections, along with a matching 35-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.

What's Included

35 ft. insulated refrigerant line set
35 ft. 14/4 mini-split control wire
1/4" liquid line with flared ends
3/8" suction line with flared ends

Features

1/2" thick insulation for improved efficiency
Heavy-duty refrigerant line construction
Stranded copper wire for reliable conductivity
Flexible and durable installation materials
Compatible with most mini-split systems
Ideal for HVAC installations and replacements

17" Wall Mount Bracket for Mini Split Systems

This wall mount bracket is perfect for outdoor mini split condensers. The length of the the wall bracket arms are 17” long. The condensing unit is mounted onto the L-shaped brackets and fastened using the bolts and anti-vibration washers provided.

Features:

17” Arm Length
Weight capacity of 220 lbs per arm
Bolts and anti-vibration washers included

No Return Policy

All sales of this product are final and are non-refundable.

50 feet - 1/4" and 3/8" Line Set & Control Wire

Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 50-foot refrigerant line set with 1/4" liquid line and 3/8" suction line featuring durable flared ends for secure connections, along with a matching 50-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.

What's Included

50 ft. insulated refrigerant line set
50 ft. 14/4 mini-split control wire
1/4" liquid line with flared ends
3/8" suction line with flared ends

Features

1/2" thick insulation for improved efficiency
Heavy-duty refrigerant line construction
Stranded copper wire for reliable conductivity
Flexible and durable installation materials
Compatible with most mini-split systems
Ideal for HVAC installations and replacements

Equipment Pad and Risers Kit

E Lite Condenser Pad and Risers

E Lite Condenser Pad

E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.

Key Features:

Reliable Support: Abundance of ridges for stable ground support.
Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
Simple Appearance: Gray color with size labels.
Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.

E Lite Risers

E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.

Key Features:

Weather Resistance: Made from tough PVC for long-lasting performance.
Secure Setup: The track securely holds bolts in place.
Bolts Included: Each set comes with two bolts.
Strong Support: Capable of handling loads of up to 397 pounds.

E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.

No Return Policy

All sales of this product are final and are non-refundable.

Product Specs

More Information
9,000 BTU Carrier Infinity Single Zone or Multi Zone Wall Mount Mini Split Air Handler - R454B \| 230V
Feature	Spec
SKU	45MPHAQ09XA3
Weight (in lbs)	28.22
Brand/Manufacturer	Carrier
UPC	605468097205
Cooling BTU	9,000 BTU
Heating BTU	12,000 BTU
Maximum CFM	153 - 559.2
Decibel Level (dBA)	19 - 41.5
Refrigerant	R454B
HSPF2	22
SEER2 (Efficiency)	33.5
EER2	17
Liquid Line	1/4in
Suction Line	3/8in
Electrical	208-230V \| 60 HZ \| 1 Phase
BTU/Tonnage	9,000 BTU/0.75 Ton
Mini Split Type	Wall Mounted
Height	12.56"
Width	37.99"
Depth	9.41"
Warranty	Residential Warranty: 10 Year Limited on Parts with Online Registration
Resources	Submittal Product Data Owner's Manual Installation Manual Warranty You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
9,000 BTU Carrier Infinity Single Zone Mini Split Heat Pump Condenser - R454B \| 230V
Feature	Spec
SKU	37MPRAQ09AA3
Weight (in lbs)	99.65
AHRI Certificate Number	215413142
Brand/Manufacturer	Carrier
UPC	605468456088
Cooling BTU	9,000 BTU
Heating BTU	12,000 BTU
Maximum CFM	1472.3
Decibel Level (dBA)	57
Refrigerant	R454B
HSPF2	22
SEER2 (Efficiency)	33.5
EER2	17
Liquid Line	1/4"
Suction Line	3/8"
Electrical	208-230V \| 60 HZ \| 1 Phase
Max Breaker Size	20A
BTU/Tonnage	9,000 BTU/0.75 Ton
Zone Compatibility	Single Zone
Height	26.5"
Width	35.04"
Depth	13.46"
Warranty	Residential Warranty: 10 Year Limited on Parts with Online Registration
Resources	Brochure Submittal Warranty You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
E Lite Equipment Pad and Risers Kit 18" x 38" x 3"
Feature	Spec
SKU	87762 / EL1838-3
Weight	25
Manufacturer	Online Supply
UPC	na
Height	3"
Width	18"
Depth	38"
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Installation Kit for Condensers - Accessory Set
Feature	Spec
SKU	MSK001
Weight	15
Manufacturer	Online Supply
UPC	na
Resources	Surge Protector Install Guide You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
17" Wall Mount Bracket for Mini Split Systems
Feature	Spec
SKU	HW-600
Weight	9.2
Manufacturer	Online Supply
Length	17"
Height	20"
Width	6"
Resources	HW-600 Install Guide You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 1/4" and 3/8" Line Ends & Control Wire - 15 feet
Feature	Spec
SKU	201813 / CW-144-15
Weight (in lbs)	15
Brand/Manufacturer	Online Supply
UPC	na
Liquid Line	1/4"
Suction Line	3/8"
Length	15'
Height	1/2"
Width	1/2"
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 1/4" and 3/8" Line Ends & Control Wire - 25 feet
Feature	Spec
SKU	366390 / CW-144-25
Weight	25
Manufacturer	Online Supply
UPC	na
Length	25'
Height	1/2"
Width	1/2"
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 1/4" and 3/8" Line Ends & Control Wire - 30 feet
Feature	Spec
SKU	216740 / CW-144-30
Weight	30
Manufacturer	Online Supply
UPC	na
Length	30'
Height	1/2"
Width	1/2"
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 1/4" and 3/8" Line Ends & Control Wire - 35 feet
Feature	Spec
SKU	366395 / CW-144-35
Weight	35
Manufacturer	Online Supply
UPC	na
Length	35'
Height	1/2"
Width	1/2"
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 1/4" and 3/8" Line Ends & Control Wire - 50 feet
Feature	Spec
SKU	366396 / CW-144-50
Weight	45
Manufacturer	Online Supply
UPC	na
Length	50'
Height	1/2"
Width	1/2"
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Carrier Wi-Fi Interface Kit
Feature	Spec
SKU	KSAIF0701AAA
Weight (in lbs)	1
Brand/Manufacturer	Carrier
Refrigerant	R454B

Reviews

Accessories

FAQ's

Customer Questions

What happens if it arrives damaged?

If you are present during drop-off and you see obvious signs of damage or rough handling in transit - please ask the driver to wait while you inspect the equipment. If it is damaged badly enough that you believe it can not function, you have the right to refuse the damaged portion of the shipment. If you discover the damage after the driver has left, take photos of the damage and send them to customerservice@hvacdirect.com. Please refer to your order number in the email. This starts the process and one of our representatives will be in touch with you promptly.

How can I find an installer?

It’s easier than you think – the key is to find an independent contractor or small company as opposed to a larger HVAC service. A one or two person outfit will do the work more quickly and cheaply than a bigger company, too. Yelp.com, Thumbtack.com, and Porch.com are websites are designed to help you connect with a professional in your area. You could also place a call to the last professional who did work on your home and see if they have any recommendations.

Who makes Carrier mini splits?

Carrier mini splits come from one of the most recognized names in HVAC, offering reliable, energy-efficient solutions for year-round comfort.

Can I install a Carrier mini split myself, or do I need a professional?

Carrier mini splits require professional installation. A licensed HVAC contractor ensures proper sizing, refrigerant handling, and warranty protection.

What kind of warranty comes with a Carrier mini split?

Most Carrier mini splits include a 10-year limited parts warranty when registered, giving you long-term peace of mind. Warranty terms may vary by model and installer.

Helpful Articles

Why Choose Carrier?

Carrier heating and cooling systems are built on a legacy of innovation, delivering dependable comfort, energy efficiency, and advanced climate control. Engineered for performance and durability, Carrier solutions provide year-round temperature precision and enhanced indoor air quality for any home or business.
