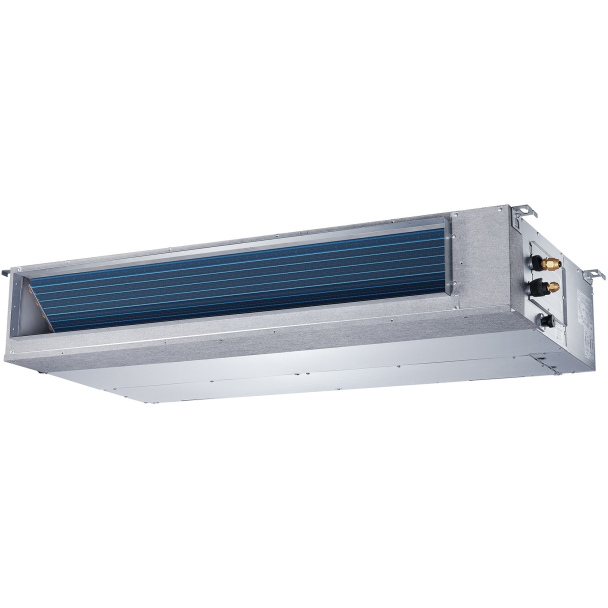

9,000 BTU ACiQ Platinum Single Zone Concealed Duct Mini Split Air Handler - R454B | 230V

9,000 BTU Concealed Duct Carrier Mini-Split Air Handler
9,000 BTU ACiQ Platinum Single Zone Concealed Duct Mini Split Air Handler - R454B | 230V
SAVE $78.00
By

ACiQ

In stock
Model

ACIQ-09CD-HH-MC

ID

198476

Be the first to review this product
In Stock - 56 Ready to Ship
Was $858.00 Your Low Price Special Price $780.00

  • Ductless Heating & Cooling Solution
  • Perfect for a Room/Zone 250-400 sq ft
  • Single or Multi-Zone Compatible Air Handler with Remote
  • Concealed Duct Sleek Design
  • Wi-Fi and Smartphone Capabilities
  • 12-Year Compressor & 7-Year Parts with Online Warranty Registration

Concealed Duct air handlers give you all the advantages of a multi zone mini split, without any visible air handlers on your walls or ceilings. These flexible units are designed to be concealed above the ceiling, below the floor, above a closet ceiling, above a hallway ceiling or behind a soffit. You run flex ducting from the concealed duct air handler to ceiling or wall registers in your desired location. Depending on the capacity of the unit, up to 4 flex duct runs can be connected, perfect for a pair of small bedrooms or a master suite.

The design is extremely simple return air is brought in at the rear of the unit and supply (cooled or heated) air is pushed out the front by an almost-silent squirrel cage fan. You attach a pre-made manifold takeoff or field-fabricate plenums using ductboard. Using readily available supplies, the customization possibilities are endless.

Installation Considerations

Concealed duct system installations require a certain amount of pre-planning, and are similar in scope to a standard home HVAC installation. They are best used in new construction projects or additions. Installation will require flex ducting, register vents, plenums and installation supplies in addition to the equipment components. The Concealed Duct units have a factory-installed pump to lift the condensation. From there you will use PVC to construct a drain system to a safe wastewater location.

FEATURES

  • 9,000 btu of Heating or Cooling
  • Dry and Fan modes also available
  • Good for a smaller room in most climates
  • Wall mounted thermostat included
ACIQ Concealed DuctACIQ Concealed Duct

Concealed Duct

Concealed Duct air handlers give you all the advantages of a multi zone mini split, without any visible air handlers on your walls or ceilings.  These flexible units are designed to be concealed above the ceiling, below the floor, above a closet ceiling, above a hallway ceiling or behind a soffit.  Air distribution is achieved by using flex ducting from the concealed duct air handler to ceiling or wall registers in your desired location.  Using readily available supplies such as ductboard, duct takeoffs and flex ducting, you can create a flexible, economical solution for a wide variety of applications.



ACIQ Quiet Comfort Concealed DuctACIQ Quiet Comfort Concealed Duct

Quiet Comfort

Every ACiQ system is precision engineered to quickly achieve set temperature and hold it there, no matter what the weather is outside. With whisper quiet indoor and outdoor units, ACiQ never intrudes on your peace and quiet.

More Information
9,000 BTU ACiQ Platinum Single Zone Concealed Duct Mini Split Air Handler - R454B | 230V
SKUACIQ-09CD-HH-MC
Weight (in lbs)73.850000
Brand/ManufacturerACiQ
Cooling BTU9,000 BTU
Heating BTU9,000 BTU
Maximum CFMUp to 344.30 CFM
Decibel Level (dBA)As low as 26.0 Decibels
Electric HeatHeat Pump
RefrigerantR454B
Liquid Line1/4"
Suction Line3/8"
Electrical208/230V, 1 Phase, 60Hz
PhaseSingle Phase
BTU/Tonnage9,000 BTU/0.75 Ton
Mini Split TypeConcealed Duct
Zone CompatibilityMulti Zone, Single Zone
Height9.65"
Width27.56"
Depth29.53"
Warranty12 year compressor, 7 year parts with online registration
