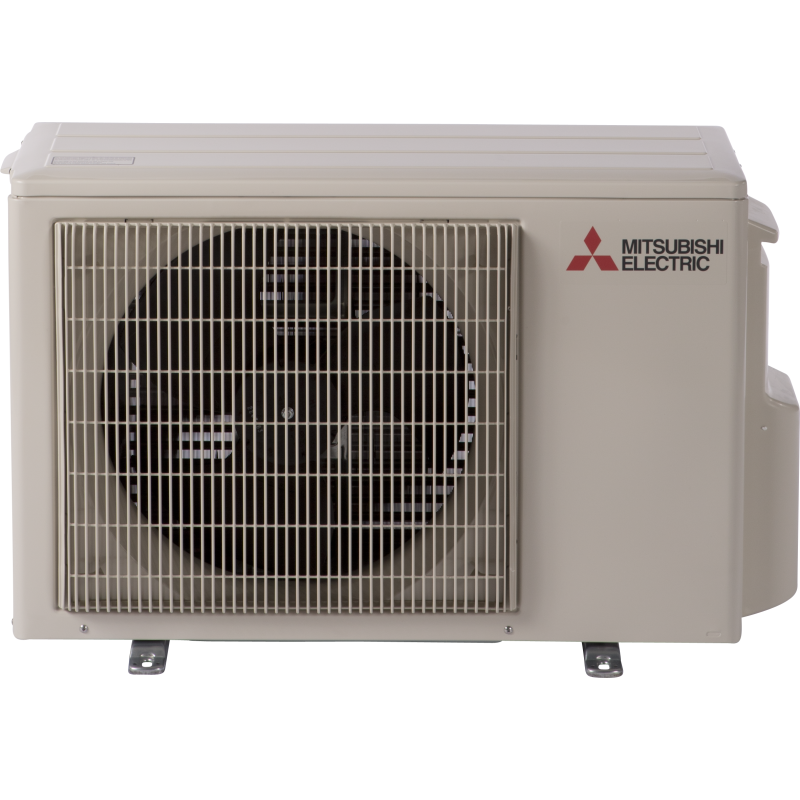

Mitsubishi 9,000 BTU R410A JP-Series Single Zone Mini Split Heat Pump Condenser | 115V

Mitsubishi 9,000 BTU R410A JP-Series Single Zone Mini Split Heat Pump Condenser | 115V
By

Mitsubishi

Out of stock
Model

MUZ-JP09WA

ID

210827

Mitsubishi 9,000 BTU R410A JP-Series Single Zone Mini Split Heat Pump Condenser | 115V

Designed for small spaces, this 9,000 BTU R410A Mitsubishi condenser delivers quiet, efficient heating and cooling for rooms up to 400 sq ft.

Key Features

  • 9,000 BTU capacity ideal for small single-zone applications like bedrooms or offices.
  • 115V operation for easy installation in residential spaces with standard voltage.
  • R410A refrigerant for eco-friendly and energy-efficient performance.
  • Inverter-driven compressor for precise temperature control and reduced energy consumption.
  • Quiet operation ensures minimal disturbance, ideal for peaceful environments.
  • Compatible with Mitsubishi JP-Series indoor air handlers for seamless integration.

Feature Highlights

Compact and Efficient

This 9,000 BTU condenser is perfect for small spaces, providing efficient cooling and heating while saving on energy costs. The 115V power supply makes it compatible with standard home outlets, ensuring easy installation.

R410A Refrigerant for Green Performance

The use of R410A refrigerant allows this unit to provide effective climate control while remaining environmentally friendly. It helps reduce energy costs while offering superior cooling and heating efficiency.

Quiet and Comfortable Operation

Designed for quiet operation, this unit ensures that your home or office remains comfortable without disruptive noise. It’s ideal for environments where peace and quiet are essential, such as bedrooms or small offices.

What’s Included

  • 1 × 9,000 BTU JP-Series Single Zone Mini Split Heat Pump Condenser
  • Pre-charged with R410A refrigerant for quick and easy installation

Recommended Accessories

  • Mitsubishi JP-Series Indoor Air Handler (sold separately)
  • Pre-charged Line Set for R410A connection
  • Wall Mount Bracket or Condenser Pad for secure installation
  • Surge Protector for protection of system electronics

Warranty

Mitsubishi offers a comprehensive manufacturer warranty for the JP-Series Mini Split Heat Pump Condenser. Warranty details are provided with product registration and adhere to the manufacturer’s guidelines.

More Information
Mitsubishi 9,000 BTU R410A JP-Series Single Zone Mini Split Heat Pump Condenser | 115V
FeatureSpec
SKUMUZ-JP09WA
Refrigerant ChargePre-Charged for: 25'
Weight (in lbs)95
AHRI Certificate Number202397881
Brand/ManufacturerMitsubishi
ControllerWireless Included
Additional InformationDrain: 5/8"
Cooling BTU9,000 BTU/hr
Heating BTU10,900 BTU/hr
Maximum CFM265 CFM
Decibel Level (dBA)46–50 dBA
Energy StarNo
RefrigerantR410A
CapacityDehumidification Rate: 0.19 gal/hr
HSPF9.0
SEER2 (Efficiency)20
EER10.7.
Compressor TypeRotary
Liquid Line1/4"
Suction Line3/8"
Electrical115v 1 Phase 60 Hz
PhaseSingle Phase
Max Breaker Size15
Min. Breaker Size10
Amperage Requirement15
BTU/Tonnage9,000 BTU/0.75 Ton
Mini Split TypeWall Mounted
Min/Max Outdoor Temp for Heating-4°-75°
Min/Max Outdoor Temp for Cooling14°-115°
Zone CompatibilitySingle Zone
Operating ModeCooling, Heating
Height21-5/8"
Width31-1/2"
Depth11-1/4"
Additional InfoIndoor Unit Weight: 22 lbs | Outdoor Unit Weight: 73 lbs
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Write Your Own Review
You're reviewing:Mitsubishi 9,000 BTU R410A JP-Series Single Zone Mini Split Heat Pump Condenser | 115V
Your Rating
Customer Questions
No Questions
Did you find what you were looking for?
Why Choose Mitsubishi Mini Splits?
Why Choose Mitsubishi Mini Splits?

Mitsubishi mini split air conditioners and heat pumps provide exceptional comfort, energy efficiency, and ultra-quiet performance in any climate. Engineered for reliability and precision, these systems offer year-round heating and cooling while reducing energy costs and enhancing indoor air quality.
