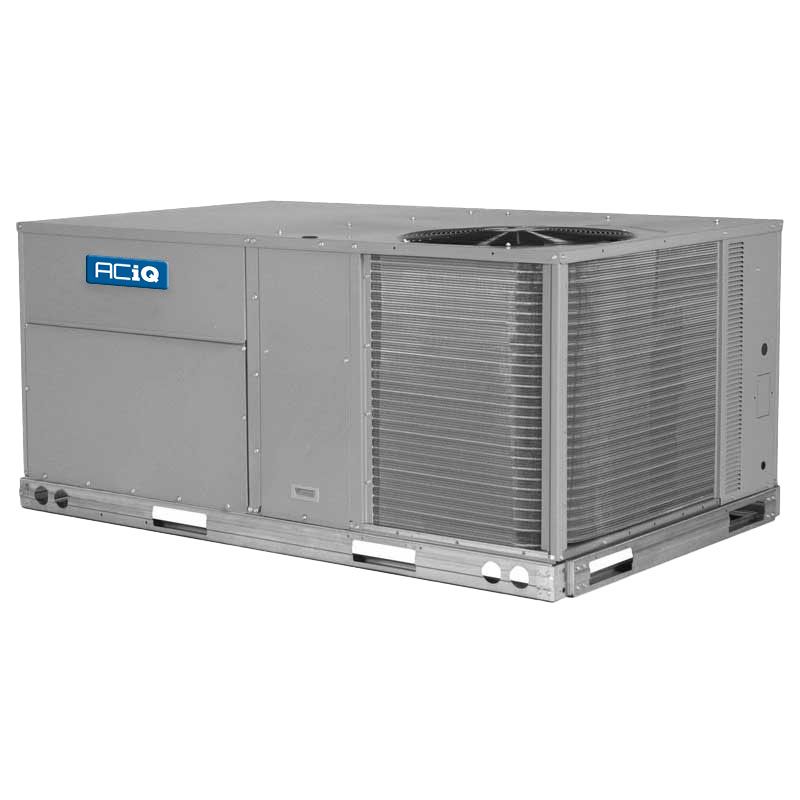

ACIQ 10 Ton 180,000 BTU 11 EER Light Commercial Gas Packaged Unit - Medium Heat | 208/230V 3 Phase - R454B - Two Stage

ACIQ 10 Ton 180,000 BTU 11 EER Gas/Electric Light Commercial Packaged Unit Medium Heat - 208/230V 3 Phase - R454B - RGF120HE3A0AAA

ACiQ

In stock

Model

RGF120HE3A0AAA

197096

Be the first to review this product

Was $16,624.00 Your Low Price Special Price $13,299.00

ONLY 2 LEFT!

Product Features

Designed for Easy Retrofit Installs
Custom Roof Curbs designed to fit your current adapter!
Precharged with R454b Refrigerant
2-Stage Condenser
208/230V 3 Phase
Up to a 10-Year Limited Warranty with Online Registration

Call 800-397-1392 for Best Prices!

11 Questions Answered

Description

10-Ton Gas/Electric Packaged Rooftop Unit for Light Commercial Applications with X-Vane™ Fan Technology

The ACiQ RGF120HE3A0AAA is a 10-ton gas/electric packaged rooftop unit designed for light commercial heating and cooling applications. The unit combines gas heating and electric cooling in a single outdoor cabinet with direct-drive ECM/Vane Axial fan technology and X-Vane™ fan technology.

Key Benefits

10-Ton Nominal Cooling Capacity – Provides packaged rooftop cooling for larger light commercial applications.
Two-Stage Cooling – Provides staged cooling operation to help match system output to changing commercial loads.
Gas Heating – Integrates gas-fired heating with electric cooling in a single packaged rooftop system.
Direct-Drive X-Vane™ Fan Technology – Uses a Vane Axial fan and electronically commutated motor in a direct-drive configuration.
Packaged Rooftop Design – Integrates heating, cooling, refrigeration, indoor airflow, and controls into one outdoor unit.
Three-Phase Electrical Configuration – The H electrical designation identifies the 208/230V three-phase configuration.
Commercial Installation Flexibility – The RGF platform provides configuration and accessory options for a variety of light commercial applications.

Gas Heating

The RGF120HE3A0AAA integrates gas-fired heating with electric cooling in a single packaged rooftop cabinet. The exact model-specific heating input and efficiency for this model are not stated in the official manufacturer documentation available for the exact model number and are therefore not inferred from another RGF, RGH, or RGS model.

10-Ton Cooling Performance

The RGF120HE3A0AAA is the 10-ton nominal configuration within the RGF120 packaged rooftop platform. The exact model-specific cooling capacity, efficiency ratings, and compressor configuration are not stated in the official manufacturer documentation available for the exact model number and are therefore not substituted from another model.

X-Vane™ Direct-Drive Fan Technology

The RGF platform incorporates direct-drive ECM/Vane Axial fan technology with X-Vane™ technology. The direct-drive design eliminates the conventional belt-driven fan arrangement and provides controlled indoor airflow for commercial applications.

Packaged Rooftop Installation Design

The packaged configuration integrates gas heating, electric cooling, indoor air movement, refrigeration components, and controls into one outdoor cabinet. The RGF120HE3A0AAA uses the H electrical designation, corresponding to 208/230V, three-phase, 60 Hz service.

Controls & Comfort

The RGF platform provides commercial control and comfort options including staged operation, economizer configurations, outdoor-air control, dehumidification options, condensate protection, electrical protection, and service diagnostics for compatible configurations.

Light Commercial Applications

The ACiQ RGF120HE3A0AAA is designed for light commercial rooftop applications requiring integrated gas heating and electric cooling. Its 10-ton nominal size, 208/230V three-phase electrical configuration, packaged rooftop design, and direct-drive X-Vane™ fan technology provide an integrated heating and cooling solution.

Service & Maintenance

The direct-drive X-Vane™ fan configuration eliminates conventional belt-driven fan components, helping simplify routine fan service. The RGF platform also provides service-oriented control and access features for compatible configurations.

Warranty

The ACiQ RGF120HE3A0AAA is covered by applicable manufacturer limited warranty provisions for the RGF packaged rooftop product family. Warranty coverage, component-specific warranty periods, registration requirements, installation requirements, and other conditions are subject to the applicable manufacturer warranty certificate.

Recommended Accessories

Economizer – Optional outdoor-air economizer for compatible ventilation and free-cooling applications.
Power Exhaust – Optional exhaust system for compatible economizer applications.
Hot Gas Re-Heat Dehumidification – Optional humidity-control configuration where available.
Non-Fused Disconnect – Optional electrical disconnect.
Condensate Overflow Switch – Optional condensate protection accessory.

Reliable Commercial Comfort with the ACiQ RGF120HE3A0AAA

Experience integrated year-round commercial comfort with the ACiQ RGF120HE3A0AAA. Combining 10-ton packaged electric cooling and gas heating with direct-drive X-Vane™ fan technology and a 208/230V three-phase electrical configuration for light commercial applications.

Product Specs

More Information
ACIQ 10 Ton 180,000 BTU 11 EER Light Commercial Gas Packaged Unit - Medium Heat \| 208/230V 3 Phase - R454B - Two Stage
Feature	Spec
SKU	RGF120HE3A0AAA
Refrigerant Charge	Pre-Charged
Weight	878
Manufacturer	ACiQ
Equivalent	Carrier Equivalent: 48FCFM12A3A5-0A0A0
Furnace Efficiency / AFUE	80%
Cooling BTU	118,000 BTU
Heating BTU	180,000 BTU
Drive Type	Direct
Maximum CFM	3500
Decibel Level (dBA)	79 Decibels
Refrigerant	R454B
EER	11.0
IEER	15.0
Condenser Stages	Two Stage
Compressor Type	Scroll
Electrical	208/230v 3 Phase 60 Hz
Electric Phase Filter	Three Phase
Tonnage	10 Ton
Burner Stages	Two
Height	49 3/8"
Width	84 7/8"
Depth	53 7/8"
Warranty	10 Years Aluminized Heat Exchanger, 5 Years Compressor, and 1 Year Parts
Resources	RGF Installation Manual RGF Specifications Sheet ACiQ Warranty Information You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information	This gas appliance requires a trained technician to install. Improperly connecting gas lines or improperly connecting a gas flue or venting may result in death. By purchasing this item, you are agreeing that you are using a trained technician to install this gas appliance. We will not be responsible for any injury or property damage arising from improper service or service procedures. Whoever installs or services this unit assumes responsibility for any personal injury or property damage which may result. Many jurisdictions require a license to install this equipment. PROPOSITION 65 WARNING This product and many products on our site may contain a chemical known to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.

Reviews

Accessories

FAQ's

Customer Questions

What is a Commercial Gas Packaged Unit?

A commercial packaged gas/electric unit is an all-in-one HVAC system that contains the air conditioner, gas furnace, evaporator coil, condenser, compressor, and controls inside a single cabinet. Unlike split systems, everything is housed in one outdoor unit, typically installed on a roof or concrete pad. This simplifies installation and frees up indoor space.

What types of buildings use Rooftop Gas Packaged Units?

Commercial Gas Package Units are commonly used for: Retail Stores Restaurants Churches Warehouses Office Buildings Schools Light Industrial Facilities Most Gas Package Units can be used on a rooftop or at ground level

How does a Commercial Gas Packaged Unit work?

Commercial Gas Packaged Unit uses two separate heating and cooling methods: Cooling Mode The electric air conditioning system removes heat from the building. A scroll compressor circulates refrigerant to provide cooling. Heating Mode Natural gas is burned inside the furnace section. Heated air is distributed through the ductwork. Your Commercial Gas Packaged Unit will automatically switch between heating and cooling based on thermostat demand

What is the life expectancy of the typical Commercial Gas Packaged Rooftop Unit?

The typical life expectancy of a Commercial Gas Rooftop Packaged Unit is approximately 15–20 years with proper installation and routine preventative maintenance. Factors such as operating hours, weather exposure, maintenance frequency, and overall operating conditions can affect equipment longevity. Regular filter changes, coil cleaning, inspections, and servicing of burners and heat exchangers can help extend the unit's lifespan.

Can a Commercial Gas Packaged Unit provide suitable year-round operation?

Yes. A commercial gas packaged unit provides year-round heating and cooling by combining a gas furnace for heating with an electric air conditioner for cooling in one self-contained system. During colder months, the gas furnace provides reliable heat, while the cooling components operate during warmer months to maintain comfortable indoor temperatures. This makes gas packaged units a versatile HVAC solution for commercial buildings that require heating and cooling throughout the year.

What does BTU and Tonnage Mean?

BTU (British Thermal Unit) measures the amount of heating or cooling energy a commercial rooftop packaged unit can produce per hour, while tonnage measures the unit's nominal cooling capacity. One ton of cooling equals 12,000 BTU/h, meaning a 10-ton commercial rooftop unit provides approximately 120,000 BTU/h of cooling capacity. Both measurements help contractors and customers determine the appropriate HVAC system size and output for a building's heating and cooling requirements.

What accessories or additional components are needed to install a Commercial Rooftop Units?

Installing a commercial rooftop unit may require several accessories and additional components depending on the building's existing setup and installation requirements. Common components include a roof curb or curb adapter, ductwork transitions, electrical disconnects, thermostats, economizers, dampers, and supplemental heating kits when applicable. Additional accessories, such as hail guards, smoke detectors, and condensate drain components, may also be recommended based on the application. Always verify equipment compatibility and manufacturer installation requirements before purchasing additional components.

Can I replace my existing Commercial Rooftop Unit without replacing the ductwork?

Yes. In many cases, an existing commercial rooftop unit can be replaced without replacing the current ductwork, provided the duct system is in good condition and compatible with the new equipment. Before installation, an HVAC professional should evaluate the ductwork, airflow requirements, unit capacity, and existing connections to ensure proper system performance. Additional modifications may be necessary if the new unit has different dimensions, airflow configurations, or connection requirements.

What is the difference between EER and IEER ratings on Commercial Rooftop Units?

EER (Energy Efficiency Ratio) and IEER (Integrated Energy Efficiency Ratio) are ratings used to measure the cooling efficiency of commercial HVAC equipment. EER measures how efficiently a unit operates under specific full-load outdoor temperature and operating conditions, while IEER evaluates efficiency across multiple operating conditions, including part-load performance. IEER provides a broader picture of how efficiently a commercial rooftop unit operates under varying cooling demands throughout the year. Higher EER and IEER ratings generally indicate greater energy efficiency and potentially lower operating costs.

Can a Commercial Rooftop Unit be installed on the ground instead of the roof?

Yes. Some commercial packaged rooftop units can be installed at ground level when the equipment is designed for horizontal airflow rather than vertical rooftop discharge. These horizontal-flow units require adequate space, a stable mounting surface, proper ductwork connections, and sufficient clearance for airflow and servicing. Always verify the manufacturer's installation requirements and local building codes before selecting a ground-level installation.

Do Commercial Rooftop Units require professional installation?

Yes. Commercial rooftop units should be installed by qualified HVAC professionals to ensure proper equipment placement, electrical connections, ductwork compatibility, refrigerant handling, and system performance. Professional installation helps ensure the unit operates safely and efficiently while meeting applicable building codes, manufacturer requirements, and local regulations.
