ACIQ 10 Ton 180,000 BTU 11 EER Light Commercial Gas Packaged Unit - Medium Heat | 460V 3 Phase - R454B - Two Stage

10-Ton Medium-Heat Gas/Electric Packaged Rooftop Unit with X-Vane™ Technology for Light Commercial Applications

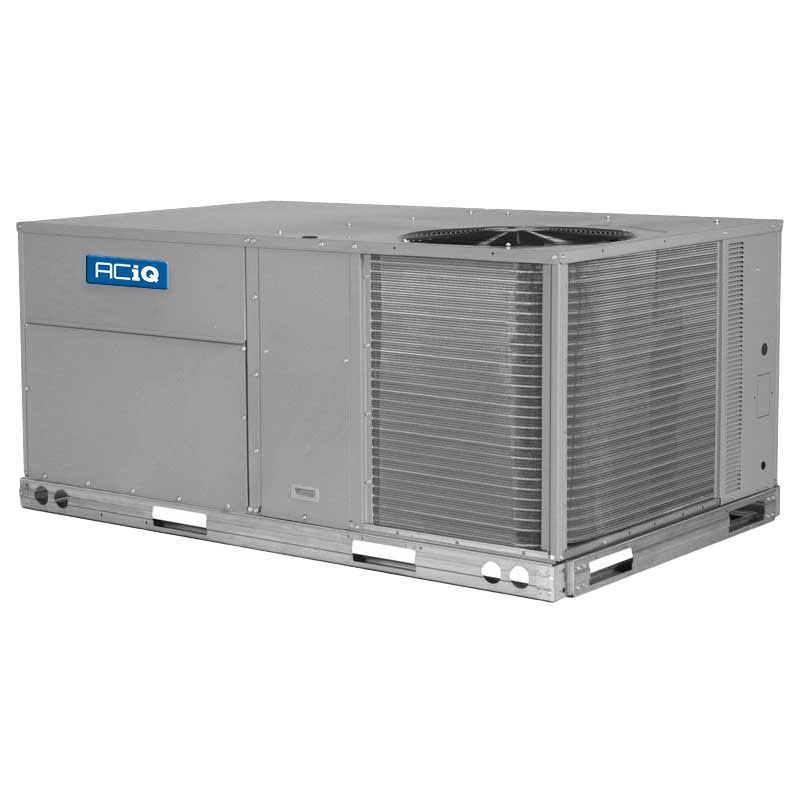

The ACiQ RGF120LE3A0AAA is a 10-ton gas/electric packaged rooftop unit designed for light commercial heating and cooling applications. This medium-heat configuration combines electric cooling and gas heating in a single outdoor cabinet and features direct-drive ECM/Vane Axial X-Vane™ fan technology, R-454B refrigerant, and a 460V three-phase electrical configuration.

Key Benefits

• 10-Ton Cooling Capacity – Provides nominal 10-ton packaged cooling for light commercial applications.
• 118,000 BTU Cooling Capacity – Provides substantial cooling output for larger commercial spaces.
• 11.0 EER / 15.0 IEER – Provides efficient full-load and integrated part-load cooling performance.
• Medium-Heat Gas Heating – Provides up to 180,000 BTU of gas-heating input with 80% AFUE.
• Two-Stage Cooling – Uses two-stage scroll-compressor operation for improved capacity matching.
• Direct-Drive X-Vane™ Fan – Uses a Vane Axial fan with an electronically commutated motor, eliminating conventional belts, pulleys, shafts, and shaft bearings.
• High-Static Fan Configuration – Provides airflow capability for commercial duct systems requiring higher external static pressure.
• R-454B Refrigerant – Uses R-454B refrigerant with a fixed refrigerant metering device.
• 460V Three-Phase Electrical Service – Uses 460V, three-phase, 60 Hz electrical service.
• Field-Convertible Airflow – Allows conversion to horizontal airflow for installation flexibility.

Medium-Heat Gas Heating

The RGF120LE3A0AAA uses the medium-heat gas configuration and provides up to 180,000 BTU of heating input at 80% AFUE. Two-stage burner operation provides staged gas heating for changing commercial load requirements while maintaining the convenience of an integrated packaged rooftop system.

10-Ton Two-Stage Cooling Performance

The RGF120LE3A0AAA provides 10-ton nominal cooling capacity with 118,000 BTU of cooling output. The unit uses two-stage scroll-compressor operation and is rated at 11.0 EER and 15.0 IEER. The refrigeration system uses R-454B refrigerant and a fixed refrigerant metering device.

11.0 EER / 15.0 IEER Efficiency and X-Vane™ Fan Technology

The RGF120LE3A0AAA combines cooling efficiency with a patented direct-drive X-Vane™ fan system. The Vane Axial fan uses an electronically commutated motor and eliminates conventional fan belts, pulleys, shafts, and shaft bearings. The high-static configuration provides airflow capability for commercial duct systems requiring increased external static pressure.

Packaged Rooftop Installation Design

The packaged configuration integrates gas heating, electric cooling, refrigeration components, indoor air movement, and controls into one outdoor cabinet. The RGF120LE3A0AAA uses 460V, three-phase, 60 Hz electrical service. The unit is field-convertible to horizontal airflow and is designed to support retrofit installations using the established RGF rooftop footprint.

Controls & Comfort

The RGF platform uses an upgraded unit control board with clearly labeled plug-in connection points and intuitive indoor-fan adjustment. The system includes high- and low-pressure protection, a filter drier, and 2-inch filters as standard equipment. Optional Hot Gas Re-Heat dehumidification is available to improve part-load humidity performance. Additional compatible options include economizers, power exhaust, CO2 sensing, condensate overflow protection, smoke detection, and phase monitoring.

Light Commercial Applications

The ACiQ RGF120LE3A0AAA is designed for light commercial rooftop applications requiring integrated medium-heat gas heating and two-stage electric cooling. Its 10-ton nominal cooling size, 118,000 BTU cooling capacity, 180,000 BTU heating input, 80% AFUE, 460V three-phase electrical service, R-454B refrigerant, high-static X-Vane™ fan configuration, and field-convertible airflow provide a complete packaged heating and cooling solution.

Service & Maintenance

The direct-drive X-Vane™ fan eliminates conventional belt, pulley, shaft, and shaft-bearing components, helping simplify routine fan maintenance. Easy-access handles provide convenient access to commonly serviced panels. The upgraded unit control board centralizes many electrical connections and provides intuitive fan adjustment. The sloped, corrosion-resistant composite drain pan is designed to shed water and resist rust, while the naturally draining heat exchanger does not require periodic manual draining.

Warranty

The RGF120LE3A0AAA is covered by applicable manufacturer limited warranty provisions for the RGF packaged rooftop product family. Applicable coverage includes a 10-year limited warranty for the aluminized heat exchanger, a 5-year limited warranty for the compressor, and a 1-year limited warranty for replacement parts, subject to the applicable manufacturer warranty certificate, installation requirements, maintenance requirements, registration provisions, and exclusions.

Recommended Accessories

• Hot Gas Re-Heat Dehumidification System – Optional system for improved part-load humidity performance.
• Economizer – Optional outdoor-air economizer for compatible ventilation and free-cooling applications.
• Power Exhaust – Optional exhaust system for compatible economizer applications.
• Non-Fused Disconnect – Optional electrical disconnect.
• Condensate Overflow Switch – Optional condensate protection accessory.
• CO2 Sensor – Optional carbon-dioxide sensing for compatible demand-controlled ventilation applications.

Reliable Commercial Comfort with the ACiQ RGF120LE3A0AAA

Experience reliable year-round commercial comfort with the ACiQ RGF120LE3A0AAA. Combining 10-ton two-stage electric cooling, medium-heat gas heating up to 180,000 BTU, R-454B refrigerant, high-static direct-drive X-Vane™ fan technology, and 460V three-phase electrical service in a field-convertible packaged rooftop system.
