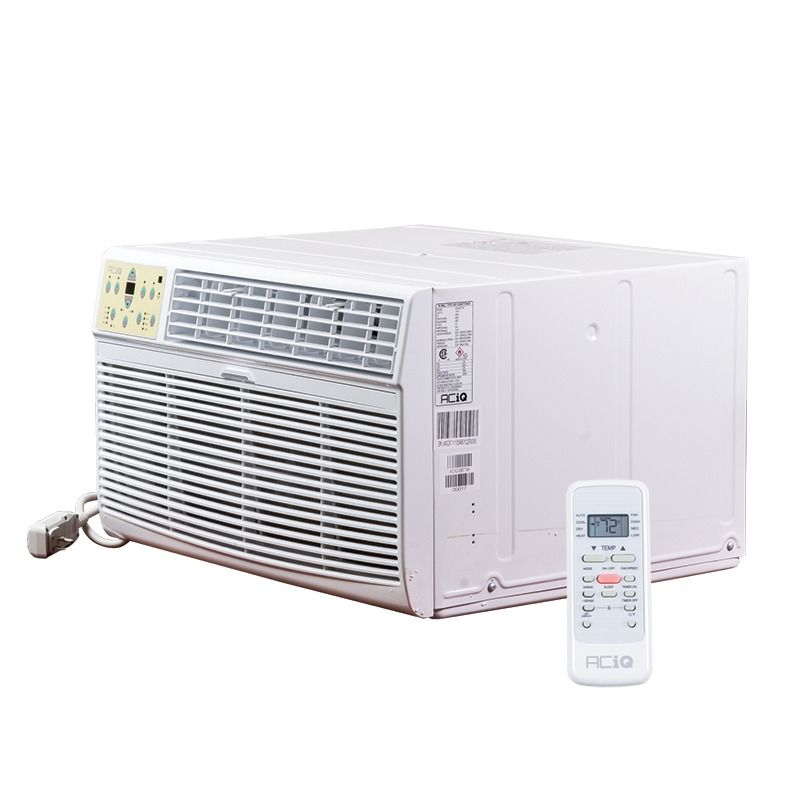

ACiQ 14,000 BTU Through-the-Wall Mini PTAC with Electric Heat 208/230V - R32

By

ACiQ

Out of stock
Model

ACIQ-14TTW

ID

206538

ACiQ 14,000 BTU 208/230v Through-the-Wall Mini PTAC with Electric Heat - R32 - ACIQ-14TTW

OVERVIEW

The ACIQ-12TTW delivers powerful year-round comfort with 12,000 BTU of cooling and efficient supplemental electric heating. Designed to fit standard wall sleeves, it’s perfect for medium-sized rooms or offices. With quiet operation, energy-saving features, and a convenient remote control, this unit offers reliable performance in a sleek, space-saving design.

FEATURES

  • Plug Type: LCDI (6-20P)
  • Cooling Capacity: 14,000 BTU – ideal for spaces up to 700 sq. ft.
  • Heating Capability: Efficient heat pump with electric backup
  • Energy Efficient: High EER rating with eco-friendly R32 refrigerant
  • Quiet Operation: Designed to minimize indoor noise levels
  • Universal Fit: Fits mini wall sleeves for easy installation
  • Convenient Features: Digital display, multiple modes, and remote control

Plug Type

This model uses plug type NEMA 6-20P. Please verify compatibility using our Outlet Type Guide below.

Outlet Type Guide

More Information
ACiQ 14,000 BTU Through-the-Wall Mini PTAC with Electric Heat 208/230V - R32
FeatureSpec
SKUACIQ-14TTW
Weight (in lbs)85.76
Brand/ManufacturerACiQ
UPC810175552507
Additional InformationLCDI (6-20P) Plug Type
Cooling BTU14,000
Heating BTU10,600
Maximum CFM480
Decibel Level (dBA)69.8 dB
RefrigerantR32
Electrical208/230v 1ph 60hz
Max Breaker Size20 Amps
BTU/Tonnage14,000 BTU/1.2 Ton
Plug TypeNEMA 6-20P
Height14.53"
Width24.21"
Depth20.28"
Warranty1 Year Parts and 5 Year Compressor
