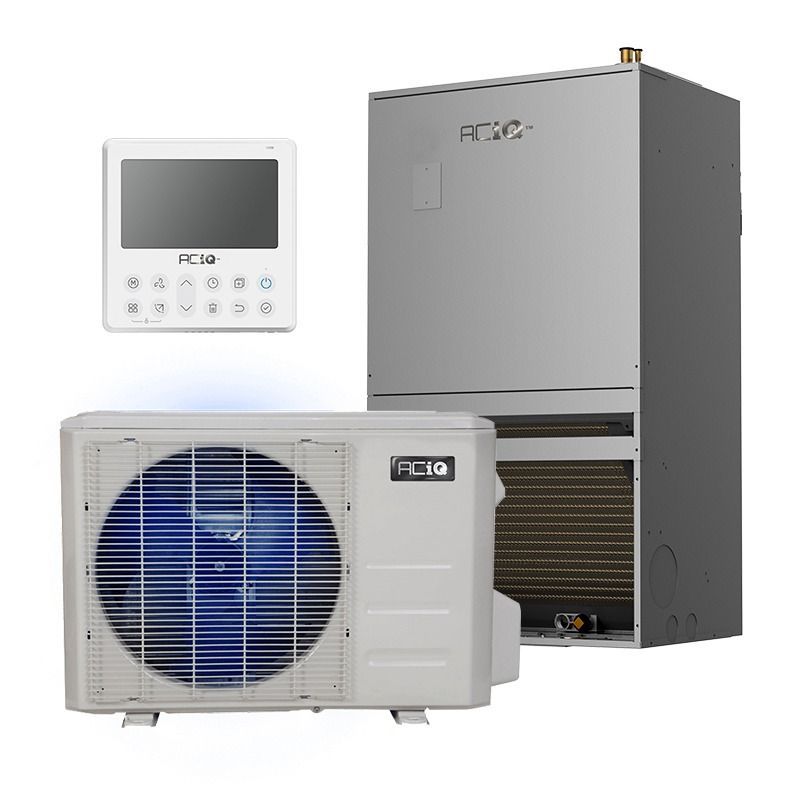

Today's Hours 8am - 11pm estACiQ 1.5 Ton 19.4 SEER2 High Efficiency Heat Pump Split System - R410A Inverter - Wall-Mounted
Required Fields *
By
ACiQ
In stock
Model
ACIQ-18-EHPB / ACIQ-18W-WM
ID
157531
Was $3,660.00
Your Low Price $2,594.45
Save up to 70% off Local HVAC Prices
Product Features
- All electric ducted heating & cooling solution for multi-family properties
- Ideal for installation above a water heater within utility closet to utilize vertical space
- Wired smart thermostat with WiFi included for individual climate control
- Pre-Charged with R401A refrigerant
- High efficiency inverter heat pump
- Compatible with optional 3 kW-10kW electric backup heat strips
This ACIQ High Efficiency system boasts a heat pump equipped with inverter technology, alongside a wall-mounted air handler sporting a compact design, perfect for multi-tenant applications. Compatible with optional 3 kW, 5k kW, 8kW or10kW electric backup heat strips.
ACIQ 3 Kilowatt Heater Coil for Wall Mount Air Handler
The EAH-03-WM is a 3kw heater coil designed for use in ACiQ unitary air handlers, allowing you to add straight electric heating to ACiQ multi tentant style wall mount air handlers. Compatible Air Handlers ACiQ-18W-WM, ACIQ-24W-WM, ACiQ-30W-WM, ACiQ-36W-WM
30 Feet of 3/8" x 3/4"
Line sets are the copper lines which connect an outdoor condensing unit/heat pump to an inside air handler or evaporator coil. Line sets are available in different lengths and diameters to fit most applications.

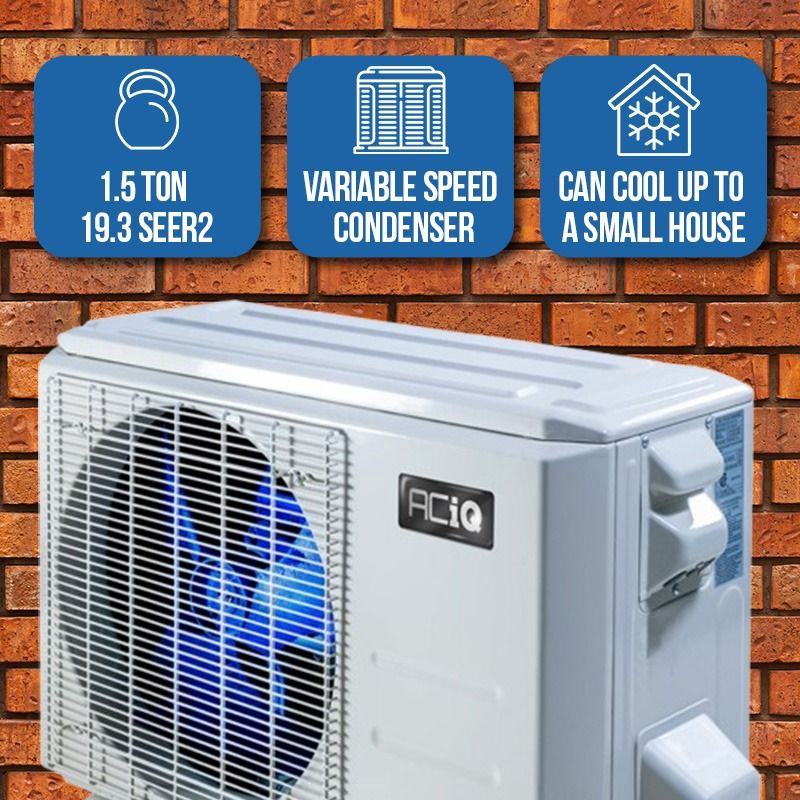

ACiQ 1.5 Ton 19.3 SEER2 High Efficiency Heat Pump Condenser - R410A Inverter
OVERVIEW
Inverter Heat Pump - The ACIQ-18-EHPB 1.5-ton central inverter heat pump utilizes inverter technology to convert AC power to DC, allowing the compressor to adjust its speed. This enables the system to modify its BTU output based on the current demand, providing efficient and adaptable performance throughout varying weather conditions.
Intelligent System - Equipped with advanced sensors, this system monitors indoor and outdoor air temperature, duct pressure, refrigerant temperature, and overall system performance. During the initial startup, it enters a learning mode, optimizing future operations for maximum efficiency by collecting and storing data.
Adaptive Sizing - With its self-adjusting inverter design, the ACIQ-12-EHPB can be sized based on your heating needs. Standard heat pumps may cause discomfort during summer when sized for heat, but this unit automatically adjusts to function like a smaller unit, ensuring ideal cooling performance without excess humidity.
QUICK FACTS
- Variable output based on demand
- Inverter heat pump system for ducted applications
- Efficient cooling from 5°F to 122°F outdoor temperatures
- Reliable heating from 5°F to 75°F outdoor temperatures
- Durable Gold Fin condenser coil coating for longevity
- Quiet operation, even under high workloads
18,000 BTU, 17 SEER2
Boasting an efficiency rating of 17 SEER2, the ACIQ-18-EHPB provides versatile comfort across a range of climates. Reliable comfort with variable output that eliminates short cycling for lasting efficiency. Use our size calculator Here to determine the demand for your home.
Efficiency Choices for Every Climate
Not all heat pumps are built the same. Depending on the climate of where you live, your best fit can depend dramatically on the efficiency of the heat pump at lower temperatures. The right fit saves you money by reducing energy bills. At 0°F, this heat pump operates at 53% efficiency, making it a great fit for moderate climates that have some chilly days.
Quality Construction
State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life. Most models have low ambient heating and cooling.
Highest Efficiency
ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.
Longer life, longer warranty
Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. Register equipment at ACiQ.com to extend warranty protection to 7 years parts, 12 years compressor.
1.5 Ton Wall Mounted ACiQ Air Handler -R410A
The ACiQ Wall Mounted Central Air Handler is ideal for multi-tenant buildings with its compact design, perfect for closets. It features a digital EEV for precise refrigerant flow control and is designed for vertical wall mounting with an up-flow-only configuration. The included smart thermostat, equipped with Wi-Fi, communicates with both the inverter condenser outside and the variable air handler inside, allowing the system to self-adjust BTU output for maximum efficiency and comfort. It efficiently distributes heated and cooled air throughout your home by attaching to your existing ductwork.
Features:
- Digital EEV
- Wired smart thermostat with WiFi included
- Or – use your preferred 24v thermostat
- Variable DC blower
- Upflow-only configuration
- Manufactured Home and mobile home approved
- Designed to optimize performance from ACIQ inverter heat pumps and air conditioners
Installing the ACiQ Wall Mounted Central Air Handler is similar to installing any replacement air handler. Your technician will handle electrical, refrigerant, thermostat, and communication connections, as well as connecting to your return and supply ductwork. This air handler is designed for vertical wall mounting with an up-flow-only configuration. Any 24V thermostat with 2 stages of heating can control the system, but the supplied thermostat is recommended. You can add electric strip heat for backup on the coldest days. The intelligent control board displays fault codes if maintenance is needed.
NOTE: to function as a heat pump, this air handler must be installed with a condenser and other installation equipment, available at an additional cost if not already included in this product bundle. To use straight electric heating, an electric heater coil is necessary and is also available at an additional cost.
50 Feet of 3/8" x 3/4"
Ensure efficient refrigerant flow and optimal HVAC performance with this 50-foot insulated line set. Designed for seamless connection between an outdoor condensing unit or heat pump and an indoor air handler or evaporator coil, this line set offers durability, flexibility, and superior thermal protection for long-lasting operation.
Key Features:
✔ Premium Copper Tubing: 3/8" liquid line (LL) and 3/4" suction line (SL) for efficient refrigerant transfer.
✔ Pre-Insulated for Efficiency: 3/8" thick insulation minimizes energy loss and condensation buildup.
✔ Versatile Application: Compatible with heat pumps and conventional split systems.
✔ Easy Installation: Flexible and durable copper tubing allows for smooth routing and connection.
✔ Extended 50-Foot Length: Ideal for larger residential and light commercial HVAC installations.
Upgrade your HVAC system with this high-quality insulated line set, engineered for reliability, efficiency, and ease of installation.
ACIQ 5 Kilowatt Heater Coil for Wall Mount Air Handler
The EAH-05-WM is a 5kw heater coil designed for use in ACiQ unitary air handlers, allowing you to add straight electric heating to ACiQ multi tentant style wall mount air handlers. Compatible Air Handlers ACiQ-18W-WM, ACIQ-24W-WM, ACiQ-30W-WM, ACiQ-36W-WM
ACIQ 8 Kilowatt Heater Coil for Wall Mount Air Handler
The EAH-08-WM is a 8kw heater coil designed for use in ACiQ unitary air handlers, allowing you to add straight electric heating to ACiQ multi tentant style wall mount air handlers. Compatible Air Handlers ACiQ-18W-WM, ACIQ-24W-WM, ACiQ-30W-WM, ACiQ-36W-WM
ACIQ 10 Kilowatt Heater Coil for Wall Mount Air Handler
The EAH-10-WM is a 10kw heater coil designed for use in ACiQ unitary air handlers, allowing you to add straight electric heating to ACiQ multi tentant style wall mount air handlers. Compatible Air Handlers ACiQ-18W-WM, ACIQ-24W-WM, ACiQ-30W-WM, ACiQ-36W-WM
Top reviews
- easy to installThe unit replacement was straightforward — no complications or setbacks.
Posted on
- 2 ton split unit to replace trane installed in 2008Excellent equipment, I have an old friend in the HVAC biz. Quoted $8600 for a "Better" Goodman installed. I had installed an Inverter package in my Mom's house a few years ago and was very impressed with Function and efficiency - and wanted the same for my master suite. I went ahead and had the 'professionals' install it for $1050 and still saved MORE than 50%. They were very impressed with the unit and ease of install (2 wire thermostat) - plus my wife thinks the blue tooth phone setting is Cool - and the $4k we saved took us, the kids, and all the grandkids for week long beach Trip! Happy wife - Happy life!!
Posted on
- All the great thing you hear is trueMassively simple wire hook up 2 wires from the t stat down to the air handler and two out to the condenser. Little braze work I let nitrogen set in the line overnight for one it was late in the evening at that point. Was a late start doing this install. And two I never fully trusted compression fittings. ACiQ did an amazing job with theirs not a single drop in pressure over night! next morning pulled a vacuum down and released the 410 built a new plenum and the customer had cold air blowing by noon. Did a follow up with customer a week later they love their new system, homeowner was concerned with the condenser sitting outside his small Childs bedroom window. of the noise. stated he has to walk outside and almost two feet away to really hear it running. price point and ease of installation I would highly recommend an ACiQ system to everyone
Posted on
- A Quality Heat PumpThis ACiQ heat pump is quiet and quite efficient when paired with an ACiQ indoor air handler in serial communications with each other. It’s well made but there are design issues. There is really no protection for the heat exchange fins. A stray stone or tree branch can easily damage this unit. The the power and communications compartment is not water proof. This heat pump will need to be protected from hard rains. The high side pipe is 5/8” and the low side is 7/8;” are unusual sizes that were harder to source where I live. And the price is higher than it should be because it’s just a rebranded Midea (Senville comparable) heat pump. It didn’t even come with an ACiQ sticker on it!! Should be around $800 to $900, not $1800.
Posted on
- Very satisfied and so are the neighborsSo efficient and quiet
Posted on
- Just Awesome!2nd system I have bought. I did have some wiring questions and support was awesome walking me thru it. Awesome product and awesome support!
Posted on
- FANTASTIC UNIT!!!!I'm not an HVAC professional, however I do have rudimentary knowledge of how things work. This weekend I replaced our 17-year-old 2-ton condenser/3 ton coil with a ACiQ-36-EHPB, 3-ton coil, and lineset. After a bit of futzing with ductwork and creative thermostat wiring, I have the unit up and running with the existing gas furnace set up for AUX heat.
I have to say that the install was relatively smooth. We moved the condenser from the south side of the house where it baked in the sun to the northeast side where it is shaded most of the day. I had to add 12.5 oz of refrigerant to top off the additional length of line and everything works great. 22 degree drop across the coil and pours water out of the condensation line.
The ACiQ-36-EHPB is eerily quiet. My sprinklers make more noise than the condenser and fan does. Also, this has the softest of soft starts. The compressor slowly spins up from 0 which is perfect for people who may need to run this from a generator. I tested mine and it ran with no problem. This is in contrast to never being able to start the old one, even after buying a soft start.
I am extremely pleased with the ACiQ-36-EHPB so far. Also, HVAC direct was great to work with, got the unit out the door fast, and I will definitely shop here again.Posted on
- My initial sureveyAs of this moment, i cant drop a survey for we are still in diagnostic with some issue to be resolve. Meantime, 3 star is at hand but after resolving i will get back for my final survey.
Posted on
Customer Questions
Why Choose ACiQ?
ACiQ designs AC systems that are based on principles learned from nature: clean, energy-efficient, and quiet. ACiQ systems are built in a such a way that they are easily adapted to fit multiple variations a homeowner needs. ACiQ offers technology in mini-split and full split inverter system offerings that provide the smartest way to buy and save on your home’s comfort solution, so that it meets the needs of your family. ACiQ specializes in home comfort, regardless of your needs.
