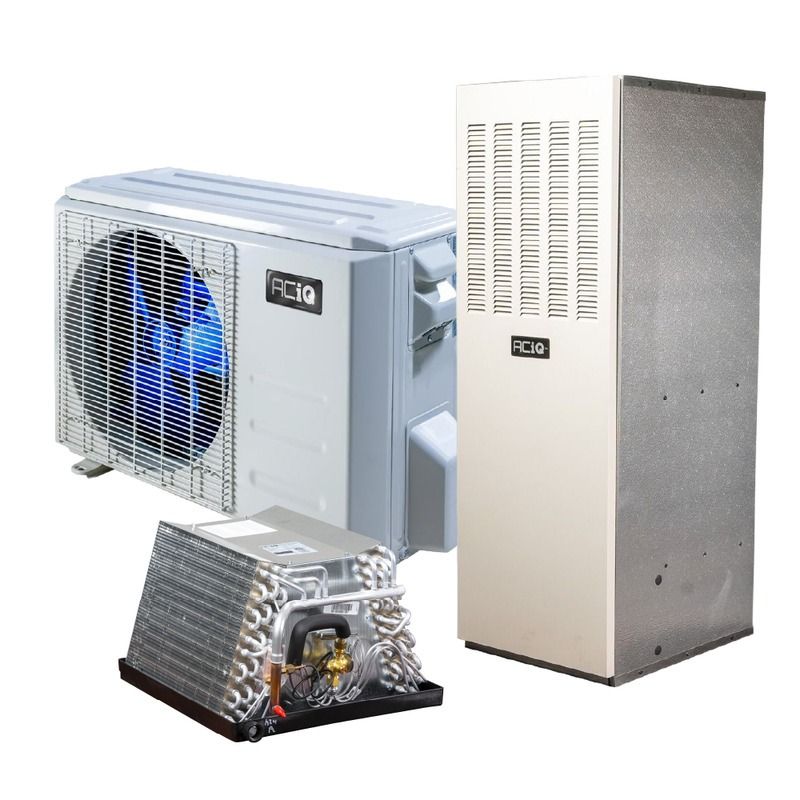

The ACiQ mobile home heat pump, electric furnace, and coil is the next generation of HVAC products designed specifically for mobile homes.
ACiQ 2 Ton Uncased Downflow Mobile Home Coil with TXV | Aluminum
OVERVIEW
The ACiQ-2413UDXBDE coil is designed to be a perfect fit for many mobile and manufactured home HVAC split system applications. Designed with sweat fit/braze fittings and a sturdy, compact design, this downflow evaporator coil allows for a quick and easy installation process with compatible equipment.
QUICK FACTS
2 ton downflow evaporator coil
Designed for mobile and manufactured home use only
AHRI certifiable with all brands of air conditioners and heat pumps
For use with manufactured homes furnaces
Sturdy and compact design
Rifled aluminum tubing with enhanced aluminum fins
Left-hand refrigerant and plumbing connections
Heavy duty polypropylene drain pans
Downflow plate kit included
2 TON
The ACiQ-2413UDXBDE evaporator coil is rated to be compatible with condensers with up to 2 tons of heating and cooling. With its ability to be installed with either an AC-only condenser or a heat pump condenser, this unit is ideal for many applications. In some packages, this coil will be larger than its paired condenser, which will increase the overall efficiency of the entire unit, but the coil should never be smaller than its paired condenser.
Note: Do not use heavy duty plastic drain pans on oil furnaces or other applications where outlet temperatures may exceed 290℉ +/-5℉. Specify metal drain pans for these applications.
Note: Do not use heavy duty plastic drain pans on oil furnaces or other applications where outlet temperatures may exceed 290°F +/-5°F. Specify metal drain pans for these applications.
Line sets are the copper lines which connect an outdoor condensing unit/heat pump to an inside air handler or evaporator coil. Line sets are available in different lengths and diameters to fit most applications.
Standard 50 Feet of 3/8" x 3/4" - Black
Ensure efficient refrigerant flow and optimal HVAC performance with this 50-foot insulated line set. Designed for seamless connection between an outdoor condensing unit or heat pump and an indoor air handler or evaporator coil, this line set offers durability, flexibility, and superior thermal protection for long-lasting operation.
Key Features:
✔ Premium Copper Tubing: 3/8" liquid line (LL) and 3/4" suction line (SL) for efficient refrigerant transfer. ✔ Pre-Insulated for Efficiency:3/8" thick insulation minimizes energy loss and condensation buildup. ✔ Versatile Application: Compatible with heat pumps and conventional split systems. ✔ Easy Installation:Flexible and durable copper tubing allows for smooth routing and connection. ✔ Extended 50-Foot Length: Ideal for larger residential and light commercial HVAC installations.
Upgrade your HVAC system with this high-quality insulated line set, engineered for reliability, efficiency, and ease of installation.
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
ACiQ 2 Ton 19.4 SEER High Efficiency Heat Pump Condenser - R410A Inverter
Feature
Spec
SKU
ACIQ-24-EHPB
Refrigerant Charge
25'
Weight
109.13
Manufacturer
ACiQ
UPC
850038750855
Cooling BTU
24000 BTU
Heating BTU
24000 BTU
Maximum CFM
1765
Decibel Level (dBA)
60
Electric Heat
Heat Pump
Refrigerant
R410A
HSPF2
9.2
SEER
20
SEER2
17
EER2
10.5
Condenser Stages
Variable Speed
Compressor Type
Rotary
Liquid Line
3/8"
Suction Line
5/8"
Electrical
208/230V 1 Phase 60 Hz
Max Breaker Size
30 Amps
Min. Breaker Size
19 Amps
Tonnage
2 Ton
Min/Max Outdoor Temp for Heating
5～75
Min/Max Outdoor Temp for Cooling
5～122
Zone Compatibility
Single Zone
Length
35.04"
Height
26.50"
Depth
13.46"
Warranty
12 year compressor, 7 year parts with online registration
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
30 Feet of 3/8" LL x 3/4" SL x 3/8" Insulated Line Set
Feature
Spec
SKU
LS38343830
Weight
35
Manufacturer
Online Supply
UPC
na
Liquid Line
3/8"
Suction Line
3/4"
Suction Line Insulation Thickness
3/4"
Length
30 feet
Color
Black
50 Feet of 3/8" LL x 3/4" SL x 3/8" Insulated Line Set
