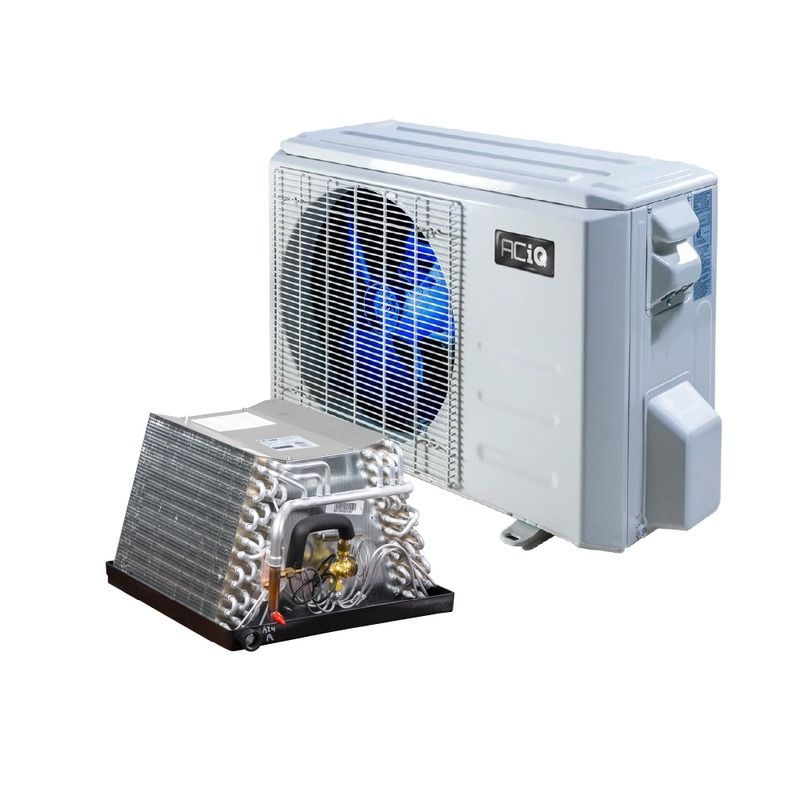

Our mobile home heat pump system features an ACiQ high efficiency heat pump and mobile home coil with TXV. With tons of extra features and a great price, this ACiQ combination system is the perfect choice for all of your heating and cooling needs.
30 Feet of 3/8" x 3/4"
Line sets are the copper lines which connect an outdoor condensing unit/heat pump to an inside air handler or evaporator coil. Line sets are available in different lengths and diameters to fit most applications.
I understand that this system should only be used as replacement units due to EPA updates and may not be installed as a complete system.
ACiQ 2 Ton Uncased Downflow Mobile Home Coil with TXV | Aluminum
OVERVIEW
The ACiQ-2413UDXBDE coil is designed to be a perfect fit for many mobile and manufactured home HVAC split system applications. Designed with sweat fit/braze fittings and a sturdy, compact design, this downflow evaporator coil allows for a quick and easy installation process with compatible equipment.
QUICK FACTS
2 ton downflow evaporator coil
Designed for mobile and manufactured home use only
AHRI certifiable with all brands of air conditioners and heat pumps
For use with manufactured homes furnaces
Sturdy and compact design
Rifled aluminum tubing with enhanced aluminum fins
Left-hand refrigerant and plumbing connections
Heavy duty polypropylene drain pans
Downflow plate kit included
2 TON
The ACiQ-2413UDXBDE evaporator coil is rated to be compatible with condensers with up to 2 tons of heating and cooling. With its ability to be installed with either an AC-only condenser or a heat pump condenser, this unit is ideal for many applications. In some packages, this coil will be larger than its paired condenser, which will increase the overall efficiency of the entire unit, but the coil should never be smaller than its paired condenser.
Note: Do not use heavy duty plastic drain pans on oil furnaces or other applications where outlet temperatures may exceed 290℉ +/-5℉. Specify metal drain pans for these applications.
Note: Do not use heavy duty plastic drain pans on oil furnaces or other applications where outlet temperatures may exceed 290°F +/-5°F. Specify metal drain pans for these applications.
Ensure efficient refrigerant flow and optimal HVAC performance with this 50-foot insulated line set. Designed for seamless connection between an outdoor condensing unit or heat pump and an indoor air handler or evaporator coil, this line set offers durability, flexibility, and superior thermal protection for long-lasting operation.
Key Features:
✔ Premium Copper Tubing: 3/8" liquid line (LL) and 3/4" suction line (SL) for efficient refrigerant transfer. ✔ Pre-Insulated for Efficiency:3/8" thick insulation minimizes energy loss and condensation buildup. ✔ Versatile Application: Compatible with heat pumps and conventional split systems. ✔ Easy Installation:Flexible and durable copper tubing allows for smooth routing and connection. ✔ Extended 50-Foot Length: Ideal for larger residential and light commercial HVAC installations.
Upgrade your HVAC system with this high-quality insulated line set, engineered for reliability, efficiency, and ease of installation.
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
ACiQ 2 Ton 19.4 SEER High Efficiency Heat Pump Condenser - R410A Inverter
Feature
Spec
SKU
ACIQ-24-EHPB
Refrigerant Charge
25'
Weight (in lbs)
109.13
Brand/Manufacturer
ACiQ
UPC
850038750855
Cooling BTU
24000 BTU
Heating BTU
24000 BTU
Maximum CFM
1765
Decibel Level (dBA)
60
Electric Heat
Heat Pump
Refrigerant
R410A
HSPF2
9.2
SEER1 (Efficiency)
20
SEER2 (Efficiency)
17
EER2
10.5
Condenser Stages
Variable Speed
Compressor Type
Rotary
Liquid Line
3/8"
Suction Line
5/8"
Electrical
208/230V 1 Phase 60 Hz
Max Breaker Size
30 Amps
Min. Breaker Size
19 Amps
Tonnage
2 Ton
Min/Max Outdoor Temp for Heating
5～75
Min/Max Outdoor Temp for Cooling
5～122
Zone Compatibility
Single Zone
Length
35.04"
Height
26.50"
Depth
13.46"
Warranty
12 year compressor, 7 year parts with online registration
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
30 Feet of 3/8" LL x 3/4" SL x 3/8" Insulated Line Set
Feature
Spec
SKU
LS38343830
Weight (in lbs)
35
Brand/Manufacturer
Online Supply
UPC
na
Liquid Line
3/8"
Suction Line
3/4"
Suction Line Insulation Thickness
3/4"
Color
Black
Length
30 feet
50 Feet of 3/8" LL x 3/4" SL x 3/8" Insulated Line Set
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
The unit replacement was straightforward — no complications or setbacks.
Review bymichael
Posted on
2 ton split unit to replace trane installed in 2008
Quality
100%
Service
100%
Price
100%
Excellent equipment, I have an old friend in the HVAC biz. Quoted $8600 for a "Better" Goodman installed. I had installed an Inverter package in my Mom's house a few years ago and was very impressed with Function and efficiency - and wanted the same for my master suite. I went ahead and had the 'professionals' install it for $1050 and still saved MORE than 50%. They were very impressed with the unit and ease of install (2 wire thermostat) - plus my wife thinks the blue tooth phone setting is Cool - and the $4k we saved took us, the kids, and all the grandkids for week long beach Trip! Happy wife - Happy life!!
Review byRandy
Posted on
All the great thing you hear is true
Service
100%
Quality
100%
Price
100%
Massively simple wire hook up 2 wires from the t stat down to the air handler and two out to the condenser. Little braze work I let nitrogen set in the line overnight for one it was late in the evening at that point. Was a late start doing this install. And two I never fully trusted compression fittings. ACiQ did an amazing job with theirs not a single drop in pressure over night! next morning pulled a vacuum down and released the 410 built a new plenum and the customer had cold air blowing by noon. Did a follow up with customer a week later they love their new system, homeowner was concerned with the condenser sitting outside his small Childs bedroom window. of the noise. stated he has to walk outside and almost two feet away to really hear it running. price point and ease of installation I would highly recommend an ACiQ system to everyone
Review byGreg121
Posted on
A Quality Heat Pump
Service
100%
Quality
100%
Price
80%
This ACiQ heat pump is quiet and quite efficient when paired with an ACiQ indoor air handler in serial communications with each other. It’s well made but there are design issues. There is really no protection for the heat exchange fins. A stray stone or tree branch can easily damage this unit. The the power and communications compartment is not water proof. This heat pump will need to be protected from hard rains. The high side pipe is 5/8” and the low side is 7/8;” are unusual sizes that were harder to source where I live. And the price is higher than it should be because it’s just a rebranded Midea (Senville comparable) heat pump. It didn’t even come with an ACiQ sticker on it!! Should be around $800 to $900, not $1800.
Review byJim
Posted on
Very satisfied and so are the neighbors
Service
100%
Quality
100%
Price
100%
So efficient and quiet
Review byPat
Posted on
Just Awesome!
Service
100%
Quality
100%
Price
100%
2nd system I have bought. I did have some wiring questions and support was awesome walking me thru it. Awesome product and awesome support!
Review byWatertime
Posted on
FANTASTIC UNIT!!!!
Price
100%
Service
100%
Quality
100%
I'm not an HVAC professional, however I do have rudimentary knowledge of how things work. This weekend I replaced our 17-year-old 2-ton condenser/3 ton coil with a ACiQ-36-EHPB, 3-ton coil, and lineset. After a bit of futzing with ductwork and creative thermostat wiring, I have the unit up and running with the existing gas furnace set up for AUX heat.
I have to say that the install was relatively smooth. We moved the condenser from the south side of the house where it baked in the sun to the northeast side where it is shaded most of the day. I had to add 12.5 oz of refrigerant to top off the additional length of line and everything works great. 22 degree drop across the coil and pours water out of the condensation line.
The ACiQ-36-EHPB is eerily quiet. My sprinklers make more noise than the condenser and fan does. Also, this has the softest of soft starts. The compressor slowly spins up from 0 which is perfect for people who may need to run this from a generator. I tested mine and it ran with no problem. This is in contrast to never being able to start the old one, even after buying a soft start.
I am extremely pleased with the ACiQ-36-EHPB so far. Also, HVAC direct was great to work with, got the unit out the door fast, and I will definitely shop here again.
Review byChris
Posted on
My initial surevey
Price
100%
Service
60%
Quality
60%
As of this moment, i cant drop a survey for we are still in diagnostic with some issue to be resolve. Meantime, 3 star is at hand but after resolving i will get back for my final survey.
