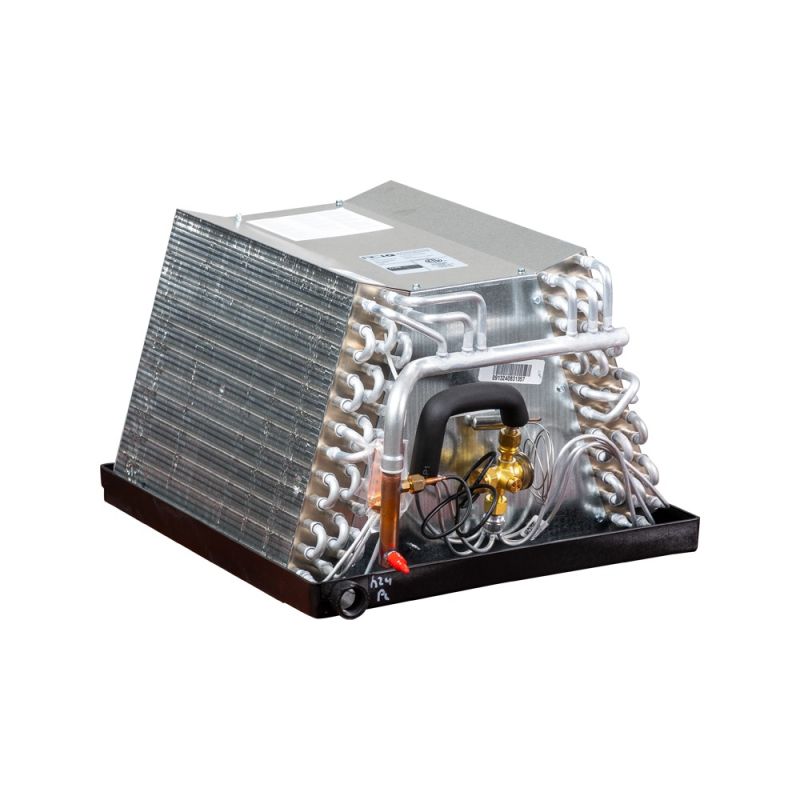

ACiQ 3 Ton Uncased Downflow Mobile Home Coil with TXV | Aluminum

OVERVIEW

The ACiQ-3617UDXBDA coil is designed to be a perfect fit for many mobile and manufactured home HVAC split system applications. Designed with sweat fit/braze fittings and a sturdy, compact design, this downflow evaporator coil allows for a quick and easy installation process with compatible equipment.

QUICK FACTS

• 3 ton downflow evaporator coil
• Designed for mobile and manufactured home use only
• AHRI certifiable with all brands of air conditioners and heat pumps
• For use with manufactured homes furnaces
• Sturdy and compact design
• Rifled aluminum tubing with enhanced aluminum fins
• Left-hand refrigerant and plumbing connections
• Heavy duty polypropylene drain pans
• Downflow plate kit included

3 TON

The ACiQ-3617UDXBDA evaporator coil is rated to be compatible with condensers with up to 3 tons of heating and cooling. With its ability to be installed with either an AC-only condenser or a heat pump condenser, this unit is ideal for many applications. In some packages, this coil will be larger than its paired condenser, which will increase the overall efficiency of the entire unit, but the coil should never be smaller than its paired condenser.

Note: Do not use heavy duty plastic drain pans on oil furnaces or other applications where outlet temperatures may exceed 290°F +/-5°F. Specify metal drain pans for these applications.
