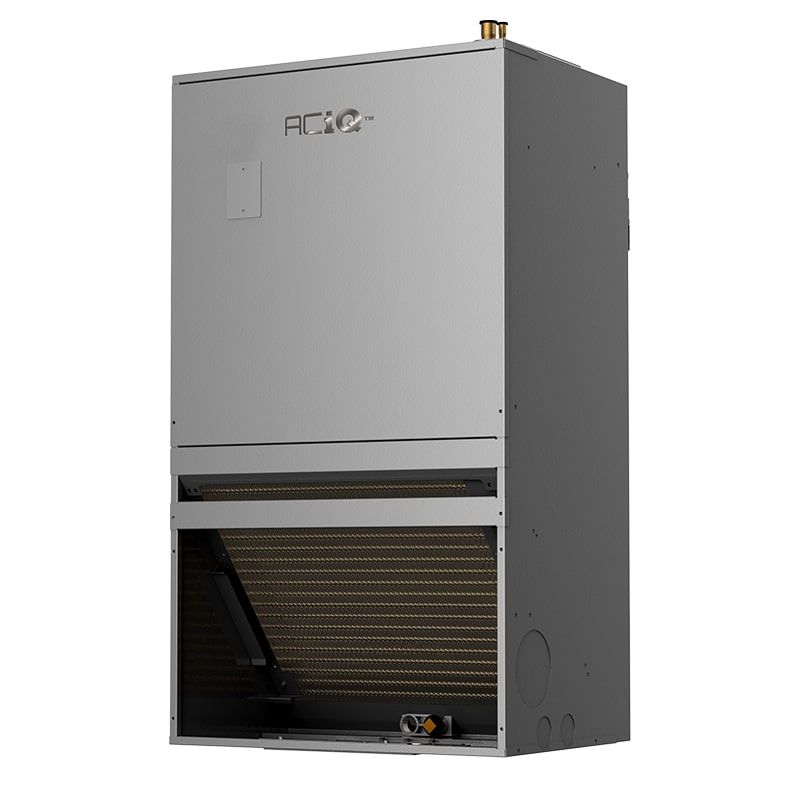

3 Ton Wall Mounted ACiQ Air Handler -R410A

The ACiQ Wall Mounted Central Air Handler is ideal for multi-tenant buildings with its compact design, perfect for closets. It features a digital EEV for precise refrigerant flow control and is designed for vertical wall mounting with an up-flow-only configuration. The included smart thermostat, equipped with Wi-Fi, communicates with both the inverter condenser outside and the variable air handler inside, allowing the system to self-adjust BTU output for maximum efficiency and comfort. It efficiently distributes heated and cooled air throughout your home by attaching to your existing ductwork.

Features:

• Digital EEV
• Wired smart thermostat with WiFi included
• Or – use your preferred 24v thermostat
• Variable DC blower
• Upflow-only configuration
• Manufactured Home and mobile home approved
• Designed to optimize performance from ACIQ inverter heat pumps and air conditioners

Installing the ACiQ Wall Mounted Central Air Handler is similar to installing any replacement air handler. Your technician will handle electrical, refrigerant, thermostat, and communication connections, as well as connecting to your return and supply ductwork. This air handler is designed for vertical wall mounting with an up-flow-only configuration. Any 24V thermostat with 2 stages of heating can control the system, but the supplied thermostat is recommended. You can add electric strip heat for backup on the coldest days. The intelligent control board displays fault codes if maintenance is needed.

NOTE: to function as a heat pump, this air handler must be installed with a condenser and other installation equipment, available at an additional cost if not already included in this product bundle. To use straight electric heating, an electric heater coil is necessary and is also available at an additional cost.
