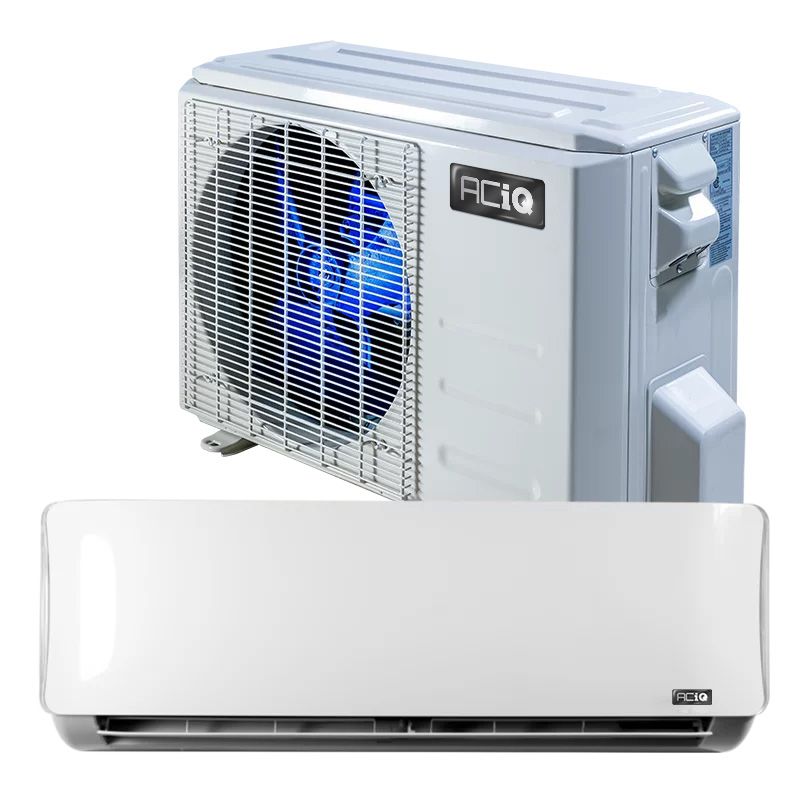

30,000 BTU 18.6 SEER2 ACiQ Single Zone Wall Mounted Mini Split System w/ WiFi

SAVE -$65.00
30,000 BTU 18.6 SEER2 ACiQ Single Zone Wall Mounted Mini Split System w/ WiFi

Required Fields *

Customer reviews
Rating:
5 out of 5
Out of stock
By

ACiQ

Out of stock

Model

ACiQ-30W-HP230B / ACiQ-30Z-HP230B

ID

139923

ACiQ's mini split systems are designed to give you intelligent technology and superior comfort, all at a reasonable cost. Single zone systems are the perfect choice for a basement or garage conversion, or any single space in your home that needs a boost.
Equipment Pad

E Liteis a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.

  • High recycled plastic content
  • Subtle texture resists unit slide
  • Unaffected by UV or weather
  • Uniform ribbing transfers load evenly
  • Drillable for securing unit
  • Lightweight, yet rugged

No Return Policy

All sales of this product are final and are non-refundable.

Refrigerant Line Set with 3/8" and 5/8" Line Ends - 15 feet

Refrigerant line set (pair) for mini split systems, liquid line size 3/8 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

  • One pair, heavy duty refrigerant lines
  • Flared line ends
17" Wall Mount Bracket for Mini Split Systems

This wall mount bracket is perfect for outdoor mini split condensers. The length of the the wall bracket arms are 17” long. The condensing unit is mounted onto the L-shaped brackets and fastened using the bolts and anti-vibration washers provided.

Features:
  • 17” Arm Length
  • Weight capacity of 220 lbs per arm
  • Bolts and anti-vibration washers included

No Return Policy

All sales of this product are final and are non-refundable.

Refrigerant Line Set with 3/8" and 5/8" Line Ends - 25 feet

Refrigerant line set (pair) for mini split systems, liquid line size 3/8 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

  • One pair, heavy duty refrigerant lines
  • Flared line ends
Condenser Risers - 4" x 18" - 2 Pack

Provides simple and secure mounting for small and large piping systems, ductwork runs, cable trays and smaller equipment such as condensers. Linear track offers adjustable mounting. Manufactured from exterior grade materials.

Features

  • Ideal for piping, duct runs, cable trays and condensers
  • Weather resistant PVC
  • Linear track holds 3/8" hex head bolts
  • Two 7/8" long bolts included
  • Weighs up to 397 Ib
Refrigerant Line Set with 3/8" and 5/8" Line Ends - 30 feet

Refrigerant line set (pair) for mini split systems, liquid line size 3/8 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

  • One pair, heavy duty refrigerant lines
  • Flared line ends
Equipment Pad and Risers Kit

E Lite Condenser Pad and Risers

E Lite Condenser Pad

E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.

Key Features:

  • Reliable Support: Abundance of ridges for stable ground support.
  • Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
  • Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
  • Simple Appearance: Gray color with size labels.
  • Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.

E Lite Risers

E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.

Key Features:

  • Weather Resistance: Made from tough PVC for long-lasting performance.
  • Secure Setup: The track securely holds bolts in place.
  • Bolts Included: Each set comes with two bolts.
  • Strong Support: Capable of handling loads of up to 397 pounds.

E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.

No Return Policy

All sales of this product are final and are non-refundable.

Refrigerant Line Set with 3/8" and 5/8" Line Ends - 35 feet

Refrigerant line set (pair) for mini split systems, liquid line size 3/8 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 35 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

  • One pair, heavy duty refrigerant lines
  • Flared line ends
Refrigerant Line Set with 3/8" and 5/8" Line Ends - 50 feet

Refrigerant line set (pair) for mini split systems, liquid line size 3/8 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

  • One pair, heavy duty refrigerant lines
  • Flared line ends
More Information
30,000 BTU ACiQ Wall Mount Air Handler - R410A
FeatureSpec
SKUACIQ-30W-HP230B
Weight (in lbs)50.49
Brand/ManufacturerACiQ
Cooling BTU30000 BTU
Heating BTU30000 BTU
Maximum CFM795
Decibel Level (dBA)60
Electric HeatHeat Pump
RefrigerantR410A
Liquid Line3/8"
Suction Line5/8"
Electrical208/230V 1 Phase 60 Hz
BTU/Tonnage30,000 BTU/2.5 Ton
Mini Split TypeWall Mounted
Zone CompatibilitySingle Zone
Length49.57"
Height14.25"
Depth11.10"
Warranty12 year compressor, 7 year parts with online registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
ACIQ 30,000 BTU R410A 18.6 SEER2 Single Zone Condenser
FeatureSpec
SKUACIQ-30Z-HP230B
Refrigerant Charge25'
Weight (in lbs)158.95
AHRI Certificate Number210857313
Brand/ManufacturerACiQ
Cooling BTU30000 BTU
Heating BTU30000 BTU
Decibel Level (dBA)60
Electric HeatHeat Pump
RefrigerantR410A
HSPF8.7
HSPF26.8
SEER2 (Efficiency)18.6
EER210.5
Compressor TypeRotary
Liquid Line3/8"
Suction Line5/8"
Electrical208/230V 1 Phase 60 Hz
Max Breaker Size30
Min. Breaker Size23
BTU/Tonnage30,000 BTU/2.5 Ton
Mini Split TypeWall Mounted
Zone CompatibilitySingle Zone
Length37.24"
Height31.89"
Depth16.14"
Warranty12 year compressor, 7 year parts with online registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 3/8" and 5/8" Line Ends - 15 feet
FeatureSpec
SKU221885
Weight (in lbs)15
Brand/ManufacturerOnline Supply
UPCna
Length25'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 3/8" and 5/8" Line Ends - 25 feet
FeatureSpec
SKU366426
Weight (in lbs)25
Brand/ManufacturerOnline Supply
UPCna
Length25'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 3/8" and 5/8" Line Ends - 30 feet
FeatureSpec
SKU216748
Weight (in lbs)30
Brand/ManufacturerOnline Supply
UPCna
Length30'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 3/8" and 5/8" Line Ends - 35 feet
FeatureSpec
SKU366427
Weight (in lbs)35
Brand/ManufacturerOnline Supply
UPCna
Length35'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 3/8" and 5/8" Line Ends - 50 feet
FeatureSpec
SKU366428
Weight (in lbs)45
Brand/ManufacturerOnline Supply
UPCna
Length50'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
E Lite Equipment Pad 18" x 38" x 3"
FeatureSpec
SKUEL1838-3
Weight (in lbs)16
Brand/ManufacturerOnline Supply
UPCna
Height3"
Width18"
Depth38"
Safety InformationPROPOSITION 65 WARNING
17" Wall Mount Bracket for Mini Split Systems
FeatureSpec
SKUHW-600
Weight (in lbs)9.2
Brand/ManufacturerOnline Supply
Length17"
Height20"
Width6"
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Condenser Risers - 4" x 18" - 2 Pack
FeatureSpec
SKU87762
Weight (in lbs)5
Brand/ManufacturerOnline Supply
E Lite Equipment Pad and Risers Kit 18" x 38" x 3"
FeatureSpec
SKU87762 / EL1838-3
Weight (in lbs)25
Brand/ManufacturerOnline Supply
UPCna
Height3"
Width18"
Depth38"
Safety InformationPROPOSITION 65 WARNING
Top reviews
  1. MINI SPLIT INSTALL
    Quality
    100%
    Service
    100%
    Price
    100%
    INSTALLED MINI SPLIT IN A FEW HOURS AND WORKS GREAT AND DELIVERED QUICKLY

    Review by

    Posted on

Customer Questions
No Questions
Did you find what you were looking for?
Why Choose ACiQ?
Why Choose ACiQ?

ACiQ designs AC systems that are based on principles learned from nature: clean, energy-efficient, and quiet. ACiQ systems are built in a such a way that they are easily adapted to fit multiple variations a homeowner needs. ACiQ offers technology in mini-split and full split inverter system offerings that provide the smartest way to buy and save on your home’s comfort solution, so that it meets the needs of your family. ACiQ specializes in home comfort, regardless of your needs.
