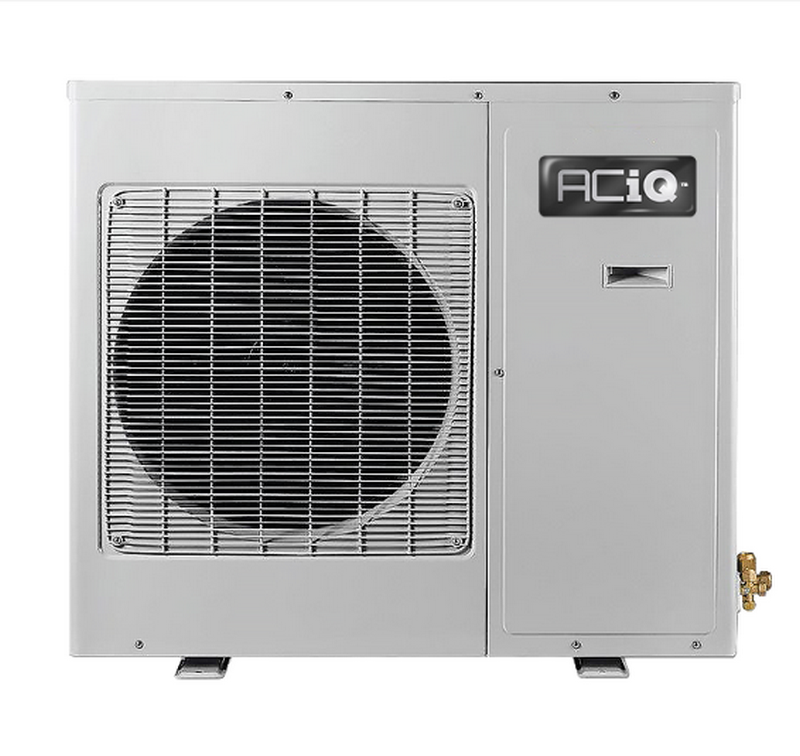

36,000 BTU 18 SEER ACiQ Single-Zone Mini Split Outdoor Unit – R410A
ACiQ SC-36ZGLD-HP230B 36,000 BTU Outdoor Condenser Unit
Important: This outdoor unit must be paired with compatible indoor units to function (sold separately).
Key Specifications
Cooling Capacity: 33,600 BTU/h
Heating Capacity: 34,600 BTU/h
SEER: 18
EER: 8.2
HSPF: 9
Refrigerant: R-410A
Voltage: 208/230V, 1 Phase, 60 Hz
Compressor Type: Rotary
Maximum CFM: 412–736 CFM
Decibel Level: 65 dBA
Liquid Line: 1/4"
Suction Line: 5/8"
Drain Line: 5/8"
Max Breaker Size: 40 Amps
Min Breaker Size: 24 Amps
Line Set Length: 10–98 feet
Outdoor Temperature Range (Cooling): 0°F – 115°F
Outdoor Temperature Range (Heating): -22°F – 75°F
Dimensions (H × W × D): 31.1" × 38.6" × 15.2"
Weight: 172 lbs
Compatible Indoor Units: ACiQ SC-36WGLD-HP230B and other ACiQ single-zone units
Features & Benefits
Inverter Technology for energy-efficient and consistent performance
Low Ambient Heating for reliable operation in cold climates
Durable Construction with acrylic resin fin coating for environmental protection
Quiet Operation for near-silent comfort
Wi-Fi Compatibility for remote control and monitoring
Longer life, longer warranty
Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. Register equipment at ACiQ.com to extend warranty protection to 7 years parts, 12 years compressor.
Quality Construction
State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life. Most models have low ambient heating and cooling.

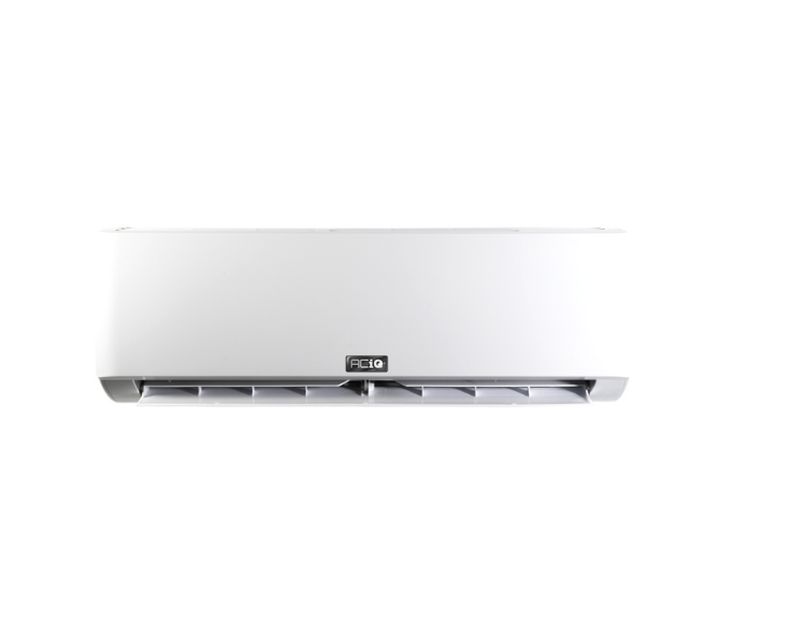

36,000 BTU ACiQ Wall Mount Air Handler - R410A
Enhanced Comfort
ACiQ single zone air handler constantly monitors return air to maintain your setpoint temperature as weather conditions change throughout the day and night.
Efficient cooling from 0°F to 115°F outdoor temperatures
Efficient heating from -4°F to 75°F outdoor temperatures
Quiet operation at even the highest workloads
Soft LED display for temperature, mode change, diagnostic alerts
Timer function, Sleep Mode, Energy Save mode
Information at a glance
ACiQ wall mount air handlers have a soft LED display on the front cover showing temperature, as well as mode changes and diagnostic alert codes.
Wi-Fi Options
ACiQ wall mount air handlers have native Wi-Fi capability. To control via smartphone or tablet, simply download the Gree + app from the app store or Google Play.
Please note: in order to function, this air handler must be installed with a condenser and other installation equipment, available at an additional cost if not already included in this product bundle.
Quiet Comfort
Every ACiQ system is precision engineered to quickly achieve set temperature and hold it there, no matter what the weather is outside. With whisper quiet indoor and outdoor units, ACiQ never intrudes on your peace and quiet.
Smartphone App
In addition to the handheld or wired remote that is already included, wall mounted units are WiFi ready, and can be controlled from anywhere with a free app on your tablet or smartphone.
Installation and Maintenance
ACiQ multi zone condensers are pre-charged with R410-A refrigerant for 25' per air handler connection. In many cases, no additional refrigerant is needed. All units are run-tested at the factory for years of trouble-free performance. Troubleshooting is easy thanks to unit's self diagnosing control board with alerts that are sent to each connected air handler.
E Lite Equipment Pad 18" x 38" x 3"
E Liteis a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.
High recycled plastic content
Subtle texture resists unit slide
Unaffected by UV or weather
Uniform ribbing transfers load evenly
Drillable for securing unit
Lightweight, yet rugged
No Return Policy
All sales of this product are final and are non-refundable.
E Lite Equipment Pad and Risers Kit 18" x 38" x 3"
E Lite Condenser Pad and Risers
E Lite Condenser Pad
E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.
Key Features:
Reliable Support: Abundance of ridges for stable ground support.
Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
Simple Appearance: Gray color with size labels.
Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.
E Lite Risers
E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.
Key Features:
Weather Resistance: Made from tough PVC for long-lasting performance.
Secure Setup: The track securely holds bolts in place.
Bolts Included: Each set comes with two bolts.
Strong Support: Capable of handling loads of up to 397 pounds.
E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.
No Return Policy
All sales of this product are final and are non-refundable.
Wall Mount Bracket for Mini Split Systems
This wall mount bracket is perfect for outdoor mini split condensers. The length of the the wall bracket arms are 17” long. The condensing unit is mounted onto the L-shaped brackets and fastened using the bolts and anti-vibration washers provided.
Features:
17” Arm Length
Weight capacity of 220 lbs per arm
Bolts and anti-vibration washers included
No Return Policy
All sales of this product are final and are non-refundable.
Condenser Risers - 4" x 18" - 2 Pack
Provides simple and secure mounting for small and large piping systems, ductwork runs, cable trays and smaller equipment such as condensers. Linear track offers adjustable mounting. Manufactured from exterior grade materials.
Features
Ideal for piping, duct runs, cable trays and condensers
Weather resistant PVC
Linear track holds 3/8" hex head bolts
Two 7/8" long bolts included
Weighs up to 397 Ib
Installation Kit for Condensers - Accessory Set
Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.
Key Features:
✔ All-in-One Kit: Includes key accessories for a professional-grade installation. ✔ Enhanced System Protection: Features a surge protector and disconnect safety switch for added safety. ✔ Reliable Electrical Connections: Comes with a whip and charging adapter to ensure proper power supply. ✔ Secure Wall Penetration:Telescoping wall sleeve protects and stabilizes refrigerant and electrical lines. ✔ HVAC Professional Recommended: Ideal for new installations and system replacements.
What’s Included:
1/2" x 6' Electrical Whip – SKU: 84136
60A Non-Fused Disconnect – SKU: 83335
Surge Protector – SKU: ICM517
CPS Charging Adapter – SKU: 87-AD87
Telescoping Wall Sleeve – SKU: NFP-75
Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!
Refrigerant Line Set with 1/4" and 5/8" Line Ends - 35 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 35 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
One pair, heavy duty refrigerant lines
Flared line ends
Refrigerant Line Set with 1/4" and 5/8" Line Ends - 25 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends,
length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line
and the suction line.
Features:
One pair, heavy duty refrigerant lines
Flared line ends
Refrigerant Line Set with 1/4" and 5/8" Line Ends - 50 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends,
length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line
and the suction line.
Features:
One pair, heavy duty refrigerant lines
Flared line ends
Refrigerant Line Set with 1/4" and 5/8" Line Ends - 30 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
One pair, heavy duty refrigerant lines
Flared line ends
Refrigerant Line Set with 1/4" and 5/8" Line Ends - 15 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends,
length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line
and the suction line.
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.

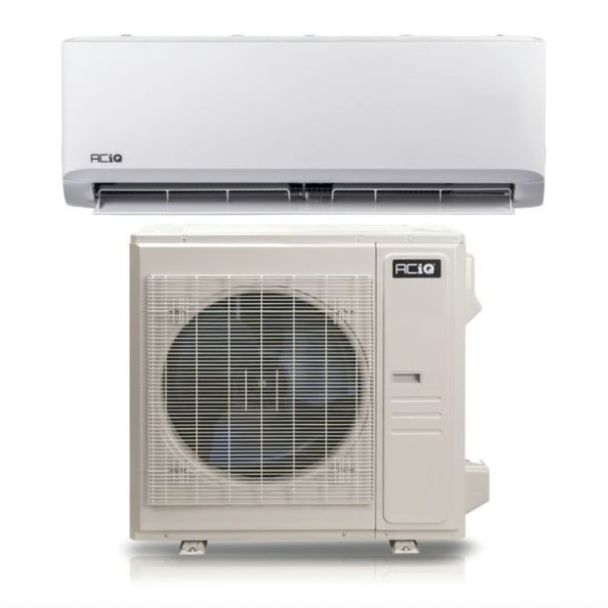

36,000 BTU ACiQ Wall Mount Single Zone Air Handler w/ WiFi - R410A
SKU
SC-36WGLD-HP230B
Weight
42.000000
Manufacturer
ACiQ
Product Features
WiFi
Additional Information
Heat Pump
Additional Information
Maximum Line Set Length: 98'
Additional Information
Minimum Line Set Length: 10'
Additional Information
Drain: 5/8"
Cooling BTU
33,600
Heating BTU
34,600
Maximum CFM
412-736 CFM
Decibel Level (dBA)
Indoor Unit: 37-54 dB(A) | Outdoor Unit: 65 dB(A)
Electric Heat
Heat Pump
Energy Star
No
Refrigerant
R410A
SEER
23-24
EER
8.2
Compressor Type
Rotary
Liquid Line
1/4"
Suction Line
5/8"
Electrical
208/230V 1 Phase 60Hz
Electric Phase Filter
Single Phase
Max Breaker Size
40 Amps
Min. Breaker Size
24 Amps
BTU/Tonnage
36,000 BTU/3 Ton
Mini Split Type
Wall Mounted
Min/Max Outdoor Temp for Heating
-31F - 75F
Min/Max Outdoor Temp for Cooling
0F - 115F
Zone Compatibility
Single Zone
Height
Indoor Unit: 12.8" | Outdoor Unit: 31.1"
Width
Indoor Unit: 53.1" | Outdoor Unit: 38.6"
Depth
Indoor Unit: 10" | Outdoor Unit: 14.5"
Additional Info
Indoor Unit Weight: 53.1 lbs | Outdoor Unit Weight: 172 lbs
Warranty
12 year compressor, 7 year parts with online registration
