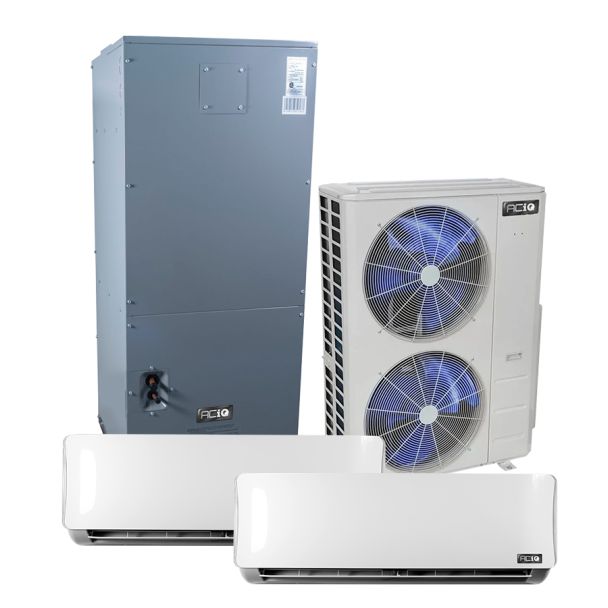

36,000 BTU ACiQ 3- Zone Wall Mounted Mini Split System w/ Central Air Handler 9+9+18

Platinum Performance

ACiQ Platinum air handlers can be used with any ACiQ Multizone condenser or the Platinum Single Zone condenser to create a highly efficient, Hyper Heat system. This air handler can handle small to medium sized rooms using adaptive technology to constantly monitor and maintain your ideal temperature no matter what the weather outside.

• 9,000 BTU wall mounted air handler with included remote control
• WiFi capable using free Net Home Plus app , Google Home or Alexa
• Easier maintenance and installation
• Multizone compatible heat or cool multiple rooms on one outdoor unit
• Enhanced Dry mode, intelligent sleep mode, power save mode.

Intelligent Heating and Cooling

The ACiQ-09W-HH-MB air handler includes a soft LED display on the front of the unit giving you information at a glance. The display shows room temperature by default but can also show temperature setpoint changes and mode changes. To ensure your unit runs properly throughout its lifetime, this display will also show any error codes from its self-diagnosing control board. The display can be switched off if desired, and the included smart remote has a built-in LCD display to show these notifications as well.

WiFi Options

ACiQ is WiFi ready! The wall mounted air handlers come with everything you need to control your home's heating and cooling via smart device (iOS or Android) from anywhere in the world. ACiQ is also compatible with Amazon Alexa and Google Assistant.

Please note that in order to function, this air handler must be installed with a condenser and other installation equipment, available at an additional cost if not already included in this product bundle.

Description

The Ductless Multi Zone air handlers seamlessly connect to your existing ductwork, allowing you to combine ducted heating and cooling with traditional mini split air handlers. This comprehensive system, powered by a single outside condenser, ensures maximum comfort, energy efficiency, and zoned control for independent temperature regulation in different areas of your home. The indoor units draw power from the outdoor condenser, eliminating the need for additional circuits unless you choose to install optional electric backup heat. These air handlers are particularly suitable for homes that have existing ductwork in some areas but lack it in others, such as finished basements, attics, or additions.

Features

• 18,000 BTU, 1.5 Ton central ducted air handler
• Matches with Multi Zone and Platinum Single Zone condensers
• Can be used as part of a Multi Zone system with other air handlers
• Variable DC blower
• Upflow, downflow, horizontal left or right
• Manufactured home and mobile home approved
• Wired controller included, with remote control for setup
• Can be wired to 24V thermostats - see Quick Start Guide below
• Wifi compatible with optional KJR-120N controller

E Liteis a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.

• High recycled plastic content
• Subtle texture resists unit slide
• Unaffected by UV or weather
• Uniform ribbing transfers load evenly
• Drillable for securing unit
• Lightweight, yet rugged

No Return Policy

All sales of this product are final and are non-refundable.

This wall mount bracket is perfect for outdoor condensers. The length of the wall bracket arms are 30" long. The condensing unit is mounted onto the L-shaped brackets and fastened using bolts and anti-vibration washers (not included with brackets).

Features:

• Steel: 10 GA
• Powder-coated grey Finish
• Load rating: 600 lbs per pair
• Holes will accommodate anchors for installation
• Warranty: 1 year
• ACB line of wall brackets are approved by the Florida Building Commission and are High Velocity Hurricane Zone (HVHZ) approved. (See product certification documentation for complete details.)

No Return Policy

All sales of this product are final and are non-refundable.

E Lite Condenser Pad and Risers

E Lite Condenser Pad

E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.

Key Features:

• Reliable Support: Abundance of ridges for stable ground support.
• Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
• Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
• Simple Appearance: Gray color with size labels.
• Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.

E Lite Risers

E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.

Key Features:

• Weather Resistance: Made from tough PVC for long-lasting performance.
• Secure Setup: The track securely holds bolts in place.
• Bolts Included: Each set comes with two bolts.
• Strong Support: Capable of handling loads of up to 397 pounds.

E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.

No Return Policy

All sales of this product are final and are non-refundable.
