Customer Reviews

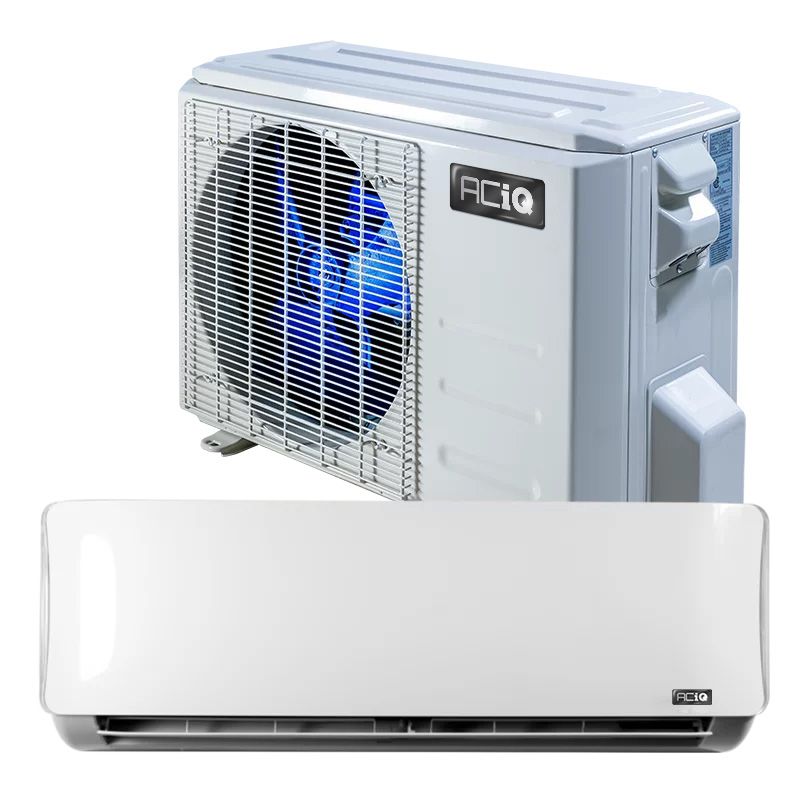

36,000 BTU 17.5 SEER ACiQ Single Zone Wall Mounted Mini Split System w/ WiFi

By

ACiQ

In Stock - Ready to Ship
Model

ACiQ-36W-HP230B / ACiQ-36Z-HP230B

ID

84666

Rating:
100 % of 100
Availability: In Stock - Ready to Ship

Authorized ACiQ Dealer

AHRI Certified

AHRI Number:207825530

Suggested Retail $3,738.46
Your Low Price $2,430.00
Bread Checkout

Free Shipping

Required Fields *

Customize 36,000 BTU 17.5 SEER ACiQ Single Zone Wall Mounted Mini Split System w/ WiFi
36,000 BTU ACiQ Single Zone Condenser (In Stock - Ready to Ship)
36,000 BTU ACiQ Single Zone Condenser (In Stock - Ready to Ship)   + $2,000.00
36,000 BTU ACiQ Single Zone Air Handler w/ WiFi (In Stock - Ready to Ship)
36,000 BTU ACiQ Single Zone Air Handler w/ WiFi (In Stock - Ready to Ship)   + $430.00
36,000 BTU 21.5 SEER ACiQ Stealth Single Zone Wall Mounted Mini Split System - ACiQ-36W-HP230 / ACiQ-36Z-HP230

$2,430.00

Accessories for this product

Description

ACiQ's mini split systems are designed to give you intelligent technology and superior comfort, all at a reasonable cost. Single zone systems are the perfect choice for a basement or garage conversion, or any single space in your home that needs a boost.

36,000 BTU ACiQ Single Zone Condenser

OVERVIEW

The ACiQ Single Zone series ACiQ-36Z-HP230B heat pump condenser features inverter technology allowing for superior, adaptive performance. Whether you are in cooling or heat mode, the ACiQ-36Z-HP230 uses as little power as possible without sacrificing comfort. That's why we say that ACiQ brings intelligence to your heating and cooling needs.

QUICK FACTS

  • Intelligent comfort at an affordable cost
  • Ideal for up to a large room (depending on climate)
  • 36,000 BTU, 17.5 SEER2 wall mounted mini split
  • Efficient cooling from 5 F to 122 F outdoor temperatures
  • Efficient heating from 5 F to 86 F outdoor temperatures
  • Gold Fin full-protection coating
  • Quiet operation at even the highest workloads

36,000 BTU, 17.5 SEER2

At a rated capacity of 36,000 BTU, the output of the ACiQ-36Z-HP230 when paired with a matching air handler can easily cover a larger space in ideal climates. Thanks to the unit's high-efficiency rotary compressor and an inverter-integrated motor, the ACiQ-36Z-HP230B has an efficiency of 17.5 SEER2. With such a high system SEER rating, the system can heat and cool almost any space suitable for its output much more efficiently than most standard central split systems.

Please note that this model of equipment does not have quick connect line set connectors and is not a DIY unit. Installation materials such as line sets, control wire, drain hose, whip and disconnect are not included, but are available at additional cost in the Accessories section on this page. You will need a professional to add more refrigerant and vacuum the lines as needed. The automated cleaning function will clean your system, but it is recommended to periodically clean the unit's filters manually.


ACIQ Quality ConstructionACIQ Quality Construction

Quality Construction

State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life. Most models have low ambient heating and cooling. Base pan heaters come standard on every multi-zone condenser.


Highest Efficiency

ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.

ACIQ Highest Efficiency CompressorACIQ Highest Efficiency Compressor

ACIQ Longer life, longer warrantyACIQ Longer life, longer warranty

Longer life, longer warranty

Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. Register equipment at ACiQ.com to extend warranty protection to 7 years parts, 12 years compressor.

36,000 BTU ACiQ Single Zone Air Handler w/ WiFi

Enhanced Comfort

ACiQ is a brand designed to bring intelligence to purchasing, installing, and maintaining your home's comfort. The ACiQ-36W-HP230B single zone air handler can handle large spaces using adaptive technology to constantly monitor and maintain your setpoint temperature as weather conditions change through day and night.

  • Able to cover up to a large sized room in ideal conditions
  • 36,000 BTU wall-mounted air handler with remote
  • Intelligent comfort at an affordable cost

Intelligent Heating and Cooling

The ACiQ-12W-HP230B air handler is designed with a soft LED display on the front of the unit giving you information at a glance. The display shows room temperature by default but can also show temperature setpoint changes and mode changes. To ensure your unit runs properly throughout its lifetime, this display will also show any error codes from its self-diagnosing control board. The display can be switched off if desired, and the included smart remote has a built-in LCD display to show these notifications as well.

WiFi Options

ACiQ is WiFi ready! The wall mounted air handlers come with everything you need to control your home's heating and cooling via smart device (iOS or Android) from anywhere in the world. ACiQ is also compatible with Amazon Alexa and Google Assistant.

Please note that in order to function, this air handler must be installed with a condenser and other installation equipment, available at an additional cost if not already included in this product bundle.


ACIQ Wall Mount Mini-SplitACIQ Wall Mount Mini-Split

Wall Mounted

Traditional wall-mounted air handlers are the most popular ductless choice  due to low cost and ease of installation.  Wall mounted units are located high on an outside wall, with refrigerant lines and condensation drain hose exiting the back through a 3" wall penetration.  Return air is brought in through vents in the top of the unit, and cooled or heated air exits the lower front through a sweepable louver.  Wall mounted air handlers are WiFi compatible and can be controlled by the free NetHome Plus app or by voice assistants such as Alexa or Google Home.


Smartphone App

In addition to the handheld or wired remote that is already included, wall mounted units are WiFi ready, and can be controlled from anywhere with a free app on your tablet or smartphone.

ACIQ Smartphone AppACIQ Smartphone App

ACIQ Quiet Comfort Wall MountACIQ Quiet Comfort Wall Mount

Quiet Comfort

Every ACiQ system is precision engineered to quickly achieve set temperature and hold it there, no matter what the weather is outside. With whisper quiet indoor and outdoor units, ACiQ never intrudes on your peace and quiet.

Refrigerant Line Set with 3/8" and 5/8" Line Ends - 15 feet

Refrigerant line set (pair) for mini split systems, liquid line size 3/8 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

  • One pair, heavy duty refrigerant lines
  • Flared line ends
Refrigerant Line Set with 3/8" and 5/8" Line Ends - 25 feet

Refrigerant line set (pair) for mini split systems, liquid line size 3/8 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

  • One pair, heavy duty refrigerant lines
  • Flared line ends
Refrigerant Line Set with 3/8" and 5/8" Line Ends - 30 feet

Refrigerant line set (pair) for mini split systems, liquid line size 3/8 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

  • One pair, heavy duty refrigerant lines
  • Flared line ends
Refrigerant Line Set with 3/8" and 5/8" Line Ends - 35 feet

Refrigerant line set (pair) for mini split systems, liquid line size 3/8 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 35 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

  • One pair, heavy duty refrigerant lines
  • Flared line ends
Refrigerant Line Set with 3/8" and 5/8" Line Ends - 50 feet

Refrigerant line set (pair) for mini split systems, liquid line size 3/8 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

  • One pair, heavy duty refrigerant lines
  • Flared line ends
Diversitech E Lite Equipment Pad 18" x 38" x 3"

E Liteis a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.

  • High recycled plastic content
  • Subtle texture resists unit slide
  • Unaffected by UV or weather
  • Uniform ribbing transfers load evenly
  • Drillable for securing unit
  • Lightweight, yet rugged
Wall Mount Bracket for Mini Split Systems

This wall mount bracket is perfect for outdoor mini split condensers. The length of the the wall bracket arms are 18 1/4" long. The condensing unit is mounted onto the L-shaped brackets and fastened using the bolts and anti-vibration washers provided.

Features:
  • 18 1/4" Arm Length
  • Weight capacity of 220 lbs per arm
  • Bolts and anti-vibration washers included

Product Specifications

More Information
36,000 BTU ACiQ Single Zone Condenser
SKU ACiQ-36Z-HP230B
Refrigerant Charge 25'
Weight (in lbs) 158.950000
AHRI Certificate Number 207825530
Brand/Manufacturer ACiQ
HSPF 10
HSPF2 8.7
Cooling BTU 36000 BTU
Heating BTU 36000 BTU
Decibel Level (dBA) 63.5
Electric Heat Heat Pump
Refrigerant R410A
SEER (Efficiency) 16-17
SEER2 (Efficiency) 17.5
EER 8.5
Compressor Type Rotary
Liquid Line 3/8"
Suction Line 5/8"
Electrical 208/230V 1 Phase 60 Hz
Max Breaker Size 35
Min. Breaker Size 28
Tonnage 3 Ton
BTU/Tonnage 36,000 BTU/3 Ton
Mini-Split Type Wall Mounted
Zone Compatibility Single Zone
Height 31.89"
Width 37.24"
Depth 16.14"
Warranty 12 year compressor, 7 year parts with online registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information PROPOSITION 65 WARNING
36,000 BTU ACiQ Single Zone Air Handler w/ WiFi
SKU ACiQ-36W-HP230B
Weight (in lbs) 52.690000
AHRI Certificate Number 206315636
Brand/Manufacturer ACiQ
Cooling BTU 36000 BTU
Heating BTU 36000 BTU
Maximum CFM 853
Decibel Level (dBA) 52
Electric Heat Heat Pump
Energy Star No
Refrigerant R410A
Liquid Line 3/8"
Suction Line 5/8"
Electrical 208/230V 1 Phase 60 Hz
BTU/Tonnage 36,000 BTU/3 Ton
Mini-Split Type Wall Mounted
Zone Compatibility Single Zone
Height 14.25"
Width 49.57"
Depth 11.10"
Warranty 12 year compressor, 7 year parts with online registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information PROPOSITION 65 WARNING
Refrigerant Line Set with 3/8" and 5/8" Line Ends - 15 feet
SKU 221885
Weight (in lbs) 45.000000
Brand/Manufacturer Online Supply
Length 25'
Height 1/2"
Width 1/2"
Safety Information PROPOSITION 65 WARNING
Refrigerant Line Set with 3/8" and 5/8" Line Ends - 25 feet
SKU 366426
Weight (in lbs) 45.000000
Brand/Manufacturer Online Supply
Length 25'
Height 1/2"
Width 1/2"
Safety Information PROPOSITION 65 WARNING
Refrigerant Line Set with 3/8" and 5/8" Line Ends - 30 feet
SKU 216748
Weight (in lbs) 45.000000
Brand/Manufacturer Online Supply
Length 30'
Height 1/2"
Width 1/2"
Safety Information PROPOSITION 65 WARNING
Refrigerant Line Set with 3/8" and 5/8" Line Ends - 35 feet
SKU 366427
Weight (in lbs) 45.000000
Brand/Manufacturer Online Supply
Length 35'
Height 1/2"
Width 1/2"
Safety Information PROPOSITION 65 WARNING
Refrigerant Line Set with 3/8" and 5/8" Line Ends - 50 feet
SKU 366428
Weight (in lbs) 45.000000
Brand/Manufacturer Online Supply
Length 50'
Height 1/2"
Width 1/2"
Safety Information PROPOSITION 65 WARNING
Diversitech E Lite Equipment Pad 18" x 38" x 3"
SKU EL1838-3
Weight (in lbs) 16.000000
Brand/Manufacturer Online Supply
Height 3"
Width 18"
Depth 38"
Safety Information PROPOSITION 65 WARNING
Wall Mount Bracket for Mini Split Systems
SKU HW-600
Weight (in lbs) 9.200000
Brand/Manufacturer Online Supply
Length 19 3/4"
Height 20"
Width 6"
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information PROPOSITION 65 WARNING

Reviews 4

Write Your Own Review
You're reviewing:36,000 BTU 17.5 SEER ACiQ Single Zone Wall Mounted Mini Split System w/ WiFi
Your Rating

Questions and Answers

Customer Questions
Who makes ACiQ?
ACiQ is made by one of the largest HVAC manufacturers in the world. With 150,000 employees in over 195 countries, their products improve the lives of millions of people around the globe. Their manufacturing is state of the art, with robotic assembly and computer assisted quality control. ACiQ has an extremely low rate of warranty return. With the features, performance and price it's the best value you can get on a mini split.
Is ACiQ better than Mitsubishi?
Mitsubishi makes great equipment, certainly. They were first to sell mini splits in the US, and they have a solid reputation. Yet ACiQ has higher SEER ratings, longer warranty, and extreme weather performance all the way down to -22! You can spend more on a mini split, but you can't get better value.
Who owns ACiQ?
1HVAC Energy is part of a family of companies with 80 years in the industry and a long reputation of putting customers first. They own ACiQ as well as a number of other quality brands.
Who will service it if something goes wrong?
You get lifetime phone support with every ACiQ mini split. Many problems can be handled by our experts without having to call in a serviceperson. If you need a serviceperson, ACiQ shares a manufacturer with Carrier mini splits. This means that highly trained technicians across the country are very familiar with these units.
