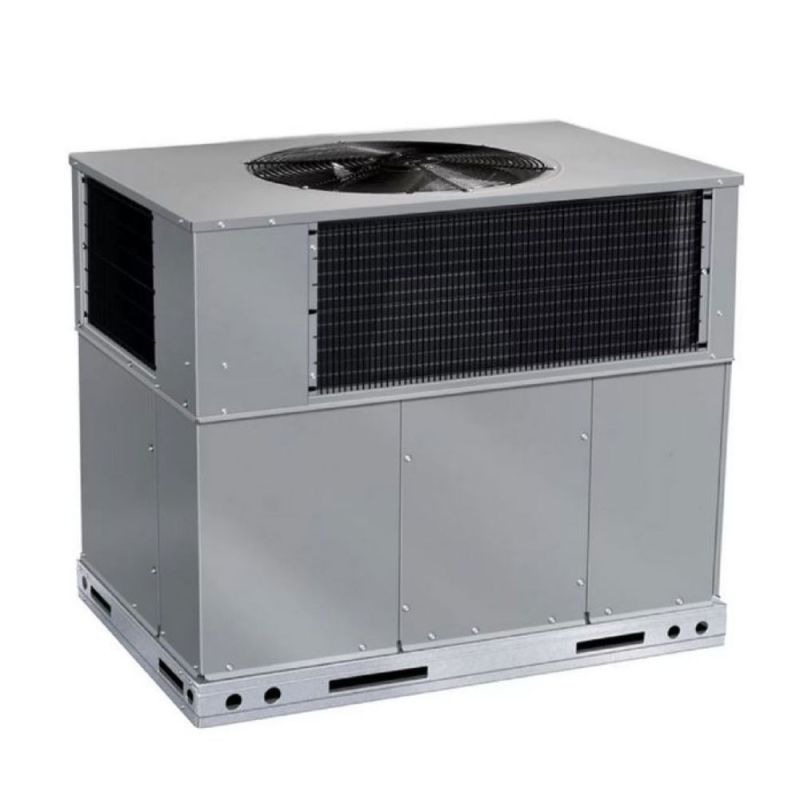

ACIQ 4 Ton 13.4 SEER2 90,000 BTU Gas Package Unit - R454B Downflow/Horizontal

All-in-One Gas Heating and Electric Cooling for Medium to Large Spaces

The PGB448090K000B is a 4-ton single-packaged gas furnace and air conditioner combination designed to deliver dependable year-round comfort from one self-contained outdoor unit. With 48,000 BTU of cooling capacity, 90,000 BTU of gas heating input, 13.4 SEER2 cooling efficiency, and 81.0% AFUE heating efficiency, it provides an efficient, space-saving solution for homes and light-commercial applications.

Key Features

• 4 Ton Cooling Capacity - Delivers 48,000 BTU of air conditioning for medium to large spaces.
• 90,000 BTU Gas Heating Input - Integrated natural-gas furnace provides reliable heating during colder weather.
• 13.4 SEER2 / 11.05 EER2 - Energy-efficient cooling performance with an 81.0% AFUE gas-furnace rating.
• Self-Contained Packaged Design - Combines the condenser, evaporator coil, blower, and gas furnace in one outdoor cabinet.
• Multi-Speed ECM Blower - Helps improve temperature control, airflow performance, and humidity management.
• Durable Outdoor Construction - Corrosion-resistant cabinet, raised coil design, and dense wire hail guard help protect against weather and debris.
• R454B Refrigerant - Lower global-warming-potential refrigerant with non-ozone-depleting properties.
• Versatile Installation - Suitable for rooftop or ground-level installation in downflow or horizontal configurations.

4 Tons of Cooling and 90,000 BTU of Heat

This packaged gas/electric system provides 4 tons, or 48,000 BTU, of cooling capacity along with 90,000 BTU of gas-heating input. Its single-stage scroll compressor and multi-speed ECM blower motor work together to deliver consistent cooling, effective humidity reduction, and dependable heating comfort. The integrated gas furnace uses a single-stage gas valve and direct spark ignition, which operates only when the thermostat calls for heat to help conserve fuel.

Efficient, Durable Performance

The PGB448090K000B offers 13.4 SEER2 and 11.05 EER2 cooling efficiency, along with 81.0% AFUE heating efficiency. Its stainless-steel tubular heat exchanger is designed for corrosion resistance and efficient heat transfer, while the corrosion-resistant aluminum coil and protective cabinet features help the unit withstand outdoor exposure. Sound-reducing features, including a vibration-reducing top panel and soft-mounted compressor and blower motor, support quieter operation.

Installation Versatility

This self-contained packaged unit is designed for either downflow or horizontal applications and can be installed at ground level or on a rooftop. The unit is factory configured for horizontal installation and includes two horizontal duct covers; downflow operation can be configured in the field to accommodate vertical ductwork connections. A compatible heat/cool thermostat with humidity sensing is recommended for full system control.

R454B Refrigerant

This system uses R454B refrigerant, a lower-global-warming-potential refrigerant that maintains non-ozone-depleting properties. It supports efficient cooling performance while aligning with evolving environmental standards.

What's Included

• 4 Ton Packaged Gas Furnace and Air Conditioner Combination
• Owner's Manual, Submittal, and Other Documents

Recommended Accessories

These accessories are optional but may be required or recommended depending on the installation.

• Roof Curbing - Provides a secure, weather-resistant mounting base for rooftop installations.
• Condenser Mounting Equipment - Elevates the unit above ground level to help protect it from moisture, debris, and base corrosion.
• Thermostat - A heat/cool thermostat with humidity sensing is recommended for proper system operation and comfort control.
