ACIQ 5 Ton 130,000 BTU 13.4 SEER2 Light Commercial Gas Packaged Unit - Medium Heat | 208/230V 3 Phase - R454B - Single Stage

Reliable 5-Ton Gas/Electric Packaged Rooftop Unit for Light Commercial Applications with X-Vane™ Technology

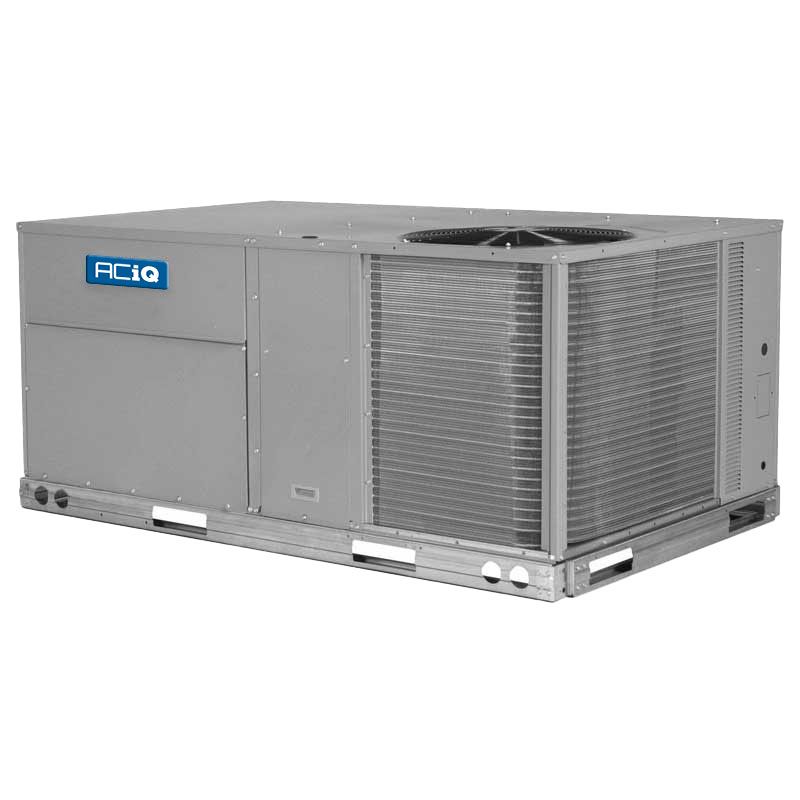

The ACiQ RGF060HE2A0AAA is a 5-ton commercial gas/electric packaged rooftop unit designed to provide reliable year-round heating and cooling for light commercial applications. Combining medium-heat gas heating with electric cooling, this all-in-one rooftop system uses R-454B refrigerant and a direct-drive X-Vane™ indoor fan system to provide dependable comfort while simplifying installation and service.

Key Benefits

• 13.4 SEER2 / 15.5 IEER Platform Efficiency – Provides efficient seasonal and part-load cooling performance for light commercial applications.
• Medium-Heat Gas Heating – Provides gas-fired heating with an 80% efficiency rating for dependable cold-weather operation.
• Electric Cooling – Provides 5-ton nominal cooling capacity with single-stage scroll compressor operation.
• R-454B Refrigerant – Uses a lower-GWP A2L refrigerant designed for current-generation commercial packaged equipment.
• Direct-Drive X-Vane™ Fan – Combines a Vane Axial fan with an electronically commutated motor, eliminating conventional belts, pulleys, blower bearings, and shafts.
• Convertible Airflow – Allows field conversion to horizontal airflow for greater installation flexibility.
• Packaged Rooftop Design – Combines gas heating, electric cooling, indoor air movement, and controls in one outdoor cabinet to help conserve indoor space.
• Service-Friendly Construction – Provides easy-access service panels, an updated unit control board, and a corrosion-resistant composite drain pan.

Medium-Heat Gas Heating

The integrated gas heating system provides dependable heating for light commercial applications with an 80% efficiency rating. The medium-heat configuration is designed to provide the heating capacity required for commercial spaces while maintaining the convenience of a single packaged rooftop system.

5-Ton Cooling Performance

The RGF060HE2A0AAA is a 5-ton packaged gas/electric unit using electric cooling with a scroll compressor. The platform provides 13.4 SEER2 cooling efficiency, with an IEER rating of up to 15.5 depending on the applicable fan configuration. The unit uses R-454B refrigerant.

X-Vane™ Fan Technology and Efficiency

The direct-drive X-Vane™ fan system combines a Vane Axial fan with an electronically commutated motor. The beltless design eliminates conventional fan belts, pulleys, blower bearings, and shafts, helping simplify service and maintenance while providing efficient indoor-air movement.

Packaged Rooftop Installation Design

The packaged configuration integrates gas heating, electric cooling, indoor air movement, refrigeration components, and controls into one outdoor unit. The RGF060HE2A0AAA uses 208/230V, three-phase, 60 Hz electrical service and is designed for convertible airflow applications. The platform is also designed around the original RGF rooftop footprint to help support replacement installations.

Controls & Comfort

The RGF platform uses an updated unit control board with accessible control connections and intuitive fan adjustment. The system supports one- and two-stage cooling configurations across the RGF platform, while the direct-drive X-Vane™ fan provides controlled indoor airflow. Optional economizer, adaptive dehumidification, CO2 sensing, and fault-detection options are available for applicable installations.

Light Commercial Applications

The ACiQ RGF060HE2A0AAA is designed for light commercial rooftop applications requiring integrated gas heating and electric cooling. Its 5-ton capacity, medium-heat gas furnace, 208/230V three-phase electrical configuration, R-454B refrigerant, and direct-drive X-Vane™ fan make it suitable for commercial spaces requiring a packaged rooftop heating and cooling solution.

Service & Maintenance

The direct-drive X-Vane™ fan eliminates conventional belt and pulley components associated with belt-driven fan systems. Easy-access handles provide access to service panels, while the unit control board provides convenient access to control connections and troubleshooting points. The sloped, corrosion-resistant composite drain pan is designed to shed water and resist rust. Optional hinged panels and a fan/filter status switch are available for applicable installations.

Warranty

The ACiQ RGF060HE2A0AAA includes applicable manufacturer limited warranty coverage for the RGF packaged rooftop product family, including a 15-year limited warranty on stainless-steel heat exchangers, a 10-year limited warranty on aluminized heat exchangers, and parts coverage of up to 5 years under applicable warranty terms. Warranty duration and conditions vary by component, registration, jurisdiction, application, and applicable warranty certificate.

Recommended Accessories

• POL224 Economizer Controller – Optional economizer control for compatible outdoor-air applications.
• Hot Gas Re-Heat Adaptive Dehumidification – Optional dehumidification system for improved part-load humidity control.
• Non-Fused Disconnect – Optional electrical disconnect for applicable installations.
• Power Exhaust – Optional exhaust system for compatible economizer configurations.
• Condensate Overflow Switch – Optional condensate protection accessory.

Reliable Commercial Comfort with the ACiQ RGF060HE2A0AAA

Experience reliable year-round commercial comfort with the ACiQ RGF060HE2A0AAA. Combining medium-heat gas heating and 5-ton electric cooling with R-454B refrigerant and direct-drive X-Vane™ fan technology in one convertible packaged rooftop system.
