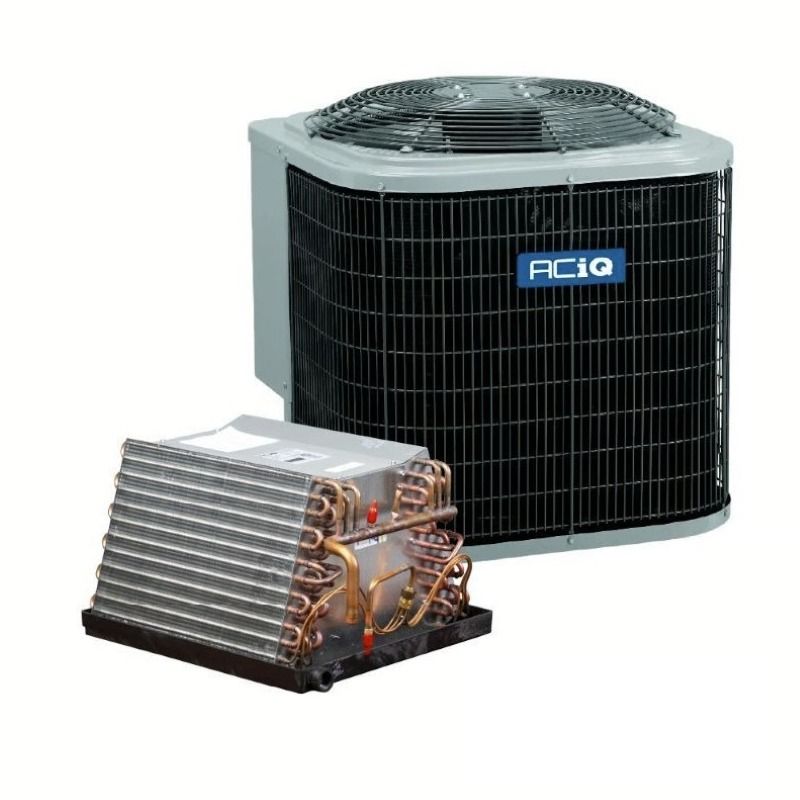

Our mobile home air conditioning system features an ACIQ air conditioner and mobile home coil. Plus you can add either a 30ft or 50ft copper line set.
ACiQ Standard Mitigation Refrigerant Detection System (RDS) Kit - R32 & R454B
ACiQ RDS Kit Features
Kit includes all components needed for RDS installation
Sensor wire length of 8 feet, and mitigation board power wire length 3 feet
Flexible installation location, ideal for installs on existing equipment
System designed to last the useful life of the evaporator coil
Optional relay for controlling additional components
ACIQ 3.5-5 Ton Uncased Downflow Mobile Home Coil with TXV - R454B
OVERVIEW
The ACIQ-MH59AU4VWEC coil is designed to be a perfect fit for many mobile and manufactured home HVAC split system applications. Designed with sweat fit/braze fittings and a sturdy, compact design, this downflow evaporator coil allows for a quick and easy installation process with compatible equipment.
QUICK FACTS
3.5 - 5 ton downflow evaporator coil
R454B-refrigerant compatible
Designed for mobile and manufactured home use only
AHRI certifiable with all brands of air conditioners and heat pumps
For use with manufactured homes furnaces
Sturdy and compact design
Rifled aluminum tubing with enhanced aluminum fins
Left-hand refrigerant and plumbing connections
Heavy duty polypropylene drain pans
Downflow plate kit included
3.5 - 5 Tons
The ACIQ-MH59AU4VWEC evaporator coil is rated to be compatible with condensers with 3.5 to 5 tons of heating and cooling. With its ability to be installed with either an AC-only condenser or a heat pump condenser, this unit is ideal for many applications. In some packages, this coil will be larger than its paired condenser, which will increase the overall efficiency of the entire unit, but the coil should never be smaller than its paired condenser.
Note: Do not use heavy duty plastic drain pans on oil furnaces or other applications where outlet temperatures may exceed 290°F +/-5°F. Specify metal drain pans for these applications.
5 Ton 13.8 SEER2 ACIQ Mobile Home Air Conditioner Condenser - R454B
OVERVIEW
The ACIQ R5A5S60AKAWA-MH is a standard AC-only mobile home condenser. Designed with comfort in mind and an inexpensive but higher-than-standard efficiency option for nearly any application, this condenser is considered a good all-around option for almost any application.
QUICK FACTS
Factory pre-charged with enough refrigerant for a 15-foot line set, ensuring proper performance and efficiency right out of the box.
5 Ton 13.8 SEER2 ACIQ Mobile Home Air Conditioner Condenser
Can cool a large house in average conditions
Single stage compressor
Pre-charged with R454B refrigerant
Filter drier included to be field-installed
5 Tons
The ACIQ R5A5S60AKAWA-MH mobile home air conditioner condenser has an output of 5 tons, generally enough to cool a large house in ideal climates. In many system configurations, the tonnage of the unit's paired coil or air handler will be larger in tonnage than this condenser, which maintains the efficiency of the unit. Please note that this condenser cannot function or provide any sort of heating on its own, and it needs an indoor coil or air handler to work. If you have any questions, please contact us.
13.8 SEER2
The ACIQ R5A5S60AKAWA-MH mobile home air conditioner condenser is rated at 13.8 SEER2, making it between 5-7% more efficient than standard 13.4 SEER2 units, saving you money in electric bills over the entire lifetime of your unit.
Warranty
ACIQ offers a 10 year parts warranty on this condenser. For these warranties to be upheld, the unit must be installed following your state and local codes, a new and certified coil must be installed at the same time, and the entire system must be registered online through the manufacturer.
Durability
The cabinet of ACIQ units are extremely durable. On the R5A5S60AKAWA-MH, there are reinforced corner posts and the internals of the unit are protected by an additional inlet grille, all to provide enhanced protection to the unit.
Disclaimer: This mobile home condenser contains R454B refrigerant, which is classified as an A2L refrigerant. To comply with safety standards, this unit must be paired with an R454B air handler or evaporator coil equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-888-557-9206 if you have any questions.
All ACIQ condensers come pre-charged with enough refrigerant for a 15-foot line set, making installation faster and more convenient. This pre-charged design saves installers time and reduces labor costs by eliminating the need for manual refrigerant charging. It also helps ensure the system starts with the correct amount of refrigerant, minimizing the risk of improper charging that could impact performance and efficiency. If a longer line set is required, your installer will need to add additional refrigerant to maintain optimal operation.
Upgrade to a Mobile Home System!
Upgrading to an HVAC system could mean saving thousands of dollars over its lifetime. We offer Mobile Home specific systems so you can get exactly what you need, nothing more. At HVACDirect.com, we make it easy to find the system you need with up to $0 down financing and an additional 3% discount on orders over $2,000!
Quiet Comfort
ACiQ has the power to keep things cool when temperatures rise. Every ACiQ condenser uses a scroll compressor for long life and efficiency operation. From entry level to high efficient, single stage, two stage and communicating models, every ACiQ Condenser keeps you cool year after year.
High Efficiency
ACIQ saves you money up front, but also over time by reducing energy bills. Models ranging from standard efficiency to high efficient models can provide you savings from 21% to 63% over older, 10 SEER condensers. Coil construction is either all aluminum or copper/aluminum (depending on model) for max efficiency.
Longer life, longer warranty
ACiQ condensers are 100% run-tested at the factory. Protective coatings on the fins mean long life even in harsh conditions. A filter drier is included to keep the system healthy. ACiQ’s extended warranty with online registration provides 10 year protection.
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
ACiQ Standard Mitigation Refrigerant Detection System (RDS) Kit - R32 & R454B
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
5 Ton 13.8 SEER2 ACIQ Mobile Home Air Conditioner Condenser - R454B
Feature
Spec
SKU
R5A5S60AKAWA-MH
Refrigerant Charge
15'
Weight (in lbs)
215
Brand/Manufacturer
ACiQ
Replaces
R4A5S60AKAWA
UPC
634707126413
Cooling BTU
60,000
Maximum CFM
3900
Decibel Level (dBA)
75
Motor RPM
1100
Horsepower
1/4 HP
Refrigerant
R454B
SEER2 (Efficiency)
13.8
Condenser Stages
Single Stage
Compressor Type
Scroll
Liquid Valve Size
3/8"
Suction Valve Size
7/8"
Electrical
208 / 230 V. 1 Phase 60 Hz
Max Breaker Size
50 Amps
Min. Breaker Size
31.1 Amps
Tonnage
5 Ton
Height
38 7/16"
Width
31 3/16"
Depth
31 3/16"
Warranty
10 Year Parts Limited Warranty with Online Registration
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Buyers report reliable cooling performance, with one homeowner noting the system keeps indoor temperature within 1°F of the thermostat setting, reduces electricity use by 20%, and cycles off for about 7 minutes after 15–17 minutes of runtime even during 30 days near 100°F, while another cut their electric bill in half. Feedback highlights quiet operation, fast and often undamaged delivery, DIY installations completed in a weekend saving $4,000 to over $6,000 compared to $8,800 contractor quotes, though some units arrived with dented coils, bent fins, wrong or missing parts, tracking difficulties, or required minor brazing modifications like adding a 3/8-inch liquid line coupling.
AI Generated from the text of customer reviews
Top reviews
Excellent
Quality
100%
Service
100%
Price
100%
Very Happy
Review byKeith
Posted on
It works good my ac blows cold now
Quality
100%
Service
100%
Price
100%
It did what I wanted it to do it’s okay
I got into an arguement with my family though when I read 3 ton I assume it was going to be very heavy so I spent money on a specialized tool to pick it up but when it showed up it wasn’t heavy in fact I could carry it myself I don’t like the fact my family argued with me about it but I wished I wasn’t a fool and assumed it was going to be 3 ton who even knows what the hell tonnage mean I just wish there was some kind of bigass bright letters and words saying it’s not actually 3 ton
Review byBen Dover
Posted on
Great equipment
Quality
100%
Service
100%
Price
100%
Unit arrived quickly with no damage. Works much more efficient than the one I replaced. Luckily, I got one before they were all gone!
Review byCool breeze
Posted on
Everything was great besides a dent in the coil. Looks like damage occurred before shipment .
Quality
80%
Service
100%
Price
100%
It took a hit hard enough to bend the wire grill and fins. The super nice shipping box was untouched . But when the thick corrugated shipping cardboard was removed, there was the dent which seemed to be there before it was shipped. The liquid line was bent (but not kinked) off to the side as well.
Was I happy about that ? No. But it needed to be put in service and I was glad to find a 410a unit at this point.
I can't see the dent from my house as they say. But it should have been a "scratch and dent special" in my opinion.
Review byKissed by the fork truck
Posted on
gem
Quality
80%
Service
80%
Price
80%
so far so good. I had to get a few parts made, but up and running!
Review byDd
Posted on
great product
Quality
100%
Service
100%
Price
100%
product arrived very quickly with no damage. works flawlessly much more efficient than the one i replaced.
Review byroger
Posted on
Good build quality.
Quality
100%
Service
100%
Price
80%
The AC started right up after finishing the brazing, purge and vacuum. The only minor thing is the 3/8" liquid side needs a coupling brazed on to get a strong connection. I like that a filter drier was included and the build quality was significantly better than the equipment I was ripping out.
